Our store offers a curated selection of genuine Japanese products. You can shop with complete peace of mind knowing that all our items are authentic. Please note that the instructions and manual for this product may only be available in Japanese.
1. KEY FEATURES:
- ◇A surprisingly bright high-intensity sensor laser has been born.In particular, the LDR-9sh series has "super" high brightness and emits a laser line that is one step brighter than high brightness.In addition, since a dot is illuminated at the center of each vertical and horizontal line, it is more visible and easier to find than lines without dots, especially in bright places.
- ◇It is an electronic leveling type laser marking device, which uses an electronic sensor to detect vibrations caused by vertical and horizontal vibrations, and a high-precision small motor automatically and quickly corrects it.
- ◇Compared to the gimbal method (magnetic braking method), there is less line wobbling, so it is effective at work sites where building vibrations occur, such as when working on high floors of buildings.
- ◇ Equipped with a "tilt mode" that allows diagonal irradiation of laser light.It allows for diagonal irradiation that can be maintained without blinking even if the laser is tilted.In addition, since a dot is irradiated at the center of the laser line, it can be used as a guide for determining the left and right slope.*Please use a commercially available tilted laser irradiation platform.

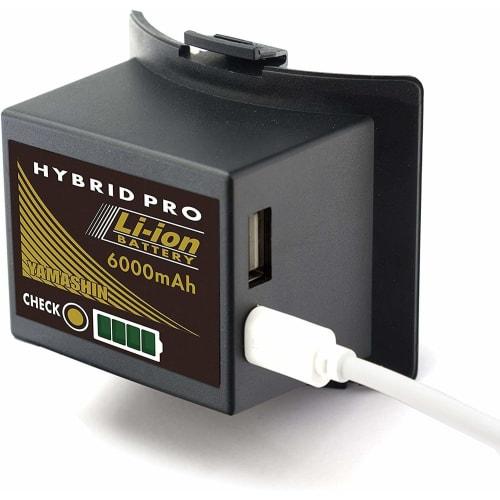

- ◇Since it uses 3 power supply methods, you can choose from 3 types of rechargeable lithium-ion batteries, AC 100V power supply, and AA batteries (4 pcs) to suit your work environment.In addition, the lithium-ion battery has a capacity of 6000 mAh, allowing it to be used for approximately 7 hours (approximately 3.5 hours for the high-brightness green laser LDR-9s and approximately 3 hours for the ultra-bright green laser LDR-9sh) even with full-line irradiation of the high-brightness laser line.
2. PRODUCT DESCRIPTION:

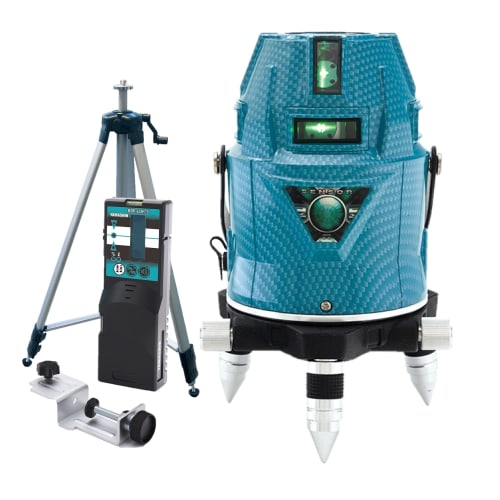

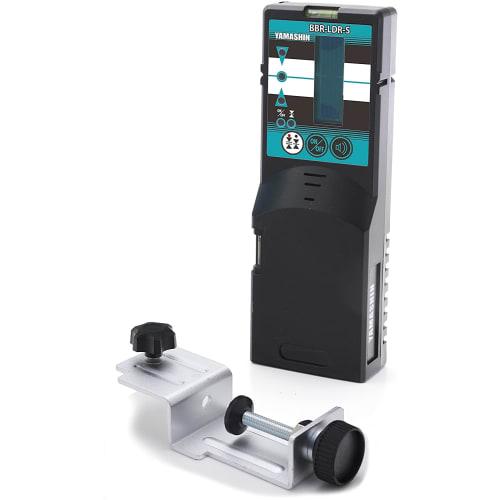

An electronic sensor detects the line shaking due to vertical and horizontal vibrations.A high-precision small motor automatically compensates.Compared to the gimbal (magnetic braking) method, line determination can be done quickly.It is effective at sites where shaking due to building vibrations occurs.A dot is irradiated on the cross section of vertical and horizontal lines and on all vertical lines.The specifications make it easy to find the line.High brightness sensor aqua green laser marking device 360 degree fine adjustment endless screw Dust and splash proof design.Equipped with tilt mode.Compatible with receiver.3 power supply type.Easy-to-see dot illumination (all lines) Center line Full horizontal line (360 degree illumination) 4 vertical lines (front vertical, back vertical, right vertical, left vertical) Vertical cross line.Large rectangular line background marking point Power supply: Rechargeable lithium-ion battery or 4 AA alkaline batteries, AC power supply [Body specifications] ■Light source: Visible light semiconductor laser 2.5mW or less 515nm (green) Background marking: 650nm (red) ■Laser safety standard: JIS class 2M ■Body dimensions: Main body Wφ130 x Base Wφ125 x H200mm■Usage time (lithium ion battery): Approximately 3.5 hours (all line irradiation) ■Line accuracy: 10m±1mm ■Right angle accuracy: 90°±0.012° ■Line width: Approximately 2.5mm at 10m ■Body weight: 1.32kg [Lithium ion battery specifications] ■DC input voltage: 3.7V ■Capacity: 6000mAh ■Operating temperature range: 0°C to 45°C ■Power consumption: 22.2Wh ■Standard: Li-ion 20 ■USB output: 1A 4.5V ■Charging time: Approximately 8 hours ■Dimensions: W71 x L57 x H64mm ■Weight: 143g
3. PRODUCT DIMENSIONS & WEIGHT:
- Weight: 7.13 kg
- Dimensions: 76.2 x 40.0 x 33.8 cm
4. SPECIFICATIONS:
