[Product Description]
●150kg class. Compatible with SU-STC model. Cold-resistant grease used.
●150kg class
●The SU-SKC model and SU-STC model have the same mounting height, so they can be used together.
●Cold-resistant grease used. (Usable up to -30°C)
[Other Specifications]
●Maximum Load (daN): 150 ●Wheel Diameter (mm): 125 ●Hardware Type: Fixed ●Mounting Hole Pitch (mm): 112 x 53 (100 x 56) ●Mounting Plate Dimensions (mm): 140 x 80 ●Mounting Height (mm): 165 ●Mounting Hole Diameter (mm): 11 ●Wheel Width (mm): 35 ●Axle Diameter (mm): 12 ●Material: Stainless steel hardware (SUS304), nylon wheels

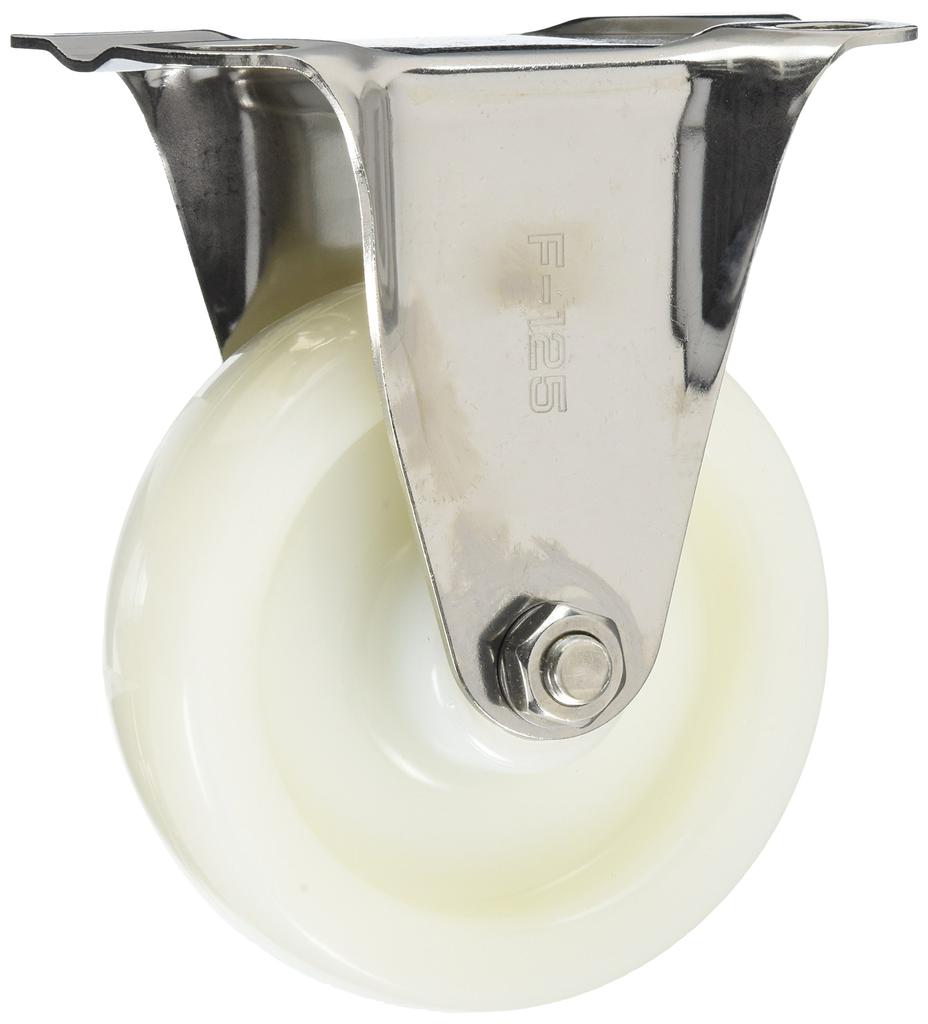

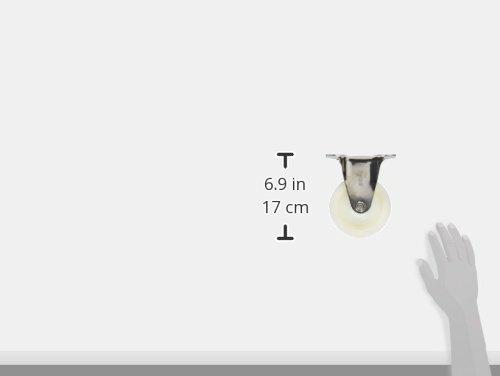

[Image Notes]
※The image shown is for illustrative purposes only and may differ in color and specifications from the actual product.
Allowable load (daN): 150
Wheel diameter (mm): 125
Hardware type: Fixed
Mounting hole pitch (mm): 112 x 53 (100 x 56)
Mounting plate dimensions (mm): 140 x 80
