Feature:
1. It can be used to test ground resistance, DC resistance, ground resistance, AC resistance and soil resistivity.
2. The resistance tester supports accurate test, simple test, selective test and other test methods.
3. Soil resistivity tester is made of high‑quality materials, durable and long service life.
4. After 10 minutes of starting, it will automatically shut down to save resources and power.
5. It has battery voltage prompt and overload protection function to ensure the safety of the operator.
Specification:
Item Type: Resistance Tester
Material: ABS
Model: ETCR3200C
Measurement Methods:
Grounding Resistance: rated current pole changing method, measuring current 20MA maximum
Soil Resistivity: quadrupole method (Winner method)
Test Frequency: 128Hz 111Hz 105Hz 9Hz (AFC)
Short Circuit Test Current: AC 250mA maximum
Electrode Spacing Range: Approx. 1m 100m 3.3 328.1ft
Range:
Grounding Resistance, DC Resistance: 0.00 30.00k Ohm
Soil Resistivity: 0.00 Ohm m 9000k Ohm m
Alternating Current: AC 0mA 600.0A

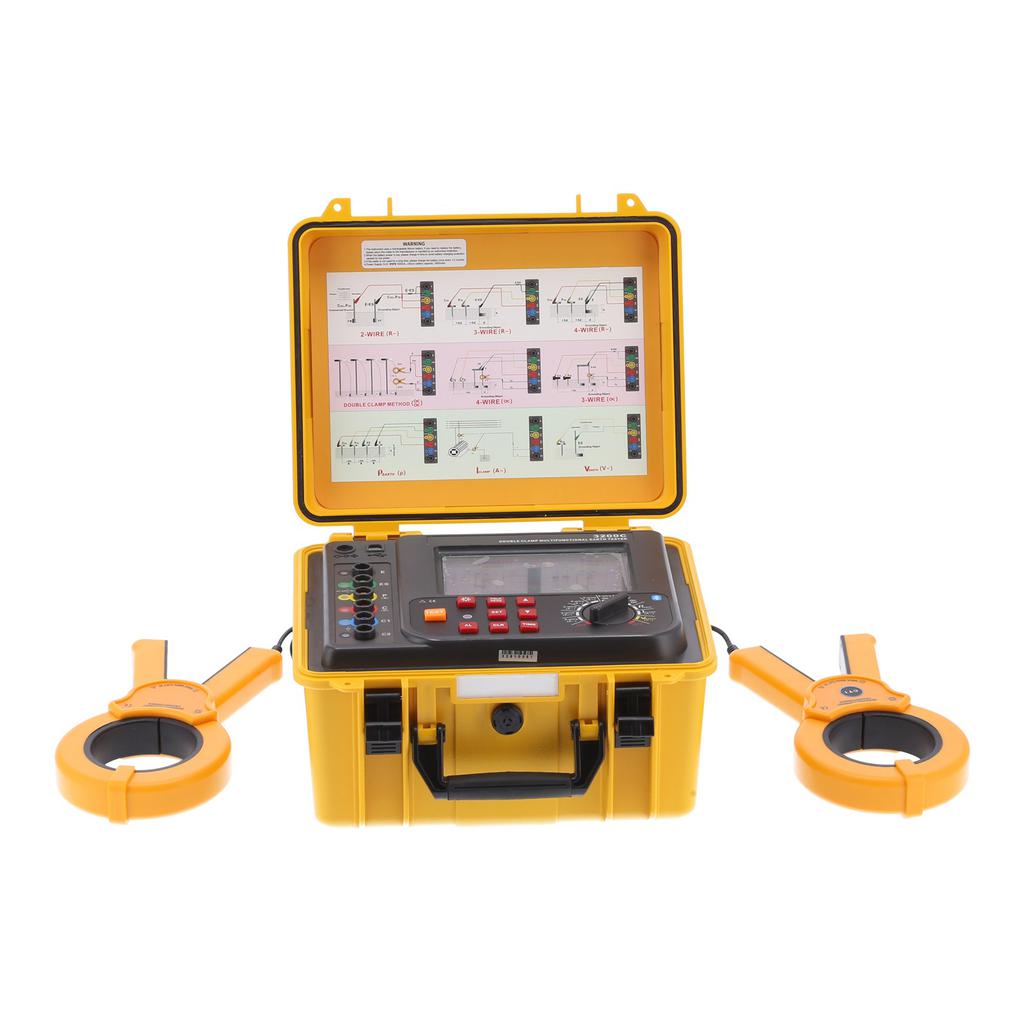

Measurement Method: AC current test, DC resistance test, soil resistivity test, double clamp method test ground resistance, three four wire selection method test, four wire accuracy test, three wire test, and two wire simple test.
Measurement Time:
Grounding resistance, soil resistivity: about 15 seconds time
Measurement Times: more than 5000 times (short circuit test, test once, stop for 30 seconds and then test)
Communication Interface: with USB interface, software monitoring, stored data can be uploaded to the computer, saved and printed
Data Storage: 300 groups, MEM storage indication, display PULL symbol to indicate that the storage is full
Data Retention: HOLD symbol indicates when data is retained
Data Access: READ symbol indicates when accessing data
Overflow Display: OL symbol indication when over range overflow
Auxiliary Grounding Test: with auxiliary grounding resistance value test function, 0.00K Ohm 30k Ohm (100R+rC<50k Ohm , 100R+rP<50k Ohm
Alarm Function: when the measured value exceeds the alarm setting value, beep beep beep alarm prompt
Automatic Shutdown: 10 minutes after startup, automatic shutdown
Working Temperature and Humidity: 10 celsius 40 celsius ; below 80percent RH
Storage Temperature and Humidity: 20 celsius 60 celsius ; below 70percent RH
Protection Rating: IP65
Insulation Resistance: 20M Ohm or more (500V between the circuit and the case)
How to Use:

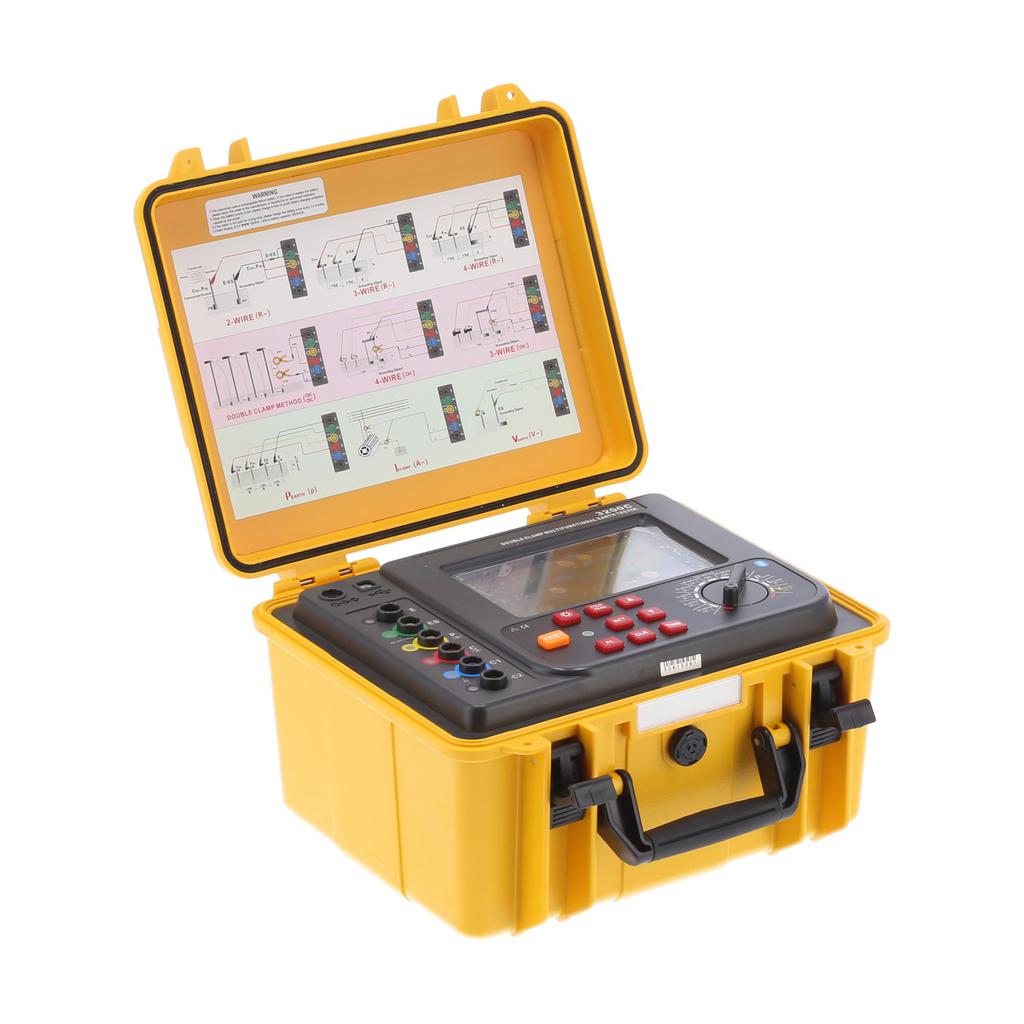

Open the top cover, the user can select the measurement range, rotate the selection, connect the measurement line, and then measure, there is a power line control next to the product screen, and the adapter can be connected to charge. With a USB interface, data can be imported into the computer. The product has Bluetooth operation, scan the manual to download, debug the parameters, and then use it. The operation is simple and practical, and it is more comprehensive than the ground resistance tester on the market..
Package List:

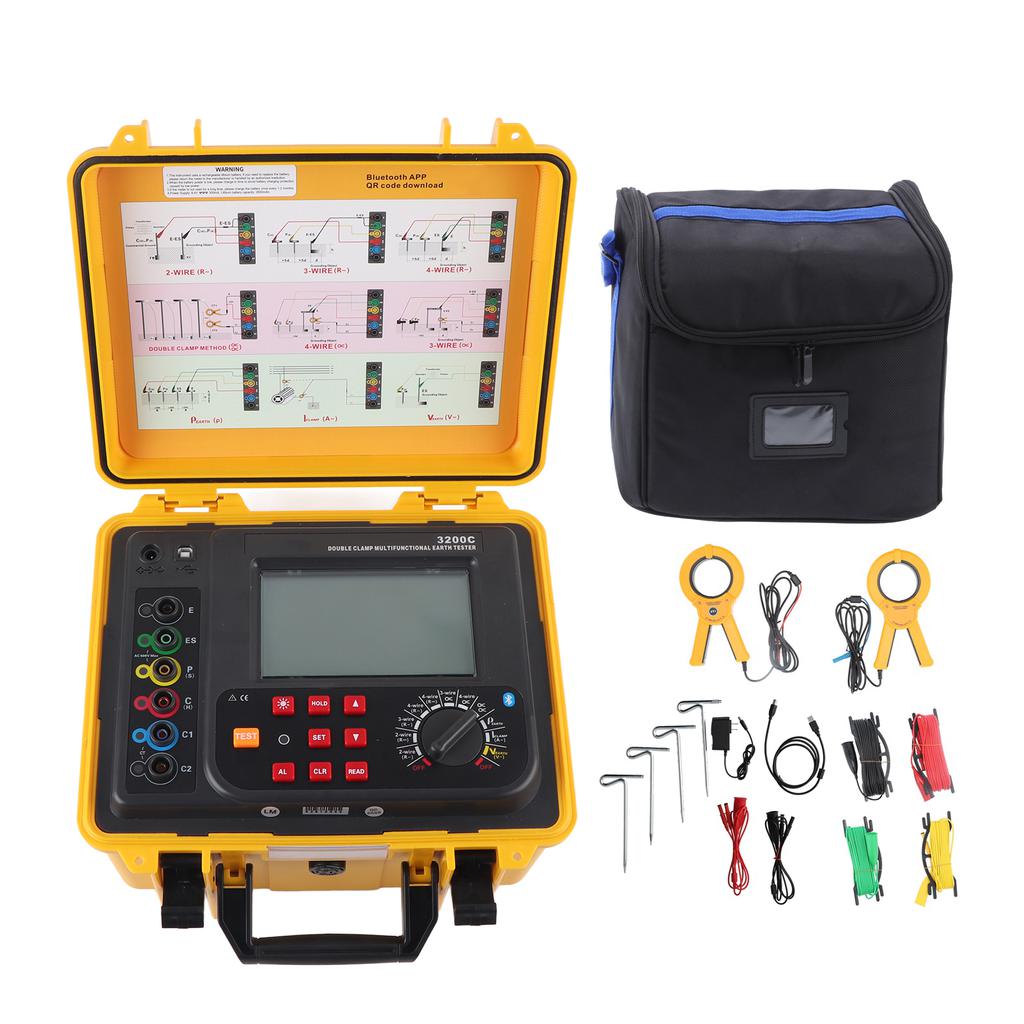

1 x Resistance Tester1 x Manual1 x Software CD1 x Instrument Bag4 x Ground Pin4 x Test Line2 x Current Clamp2 x Simple Line1 x Charger1 x Data Line
