Label:Yes
3.Built-in Safety & Convenience:Equipped with short-circuit protection and reverse-connection protection for safe use. Users can save 9 preset signal output points for faster debugging.
4.Flexible Power Supply Options:The generator can be powered in multiple ways, including via micro USB (5V) or an external DC power supply (15-30V), offering versatility in different usage scenarios.

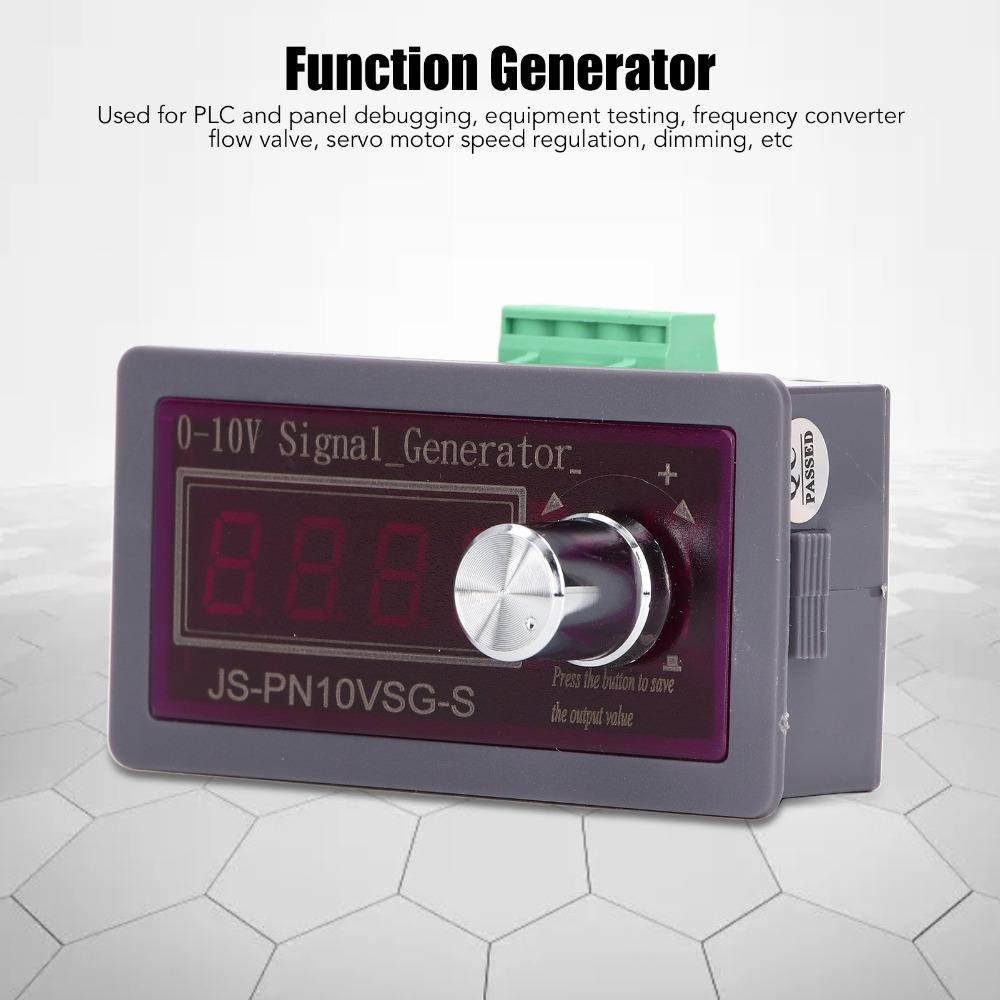

5.Compact & Widely Compatible:This portable device is suitable for PLC and control panel debugging, equipment testing, frequency converters, flow valves, servo motor speed regulation, dimming, and more.
1.4 Digit Display: The signal generator has 4 different types of digital display with 2 decimal points. You can press the mode button to switch the display mode between voltage and current, or you can switch the 0 to 100 percent or 0-50Hz display according to the instructions.
2.Programmable Output Range:It provides passive or active 0-10V output, with voltage accuracy up to 0.01V. The output range and accuracy can be programmed and adjusted for various applications.
Specifications:
Item Type: Signal generator
Material: ABS
Weight: Approx. 58g/2oz
Voltage: 0-10V
Power: 1W
Accuracy: 0.01V
Color: Purple
Size: 79.5 * 22 * 42.2mm(3.13 * 0.87 * 1.66in)
Features: Coarse and fine tuning dual mode, and the number of turns can be set separately; The minimum adjustment number of the knob is 0.01mA, and the last number is plus or minus 1; After calibration, the actual error is 0.01mA, with high accuracy linear output; 4 digit high brightness digital tube, with clear display; Digital encoder knob, durable, not affected by the environment
Protection: Output with short circuit protection, power supply with reverse connection protection
Package List:
1 x Signal Generator
Note:
1. Due to the difference between different monitors, the picture may not reflect the actual color of the item.
2. Please allow slight dimension difference due to different manual measurements. Thank you for your understanding.
