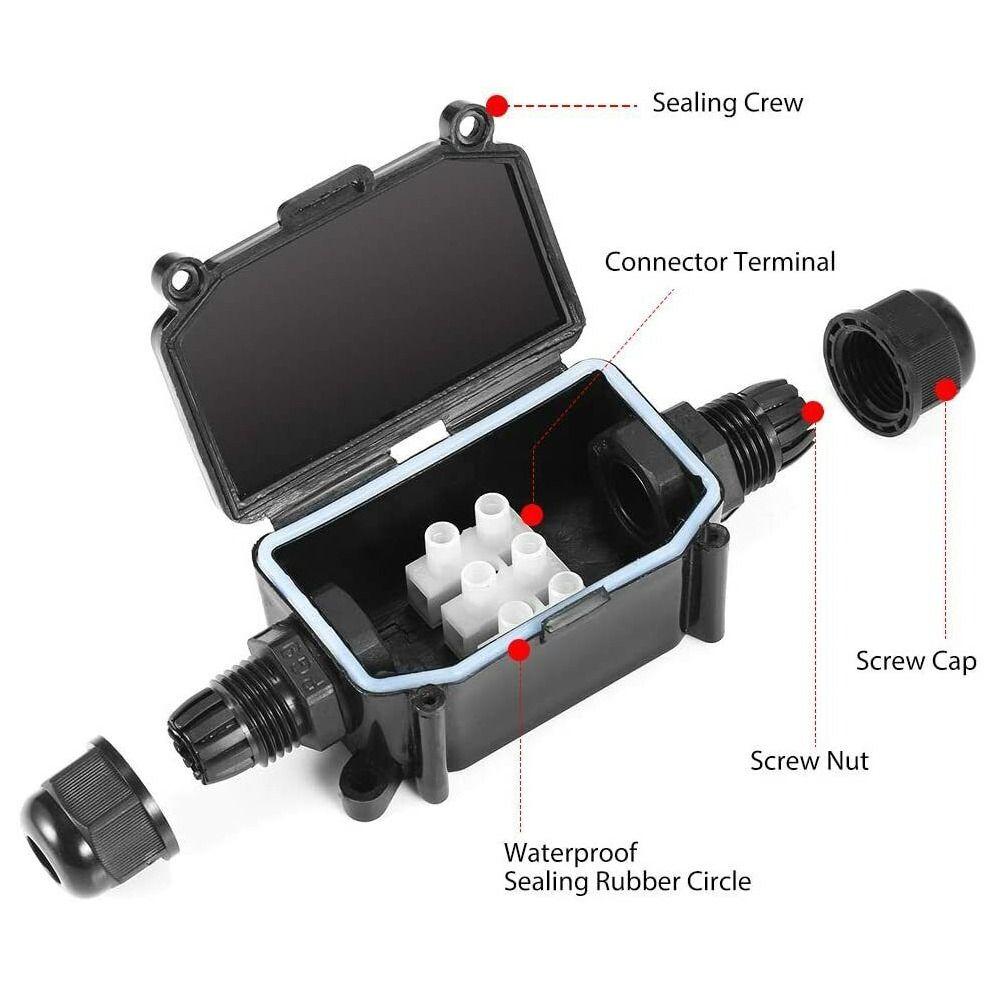

Waterproof and dustproof IP66/68 junction box, anti-UV, sunlight protection and rain protection; UL94 V2 grade fire retardant.
It can be installed Horizontal and Vertical as external Junction box to hide electrical connections around your home and any property.
Used for external outdoor lamps and lanterns wiring connection, wiring is easy to operate, more convenient and safer.
Available in 2 ways and 3 ways.
The junction box can easily be installed under the ground. Gives you full protection of the cable line.
This will not crack or fade in sunlight. Specifications:

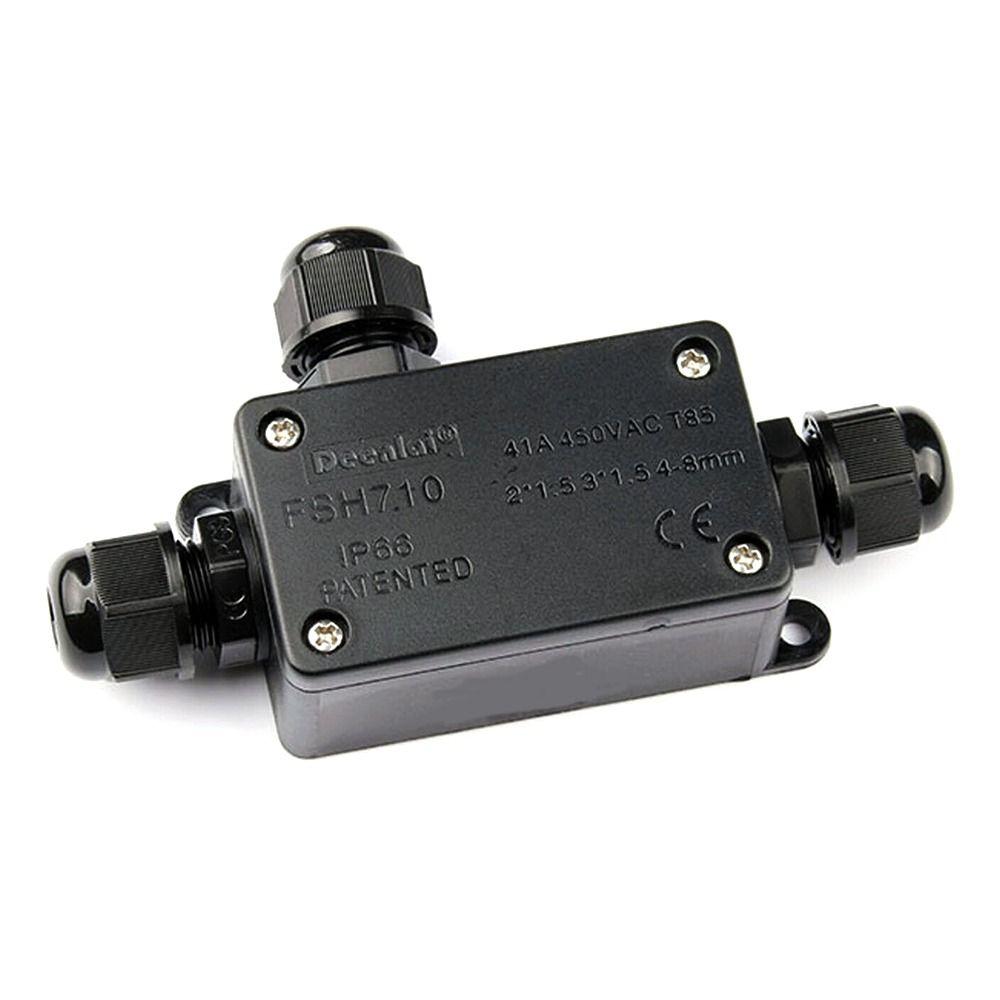

IP66 boxes:
Certification: VDE, UL, CQC, ROHS, CE
Outer size: 84x45x29mm, inner size: 63x37x22mm
Electric Current: 20A, Voltage: 450V MAX
Cable diameter: Ø 4mm - 8mm
Terminal blocks: 3 x (1.5-2.5) sq.mm.
IP68 boxes:
2-pin Waterproof IP68 Junction Tube Wire Connector
Protector Level: IP68 waterproof, dustproof(Max. 4 Meter Depth Underwater)
Voltage: EN 400V; Ampere: EN 17.5A
Wiring Capacity: 0.5mm²-1.5mm²
Outer Cable Diameter: 5-8mm
Certification: VDE, UL, CQC, ROHS, CE
Size: 6*2*2cm
3-pin Waterproof IP68 Junction Tube Wire Connector
Protector Level: IP68 waterproof, dustproof(Max. 4 Meter Depth Underwater)
Voltage: EN 400V; Ampere: EN 17.5A
Wiring Capacity: 0.5mm²-1.5mm²
Outer Cable Diameter: 5-8mm
Certification: VDE, UL, CQC, ROHS, CE
Size: 6*2*2cm
Product include: 1PC Waterproof Junction Box Case
Notes:
1.Due to the lighting effects and shooting angles, the color of the item and that shown in the picture might have a nuance.
2.Due to manual measurement, there might be a tolerance in the product size
