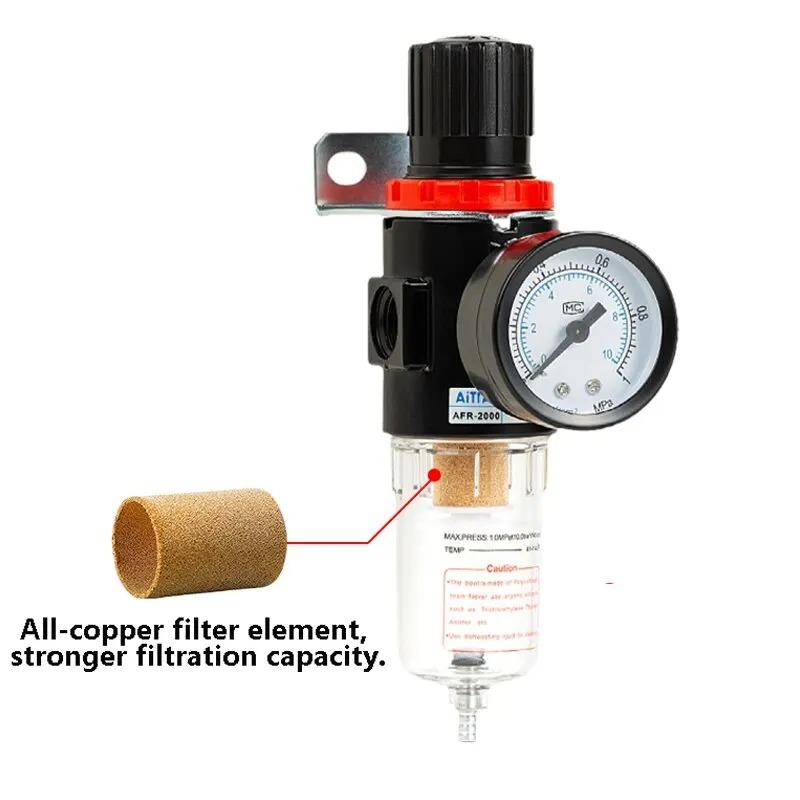

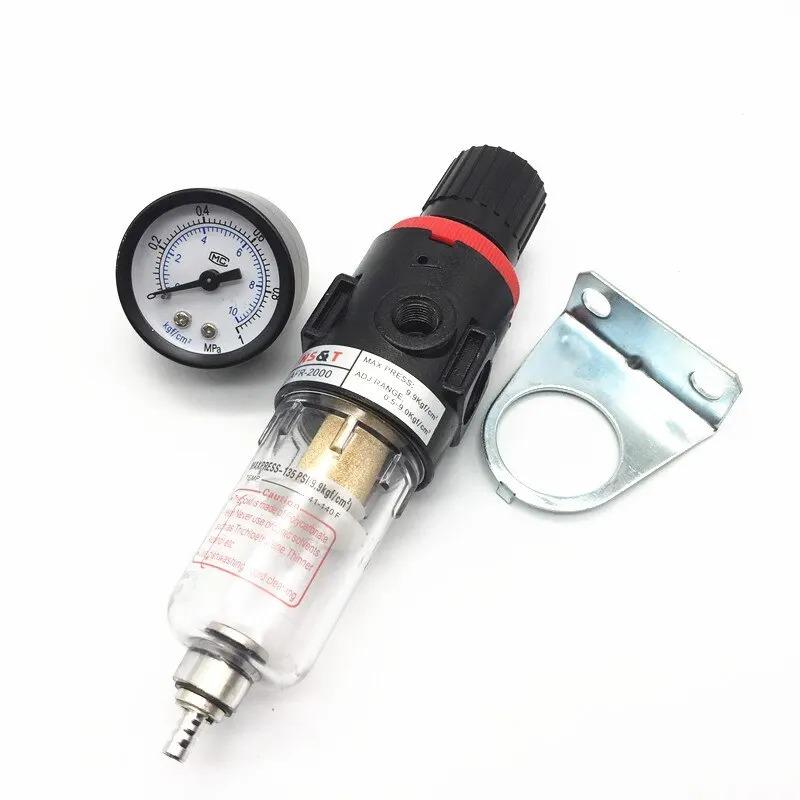

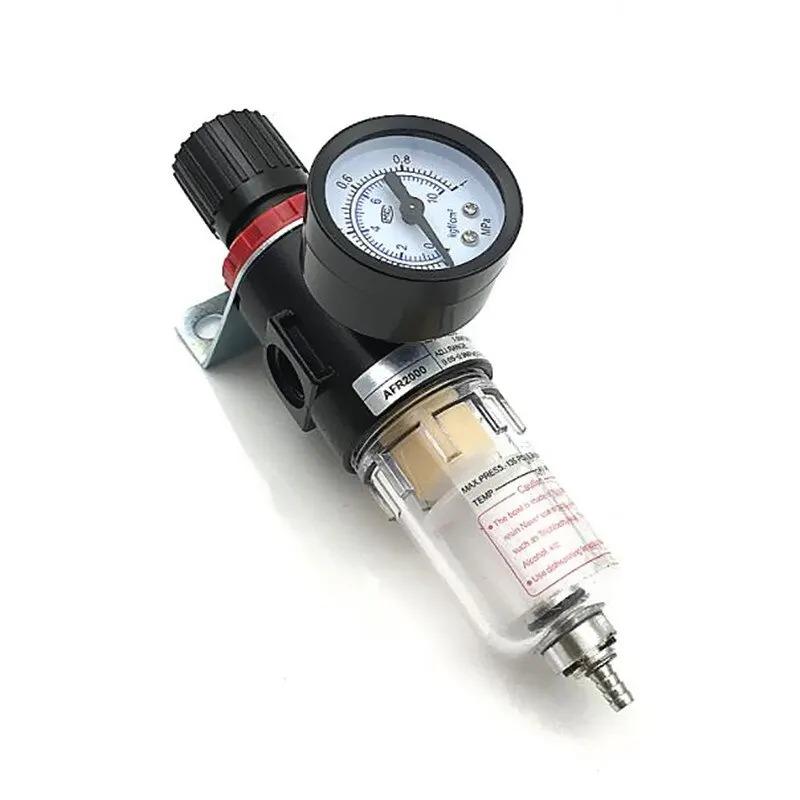

• Pneumatic filters:The AFR-2000 is a pneumatic filter that treats air to ensure it's clean and safe to use.

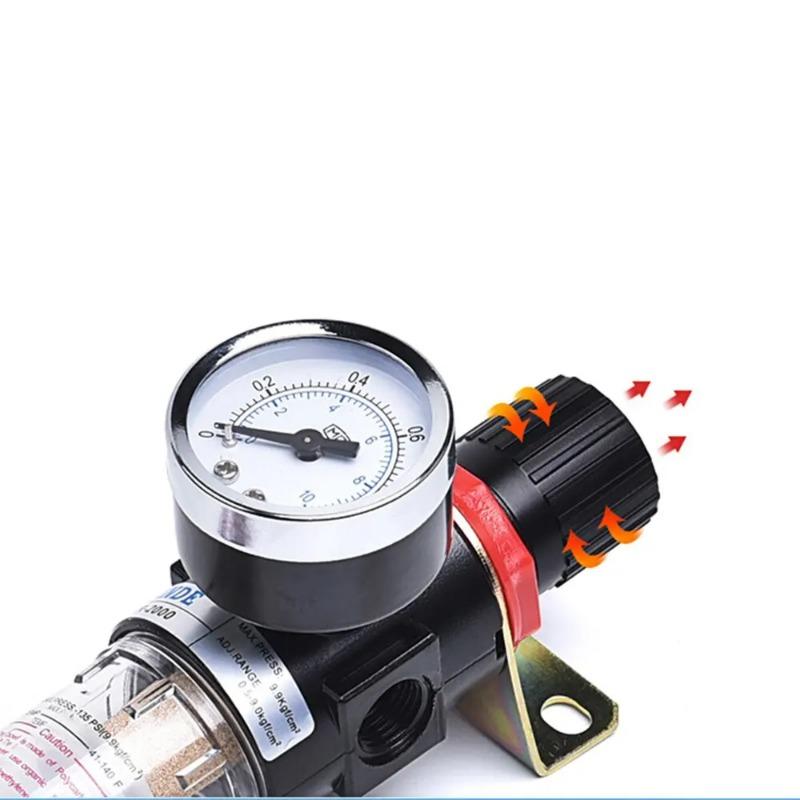

• Pressure Regulator :The unit comes with a pressure regulator that ensures the air pressure is consistent and optimal for use.
• Oil water separation:The AFR-2000 is designed to separate oil and water from the air, ensuring that only clean air is delivered to your equipment.
• Gauge :The unit comes with a gauge that allows you to monitor the air pressure and other important parameters, ensuring that your equipment is running optimally.
1.AFR2000 air filter regulator is that adjust The main channel of air pressure to a pressure value what the control device required after filtration through decompression.
2.No matter the size of the inlet pressure and flow fluctuations, always maintain a stable outlet pressure
3.Light weight, small size, easy installation and maintenance,Can filter small particles, keep the air clean
4.If the output pressure is higher than the set pressure, the discharge pressure of the atmosphere to maintain a stable output
5.Application:air compressors, pneumatic tools and other gas connection installation, effectively filter the air moisture.
Material: body (aluminum die-casting products), Yung cup (polycarbonate)
Fluid: Air
Port size: G1 / 4
Filtration precision: 5μm
Operating pressure range: 0 ~ 1.0MPa (manual drain: 0-9.5kgf / cm2, differential pressure discharge: 1.5-9.5kgf / cm2)
Temperature: 5 ~ 60 °
Gauge caliber: G1 / 8
Treatment cup capacity: 15CM3
Length: appox 15cm
Installation and Use :
The direction shown by the arrow on the valve body is installed, which is the direction of the gas flow direction.
