Function: Accurately detect voltage, current, temperature, capacity and other charging information in real time to charging device.
High accuracy and stability: Adopting professional sampling circuit and algorithm ensures its accuracy and stability at the hardware and software .

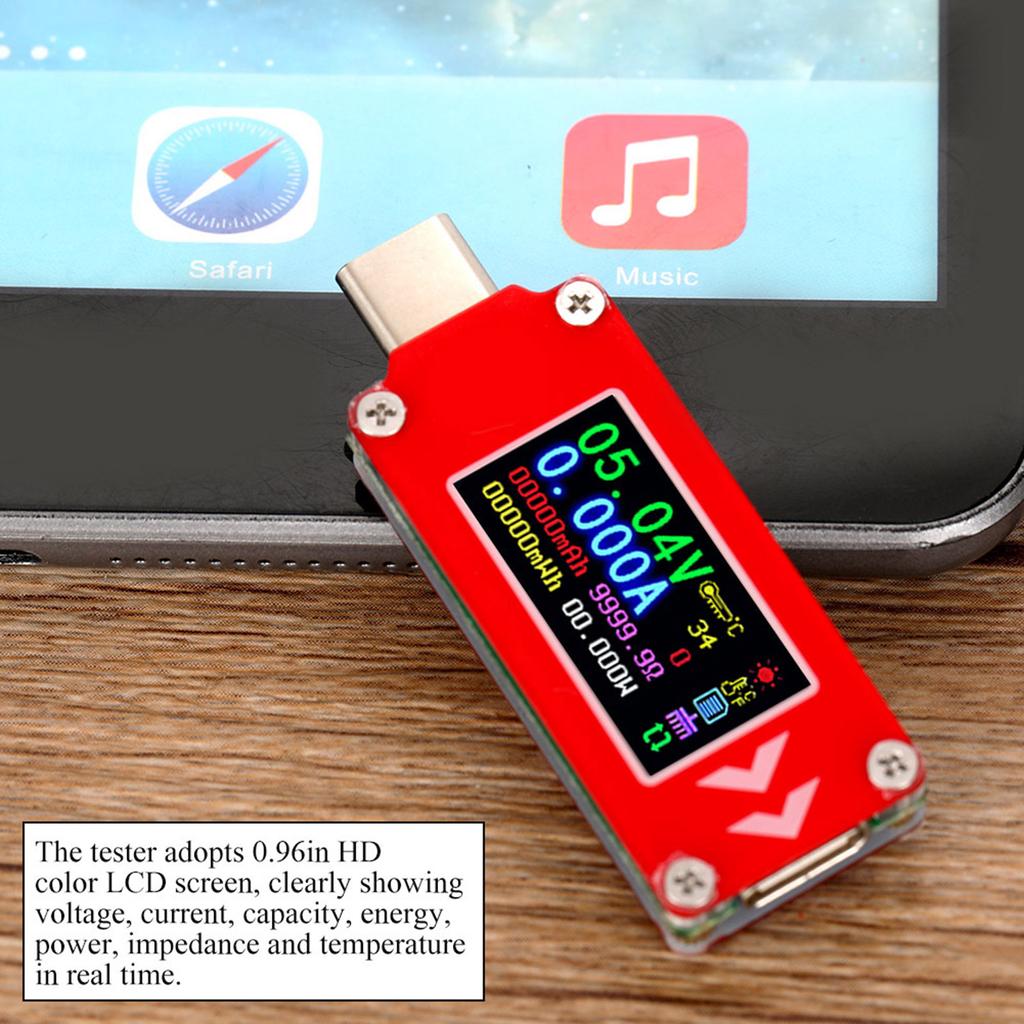

0.96in HD color LCD screen: All charging information are clearly and distinctively shown on the screen.

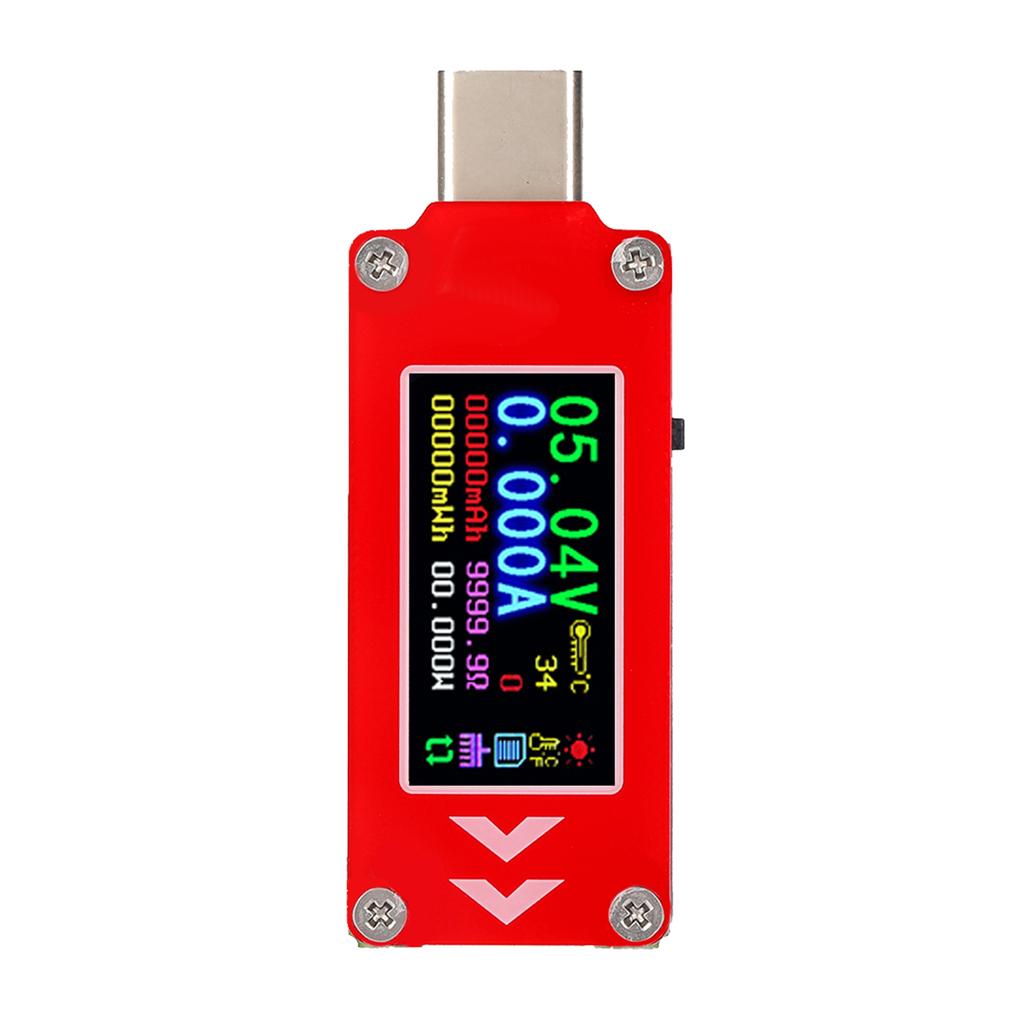

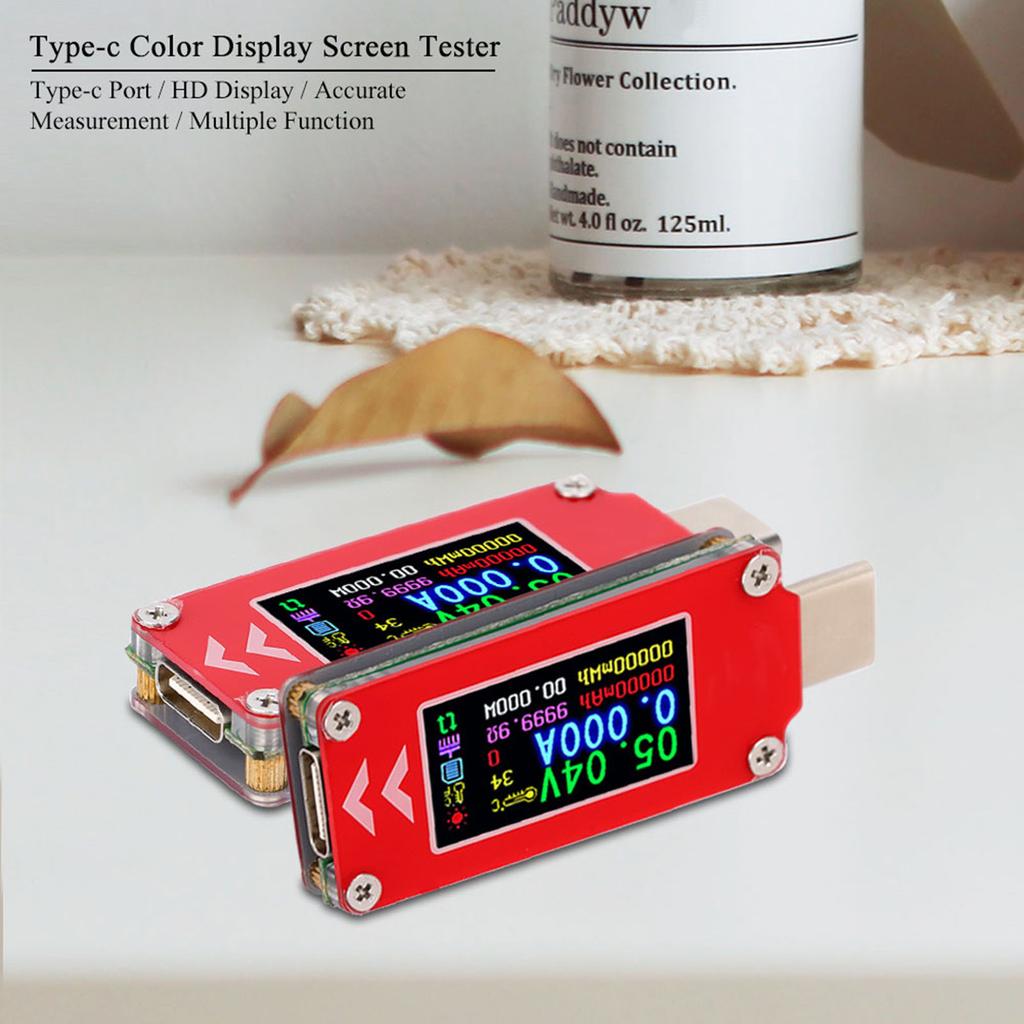

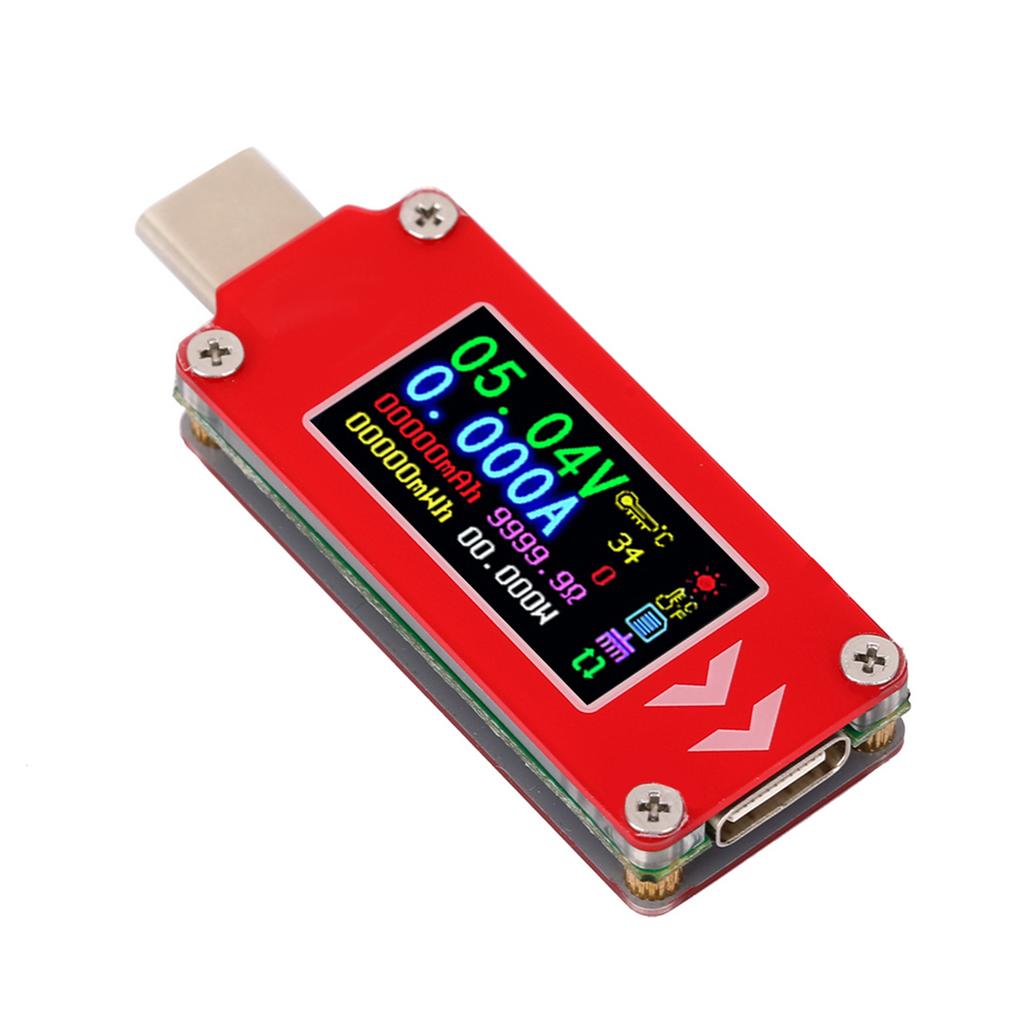

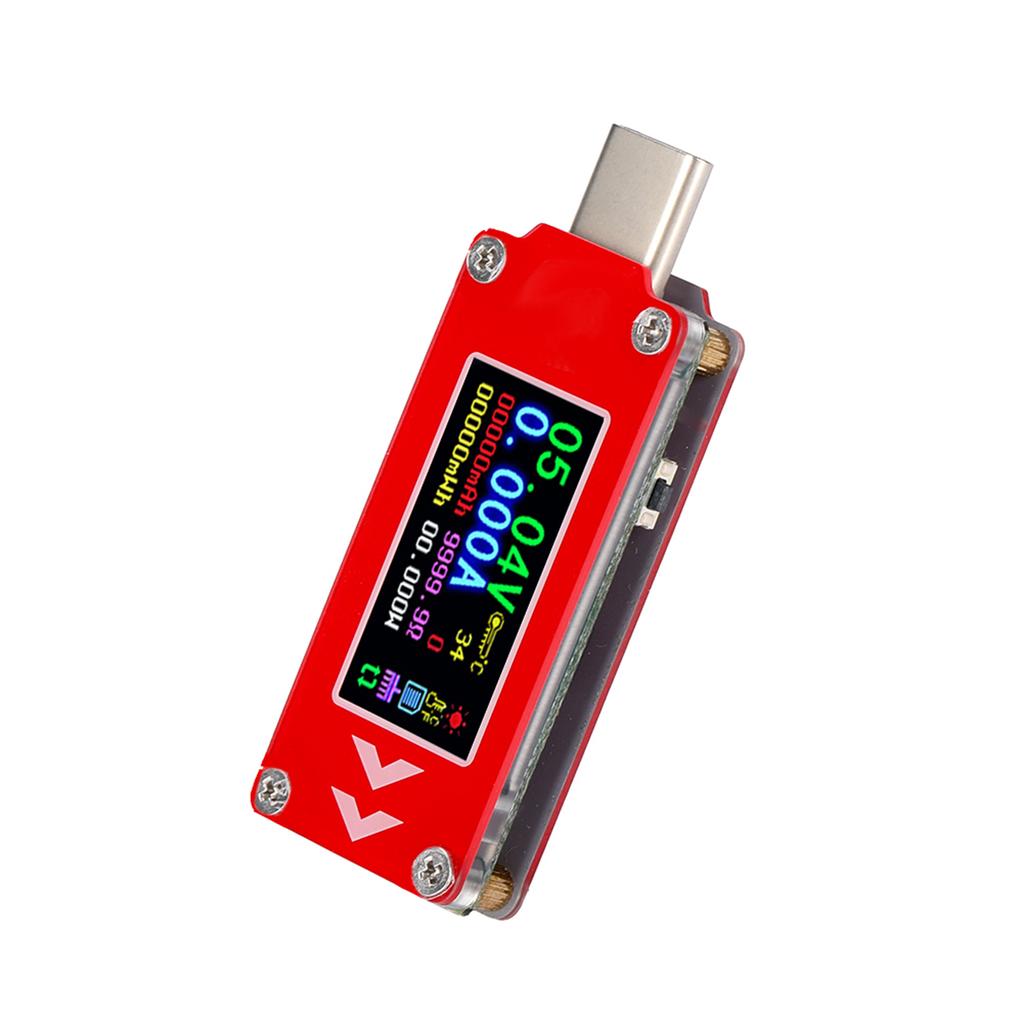

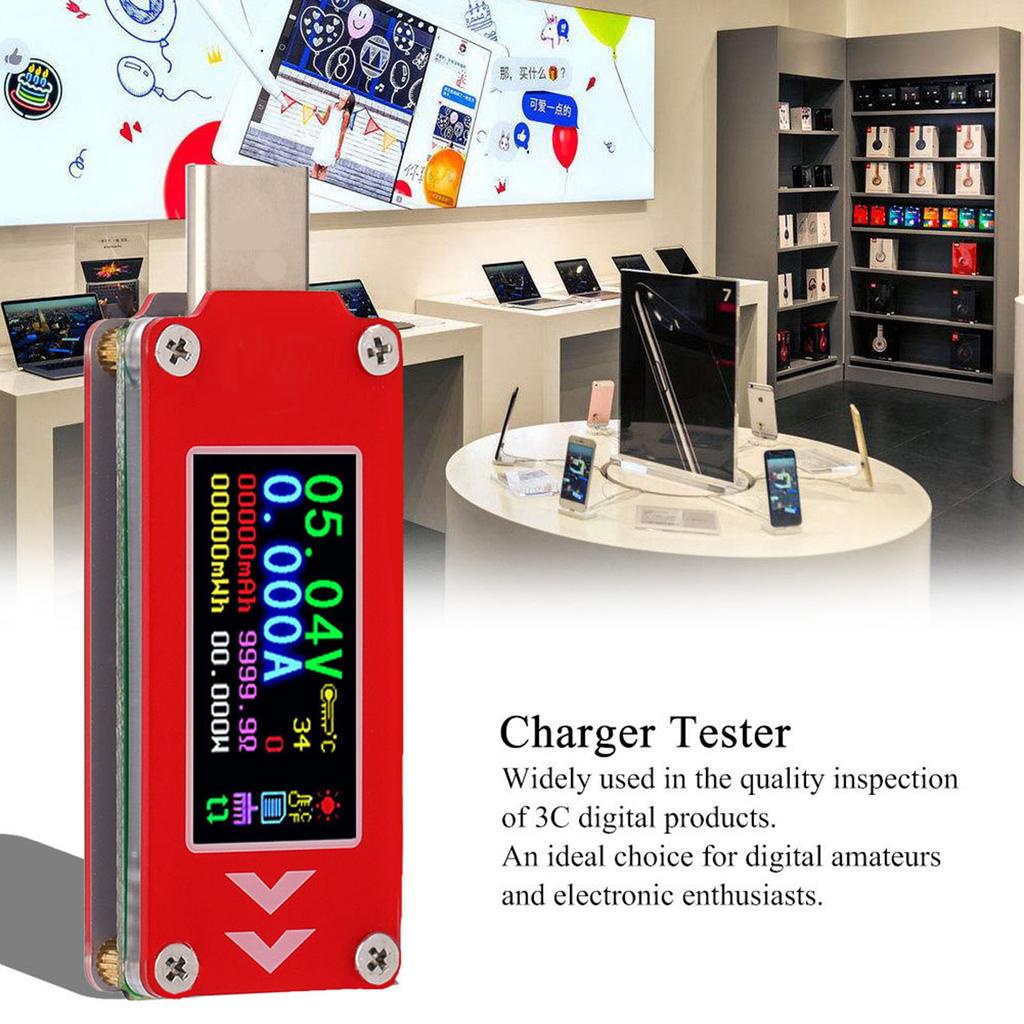

This tester with Type-c port can detect the charging information in real time. Andthe charging parameters like voltage, current, capacity are clearly shown onits color display screen. It can be widely used in the quality inspection of 3Cdigital products. An ideal choice for digital amateurs and electronicenthusiasts.
Features:

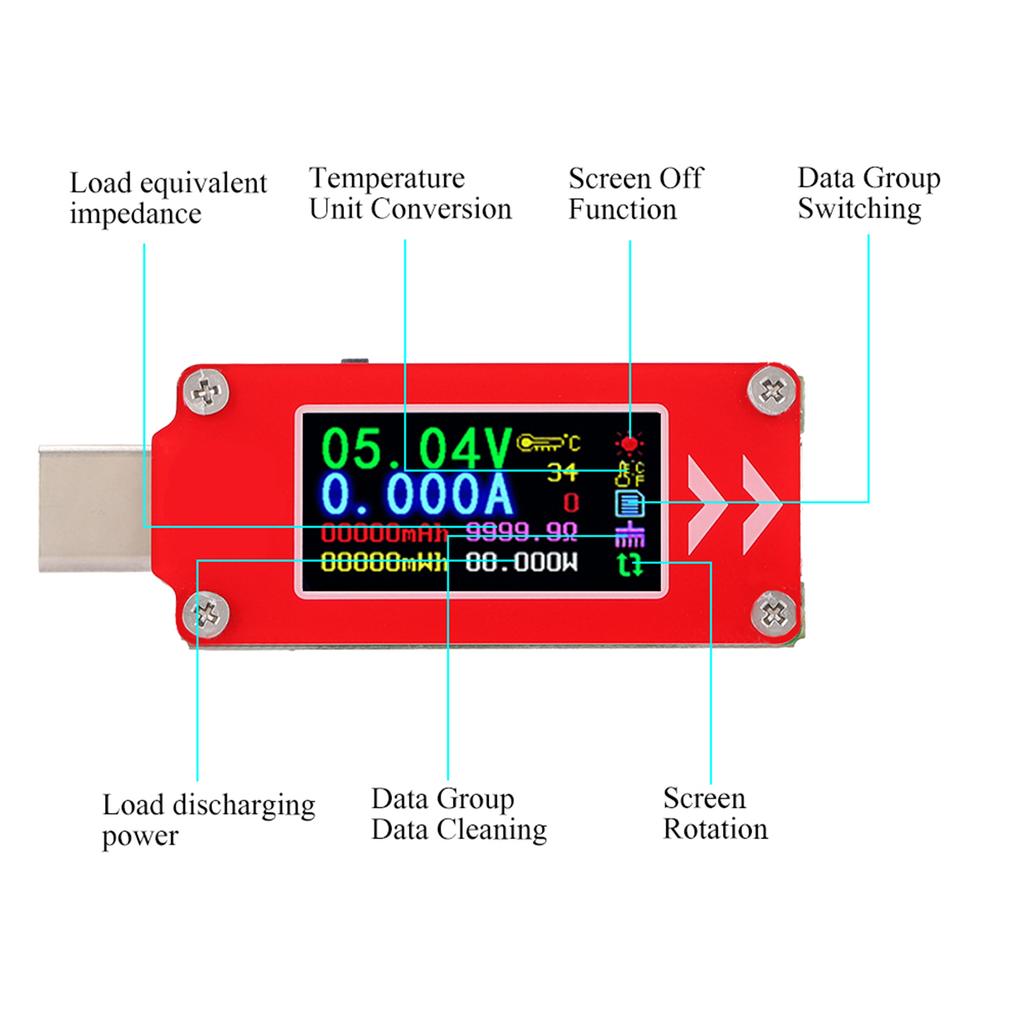

1. Function: Accurately detect voltage,current, temperature, capacity and other charging information in real time to charging device.
2. High accuracy and stability: Adoptingprofessional sampling circuit and algorithm ensures its accuracy andstability at the hardware and software .
3. 0.96in HD color LCD screen: All charging informationare clearly and distinctively shown on the screen.
4. Wide application: Widely used in 3C digital products, such as mobile phone, laptop, , power bank and more.
5. Wide compatibility: It supports identifyingmultiple quick protocol for QC2.0, QC3.0, 2.4ACelsius2.1ACelsius1ACelsius0.5A, DCP and .
Specification:
Model:TC64

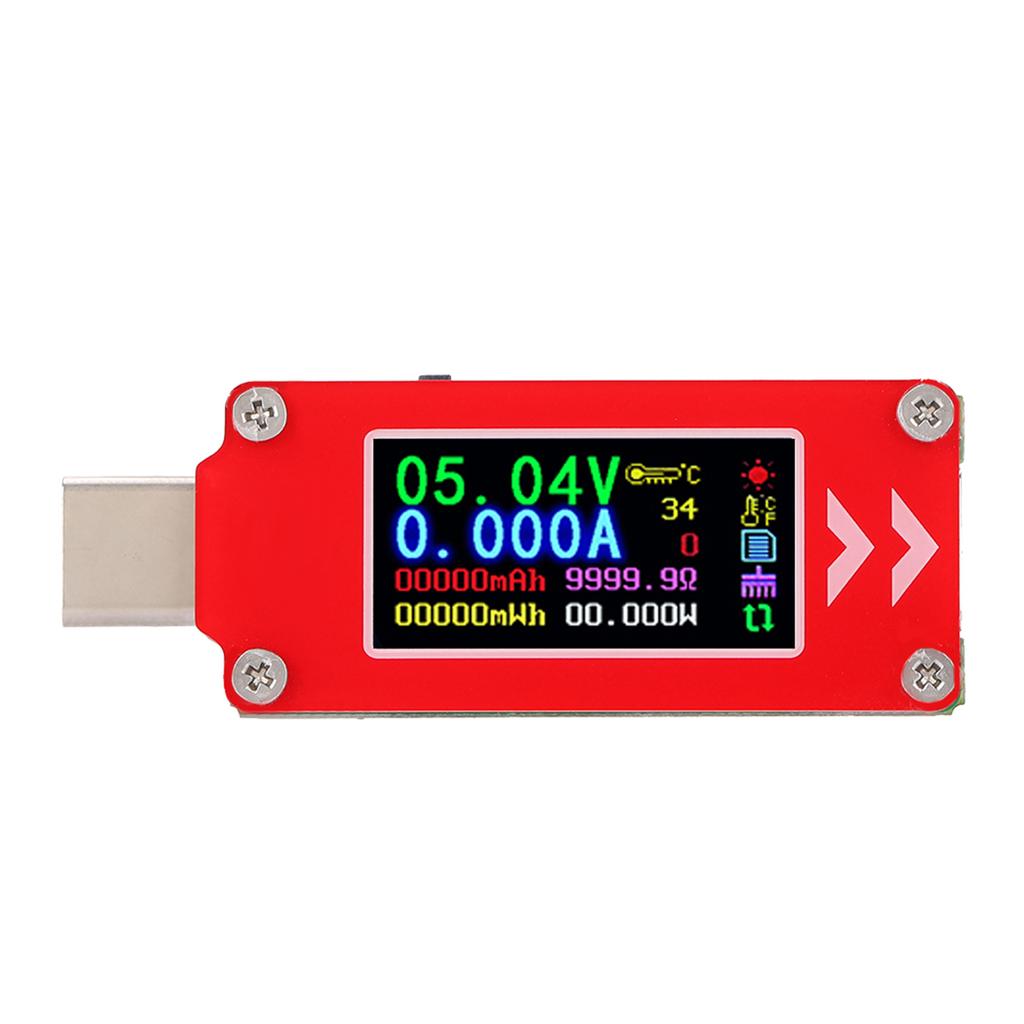

Display screen: 0.96in color LCD display
Voltage measurement range:3.70-30.00V
Voltage resolution: 0.01V
Voltage accuracy: +Celsius-(0.8%+4digits at 25 celsius )
Current measurement range: 0-4.000A
Current resolution: 0.001A
Current measurement accuracy: +Celsius-(1%+4 digits at 25 celsius )
Capacity accumulation range: 0- 99mAh
Energy simulation range: 0- 99mWh .99Wh
Load impedance range: 1 Ohm - 9.9 Ohm
Power measurement range: 0-120W
Temperature measurement range: 0 celsius .80 celsius Celsius32 Fahrenheit .176 Fahrenheit
Temperature error: +Celsius-3 celsius Celsius+Celsius-6 Fahrenheit
Working temperature: 0.45 celsius Celsius32 Fahrenheit .113 Fahrenheit
rate:2Hz

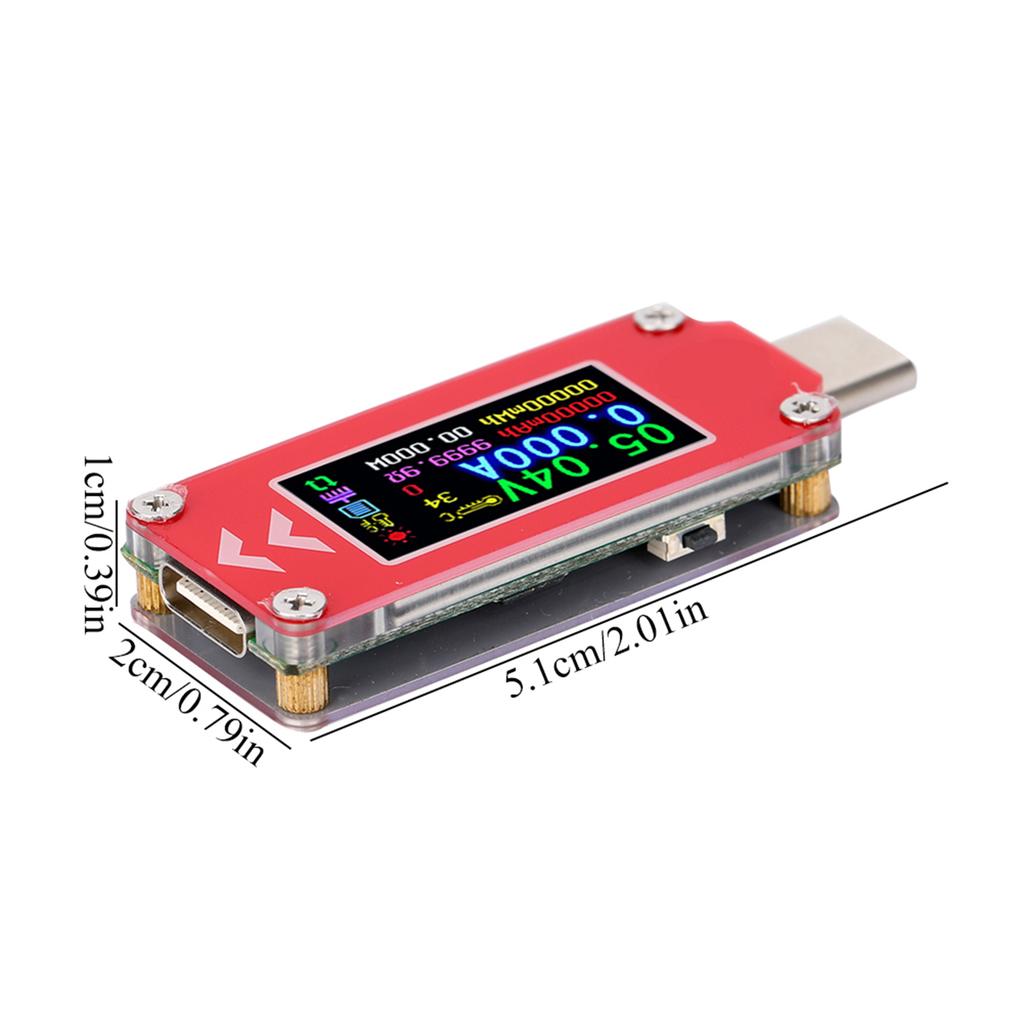

Product size: 51*20*10mm Celsius 2.01*0.79*0.39in
Weight: Approx. 21gCelsius0.7oz

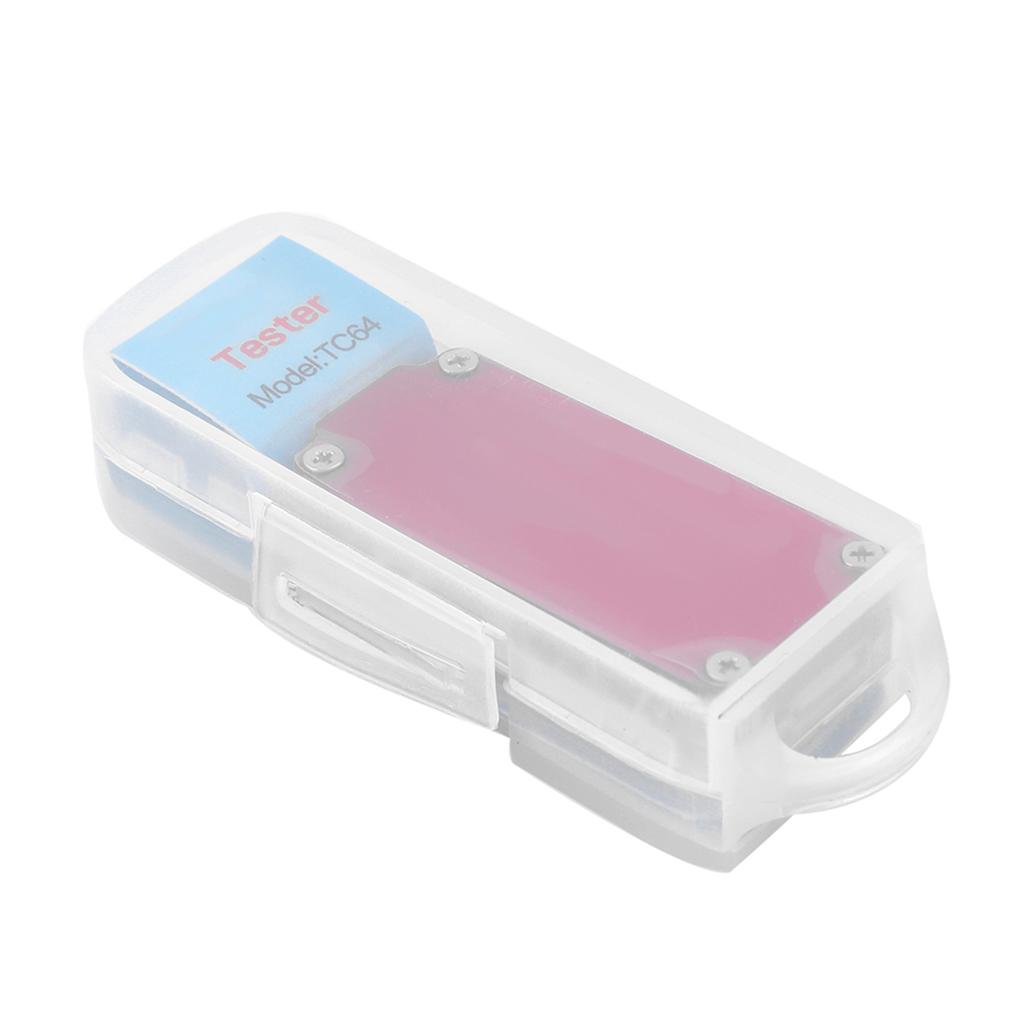

Packagelist:
1 * Type-C Tester
Note:
1. The product current only from male connector to femaleconnector (one-way current), the reverse is still energized but the current isshown to be 0.
2. If you use this meter to connect phone, you must have PD ormany converter cable.
3. Don t support Type-c identity resistance (no type-c trigger).
