This high-performance digital standard servo is suitable for general use in robots, mechanical arms, climbing vehicles, and remote-controlled toys.
Its main features include fast heat dissipation, high torque, high integrity, enhanced confidentiality, and improved ETC responsiveness.
It's perfect for professors and students interested in software development for robotic components.
Features:
High-precision metal gear. Hard anodized finish.
CNC aluminum middle shell.
Waterproof rubber hides the screws.
Environmental Conditions:
1. Storage Temperature Range: -30°C to 80°C
2. Operating Temperature Range: -25°C to 70°C

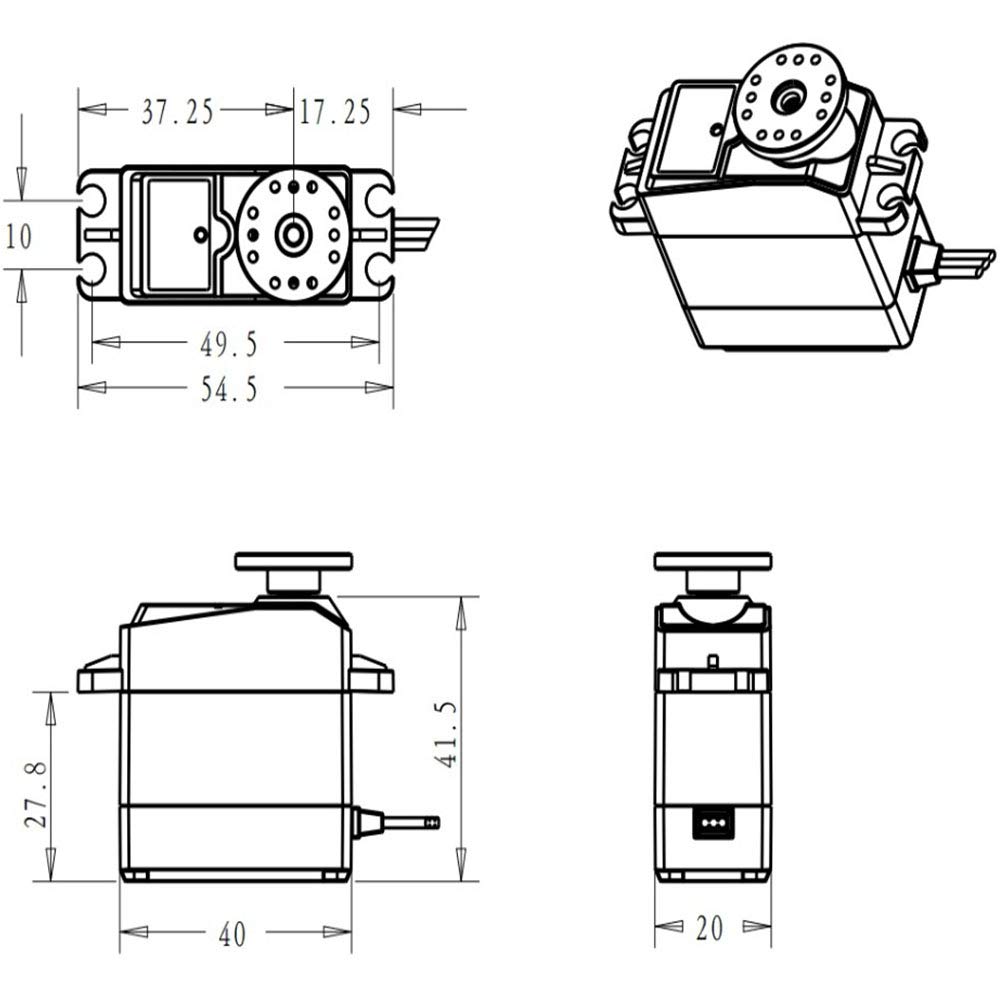

Mechanical Specifications: 1. Size: 40 x 20 x 40.5mm (1.58 x 0.79 x 1.60 in)
2. Weight: 60g (2.12 oz)
3. Limit Angle: 360°
4. Bearings: 2BB
5. Horn Gear Spline: 25T Diameter: 5.9mm
6. Case: Engineering Plastic + Aluminum Alloy
7. Connector Wire: 320mm ±5mm
8. Motor: Carbon Brush Motor
Electrical Specifications: Stall Torque (5V): 29.5kg/cm
Stall Torque (6.8V): 34.5kg/cm
Deadband Width: 3μs Speed: 0.2 seconds/60° (5V) / 0.17 seconds/60° (6.8V).
Operating Voltage: 4.8-6.8V DC
CE Certified: Yes
Pulse Width Range: 500-2500 us
Neutral Position: 1500 us
Travel Degree: or 270±3° (PWM 500-2500 us)
Deadband Width: 3 us
Counterclockwise Rotation Direction: (for 1000-2000 us)
Package Contents:

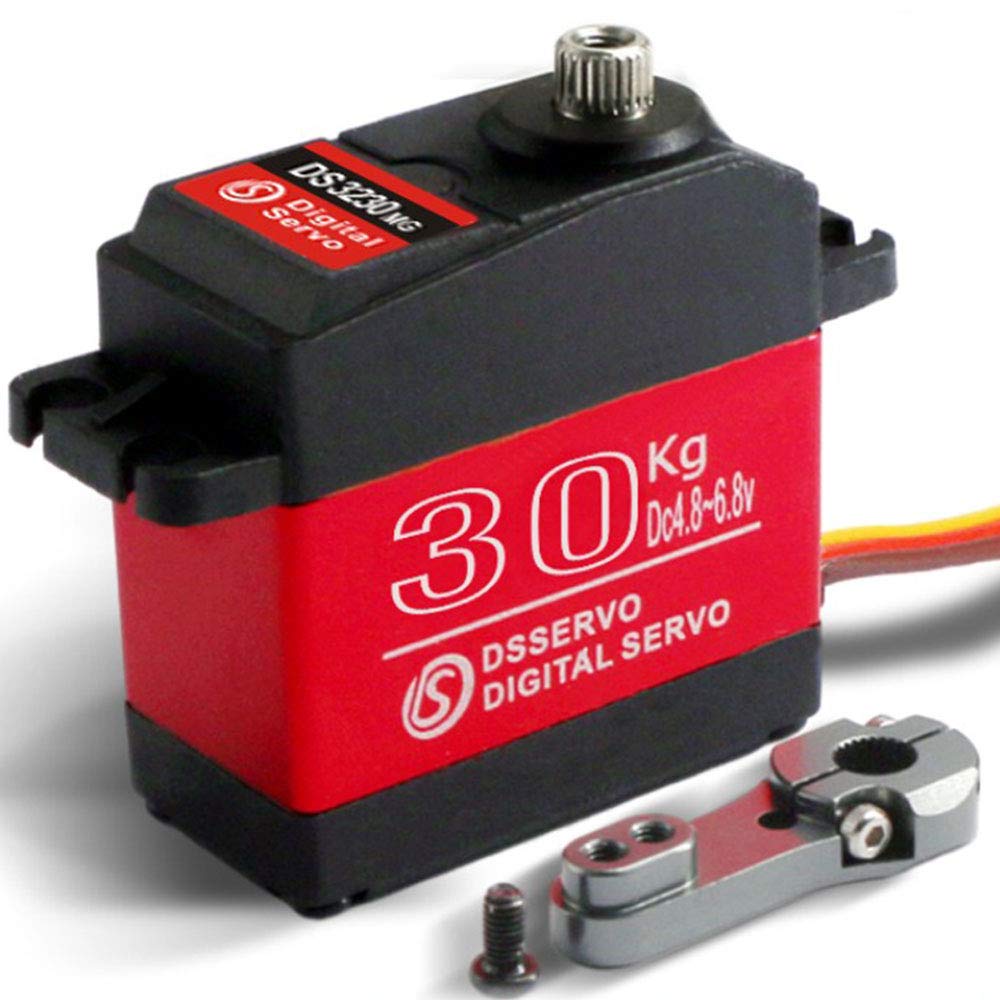

1 x DS3230 Digital Servo
1 x 25T Adjustable Metal Servo Arm
Upgraded Version - Precision variable resistor with high linearity and accuracy, high stability, low noise, and IP67 waterproofing.
Standard Size: 1.58 x 0.79 x 1.60 in (40 x 20 x 40.5 mm). Weight: Only 60 grams (2.12 ounces)
High Torque - Maximum torque of 34.5 kg/cm at 6.8 volts
High Quality - Equipped with strong copper wire and aluminum gears, CNC aluminum middle shell
High Rotation - Excellent Control, 270° Controllable (PWM 500-2500 usec). 360° Rotation when powered off, ideal for moving robot joints
