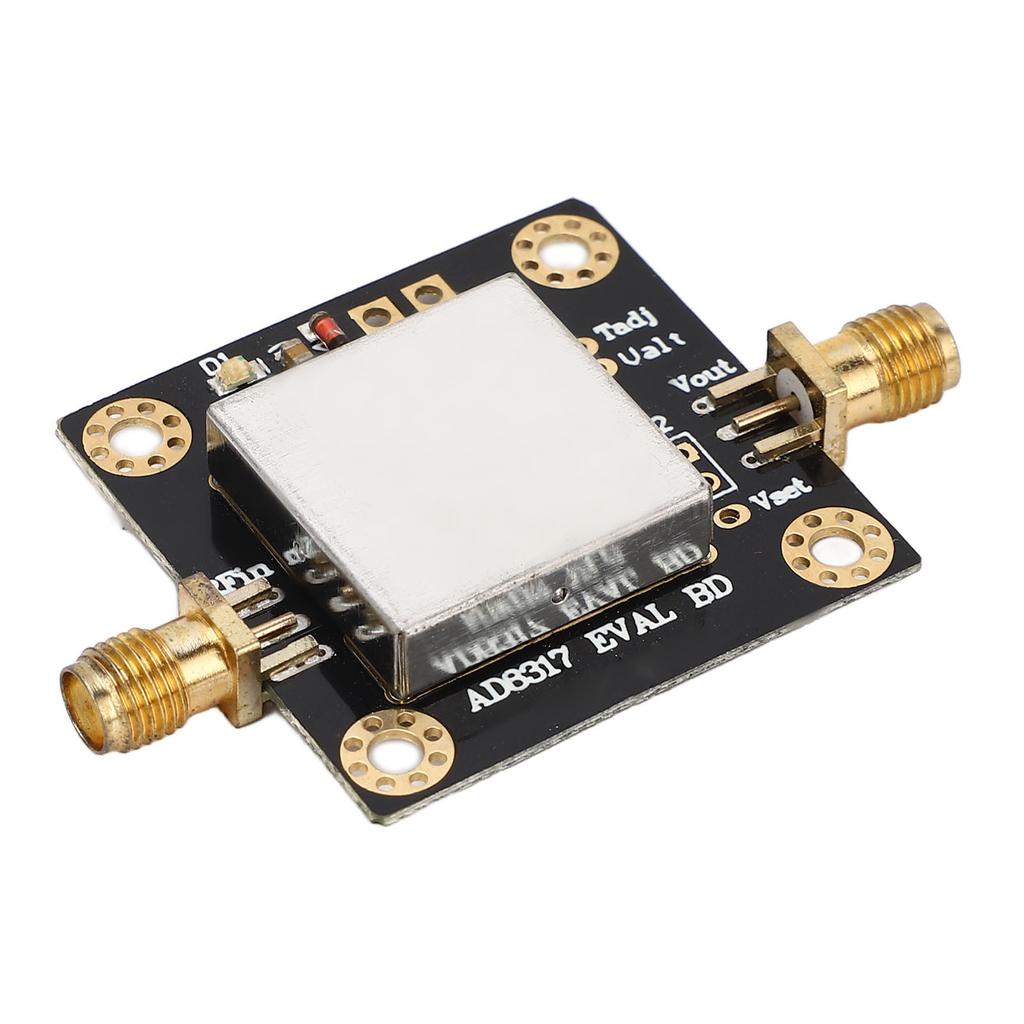

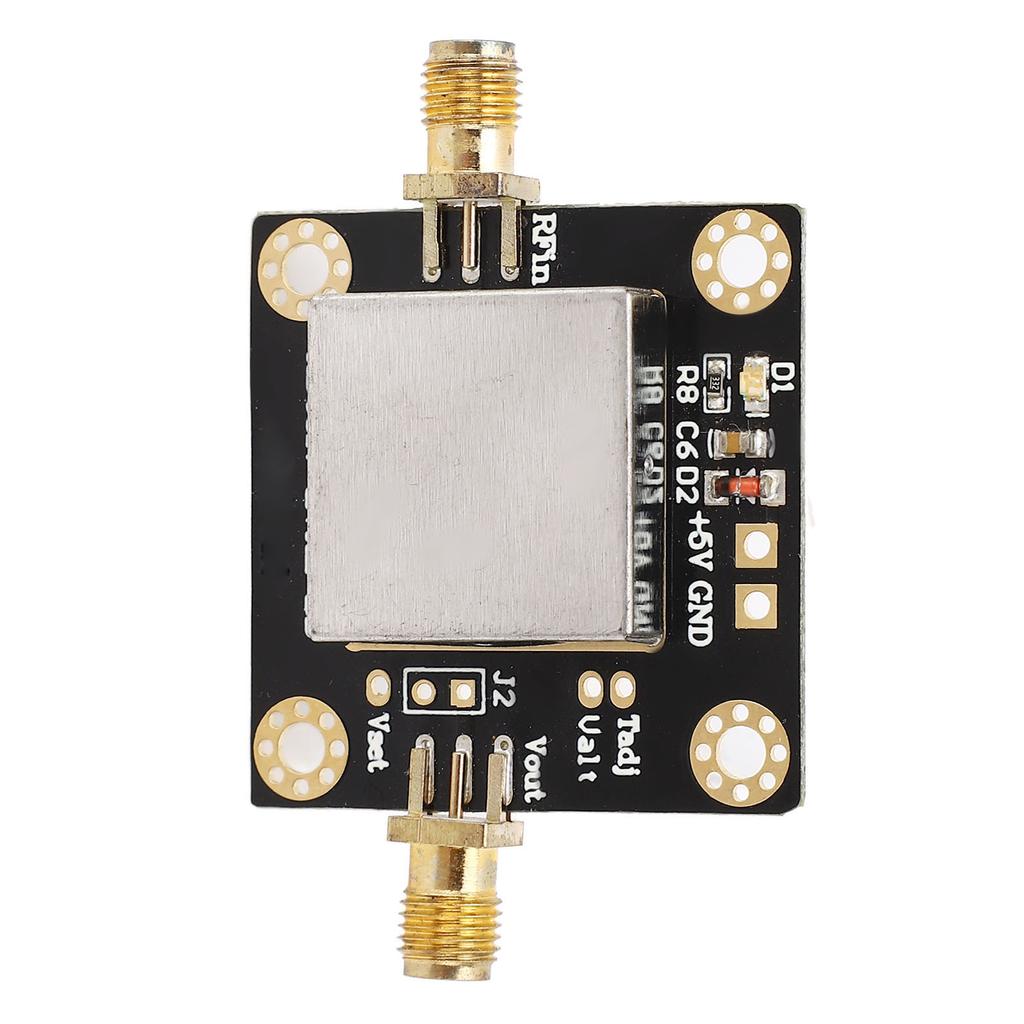

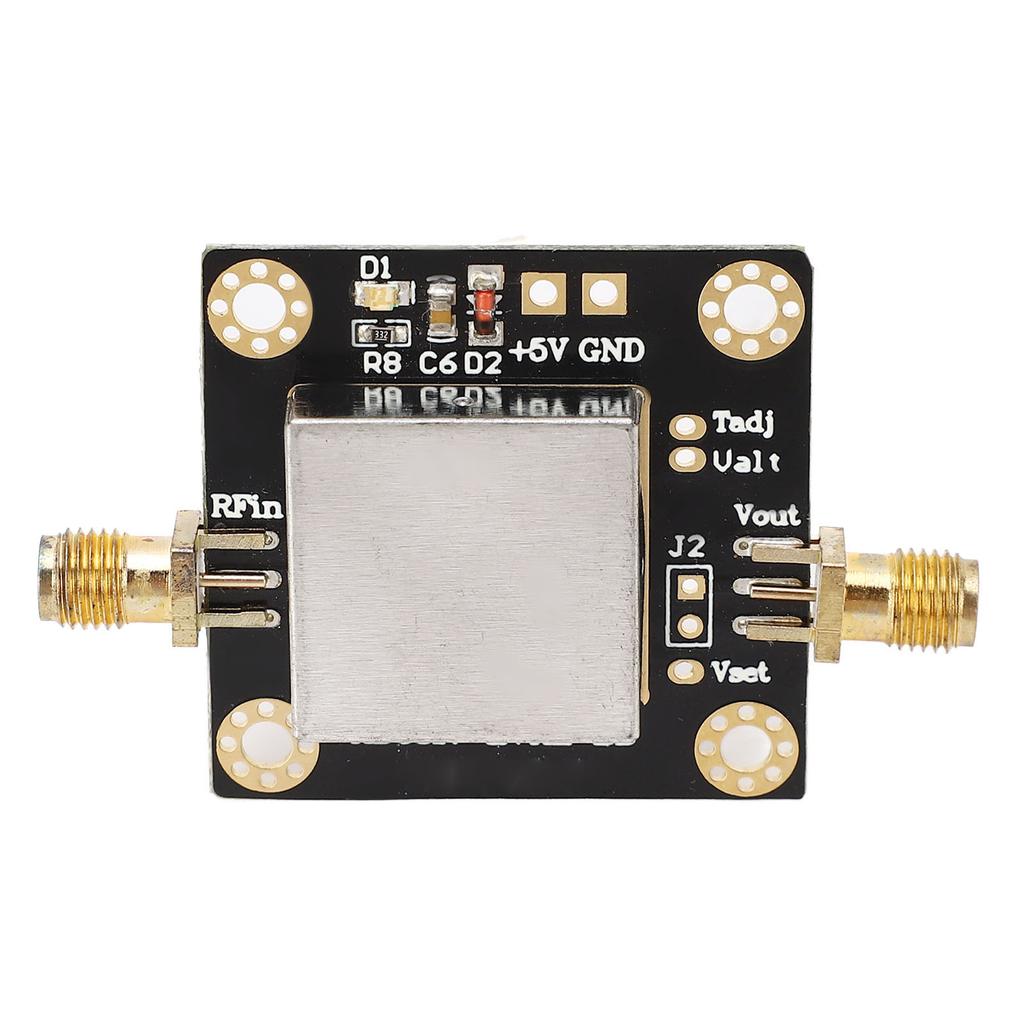

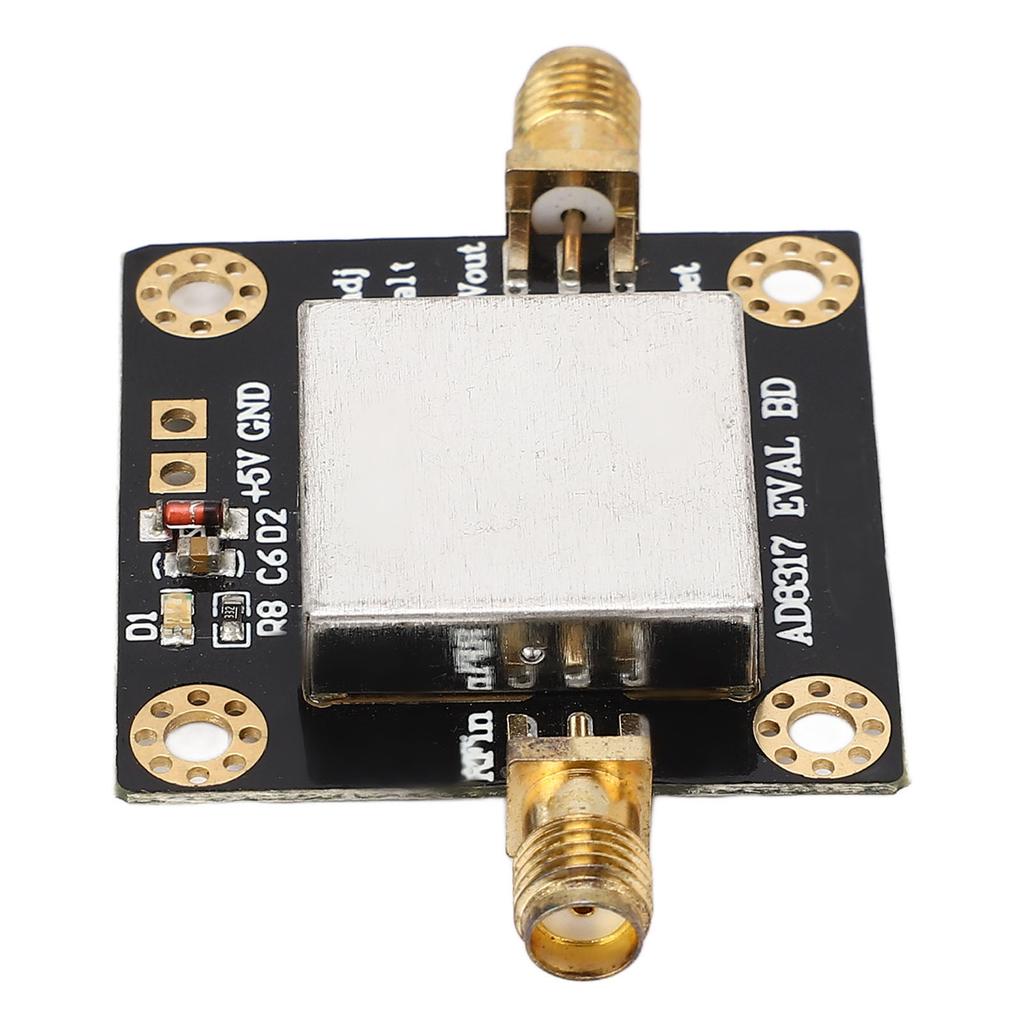

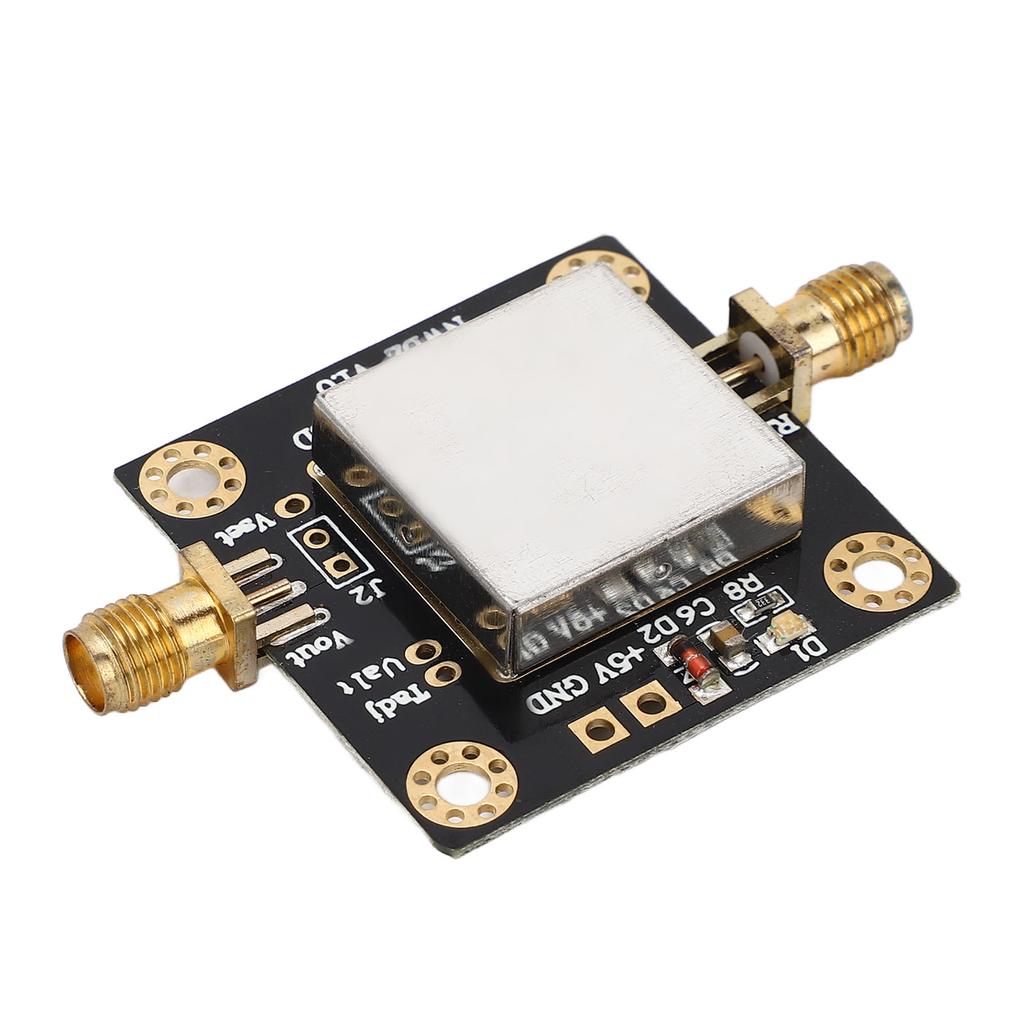

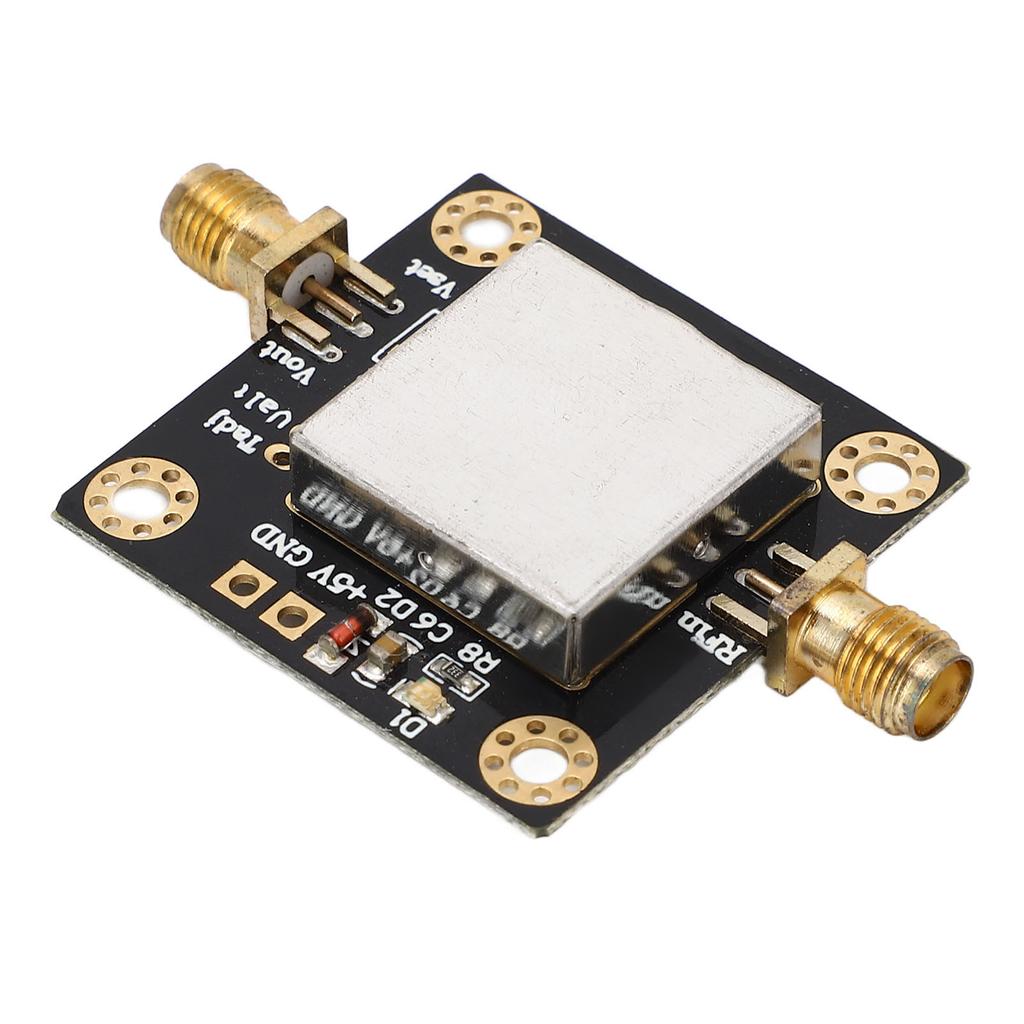

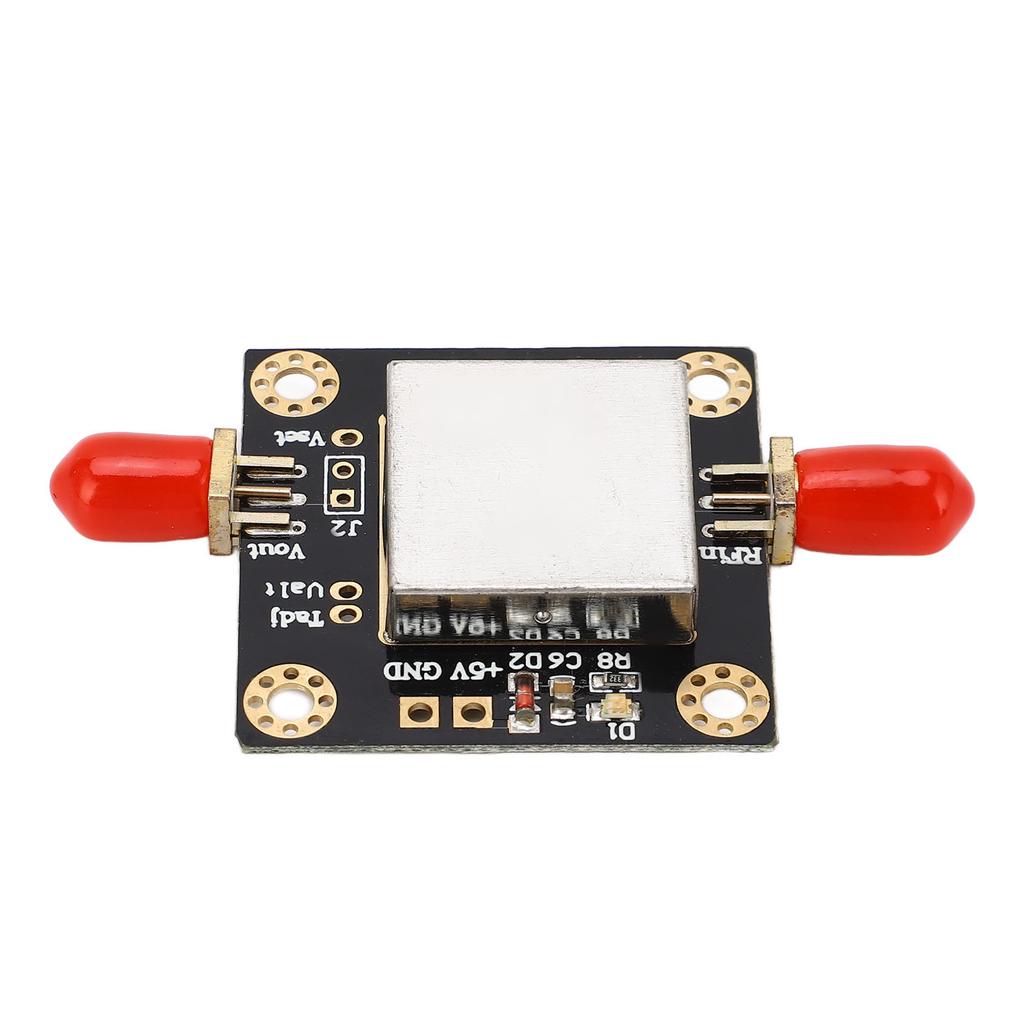

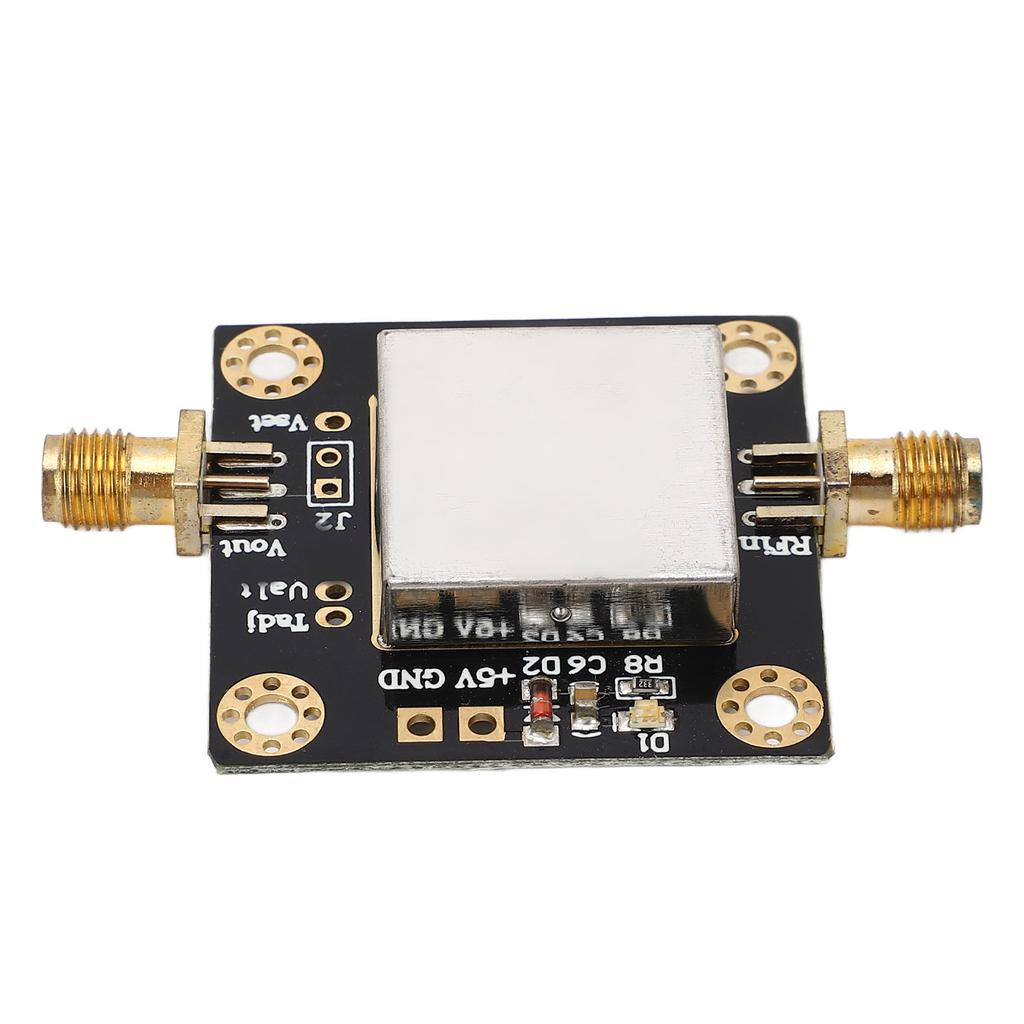

Logarithmic Detector Module ?55?0dBm AD8317 60dB 1M?10GHz Logarithmic Amplifier for RF Signal

Feature: 1. LARGE DETECTION RANGE: The larger the amplitude or power of the RF signal, the higher the output voltage, and the output voltage is proportional to the logarithm of the input signal amplitude, thus expanding the dynamic range of the detection signal. 2. POWERFUL FUNCTION: Logarithmic power meter can detect the power of ?55dBm to 0dBm RF signal, thus converting the RF signal to DC voltage output. 3. EASY INSTALLATION: The logarithmic detector is compact, simple and fast wiring, saving time and effort, and long service life. 4. WIDE USES: Logarithmic detectors can be widely used in RF signal detection, signal power measurement, and environmental field strength detection. 5. MAIN APPLICATIONS: Logarithmic power meter is made of AD8317 chip material for RF signal power detection. Specification: Item Type: Logarithmic Detector Module Material: PCB Input Impedance: 50 Ohms Output Impedance: 50 Ohms (Video Impedance) Operating Frequency Freq: 1MHz 10GHz Output Voltage Range: 1.6 0.4V (corresponds to 550 dBm) Input to Output Ratio: 22mVdBm Input Dynamic Range: 605 dBm (High Linear Dynamic Range: 550 dBm) Product Supply Voltage: 3.35V DC at 20mA Applications: RF transmitter PA setpoint control and level monitoring Power monitoring base stations in radio line transmitters RSSI measurement in WLAN, WiMAX and radar. Package List: 1 x Logarithmic Detector ModuleLARGE DETECTION RANGE: The larger the amplitude or power of the RF signal, the higher the output voltage, and the output voltage is proportional to the logarithm of the input signal amplitude, thus expanding the dynamic range of the detection signal. POWERFUL FUNCTION: Logarithmic power meter can detect the power of ?55dBm to 0dBm RF signal, thus converting the RF signal to DC voltage output. EASY INSTALLATION: The logarithmic detector is compact, simple and fast wiring, saving time and effort, and long service life. WIDE USES: Logarithmic detectors can be widely used in RF signal detection, signal power measurement, and environmental field strength detection. MAIN APPLICATIONS: Logarithmic power meter is made of AD8317 chip material for RF signal power detection.
