Feature:
1. Waterproof and Insulation: The controller has waterproof and corrosion proof and insulation protection designed for circuit boards, and the housing is also waterproof.
2. MPPT Function: The controller has a boost type MPPT mode, which can automatically tracing or 5 segment curve tracing.
3. Protection Type: The controller has thunder protection, solar reverse charge protection, over wind speed over voltage soft automatic brake protection, overload protection and so on.
4. Multiple Output Modes: The controller provides multiple output modes, such as light control, timing control, morning light, hold output, reverse output, which are suitable for various applications.
5. Data Display: The controller can calculate accumulated power generation, remaining power, speed, current, temperature and other data. It not only displays the regular data such as output current, voltage, power of wind generator, solar panel and battery, but also the accumulated power, remaining battery power and RPM generated by wind and solar energy.
Specification:

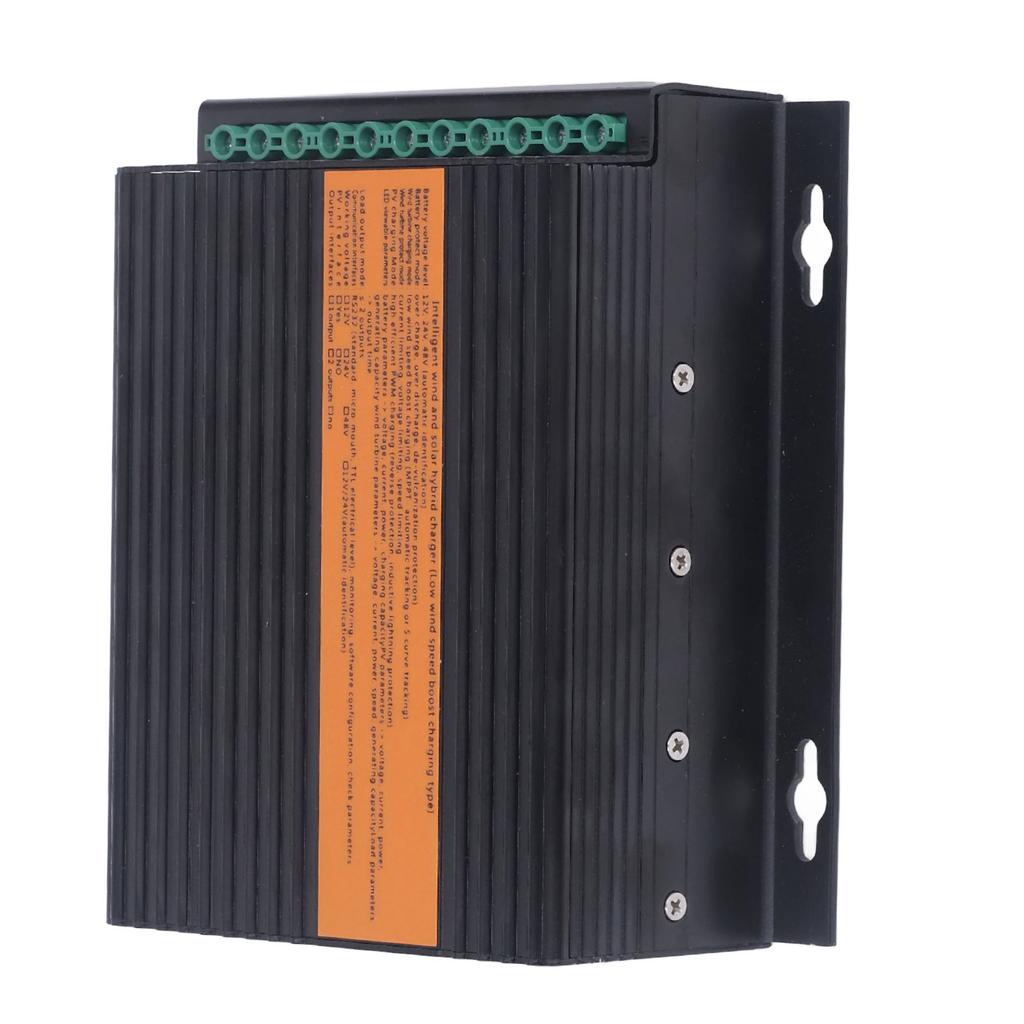

Item Type: Wind Solar Hybird Controller
Material: Aluminum alloy
Protection Grade: IP41
Rated Voltage: 48V
Photovoltaic Power: 100W
Wind Generator Power: 300W
Ambient Temperature: 25 celsius +55 celsius
Protection Type: Thunder protection, solar reverse charge protection, battery open circuit protection, battery reverse connection protection, over wind speed over voltage soft automatic brake protection, overload protection
Overload Protection
Overvoltage Protection Point Voltage: 29.0V+0.2V (14.5V+0.2V)
Overvoltage Recovery Point Voltage: 27.5V+0.2V (13.7V+0.2V)
Undervoltage Protection Point Voltage: 21.0V+0.2V (10.5V+0.2V)
Undervoltage Recovery Point Voltage: 23.0V+0.2V (11.5V+0.2V)
Fan Input Port Parameters
Applicable Fan Rated Power: 300W
Port Rated Current: DC20A (after rectification)
Port Maximum Input Current: DC25A (after rectification)
Fan Speed Limiting Power Generation Preset Speed: 500Rpm (Settable)
Wind Generator Current Limit Power Generation Preset Current: 20A (Settable)
Fan Protection Method: Over speed protection, over current protection, induction thunder protection
Unloading Method: PWM stepless great frequency soft unloading (built in) or manual unloading brake
MPPT Function: Boost type MPPT mode (automatic tracing or 5 segment curve tracing)
MPPT Channel input current: 5A (standard)
Photovoltaic Input Port Parameters
Applicable PV Rated Power: 100W (48V)
Port Rated Input Current: 10A (standard) 30A
Charge Voltage Drop: <0.2V
Photovoltaic Protection Method: Reverse connection protection
Unloading Method: Open circuit unloading
Discharge Output Port Parameters
Number of Output Channels: 2 channels
Output Current Per Channel: 12A
Output Control Mode: Light control, time control, morning light, hold output, reverse output
Display Mode: 3 Digit digital tube (LED) display
Communication Mode: RS232 (5V level) (standard) , RS485 short range wireless RF
Displayable Parameter Content: Fan input voltage, current, power, power generation, speed, unload current, PV input voltage, current, power, power generation, battery voltage, charge current, power, total charge, battery status information.
Package List:
1 x Wind Solar Hybird Controller
Note:
Solar input continuous reverse connection will not cause damage. The controller will continue to work after correcting the reverse connection.Waterproof and Insulation: The controller has waterproof and corrosion proof and insulation protection designed for circuit boards, and the housing is also waterproof.
MPPT Function: The controller has a boost type MPPT mode, which can automatically tracing or 5 segment curve tracing.
Protection Type: The controller has thunder protection, solar reverse charge protection, over wind speed over voltage soft automatic brake protection, overload protection and so on.
Multiple Output Modes: The controller provides multiple output modes, such as light control, timing control, morning light, hold output, reverse output, which are suitable for various applications.
Data Display: The controller can calculate accumulated power generation, remaining power, speed, current, temperature and other data. It not only displays the regular data such as output current, voltage, power of wind generator, solar panel and battery,
