3S 12V 18650 10A BMS Charger Li-ion Lithium Battery Protection Board Circuit Board 10.8V 11.1V 12.6V Electric Blue Green Battery

Hign-concerned Chemical : None Package : DIY Module Model Number : HX-3S-01 Dissipation Power : .... Supply Voltage : 4.25-4.35v±0.05v Application : Computer Type : Module

Operating Temperature : -40℃~+80℃ Origin : China Condition : New Functions : Electronic Module Range of application : Switch And Sensor For Arduino STM

Attention: This protection board can not be used for iron polymer battery, hand drill battery pack, electric fish battery pack, electric bicycle battery pack, 2 pieces of 24V in series, 775(4A) or more motor, 1W fisheye LED lamp, for the above combination purchase customers please pay attention! .

The described power range is suitable for the following products: Vacuum cleaner massager battery pack, LED lamp backup power supply, 12V electronics, solar street lamp battery pack, monitoring backup power supply, and other products.

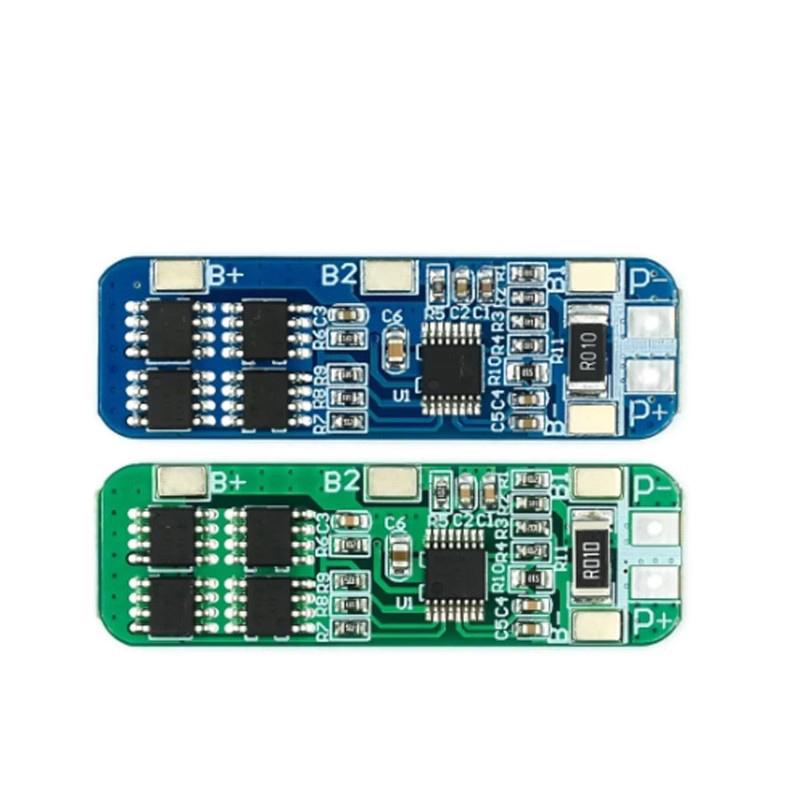

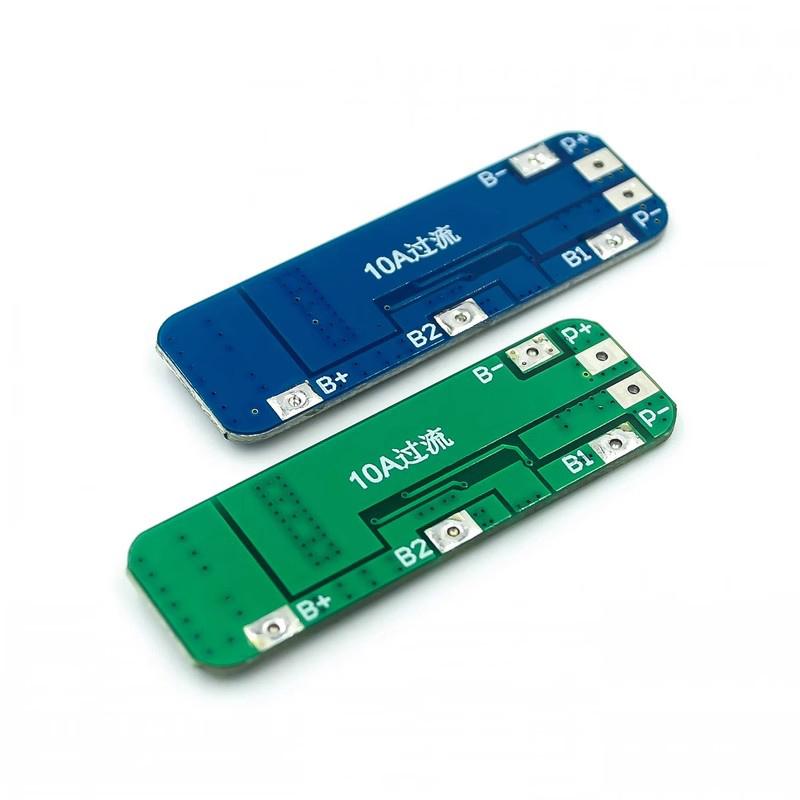

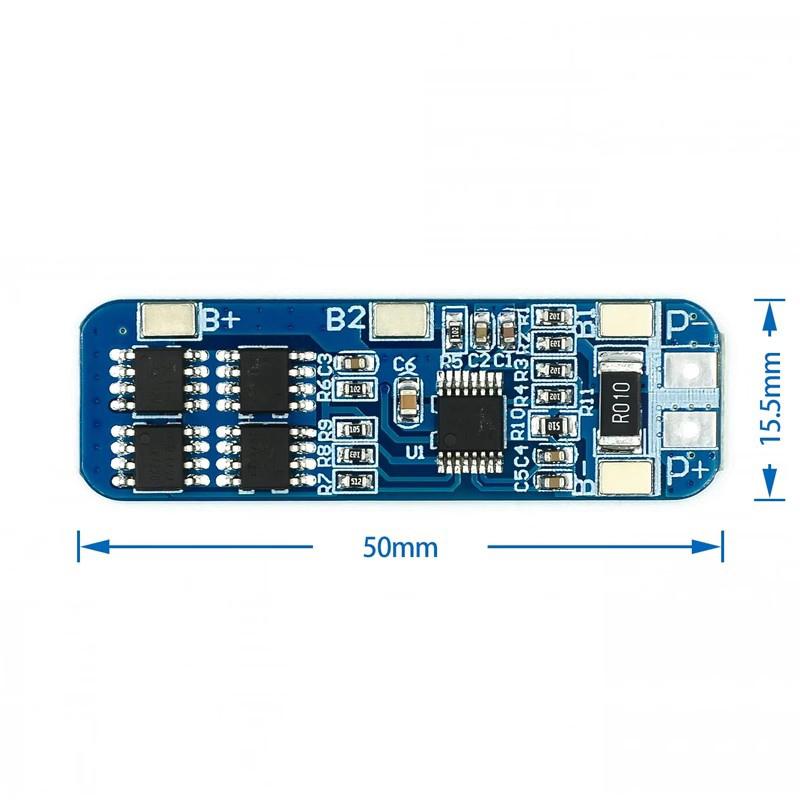

Description Explanation: 3 series (for 3 18650 batteries or polymer lithium batteries in series combination) 10.8V(rated voltage of polymer battery) 11.1V(rated voltage of 18650 or 3.7V lithium battery) 12.6V(lithium battery voltage after full charge) Discharge 10A(refers to discharge current limit) Lithium battery protection board Comes with: over charge, over discharge, over current, short circuit protection 18650 Lithium Battery Pack!! Overview: The main IC uses the original "Seiko" imported components. With over charge, over discharge, over current, short circuit and other protection functions, used in various capacities and shapes of 3.7V lithium cell. Japan Seiko protection IC, VISHAY, AOS, IR and other high quality MOSFETs, FR-4 low temperature coefficient sheet, well-designed, comprehensive testing. Small size, suitable for many occasions requiring high integration and low cost, can meet various performance requirements, to ensure the safety and reliability of the battery pack. The properties of the lithium battery protection board: Model: HX-3S-01 Overcharge voltage range: 4.25-4.35v±0.05v Size: 50*16*1.0mm overdischarge voltage range: 2.3-3.0v±0.05v Working current: 5-8A Working temperature: -40-- +50℃ Instantaneous current: 9-10A Storage condition: -40-- +80℃ Static current: less than 6uA Effective life: more than 30,000 hours Internal resistance: less than 60mΩ Short circuit protection: can be protected, delay self-recovery. The size and device description of the protection plate; The size of the protection board is 50*16*1.0mm; Components for Seiko S-8254AA protection chip and FDS 4435A*4;

The line layout is compact and regular, with good electrical insulation and mechanical stability, and can maintain stable performance under different temperature and humidity environments to ensure accuracy and reliability.

In circuit design, carefully planned lines are like precision transportation networks, and lines of different widths and spacings undertake different currents and signals transmission tasks respectively. The key signal lines are impedance matching processing, which greatly reduces signal reflection and attenuation and ensures the stable transmission of high-frequency signals.

All kinds of electronic components are soldered on the circuit board, and the solder joints are full, round, and firm and reliable. Core components like chips are perfectly connected to the circuit board through fine packaging processes to achieve high-speed data processing and interaction.

This circuit board has a wide range of responses in many fields. Whether in the industrial control field that requires extremely high stability or consumer electronics field that pursues extreme performance, it can provide solid guarantees for the stable operation of the equipment with its excellent design and reliable performance, and help various electronic devices play a powerful role.
