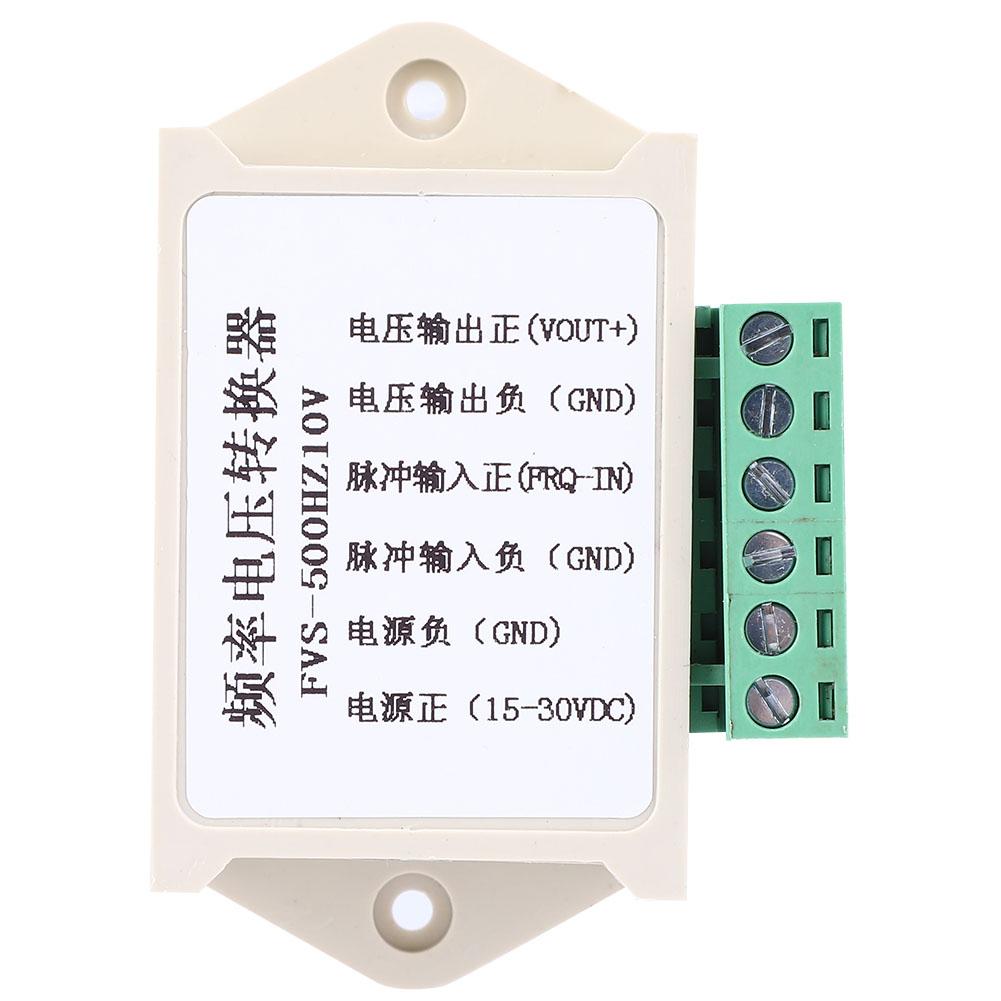

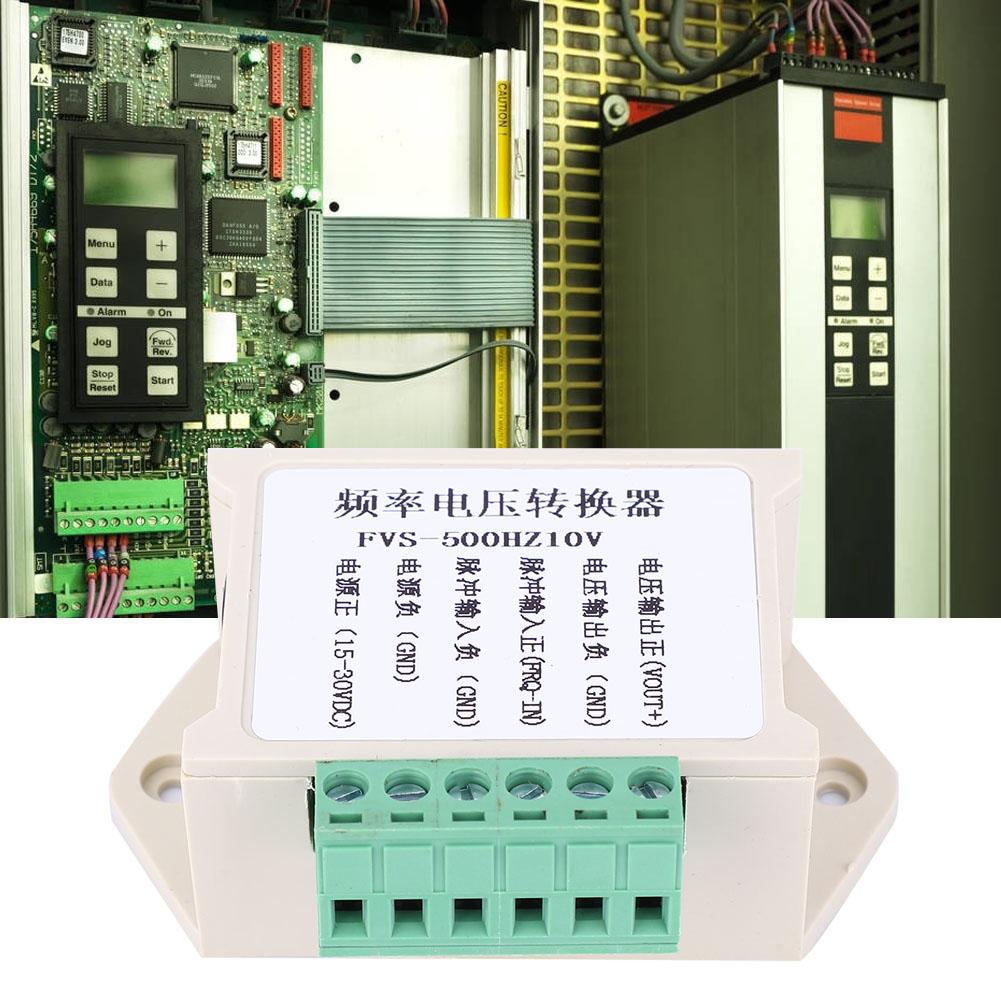

FVS500Hz10V Frequency to Voltage Converter Module 0~500Hz to 0~10V with Shell

Features: Convert the 0500 Hz frequency pulse signal into an analog voltage signal of 010V. Can be used for interface conversion between PLC and inverter. Or the motion control card and the inverter and other interfaces match the control occasion. The input pulse level of 5V 12V 24V can be directly input, without string resistance. However, the input signal frequency should be maintained for more than 0.5 seconds.The output current is 5mA. The multiturn potentiometer on the board is used to calibrate the corresponding relationship between frequency and voltage. The input power supply voltage range is 1230VDC. It is recommended that the power supply voltage be 1524VDC. When the 12V level is used, the power supply cannot be powered by 12VDC,at least 15VDC power supply is required. When the 24V level is used, the power supply needs to be powered by 24VDC. The signal input end is isolated by diaphragm. Guaranteed antiinterference ability. Specification: Item Type:Frequency to Voltage Converter Module Model:FVS500Hz10V Conversion:0~500Hz to 0~10V Output Current:5mA Size:7.3 x 5 x 2.8cm 2.87 x 1.97 x 1.1in Correspondence Relationship(Linearity) 50Hz converted to 1V Convert 250Hz to 5V Convert 500Hz to 10V Package List: 1 x Converter Module with Shell Note: If you need to use PLC, support NPN type. Must have a ground wire. If you need to use with the encoder, the encoder is required to continue to rotate at a constant speed for more than 0.5 seconds. Frequency and voltage conversion module, response time is about 0.30.5 seconds. If the signal input is turbine flow, etc., due to signal matching, an 817 diaphragm and a resistor must be added to match the flowmeter to normal function. Correspondence in use If there is a deviation, you can adjust the blue potentiometer on the board to calibrate. At the time of shipment, we have adjusted the Fv potentiometer to a certain correspondence. It is generally not recommended to adjust it by itself. Convert the 0500 Hz frequency pulse signal into an analog voltage signal of 010V. Can be used for interface conversion between PLC and inverter. Or the motion control card and the inverter and other interfaces match the control occasion. The input pulse level of 5V 12V 24V can be directly input, without string resistance. However, the input signal frequency should be maintained for more than 0.5 seconds.The output current is 5mA. The multiturn potentiometer on the board is used to calibrate the corresponding relationship between frequency and voltage. The input power supply voltage range is 1230VDC. It is recommended that the power supply voltage be 1524VDC. When the 12V level is used, the power supply cannot be powered by 12VDC,at least 15VDC power supply is required. When the 24V level is used, th The signal input end is isolated by diaphragm. Guaranteed antiinterference ability.
