Feature:
1. DRIVER IC: The module driver IC is for AIP650 (compatible for TM650), as well as supports multiple display characters.
2. 4 DIGIT 7 SEGMENT: The digital tube display module is designed for 4 digit 7 segment, with stable and reliable performance.
3. CONTROL INTERFACE: With 4 pins, SDA is bidirectional data line, SCL is clock line, GND is for ground line, and VCC is power supply.
4. COMPACT STRUCTURE: The LED digital tube module is exquisite and compact, which can be flexibly used in a variety of situations.
5. WIDE APPLICATION: This module is suitable for Raspberry Pi 3 B+ 4, for DIY electronic devices, toy cars and instrumentation etc.
Specification:

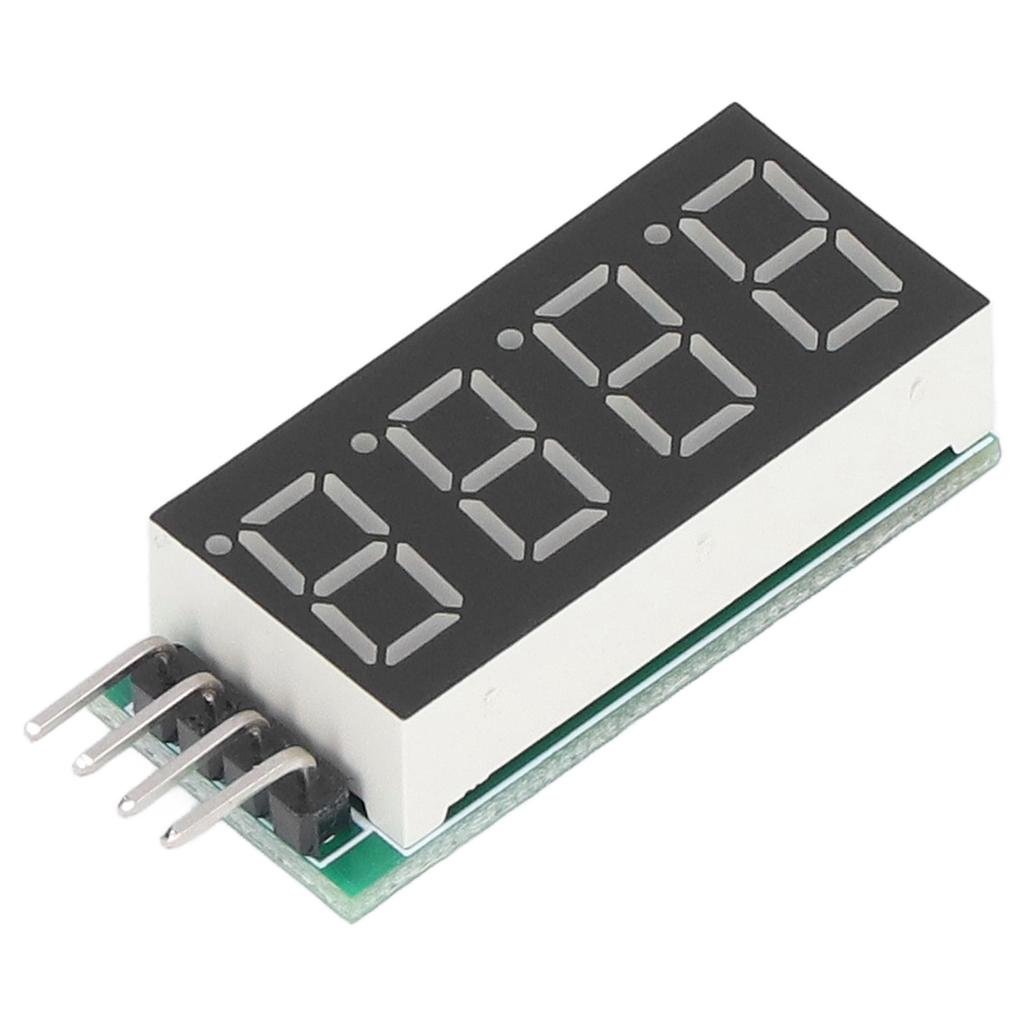

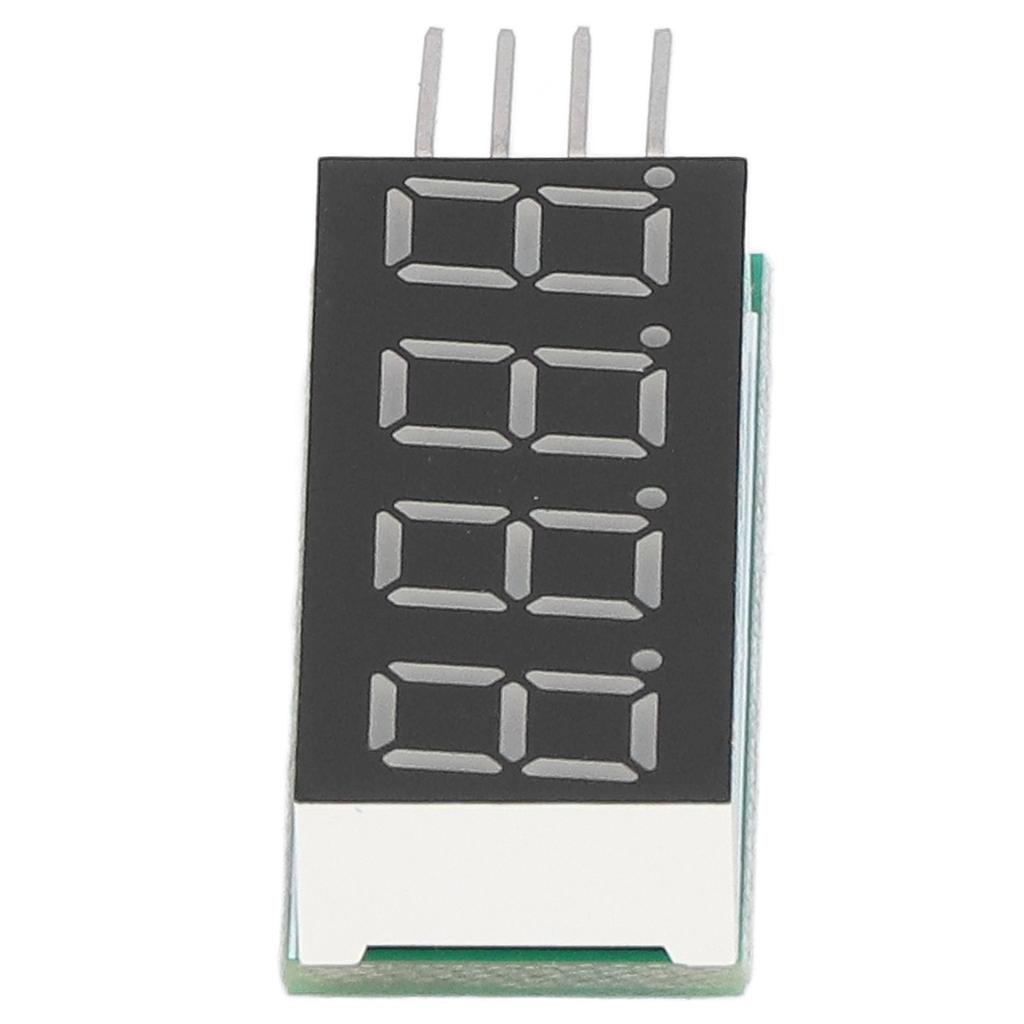

Item Type: Digital Tube Module
Model: DM43B04
Material: PCB
Supply Voltage: DC 5V3.3V
Driver IC: AIP650 (compatible with tm1650)
Interface: I2C (only two control signals, SDA SCL Data)
Support Display Characters: 0,1,2,3,4,5,6,7,8,9,A,b,C,c,d,E,F,H,h,L,n,N,o, P,r,t,U,
Other Board Wiring:
Board: I2C TWI pins
For Ethernet: A4 (SDA), A5 (SCL)
For 20 (SDA), 21 (SCL)
For Leonardo: 2 (SDA), 3 (SCL)
For Due: 20 (SDA), 21 (SCL)
Application: For Raspberry Pi 3 B+ 4; for MCU for AVR for PIC for ARM N76E003; for FPGA CPLD;
Suitable for toy cars, for instrumentation, DIY electronics
.
Package List:
1 x Digital Tube Module
Note:
Pay attention to standard operation.DRIVER IC: The module driver IC is for AIP650 (compatible for TM650), as well as supports multiple display characters.
4 DIGIT 7 SEGMENT: The digital tube display module is designed for 4 digit 7 segment, with stable and reliable performance.
CONTROL INTERFACE: With 4 pins, SDA is bidirectional data line, SCL is clock line, GND is for ground line, and VCC is power supply.
COMPACT STRUCTURE: The LED digital tube module is exquisite and compact, which can be flexibly used in a variety of situations.
WIDE APPLICATION: This module is suitable for Raspberry Pi 3 B+ 4, for DIY electronic devices, toy cars and instrumentation etc.
