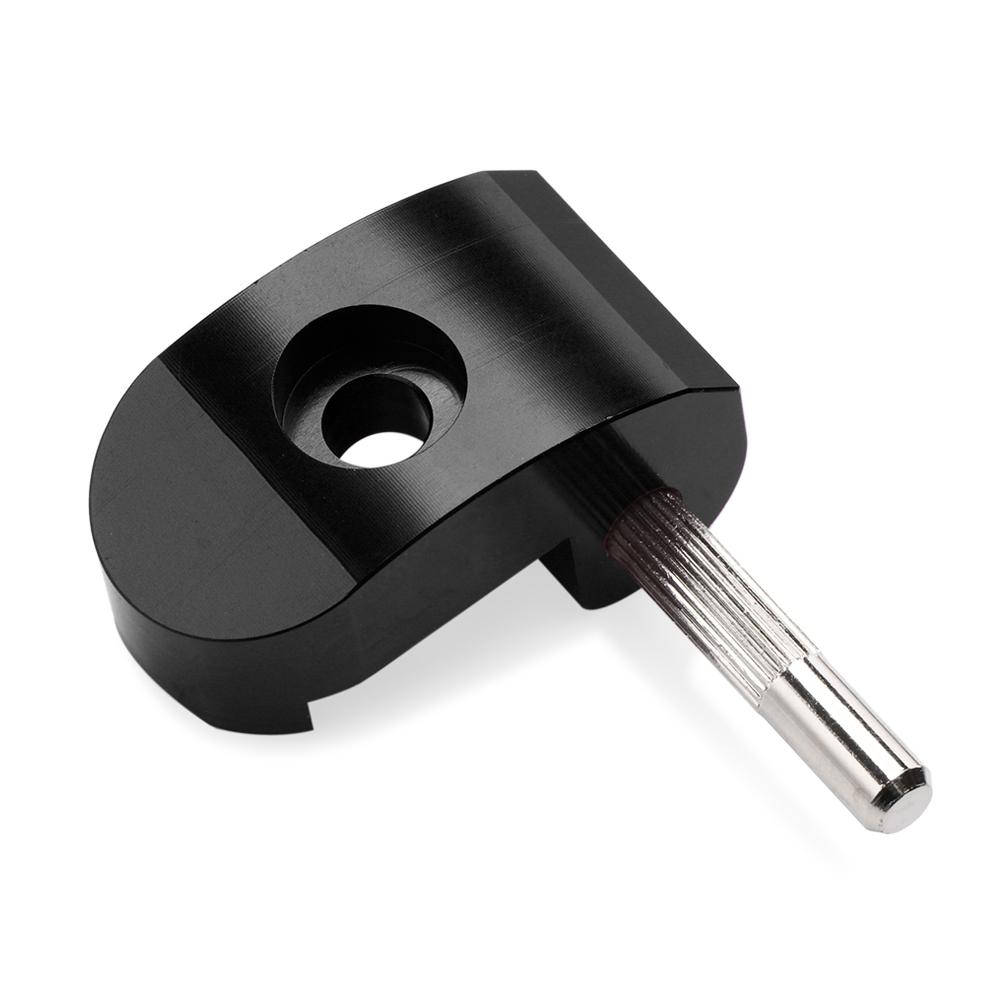

Alloy Steel Upgraded Repair Latch Hinge Bolt Replacement Locks Scooter Folding Hook Lock Screw

Label:Yes Material:Metal Size:Shaft Locking Screw Replacement Parts For Xiaomi M365 Mijia Electric Scooter Optional Color:Black,Red,Silver (As Pictures Show) Electroplating process, no fading Quantity:1pc Made of high-density aviation aluminum, high hardness, not easy to bend and break Stronger than ordinary folding buckle. Brand new with high quality Nice appearance Features: 1.For Xiaomi M365 Pro Reinforced Aluminium Replacement Lock Hinge Repair Latch 2.Unscrew the old lock, keep the screw safe as you are going to use the same one for the replacement part. 3.To punch out the pin you need to make sure you do it from the correct side. Make sure you do it from LEFT to RIGHT (when looking from the front of the scooter, not from the steering wheel side). Lay down the scooter, put something solid under the folding mechanism. Make sure to watch out for cables! Move them away before each punch otherwise you are going to break them. 4.Apply some lubricant, oil or WD40 to the pin and leave it for a while. Some customers prefer to use hot air instead to slightly heat the pin. 5.Apply 4mm punch tool and hit it hard multiple times. Once again, watch out for cables. 6.Take a new lock and use the same screw to put it back on. 7.Turn the scooter upside down as the pin has to be inserted from the other side (RIGHT TO LEFT when looking from the front of the scooter) 8.Make sure to follow the pin. Put the pin inside and then apply the punch tool once again. It should go in quite easily. Punch it until its aligned from both sides. 9.Readjust your shaft lock/bolt to make sure the new lock folds in well. Do not over tighten it, but do not make it too loose either (just enough resistance in it and there is no play in the stem/hinge). Package Include: 1pc Folding buckle Notice: 1.1cm=10mm=0.39inch. 2.Please allow 1-2mm error due to manual measurement and make sure you do not mind before ordering. 3.Please understand that colors may exist chromatic aberration as the different placement of pictures.
