150W 160W DC-DC Boost Converter Step Up Power Supply Module 8A 10A Laptop Voltage Charge Board

Name: 150W 160W DC-DC Boost Converter Step Up Power Supply Module 8A 10A Laptop Voltage Charge Board
SKU: 685ba06f774ddf01884dbcbd
Price: 188 CZK
Availability: InStock

Aktuální cena

Od Cena 188 Kč

včetně DPH

Barva a velikost

150W 150KHz
160W

Doručení do ČR 🇨🇿

6–12 pracovních dnů · 85 Kč

Vaše platby a soukromí jsou v bezpečí

Vrácení peněz při nedoručení

Záruka kvality

Bezpečná logistika

Ochrana soukromí

Bezpečnost a soulad s předpisy

Popis

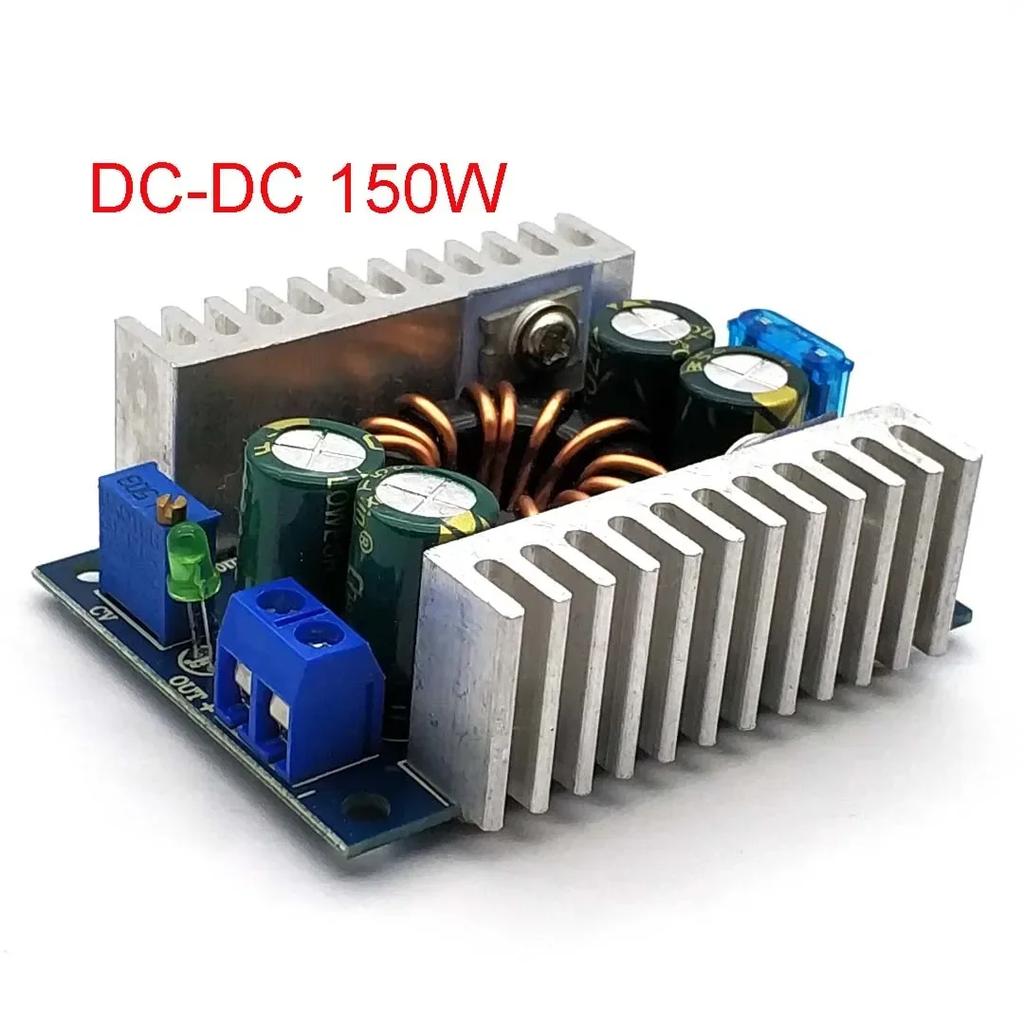

DC-DC 150W: Module Name: 150W Boost Module Module Properties: non-isolated step-up module (BOOST) Input voltage :8-32V Input Current: 16A (MAX), if the current is larger than 8A, please add extra heat dissipation. Quiescent operating current: 15mA (12V liters 20V, the output voltage higher the static too current will increase) Continuously adjustable output voltage :9-46V Output current: 8A MAX exceed 4A enhance heat dissipation (input, output differential pressure, the smaller the greater the pressure differential output current) Output power: natural cooling 90W, to enhance heat dissipation 150W Operating temperature: -40 to +85 degrees (ambient temperature enhance heat dissipation) Operating frequency: 150KHz/380KHz Conversion efficiency: Up to 95% (the efficiency of the input and output voltage, current, differential pressure related) Short circuit protection: None Input reverse polarity protection: No, (if required in the input string into the diode) Installation: 4 3mm screws Free welding output wiring: terminals, with housing for welding output. (V-IN is input as an output, V-OUT) Module size: 60(L) x 50(W)x 20(H) mm Applications: 1, DIY a regulated power supply, input 12V can the output can 12-46V/60V adjustable. 2, the power supply for your electronic equipment, can set according to your system voltage output value. 3, as the vehicle power supply for your laptop, PDA or digital products supply.

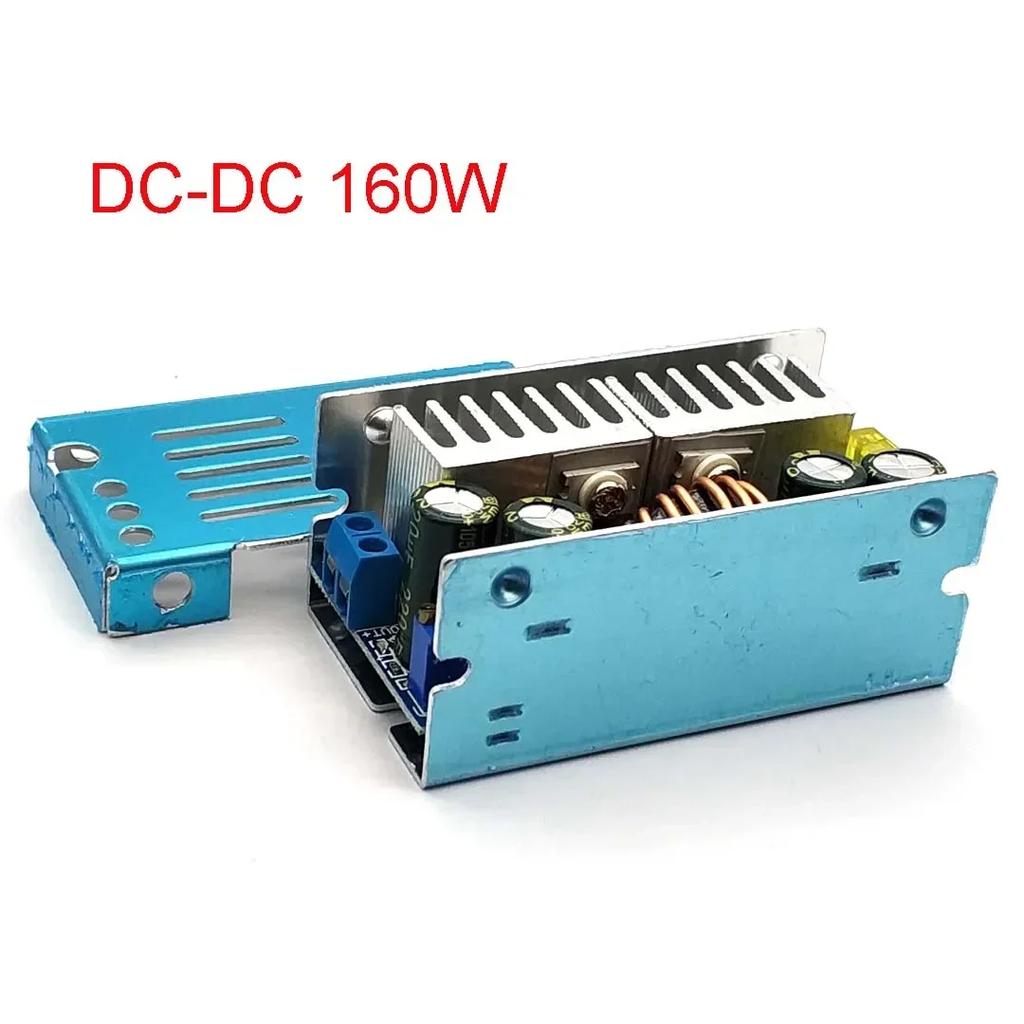

DC-DC 160W:

Power protection: 20A fuse Input voltage: DC9-40V Output voltage: DC12-60V adjustable Output current: value 10A (MAX) Current limiting range: 10A (MAX) Working frequency: 150KHz Conversion efficiency: 95% Output power: 90W (enhanced heat dissipation can reach 160W) Working temperature: -40C-85C Direction of potentiometer adjustment: clockwise (increase), counterclockwise (decrease) Wiring method: Wiring terminals Aluminum shell size: 70MM * 39MM * 31MM Heat dissipation: thickened and encrypted aluminum material for heat dissipation Module net weight: 87g Package Included 1 Pcs DC-DC Boost Module
