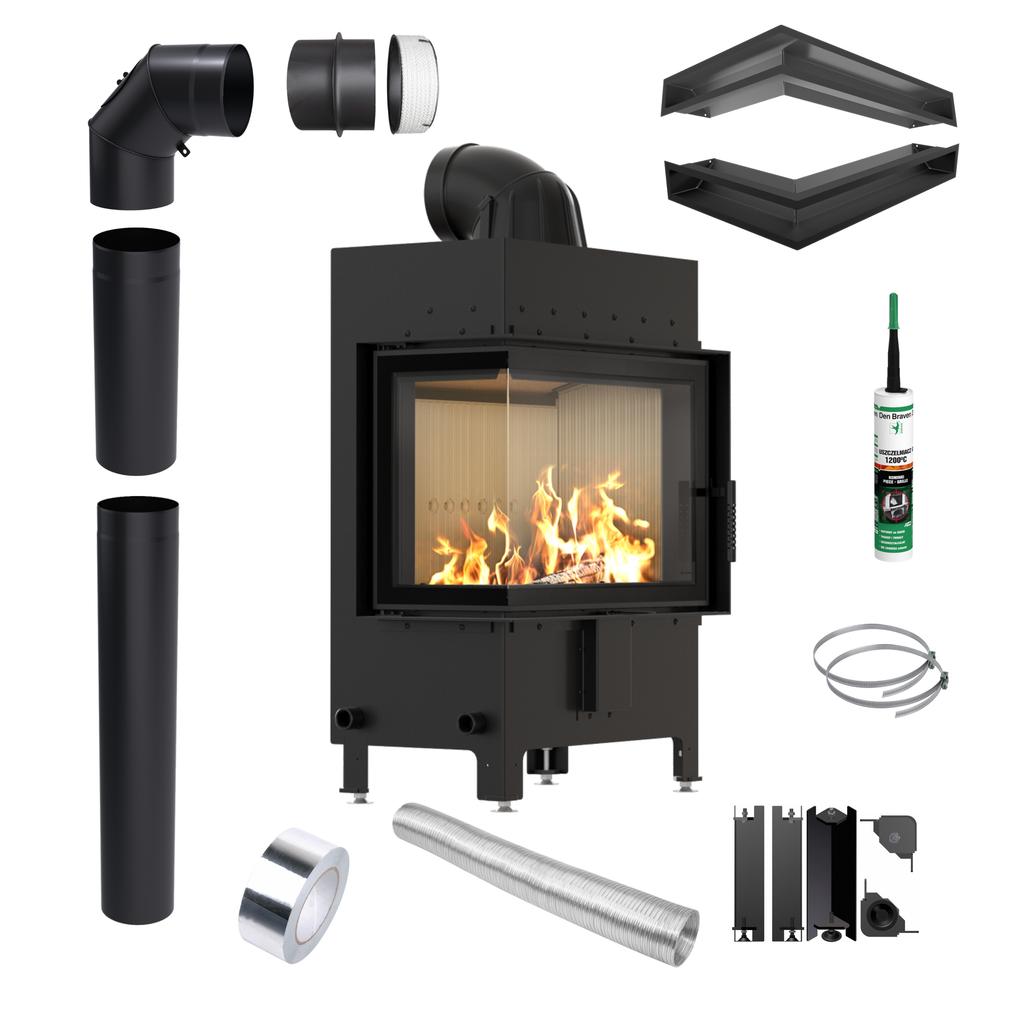

Discover the new face of the queen of fireplaces! LUCY L 12 kW fi 200
Discover LUCY 12kW, a fireplace that combines modern design with innovative technology. It will heat an area from 50 m² to 150 m², providing pleasant warmth and a unique atmosphere in your interior. The new grooved TERMOTEC lining improves combustion efficiency, accumulates heat and raises the temperature in the fireplace, and the decorative glass gives it an elegant, exclusive look.
In the new LUCY you will find comfortable solutions that make it easier to use: a perforated handle that does not heat up excessively, a durable cast iron grate with a removable ash pan, as well as a deepened bottom plate that prevents ash from spilling out. The internal fence reinforces the front, and the solid, adjustable legs allow for precise positioning of the fireplace.
LUCY 12 kW wood fireplace - heats from 50 m² to 150 m²
Ecodesign
Ecodesign is a European initiative aimed at improving energy efficiency and reducing pollutant emissions.
BImSchV 2
BImSchV 2 is a German law on the control of air pollution emissions, including requirements for fireplaces and stoves. Devices meeting BImSchV 2 standards must be characterized by low emissions of dust and harmful gases.
Heat recovery
Heat recovery is the process of recovering heat from the air exhausted from a building and transferring it to the supply air. Thanks to recuperation, heating costs can be significantly reduced.
General
Fuel type: seasoned hardwood (humidity ≤20%)
Nominal power (kW): 12
Heating power range (kW): 5.0 - 15.0
Material: steel
Thermal efficiency (%): 80
Exhaust gas temperature (°C): 266
Max log length (cm): 35
Minimum required active area of inlet grilles (cm²): ≥700
Minimum required active area of grilles outlet (cm²): ≥900
Glazing type: Corner
Door opening: Left
Closing: NO
Physical parameters
Weight (kg): 202.3
Exhaust outlet diameter (mm): 200
Width (cm): 72.4
Height (cm): 126.6
Depth (cm): 49
Inlet diameter (mm): 125
Certificates/Compliance
Meets ECODESIGN criteria: YES
Designed for heat recovery: YES
Compliance with BImSchV 2 standard: YES
Energy Efficiency
Energy Class: A
EEI coefficient: 106
CO emission (at 13% O2) ≤ given in %: 0.092
CO emission (mg/m³): 1158
Dust emission (mg/m³): 15
NOx emission (mg/m³): 117
OGC emission (mg/m³): 45
Exhaust gas mass flow (g/s): 11.8
Seasonal energy efficiency (%): 70
Equipment
Air inlet
Rubber combustion chamber lining
Decorative glass
Adjustable legs
Handle for quick grate removal.
ROTARY EXHAUST OUTLET
Possibility to change the exhaust outlet setting, which makes it easier to connect the insert. 360° adjustment allows for connecting the exhaust outlet at the back and top of the insert.
TERMOTEC GROOVED LINING
The combustion chamber is lined with Termotec material, which ensures efficient combustion, accumulates heat and increases the temperature in the firebox.
New design - grooved surface adds elegance and modern character to the fireplace.
Termotec is available in white or black.
INNOVATIVE HANDLE
The special perforated design of the handle protects against excessive heating, which affects the high comfort of using the fireplace.
EASY TO CLEAN
Durable, cast iron grate, under which there is a removable ash pan, which makes it easier to keep the firebox clean. cleanliness.
A dedicated handle for quick removal of the grate is included.
BUILT-IN AIR INTAKE ADJUSTMENT
The outside air supply is adjusted using the built-in damper located below the door. The entire mechanism operates inside the fireplace, very quietly and without failure.
SOLID ADJUSTABLE LEGS
Legs supported on thick screws ensure the stability of the fireplace insert. They enable even and precise positioning of the fireplace.
made in: Poland
