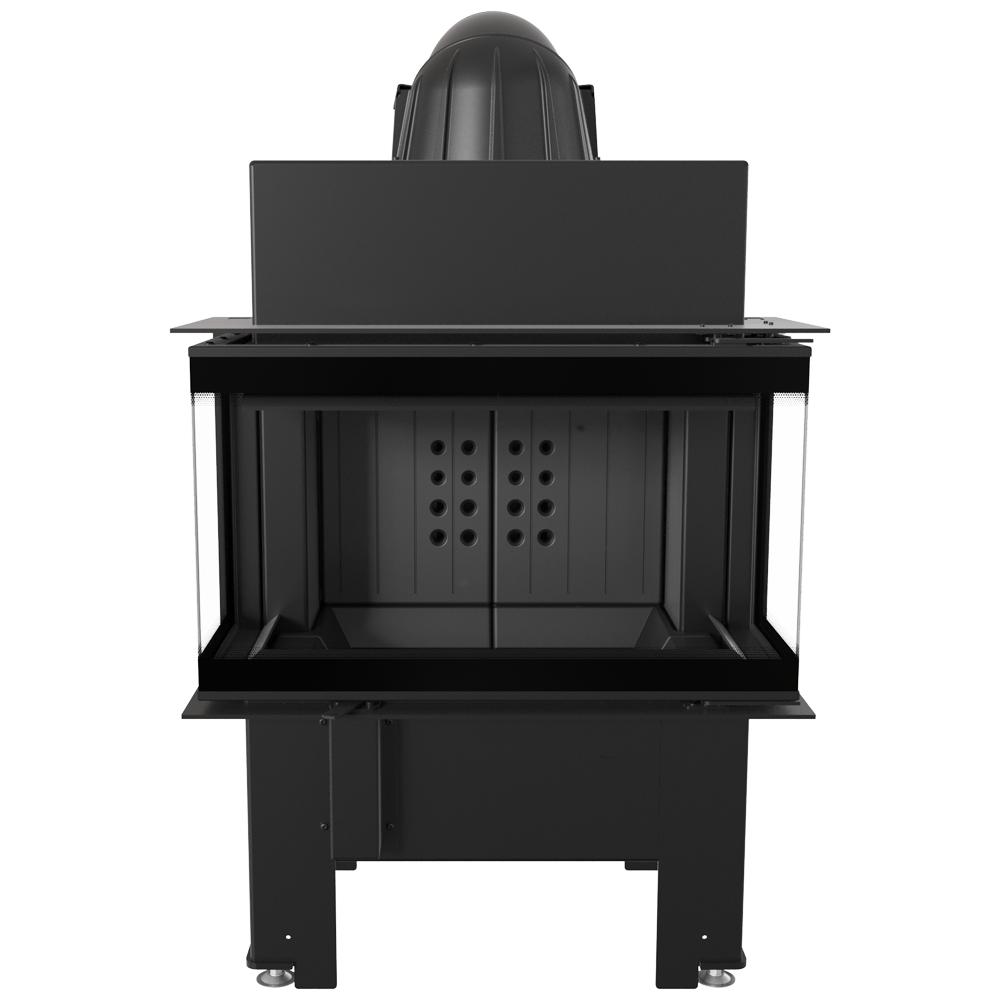

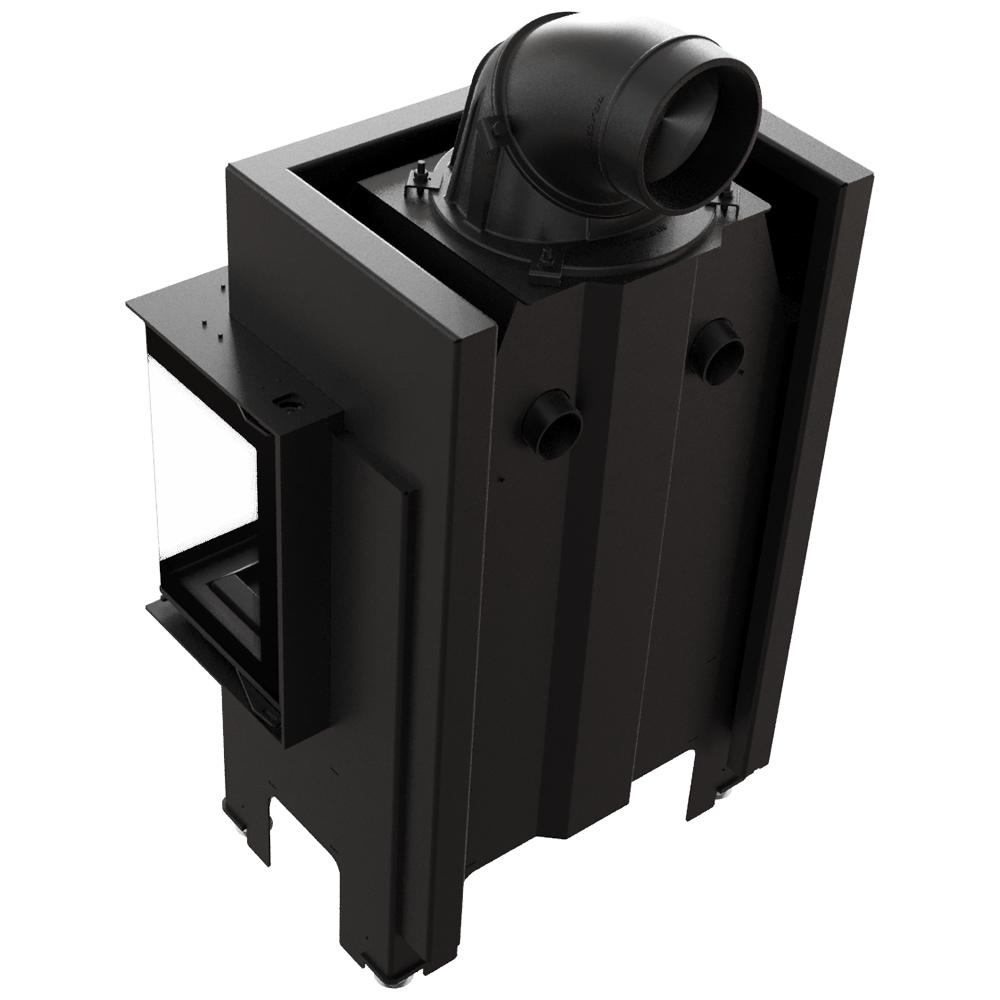

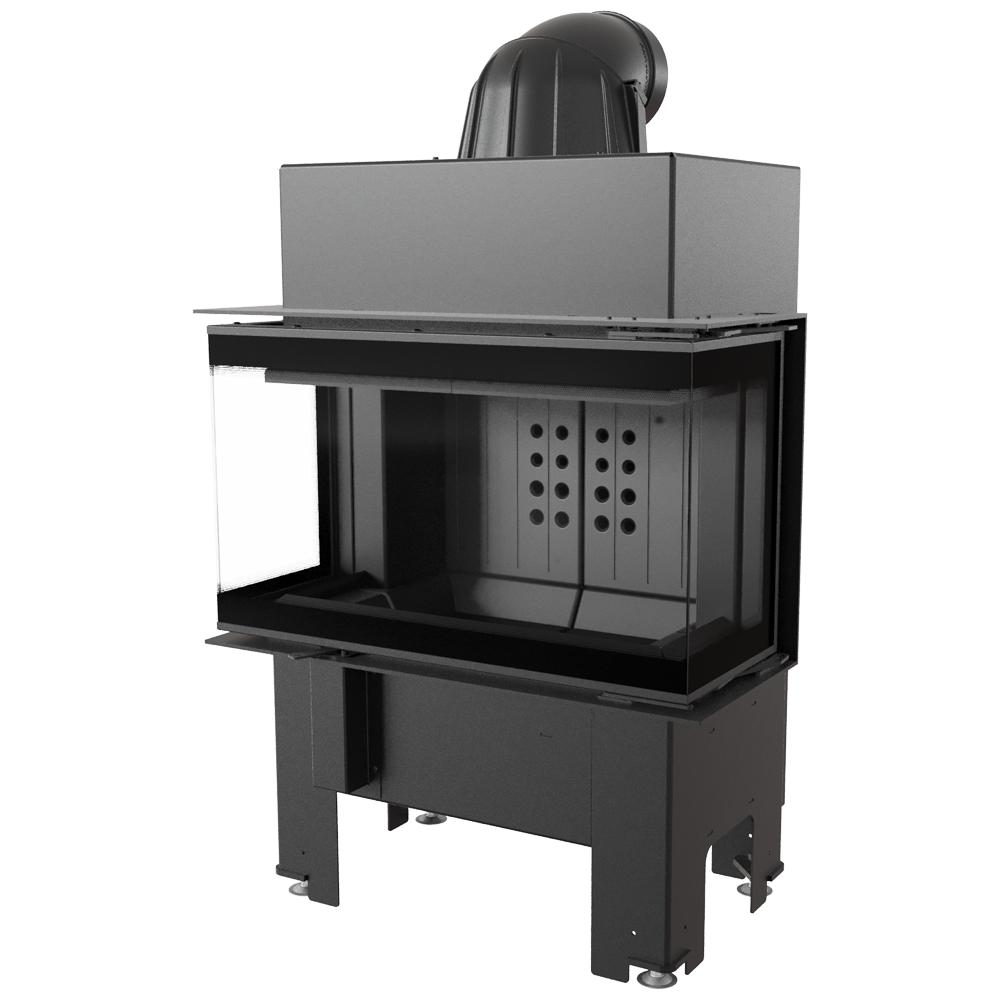

Steel fireplace KRATKI NBC 680/280 7 kW Ø 160 black thermotec
Vlastnosti
Popis

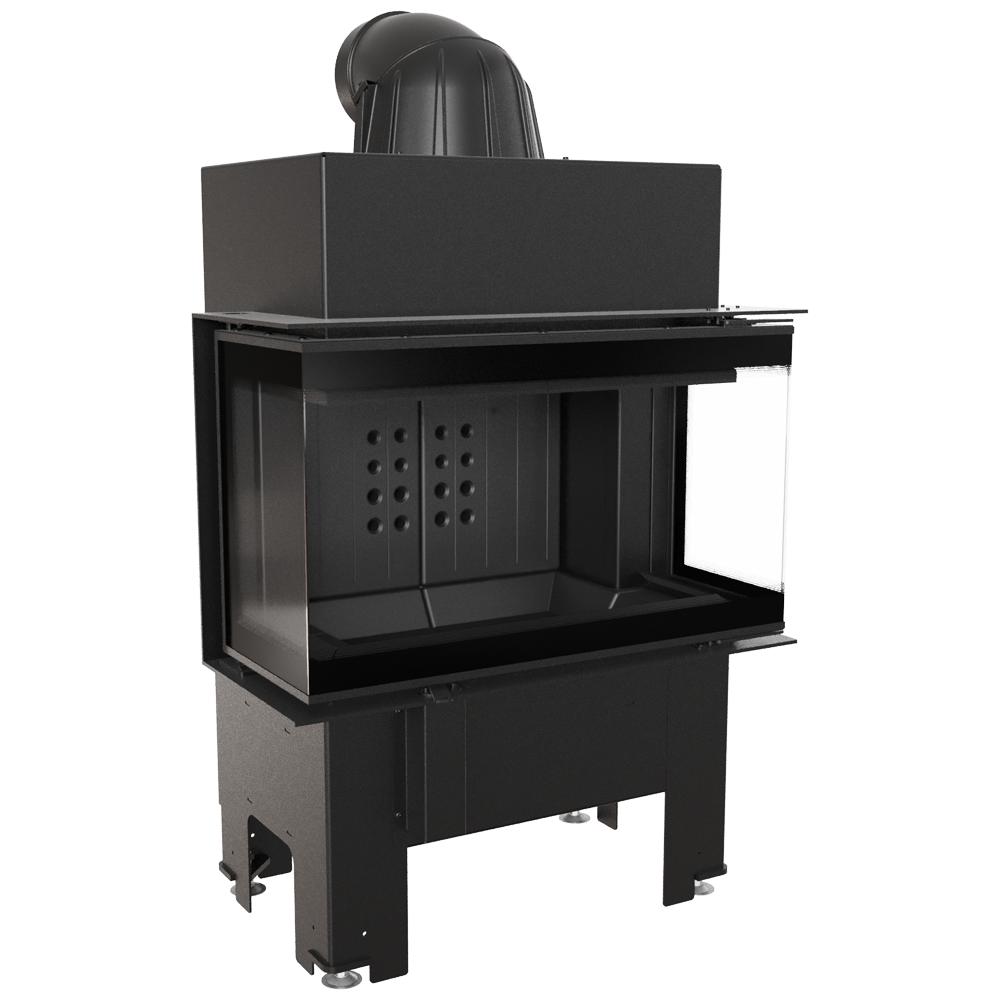

Small size NBC air insert, glazed on three sides, black Termotec lining, combines unique aesthetics and exceptional performance properties. In addition to the visual qualities, the device guarantees efficient heating of rooms and ecological wood combustion. Thanks to modern materials and innovative technical solutions, it is characterized by excellent technical parameters. One of its many advantages is the possibility of connecting an external air intake. The elegance of the insert is added by decorative glass glazing. In addition, it has a safe mechanism for opening the combustion chamber.
SAFETY AT THE HIGHEST LEVEL

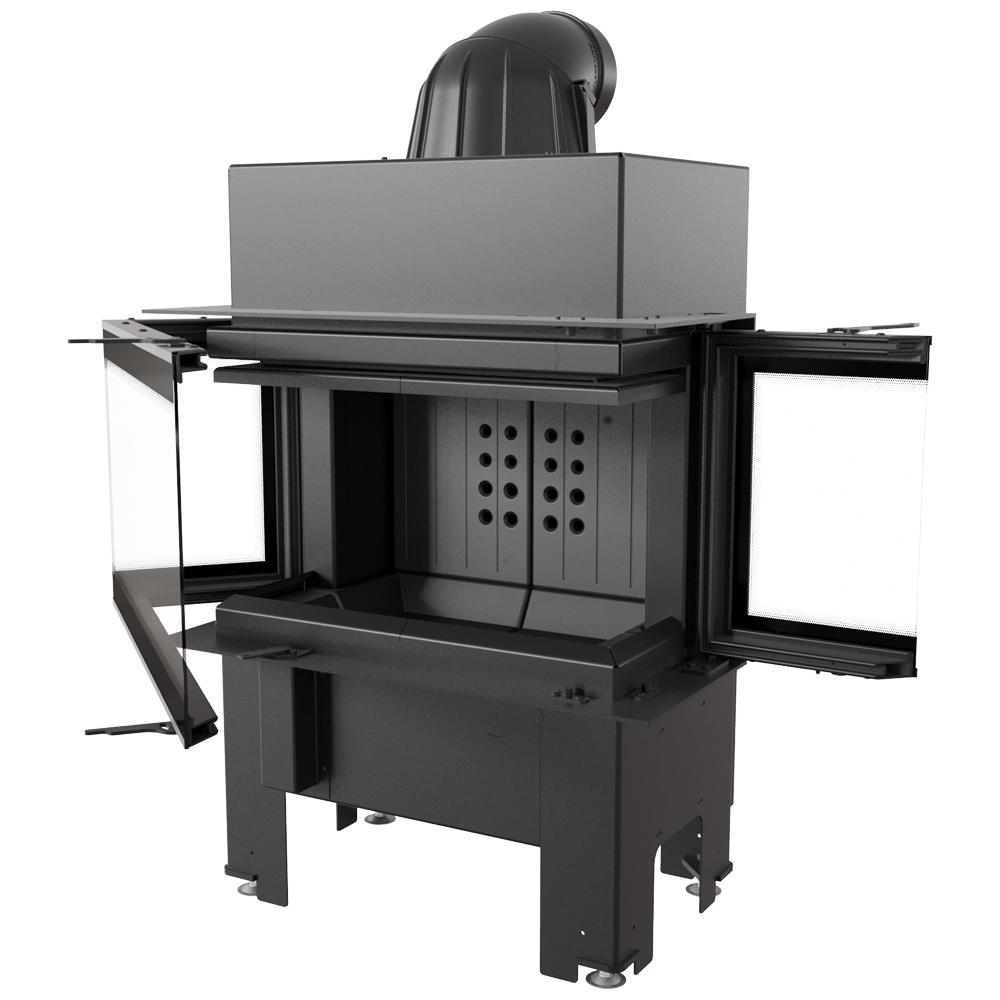

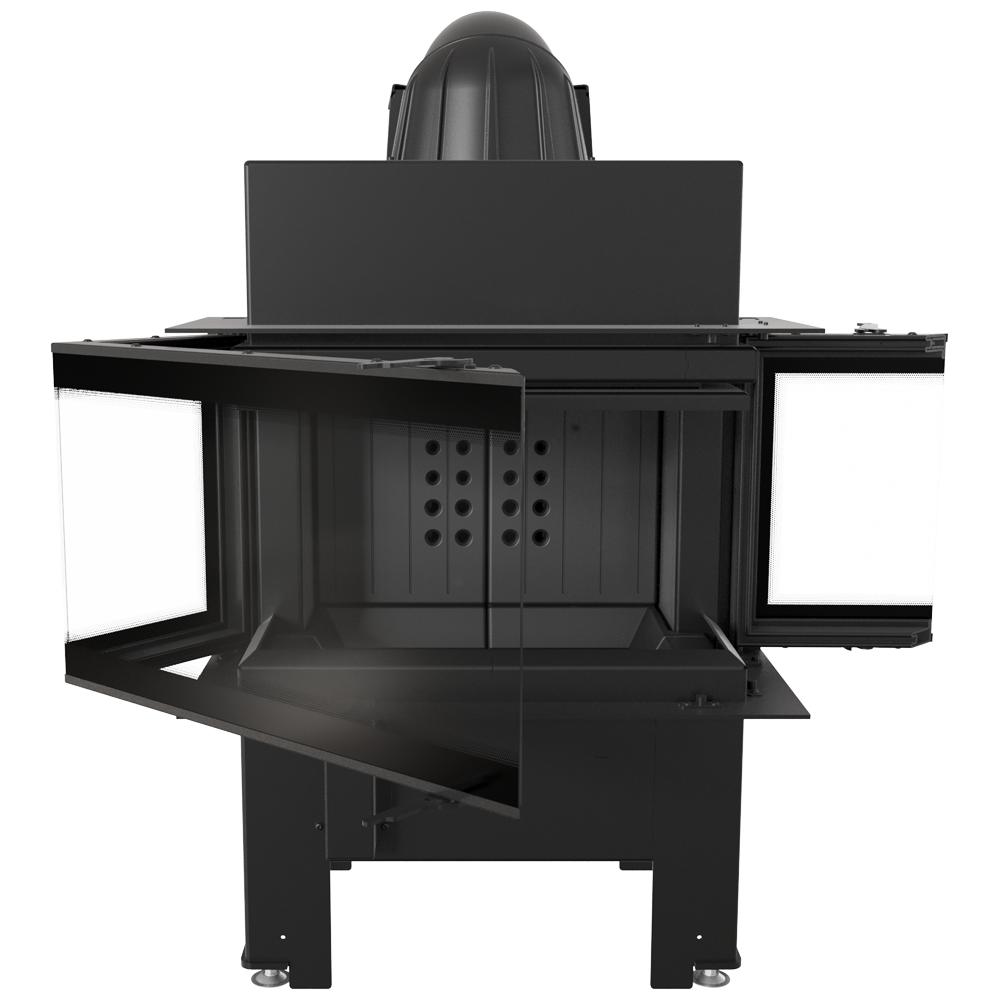

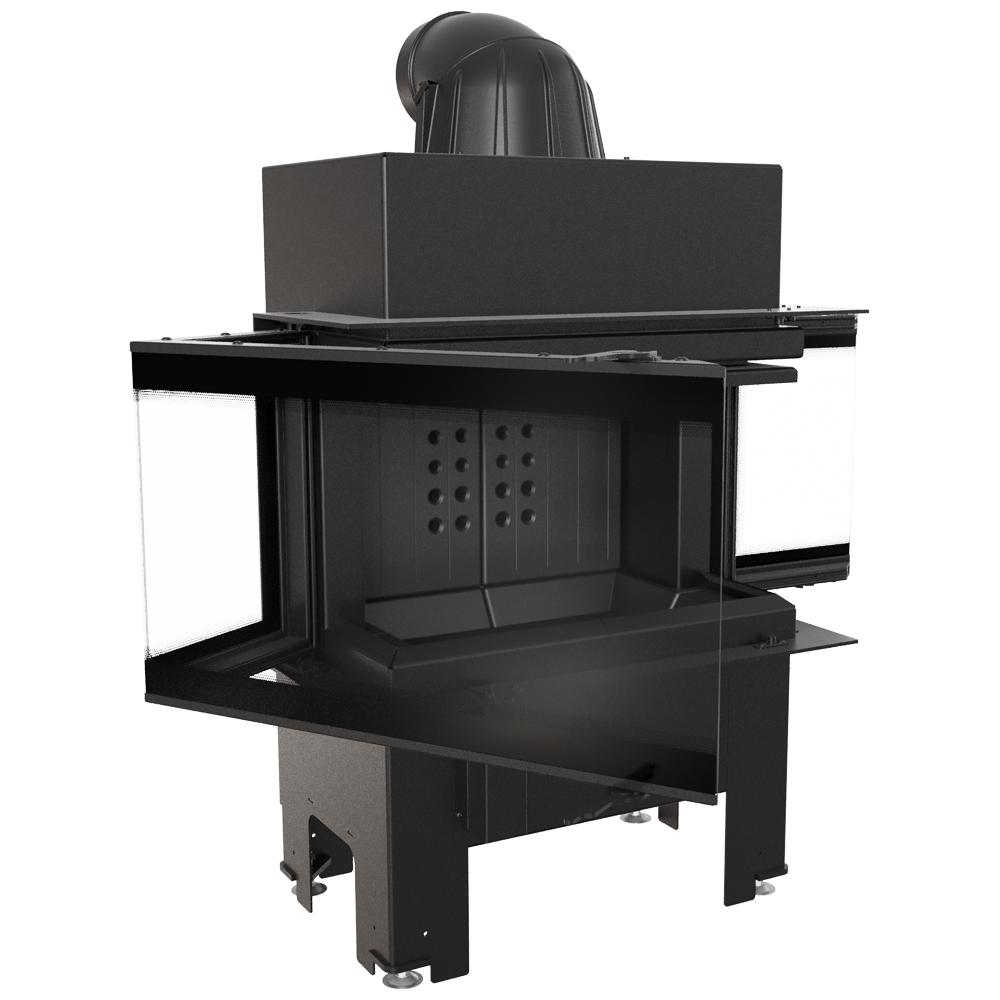

A three-pane fireplace ensures safety of use because it has a side opening system. You don't have to open all three windows - you can open only one to add wood easily and conveniently.
The glass of the insert is equipped with heat-resistant ceramics that can withstand temperatures up to 660 ° C. The installed glass has a quality and safety certificate.
The body and front of the insert are resistant to high temperatures thanks to high-quality steel.
The door frame is made of a closed profile, which makes it stable and resistant to stresses occurring during operation at high temperatures. Perfect tightness of the insert is guaranteed thanks to solid welds made in a noble gas shield. Steel elements are cut with laser cutters and then bent on CNC bending machines
ECOLOGICAL COMBUSTION
NBC is a modern wood fireplace - it meets the Ecodesign requirements and the BImSchV 2 standard, which determines the maximum CO emission. The NBC model meets the Ecodesign standards and the requirements of the restrictive BImSchV 2 standard, which determines the maximum CO emission
MODERN DESIGN

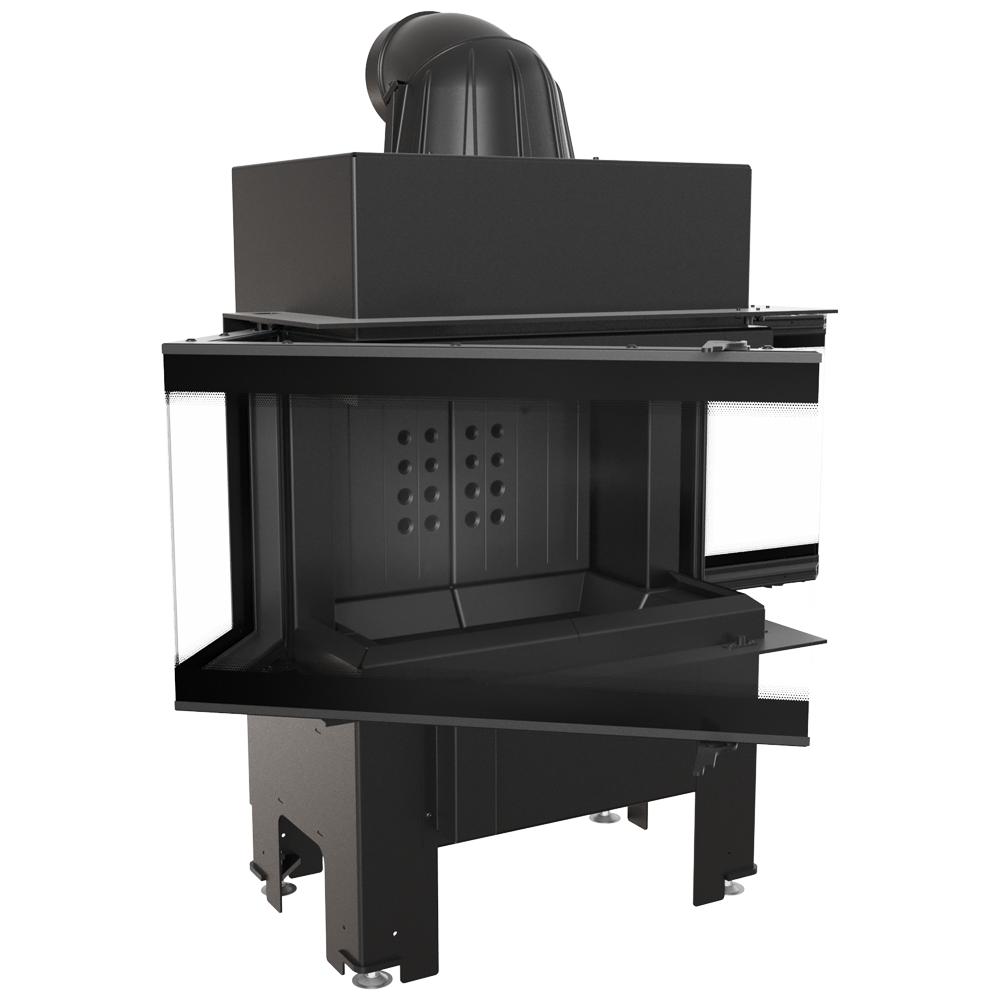

The three-sided NBC fireplace draws attention with its modern design and aesthetic finish. It impresses with a harmonious vision of fire, giving the interior a unique style. The heat radiates not only frontally but also sideways. Perfect for a living room in both modern and traditional style.
The fireplace is equipped with decorative glass, which makes it look elegant and modern. This solution optically enlarges the front of the insert and emphasizes the vision of fire.
CONVENIENT USE

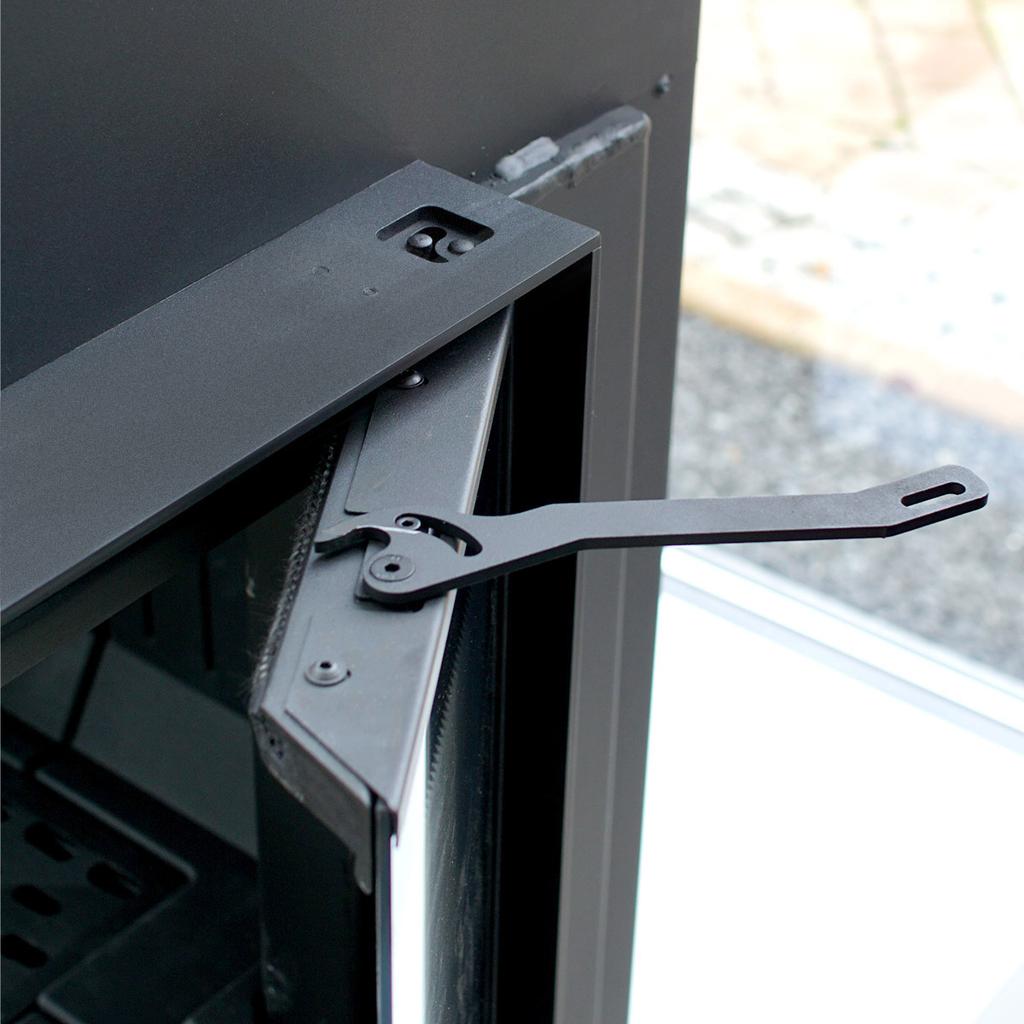

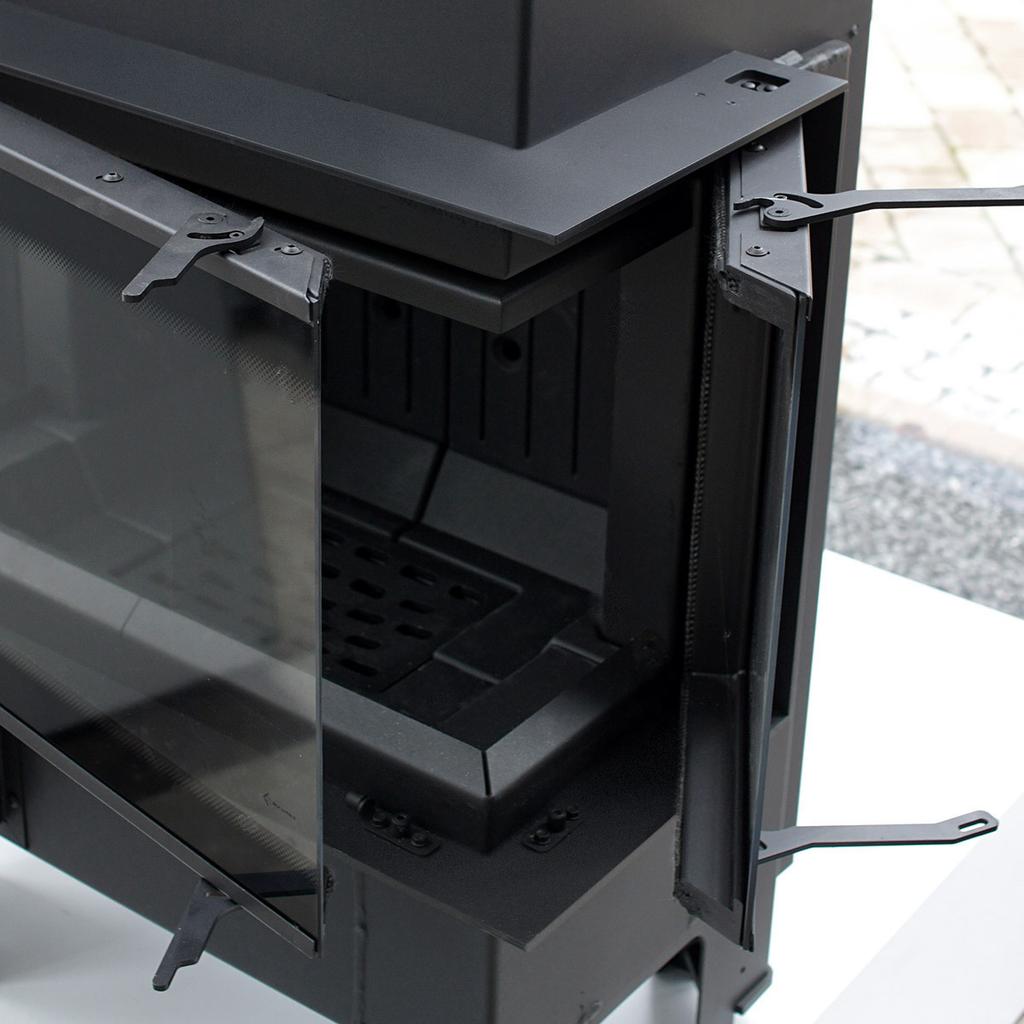

The insert door has a neat handle that allows you to open and close only selected windows easily. We changed the typical NBC fireplace mechanism by building a side-hinged door. It is the answer for traditionalists who do not like the door opening upwards. This does not cause any difficulties in use, as the panes open independently.
The device is additionally equipped with a clean glass system - thanks to the so-called In the air curtain, the air stream is evenly distributed, sweeps the glass, and minimizes soot deposition. This allows you to maintain the attractive and clean appearance of the glass for a long time.
The fireplace uses a specially profiled bottom plate made of TERMOTEC, thanks to which the combustion chamber is deeper and contains more wood, and the logs do not fall on the glass. The lining of the combustion chamber is available in two variants - light or dark.
Keeping the insert clean is easier, thanks to the mounted grate and the container in which the ash collects.
MAXIMUM ENERGY USE
The combustion of fuel particles takes place thanks to the deflector, which extends the exhaust path, and the secondary ventilation system. This process also increases combustion efficiency and guarantees better energy use, thus minimizing the emission of harmful substances into the atmosphere.
The fireplace has a triple combustion chamber ventilation system, thanks to which wood burning in the insert is ecological and, most importantly, economical.

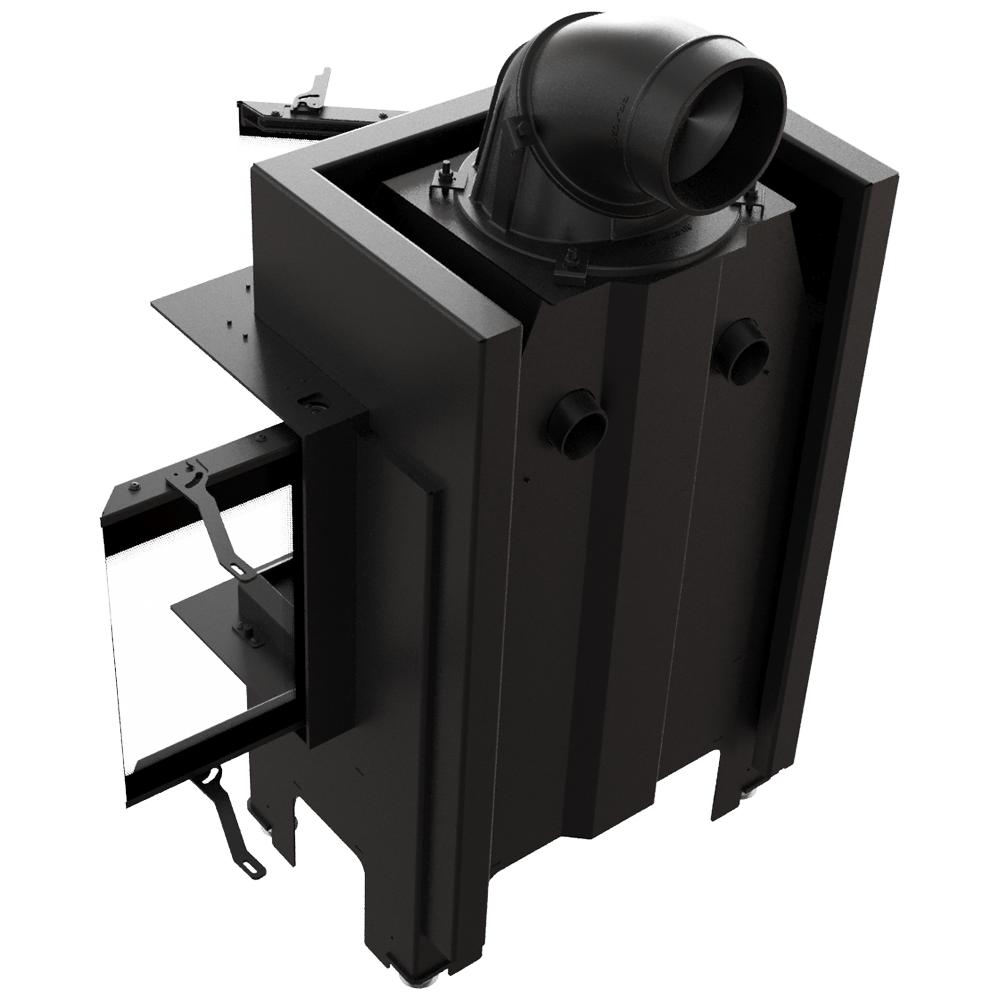

Primary air is supplied to the insert from the outside thanks to the built-in 125 mm air inlet connection. The air inlet connection is located on the floor of the insert. Its regulation uses a built-in throttle set by one regulator below the door, excluding errors in improper use. The whole mechanism works very quietly and flawlessly.
