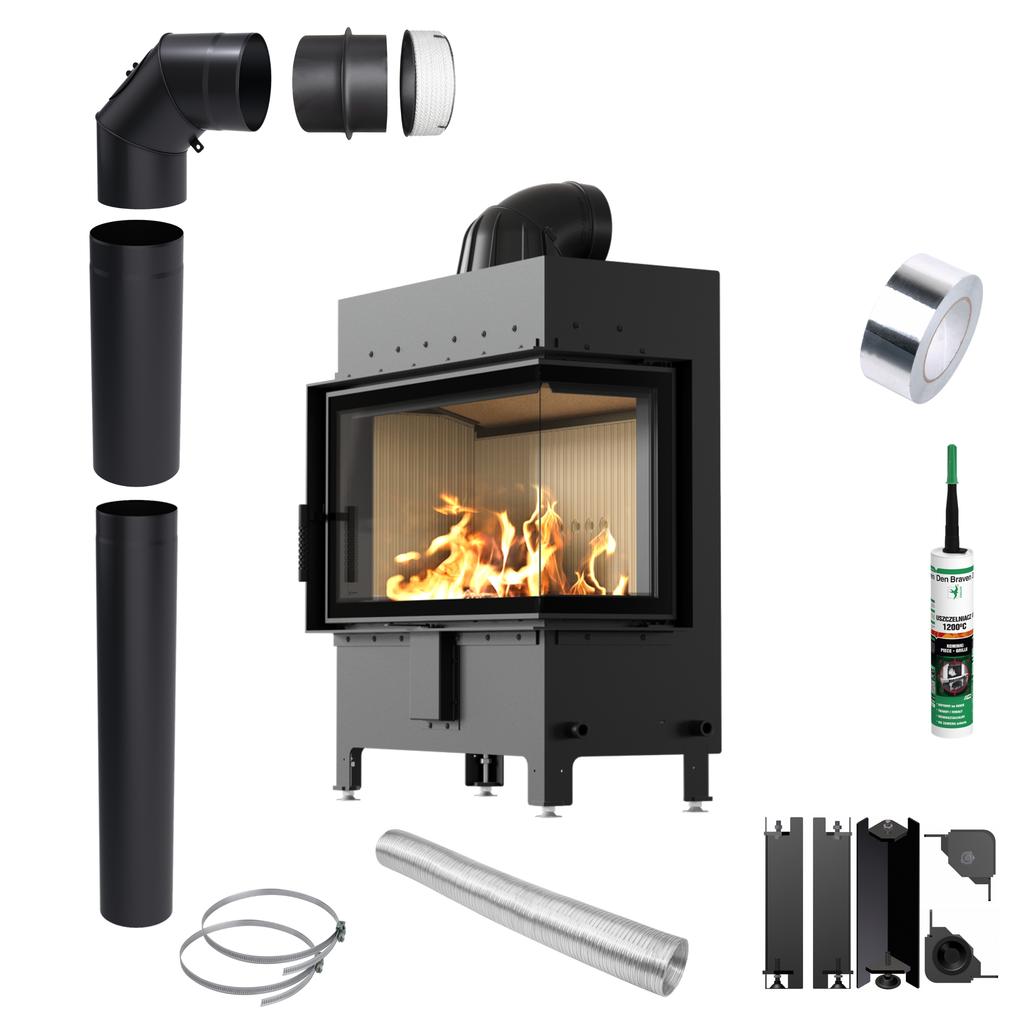

KRATKI LUCY Insert 14 kW Ø200 Air Fireplace Right Side Installation Kit
Vlastnosti
Popis
Fireplace Fireplace insert KRATKI LUCY 14 kW fi 200 right EKO Built in set
Discover the new face of the queen of fireplaces! LUCY 14kW fi 200
Discover LUCY 14kW, a fireplace that combines modern design with innovative technology. It will heat an area from 60 m² to 170 m², providing pleasant warmth and a unique atmosphere in your interior. The new grooved TERMOTEC lining improves combustion efficiency, accumulates heat and raises the temperature in the fireplace, and the decorative glass gives it an elegant, exclusive look.
In the new LUCY you will find comfortable solutions that make it easier to use: a perforated handle that does not heat up excessively, a durable cast iron grate with a removable ash pan, as well as a deepened bottom plate that prevents ash from spilling out. The internal fence reinforces the front, and the solid, adjustable legs allow for precise positioning of the fireplace.
LUCY 14 kW wood fireplace - heats from 60 m² to 170 m²
Ecodesign is a European initiative aimed at improving energy efficiency and reducing pollutant emissions.
BImSchV 2 is a German law on the control of air pollution emissions, including requirements for fireplaces and stoves. Devices meeting BImSchV 2 standards must be characterized by low dust and harmful gas emissions.
Recuperation is the process of recovering heat from the air exhausted from the building and transferring it to the supply air. Thanks to recuperation, heating costs can be significantly reduced.
General
Fuel type: seasoned hardwood (humidity ≤20%)
Nominal power (kW): 14
Heating power range (kW): 6.0 - 17.0
Material: steel
Thermal efficiency (%): 80
Exhaust gas temperature (°C): 265
Max log length (cm): 40
Minimum required active area of inlet grilles (cm²): ≥700
Minimum required active area of outlet grilles (cm²): ≥900
Glazing type: Right
Door opening: Right
Closing: NO
⚙️ Physical parameters ⚙️
Weight (kg): 215.88
Exhaust outlet diameter (mm): 200
Width (cm): 90.90
Height (cm): 126.8
Depth (cm): 49
Inlet diameter (mm): 125
Certificates/Compliance
Meets ECODESIGN criteria: YES
Designed for recuperation: YES
Compliance with BImSchV 2: YES
Energy Efficiency
Energy Class: A
EEI Coefficient: 107.5
CO Emission (at 13% O2) ≤ given in %: 0.092
CO Emission (mg/m³): 1132
Dust Emission (mg/m³): 18
NOx Emission (mg/m³): 111
OGC Emission (mg/m³): 44
Exhaust gas mass flow (g/s): 11.1
Seasonal energy efficiency (%): 71
Equipment
Air inlet
Rubber combustion chamber lining
Decorative glass type
Adjustable legs
Handle for quick removal of the grate.
▶ ROTARY EXHAUST OUTLET Possibility to change the setting of the exhaust outlet, which makes it easier to connect the insert. 360° adjustment allows you to connect the exhaust outlet at the back and top of the insert.
INNOVATIVE HANDLE The special perforated design of the handle protects against excessive heating, which affects the high comfort of using the fireplace.
EASY TO CLEAN Durable, cast iron grate, under which there is a removable ash pan, which makes it easier to keep the fireplace clean.
A dedicated handle for quick removal of the grate is included.
TERMOTEC GROOVED LINING The combustion chamber is lined with Termotec material, which ensures efficient combustion, accumulates heat and increases the temperature in the fireplace.
New design - the grooved surface adds elegance and modern character to the fireplace
Termotec is available in white or black.
BUILT-IN AIR INTAKE ADJUSTMENT The outside air supply is adjusted using the built-in damper located below the door. The entire mechanism operates inside the fireplace, very quietly and without failure.
SOLID ADJUSTABLE LEGS The legs supported by thick screws ensure the stability of the fireplace insert. They enable even and precise positioning of the fireplace.
