Ok Model Pilot Hibiscus Basic Arf Kit [Ok 11311]

Product Name: OK Model Hibiscus Basic ARF Kit [OK-11311]

Seller Category: ラジコンTOP>エアプレーンキット

Model Number: OK-11311

Brand: OK模型

Manufacturer: OK模型

Origin: Japan

Product Description:

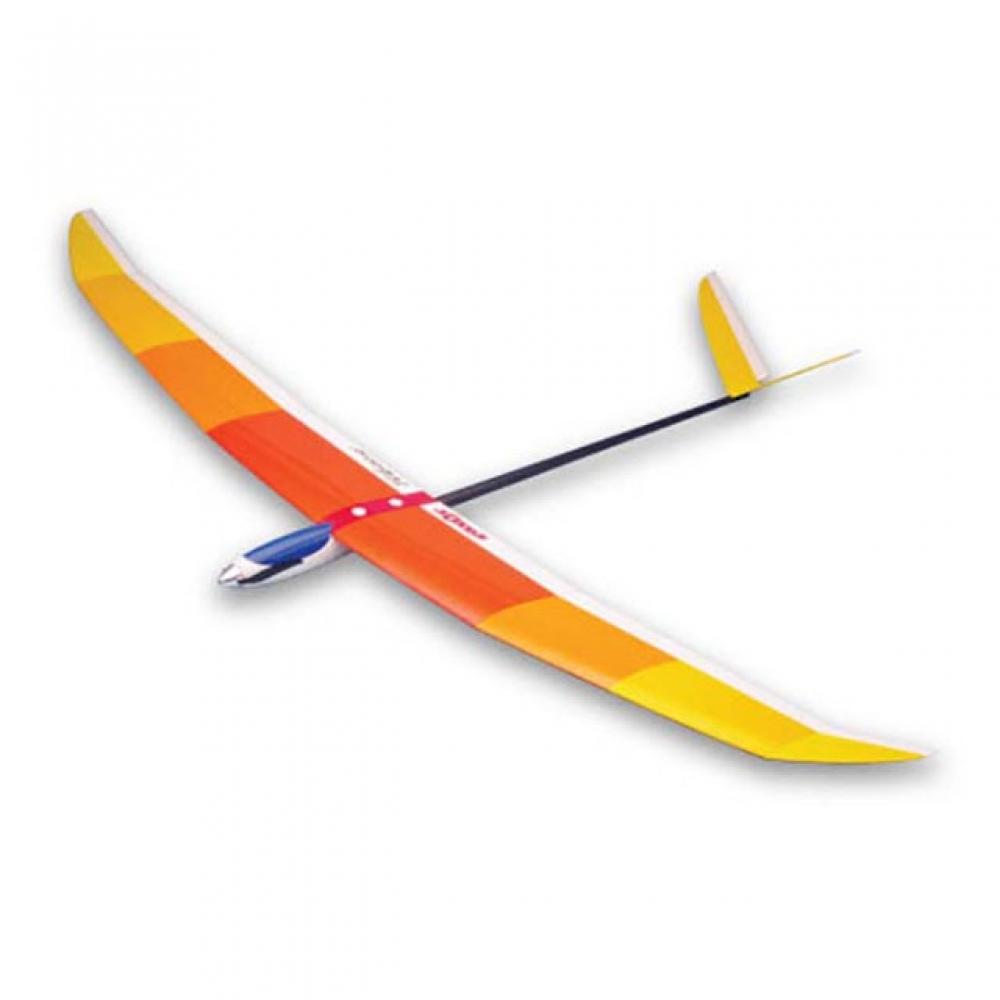

The Hibiscus Basic ARF Kit is designed with a beautiful elliptical wing and high aspect ratio coupled with a thin airfoil, long tail moment, and narrow-angle V-tail to minimize air resistance for F5J2000 competition. Its visible coloring allows effective performance even in distant competitive conditions. The fiberglass pod is generously sized, allowing for the compatibility of various motors. Additionally, the central dihedral makes it easier to manage tighter turns. The rib-assembled full balsa plank wing faithfully reproduces the studied airfoil. The balanced tail offers low drag, thus enabling extensive thermal hunting capabilities. The three-part main wing design ensures compact portability.

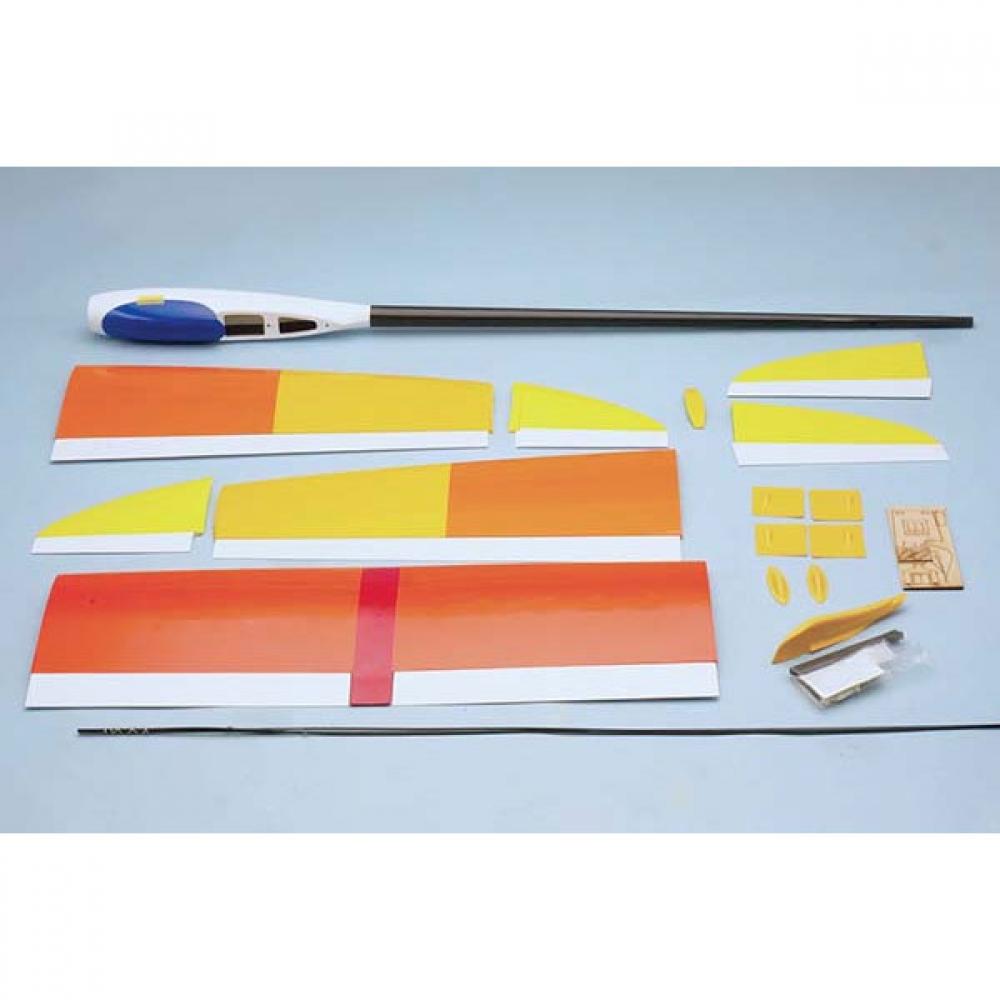

Main Set Contents:

- Semi-finished fuselage (fiberglass pod, carbon tail boom)

- A film covered main and tail wings

- Plastic canopy

- Linkage parts

- Control horns

- Color stickers

- Assembly instructions

Additional Items Needed:

- Airplane radio control transmitter

- Small receiver

- Servos Tahmazo TS-1014(48543) x 6

- Brushless motor Tahmazo ER-221912d(48855)

- Folding propeller blades Tahmazo 10×6/8(48690)

- Spinner hub set Tahmazo AT38/8C3.18SM(48806)

- Speed controller Tahmazo Pro.C A-30(48827)

- Battery Tahmazo LP-3S1P600RE(48861)

- Connector PILOT Gold connector 4.0BL(33234)

- PILOT extension cord ST 100mm x2(47498)

- PILOT extension cord ST 200mm x4(47499)

- Charger Tahmazo dedicated lithium polymer charger(48451)

- Instant adhesive OK Bond HW(43010), FX(43451)

- Epoxy adhesive (30-minute cure type)

- PILOT sanding block(25042)

- Sandpaper

- Soldering tools (soldering iron, rosin core solder, etc.)

- Other general tools (utility knife, screwdriver, etc.)

* Additional items are required to fully assemble and fly this aircraft.

Specifications:

- Length: 1158mm

- Wingspan: 1996mm

- Wing Area: 33.6dm2

- Weight: 0.7-0.8kg

- Motor: Tahmazo ER-221912d(48855)

- RC Mechanisms: AL, FL, RD, EV, ESC

- The main wing can be divided into three parts upon completion.

- Flight Difficulty: Intermediate to Advanced users

- Fuselage Finish: Film attached completed

- Compatible Power Units: Electric motors
