Feature:
1. A VARIETY OF FUNCTIONS: The ultrasonic level meter has realized a fully digital and humanized design concept, and the digital ultrasonic level meter has complete material or liquid level measurement and control, data transmit and man machine communicating functions
2. STRONG MATERIAL: LED ultrasonic level meter adopts engineering plastic ABS water proof housing, digital ultrasonic level meter housing is small and strong, which greatly ensure the durability of the instrument
3. SPECIAL CIRCUIT: Ultrasonic level meter main chip adopt industrial single chip microcomputer, digital temperature compensation, ultra wide voltage input, voltage regulation and other dozens of related ASIC
4. REASONABLE AND ACCURATE: Liquid level sensor transmitter adopts modular circuit design, multi layer PCB board, liquid crystal water level sensor hardware structure is strict, reasonable layout, bring accurate measurement
5. APPLICABLE SCENARIO: The integrated ultrasonic level meter is suitable for liquid crystal water level sensors in water and sewage processing, power and mining applications, providing powerful help
Specification:

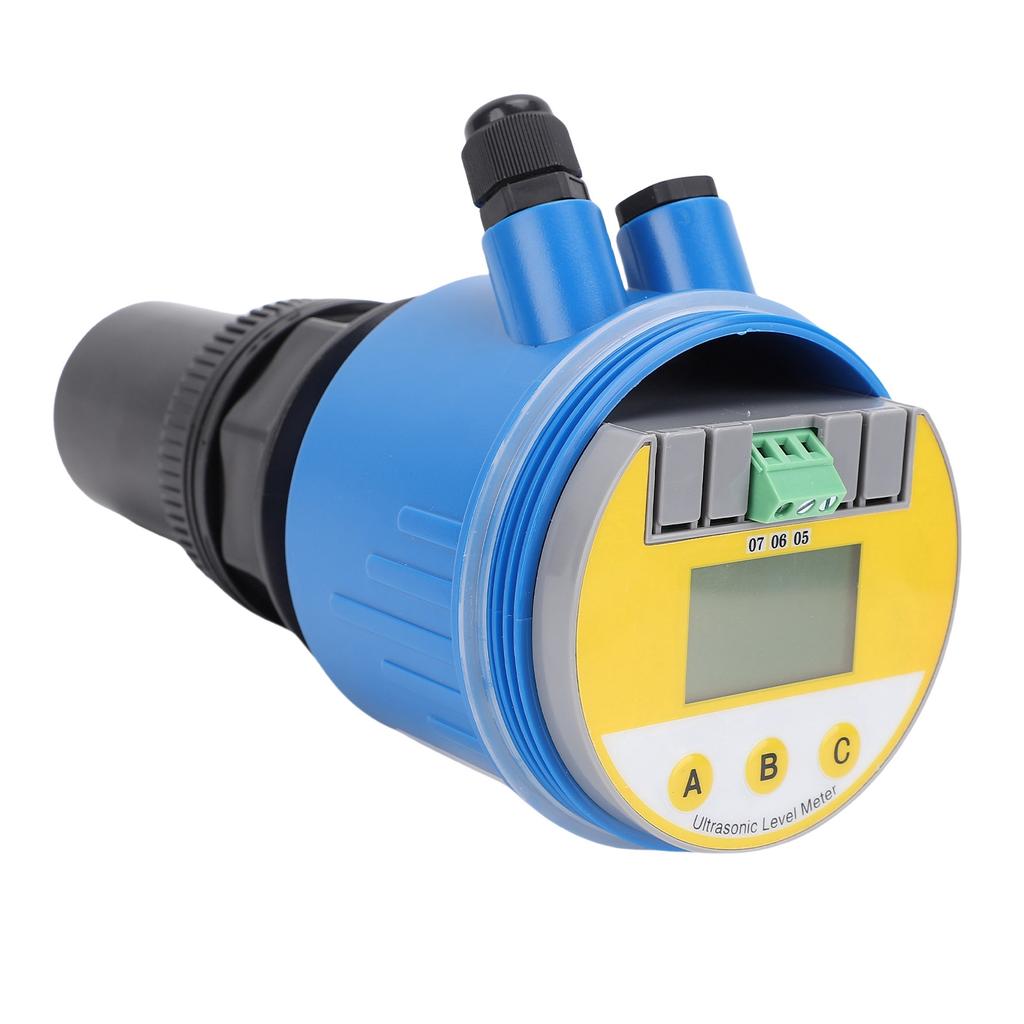

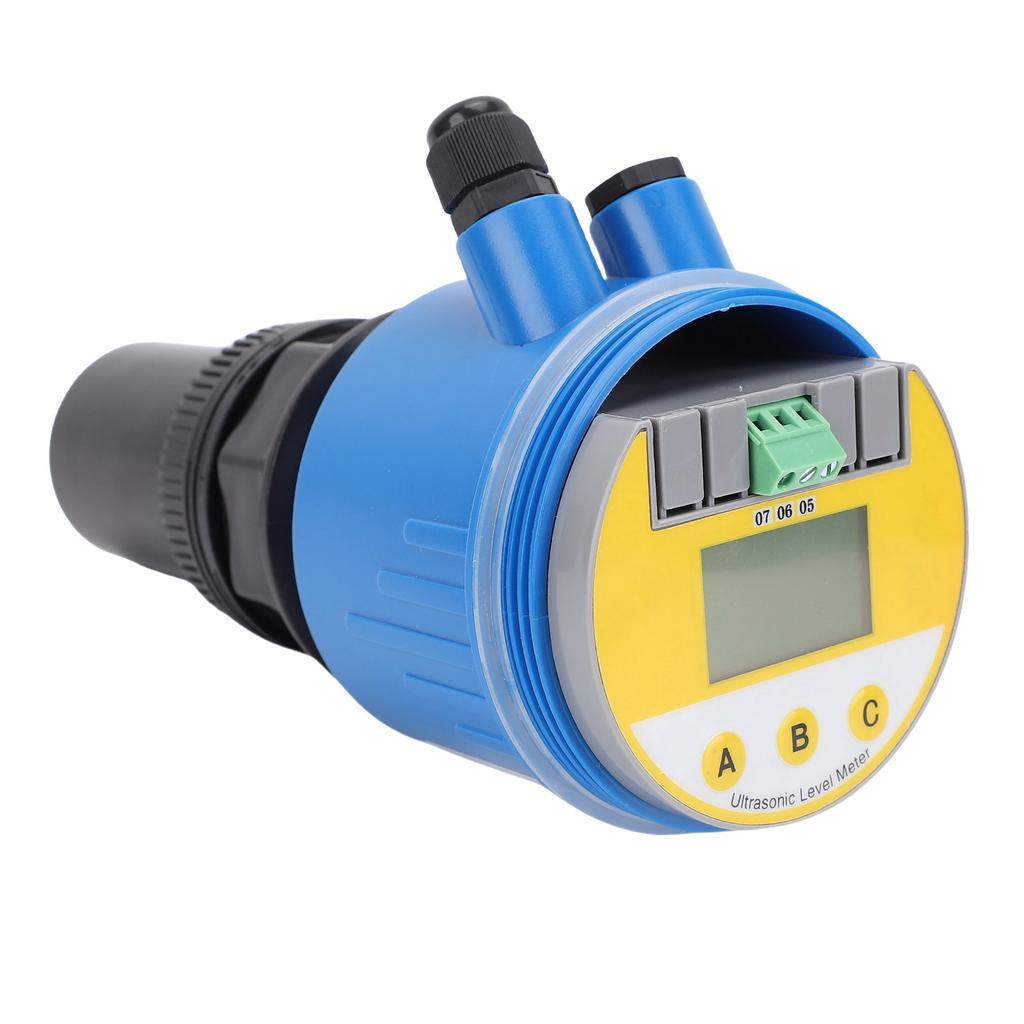

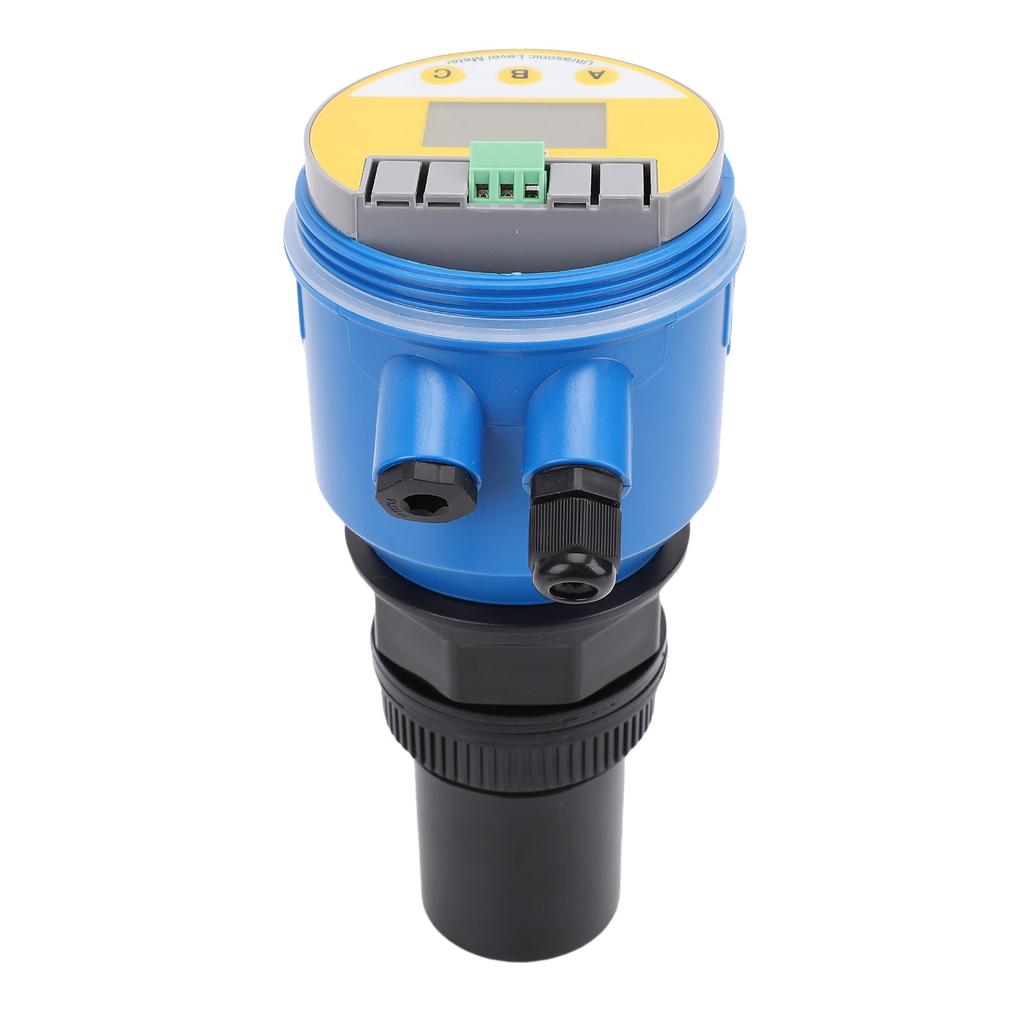

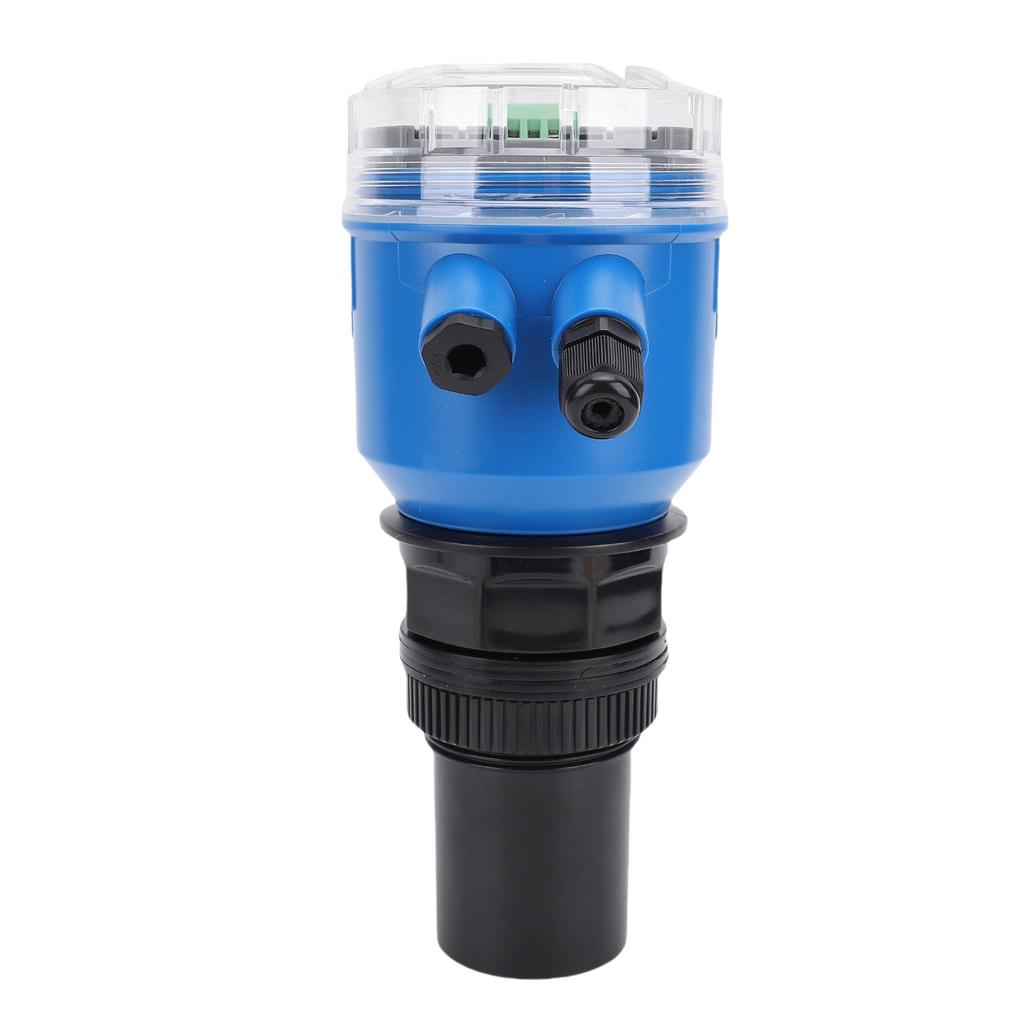

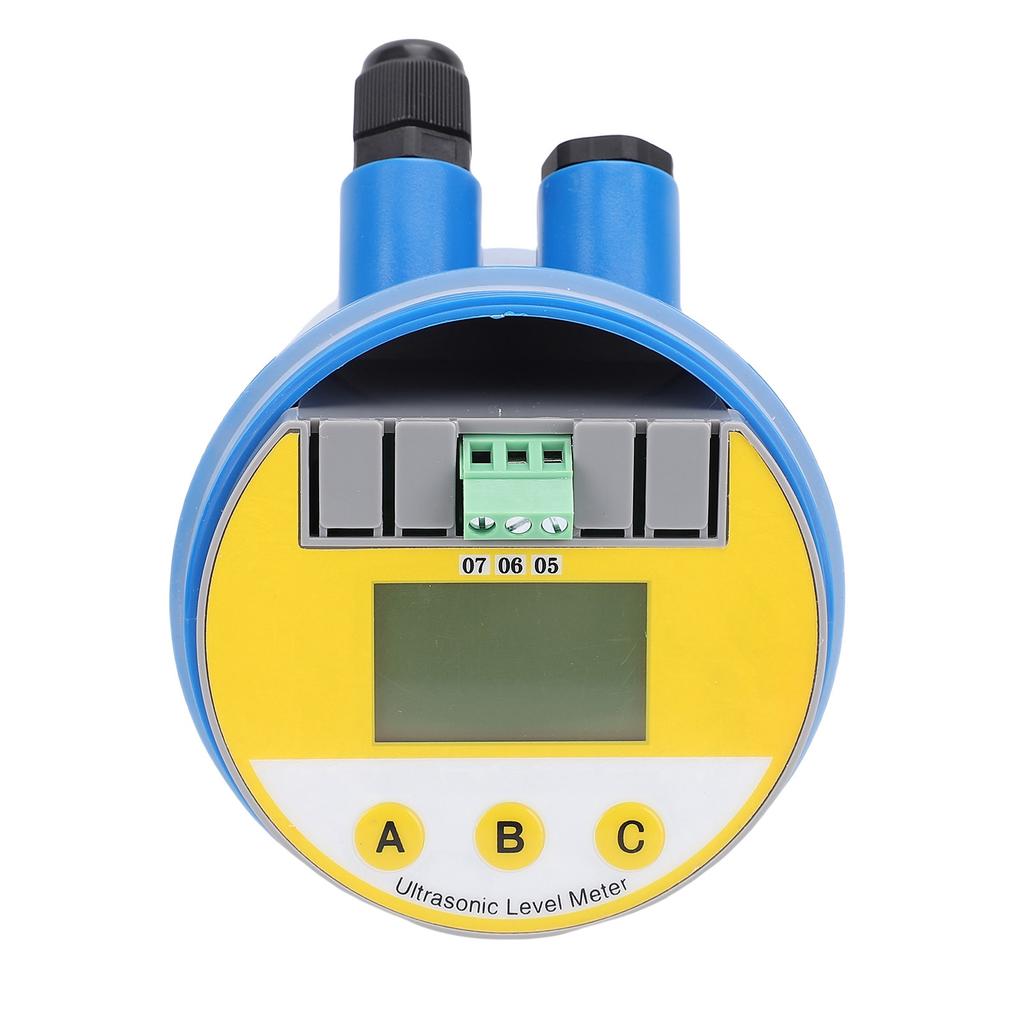

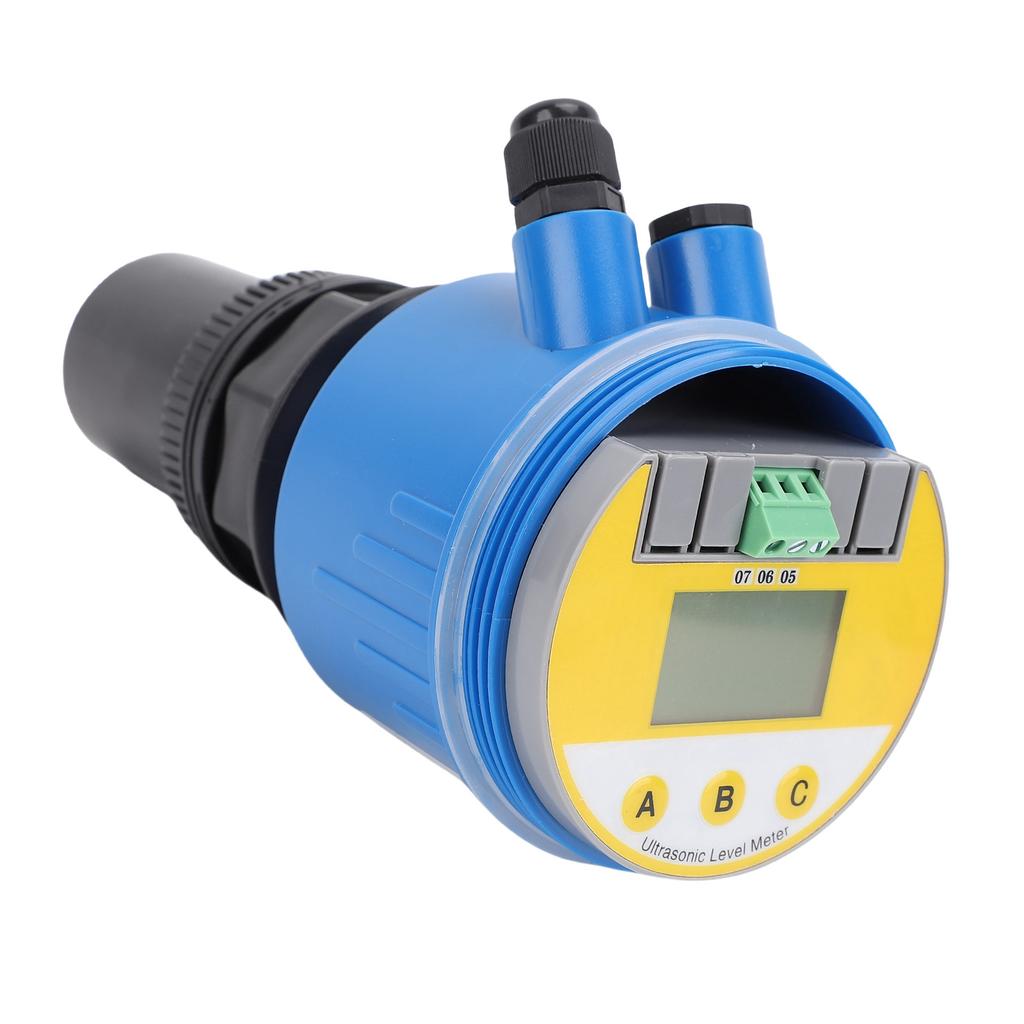

Item Type: Ultrasonic Level Meter
Model: 666RP
Material: ABS
Color: Blue
Operating Voltage: DC 24V
Range: Approx. 0 10m 0 32.81ft
Dead Zone: Approx. 0.5m 1.64ftAccuracy: 0.5percent
Display: Four digit eight segment 0.36in LED
Minimum Display Resolution: 1mm
Keypad: Three digit touch key
Output: 4 20mA
Electrical Interface: M16X1.5 (two sets)
Installation Thread: G2
Incoming Cable: With terminal block
Operating Environment: Normal temperature, normal pressure
Protecting Level: IP65
Product Features:
Backup and restore parameter settings;
Measure level, liquid level, volume, weight, etc.;
4 20mA analog output;
Digital filtering and back waves recognition function;
Manually set fixed interference filtering function;
Supports custom mathematical function calculations;
Application: Water and sewage processing; Pump room, collection well, biochemical reaction tank, sedimentation tank, etc.; Power, mining; Slurry tank, coal slurry tank, water processing, etc.
.
Package List:
1 x Ultrasonic Level Meter
Note:
Please tighten the incoming and outgoing lines.
