Label:Yes
2.Strong compatibility through a variety of non-metallic material containers, such as plastic, glass, ceramics etc, with a 20mm induction distance.
4.High stability, high sensitivity, strong anti-interference ability make sure it won't be affected by electromagnet, special designed to deal with power frequency interference and common mode interference. Compatible with most 24V power adapter.
1.Direct liquid level sensor is applicable to non-metallic containers without direct with the liquid, not affected by scale or other impurities.
5.Intelligent liquid level benchmark adjustment and level memory function, liquid level display mode, can achieve multi-point series connection.
3.Electronic circuit structure rather than machinery ensures stable performance, durability and a long service life.
Specification:
Model: XKC-Y26S NPN/PNP
Operating voltage: 24 (V)
Output type: PNP
Rated current: 1-100mA
Switch actuated liquid level: NPN/PNP
Port type: 2.54 general terminal head
Type of installation: 4-core shielded wire
Weight: Approx.23g/0.8oz
Package list:

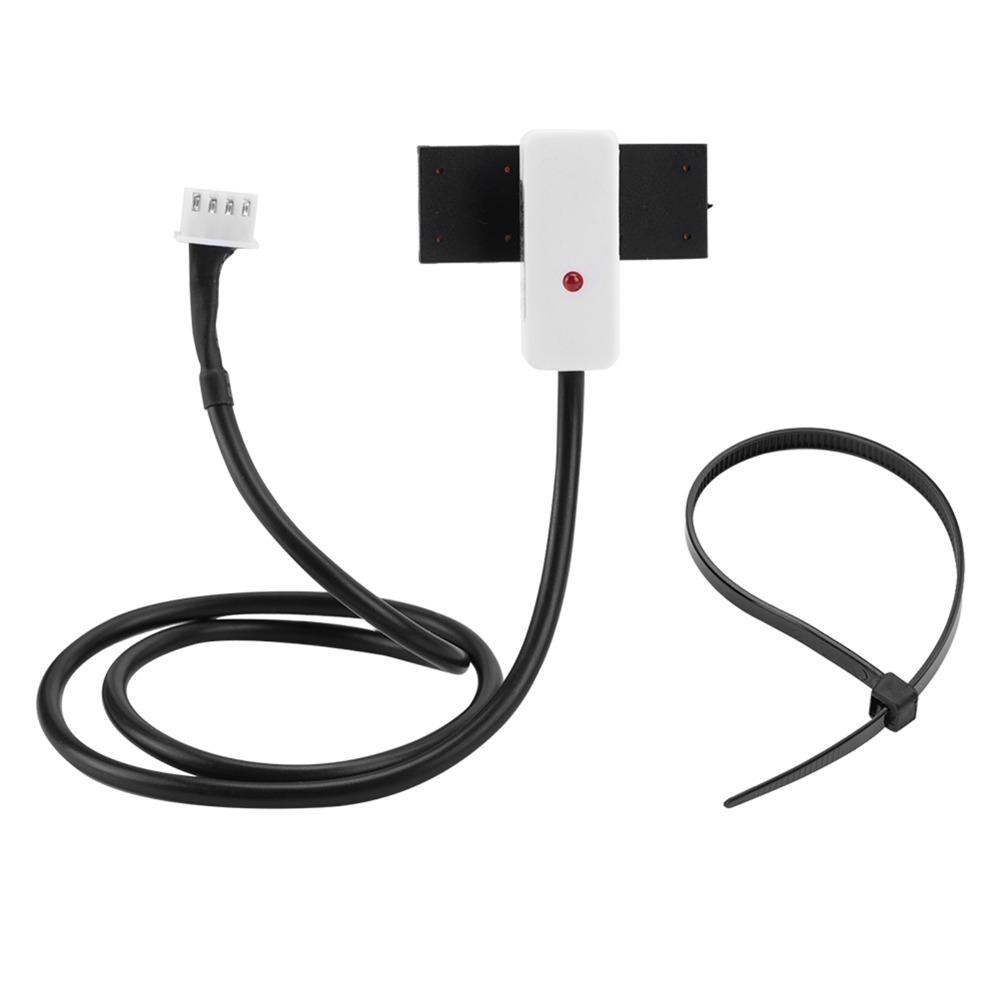

1 x Direct Liquid Level Sensor
Note:
1. Due to the difference between different monitors, the picture may not reflect the actual color of the item.
2. Please allow slight dimension difference due to different manual measurements. Thank you for your understanding.
