Product Introduction

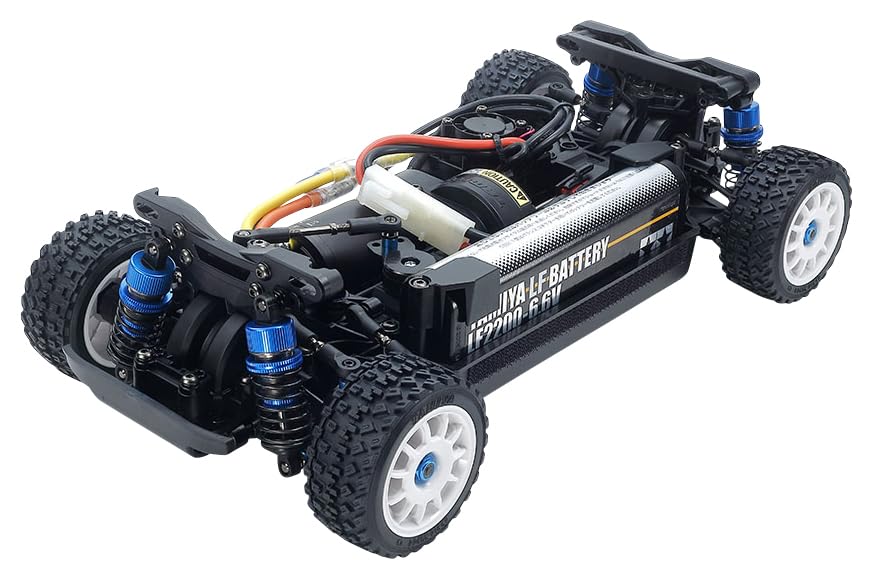

[Introducing a Compact Rally Chassis with Shaft 4WD]

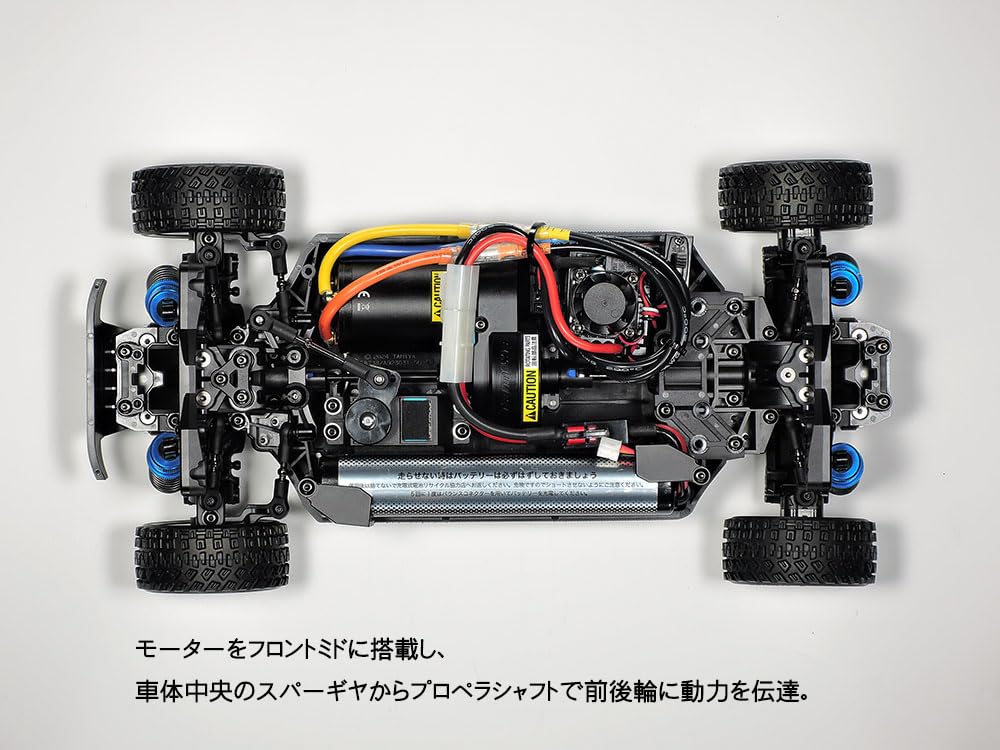

This compact electric RC car chassis assembly kit features a front-mid mounted motor and a central spur gear that transmits power to the front and rear wheels via a propeller shaft.

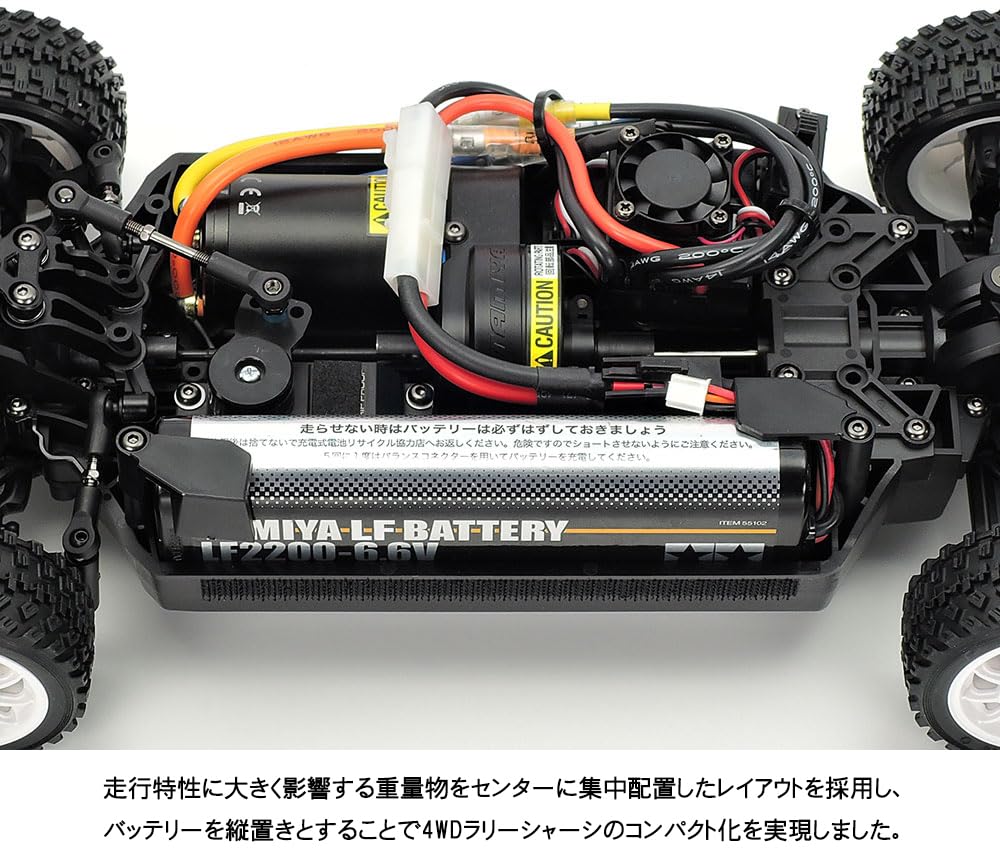

The main frame features a vertically mounted battery rotated 90 degrees to the left side, positioning the heavy loads toward the center.
Three wheelbases can be selected by rearranging the rear section.
The four-wheel independent double wishbone suspension features aluminum oil dampers.
The front caster angle is set to 5 degrees, and two ride height options are available: a hub carrier and upright.
The front bumper also has a skid angle to reduce road contact.
[Key Features]

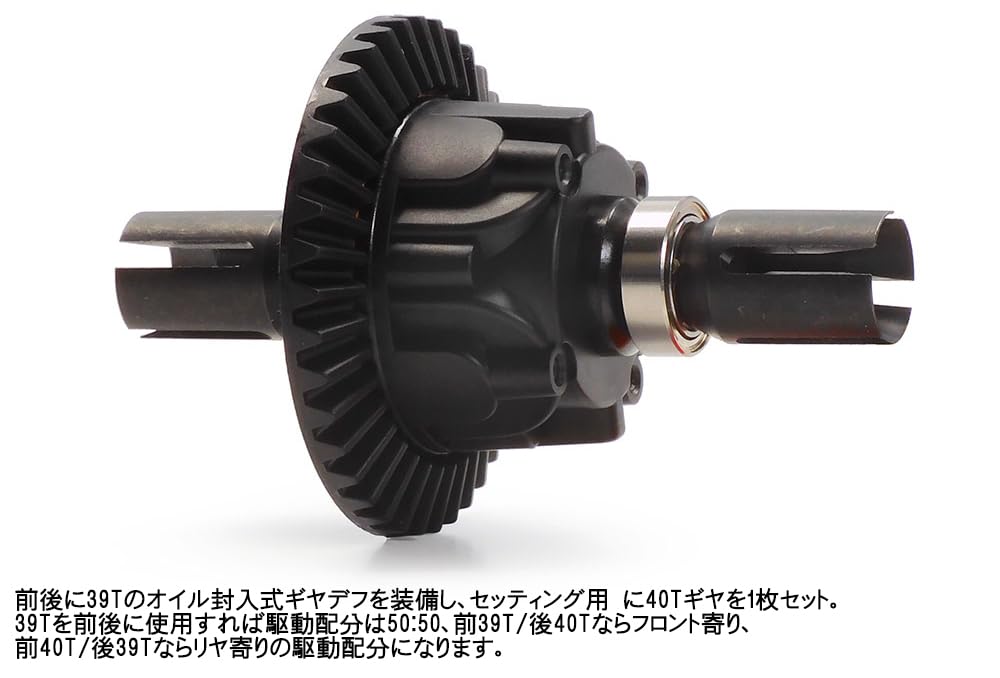

Front and rear oil-filled gear differentials (two 39T differentials, one 40T differential).

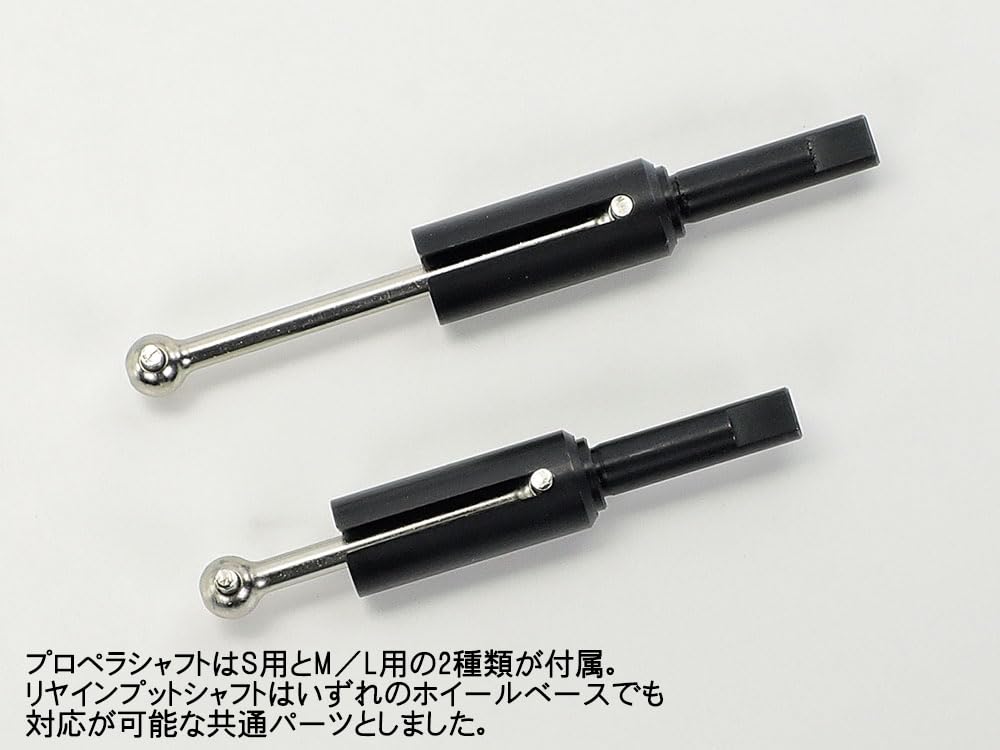

Front and rear universal driveshafts.
Front and rear aluminum oil dampers (touring car size).

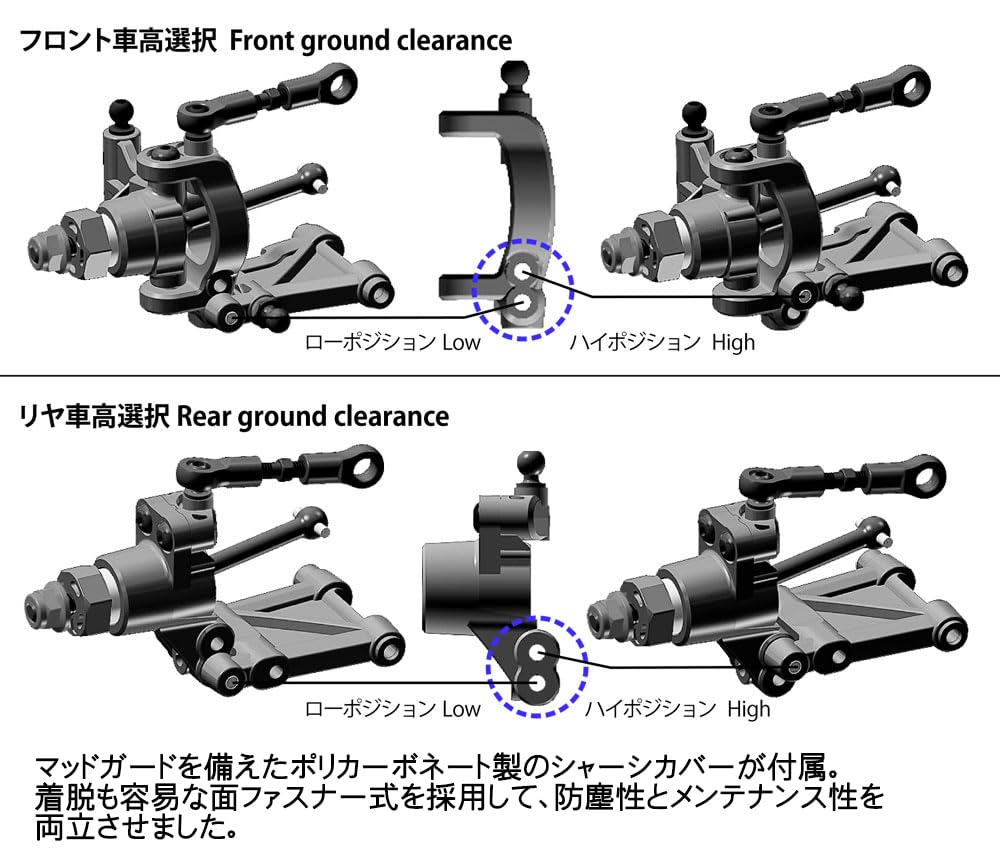

Ride height-selectable hub carrier and upright.
Turnbuckle upper arms.
Full ball bearing specification.
High-torque servo saver (black).

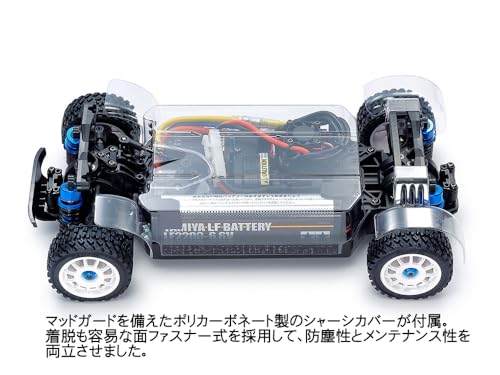

Polycarbonate chassis cover.
[Basic Specifications]
Chassis length: 308mm (with 225mm wheelbase).
Chassis width: 165mm.

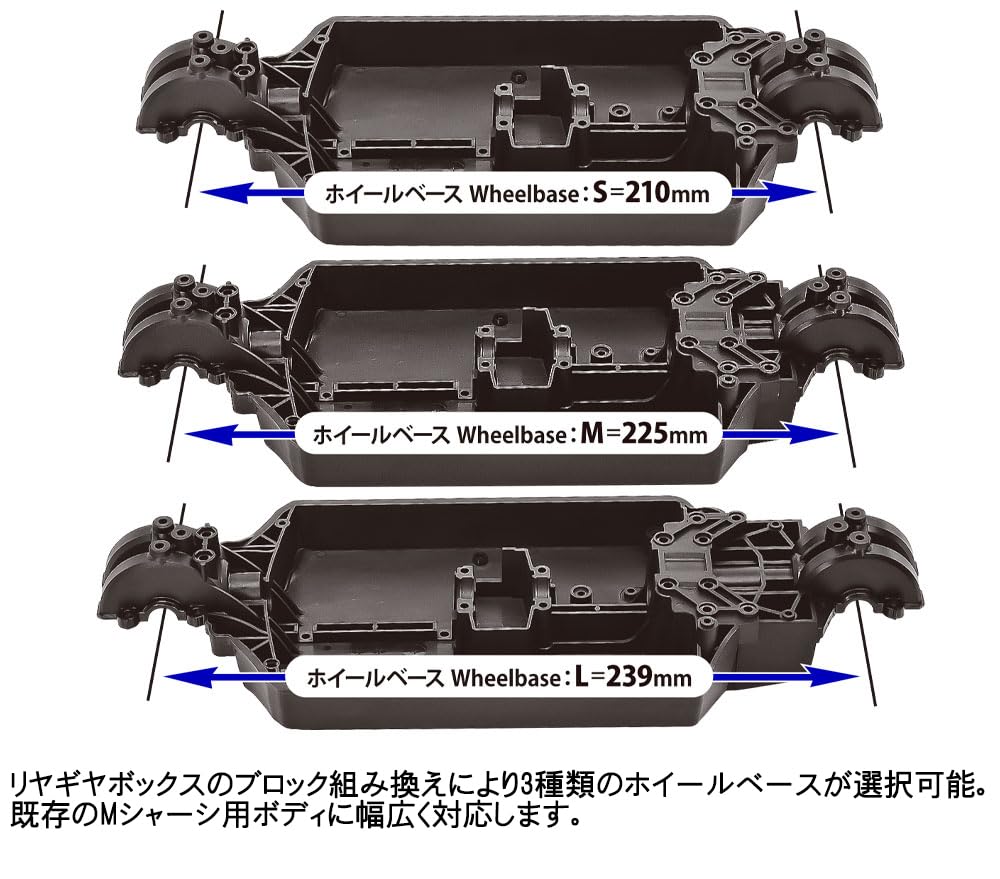

Choose from three wheelbase types: 210mm, 225mm, and 239mm.
Bathtub-type frame.
Drivetrain: Front midship motor, shaft-driven 4WD.
Differential gears: Front and rear oil-filled gear differentials.
Steering: 3-piece tie-rod type.
Suspension: 4-wheel double wishbone.
Dampers: Aluminum cylinder oil dampers.
Gear ratio: 8.27:1 when using the kit-included 22T pinion (13 gear ratios from 10.71:1 to 6.28:1 can be selected by combining with separately sold pinions).
Speed controller = ESC specification (sold separately).

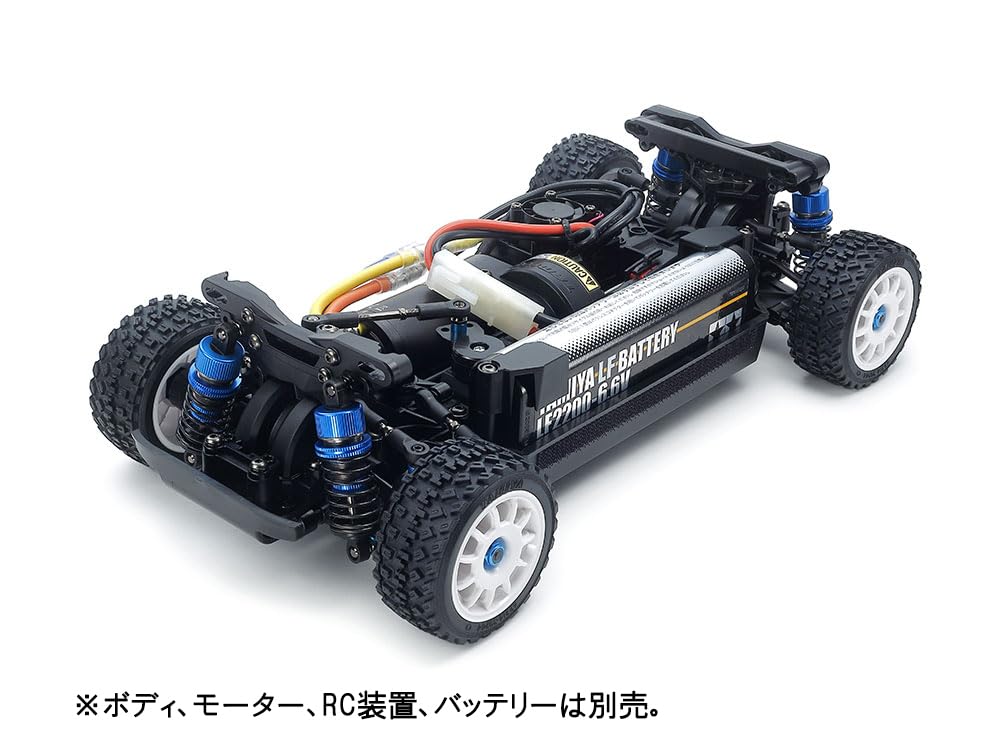

[Items to be purchased separately (not included)]
Body for M chassis.
Type 540 motor.
Tires.
RC mechanism: 2-channel radio control set (transmitter, receiver, ESC, low-profile servo recommended).
Battery for chassis, charger.
Power supply for transmitter.
Note: This product requires a power source to operate, but batteries, batteries, and charger are not included.
Body, motor, tires, transmitter, RC mechanism, etc. are not included. Additional parts must be purchased, assembled, and painted before operation.
This product does not use fuel.
This product does not include fuel.
This product does not include paint, adhesives, oil, grease, tools, etc.
Safety Warning
Do not use for any purpose other than its intended use.
Introducing a compact rally chassis with shaft 4WD. This compact electric RC car chassis assembly kit features a front-mid mounted motor, with power transmitted to the front and rear wheels via a propeller shaft from a spur gear in the center of the vehicle.
The main frame features a vertically mounted battery rotated 90 degrees to the left side, with heavy loads positioned closer to the center. Three wheelbases can be selected by rearranging the rear section.
The four-wheel independent double wishbone suspension is equipped with aluminum oil dampers. The front caster angle is set to 5 degrees, and hub carriers/uprights are available with two vehicle height options. The front bumper has a skid angle to reduce interference with the road surface.
[Items to be purchased separately (not included)] Body, motor, tires, RC mechanism: 2-channel radio control set (transmitter, receiver, ESC, low-profile servo recommended), chassis battery, charger, transmitter power supply, etc.
