Our store offers a curated selection of genuine Japanese products. You can shop with complete peace of mind knowing that all our items are authentic. Please note that the instructions and manual for this product may only be available in Japanese.
1. KEY FEATURES:

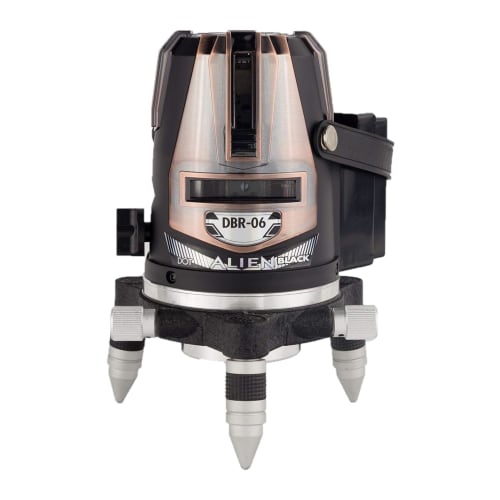

- ◇Stable line with ultra-high precision and ultra-high brightness dot irradiation! ! This product has ultra-high precision dot irradiation, and is a type that irradiates dots at the center of vertical and horizontal lines, making it easy to find the laser line in bright indoors and outdoors.
- ◇Equipped with an OUTDOOR mode that supports a receiver (sold separately), so it can be used outdoors with a receiver. In addition, the bubble tube on the top of the main unit is equipped with an LED lamp that allows you to see the power ON/OFF status even in the dark, which helps prevent you from forgetting to turn the power off.
- ◇Since it uses 3 power supply methods, you can choose from 3 types of rechargeable lithium-ion batteries, AC 100V power supply, and AA batteries (3 pcs) to suit your work environment. In addition, the lithium-ion battery is 4000mAh and can be used for about 3 hours even with full-line irradiation of a high-brightness laser line.
- ◇It is now an easy-to-use model with basic specifications such as a 360-degree endless fine adjustment screw, a dust-proof/splash-proof design (equivalent to IP54), receiver compatibility (included with main body + receiver set/full set), and OUTDOOR mode.
2. PRODUCT DESCRIPTION:

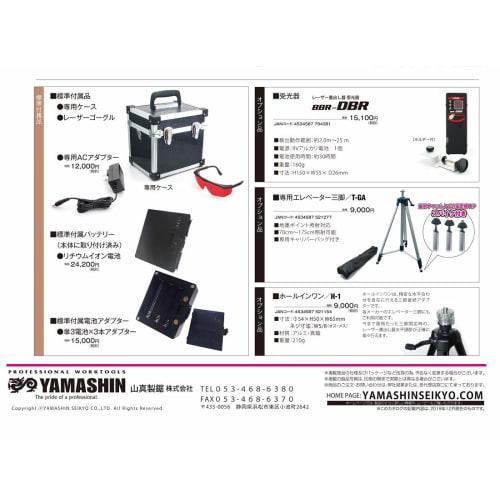

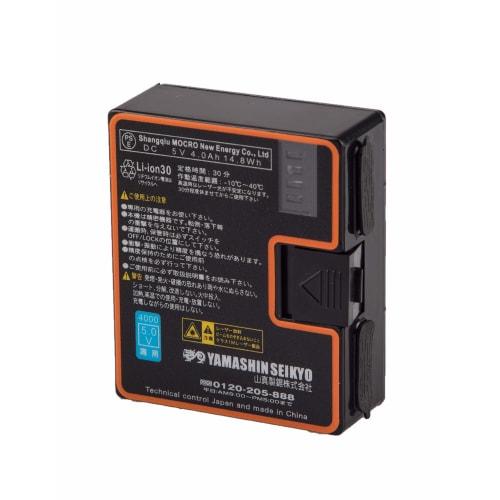

[Body specifications] ■Light source: Visible light semiconductor laser 2.5mW or less 635nm (red) Background: 650nm (red) ■Line accuracy: ±1mm at 10m ■Right angle accuracy: 90° ± 0.012° ■Brake method: Magnetic braking method (gimbal type) ■Automatic correction range: ±3° ■Line width: Approx. 2mm at 7.5m ■Dustproof/splashproof: IP54 ■Power source: 3 AA batteries, AC adapter power supply, rechargeable lithium-ion battery ■Usage time: Approximately 3 hours (when using lithium-ion battery) *Rated 30 minutes ■Working temperature: -10℃~40℃ ■Line irradiation angle: Vertical/120° each horizontal/110° ■Working range: Indoors/approx. 10m Outdoor/approx. 25m (when using receiver) ■Laser safety standards: JIS class 1M ■Body dimensions: Body WΦ120 x Base WΦ120 x H193mm ■Body weight: 1.16kg ■Body color: Metallic gold ■Standard accessories: Dedicated case, laser goggles, dedicated AC adapter, lithium-ion battery, battery adapter ■Features: 360-degree endless fine adjustment screw, dust-proof and drip-proof design, receiver compatible (receiver sold separately) [Lithium-ion battery specifications] ■DC input voltage: 5V ■Capacity: 4000mAh ■Using temperature range: -10℃~40℃ ■Power consumption: 14.8Wh ■Standard: Li-ion 3 0 ■USB output: 1.0A 4.5V ■Charging time: Approximately 5 hours ■Dimensions: W60 x L24 x H71mm ■Weight: 130g
3. PRODUCT DIMENSIONS & WEIGHT:
- Weight: 3.14 kg
- Dimensions: 28.7 x 27.6 x 23.4 cm
4. SPECIFICATIONS:
- Brand: Y's GOD
- Model Number: DBR-06 DOT-J
- Manufacturer: Y's GOD
