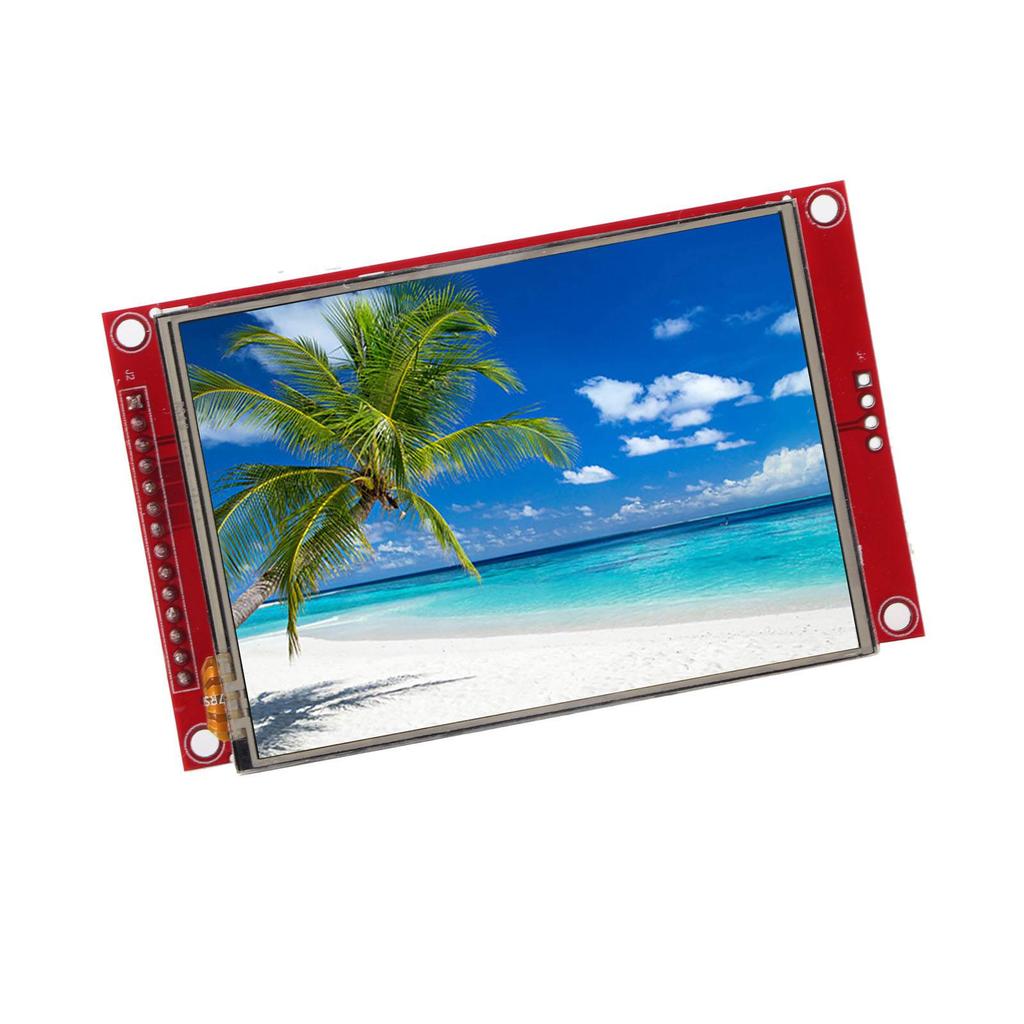

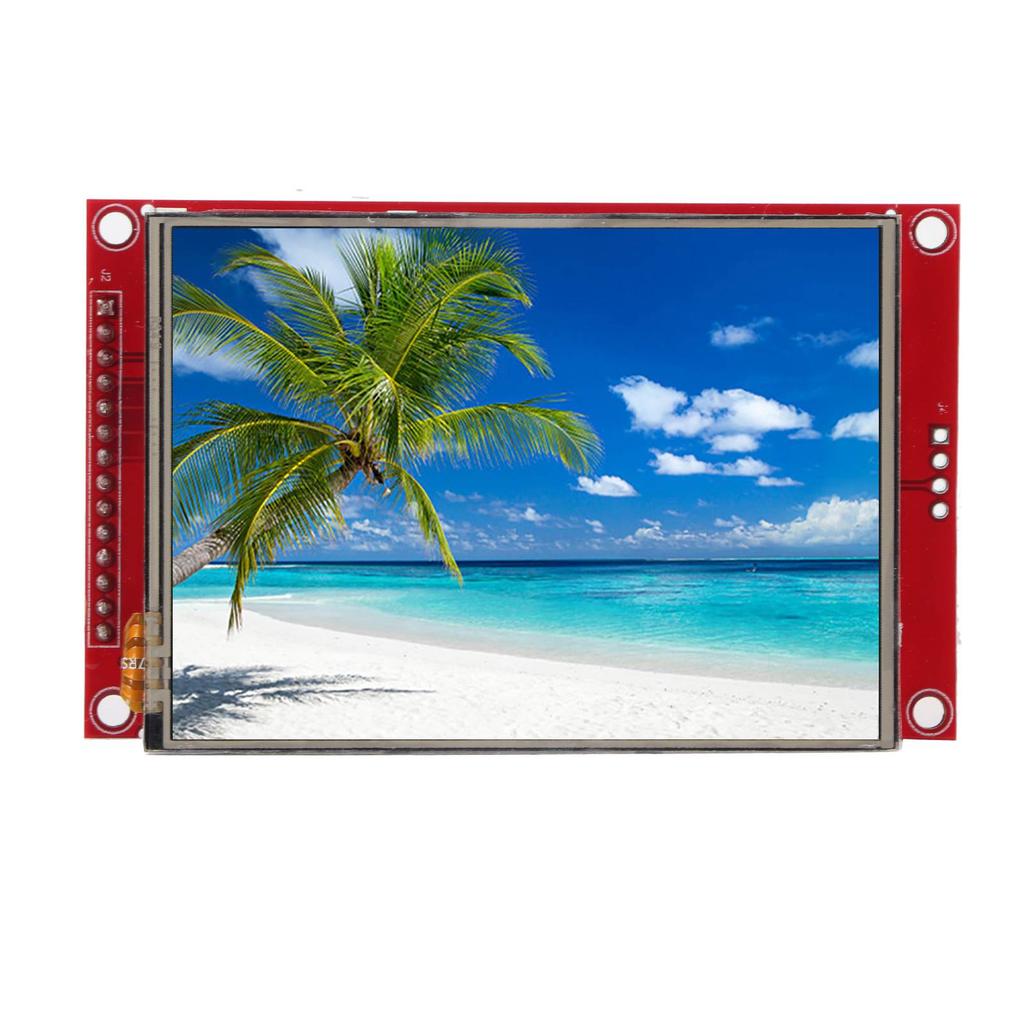

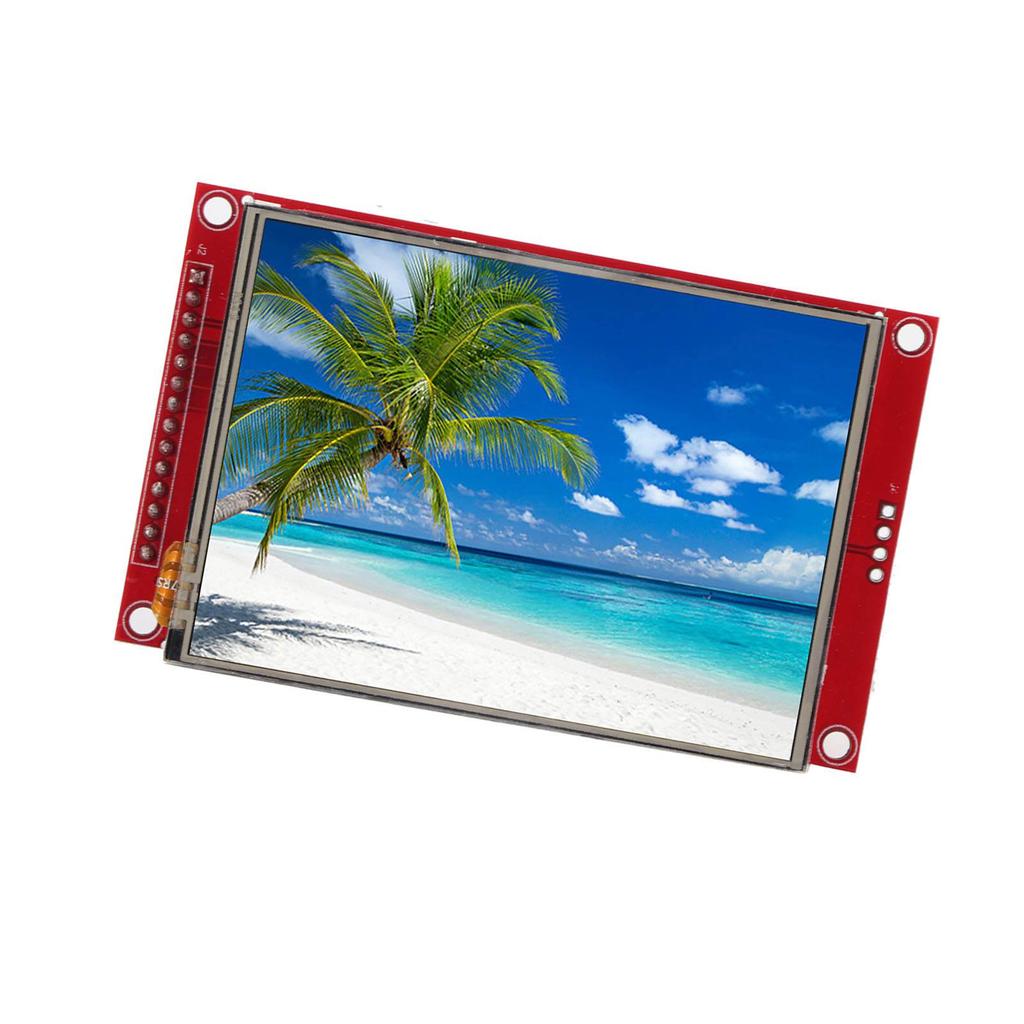

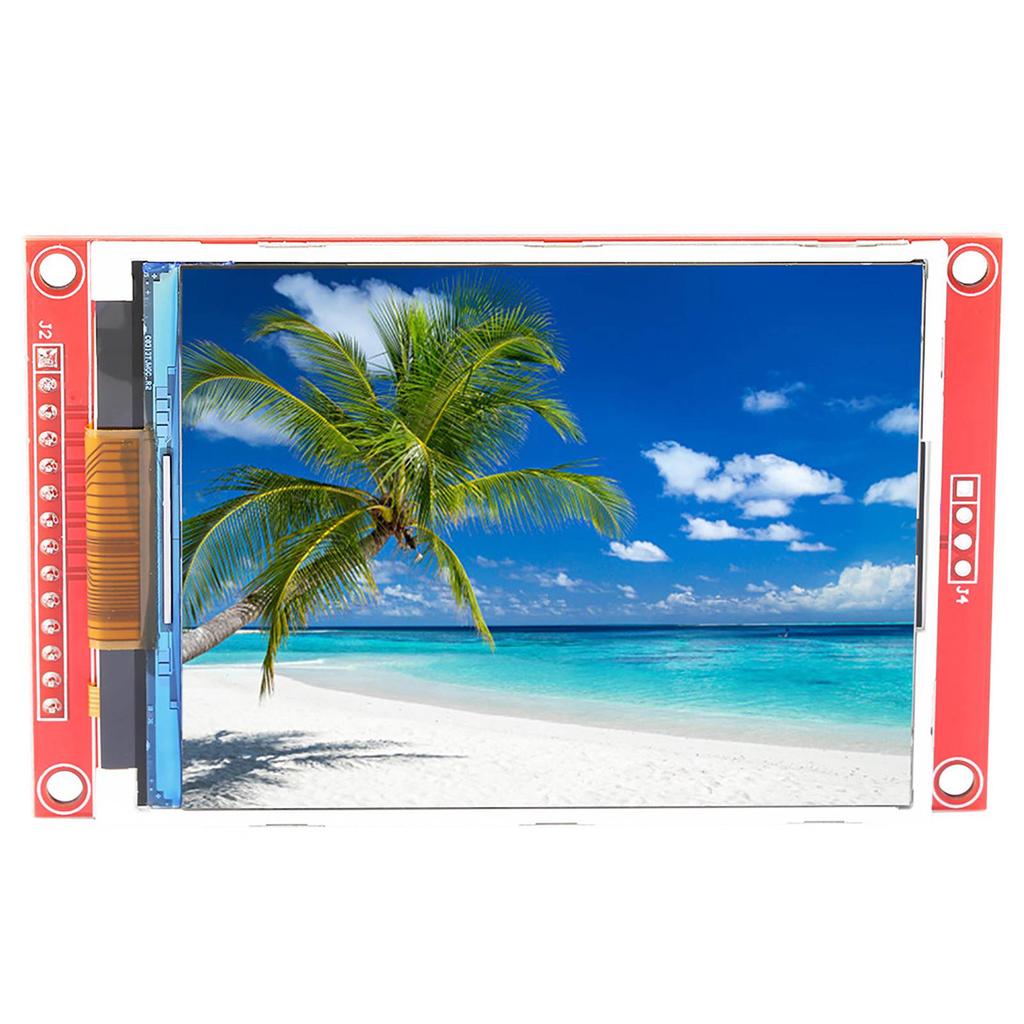

3.2 inch 240*320 TFT LCD Display Module with Memory Card Cage ( with touch function)

Features: 3.2 inch color screen, support 65K color display, and the display is colorful 320X240 HD resolution, with touch function(optional) Using Serial Peripheral Interface serial bus, it only needs a few IO to lighten the display Memory card cage for easy expansion of experiments Provides a rich sample program Military technology standard, long term stable work Provide underlying driver technical support Specification: Size: 3.2 inch Type: with touch function, no touch function (optional) Driver chip: ILI9341 Resolution: 320*240 (Pixel) Module interface: 4 wire SPI interface Effective display area: 48.6x64.8(mm) Module PCB plate size: 55.04x89.3(mm) VCC power supply voltage: 3.3v 5V Logical IO port voltage: 3.3v (TTL) The power consumption: Approx. 90mA Weight: Approx.42g 1.5oz Interface definition: serial number label Pin description 1 VCC power input(3.3V 5V) 2 GND Power Ground 3 CS LCD Chip Selection 4 RESET LCD reset 5 DC LCD Bus command data selection 6 SDI(MOSI) LCD SPI Displays bus data input 7 SCK LCD SPI Displays bus clock signal 8 LED LCD Backlight control (high level lighting) 9 SDO(MISO) LCD SPI Displays bus data output 10 T_CLK Touch panel SPI bus clock signal 11 T_CS Touch panel SPI busChip Selection 12 T_DIN Touch panel SPI bus data input 13 T_DO Touch panel SPI bus data output 14 T_IRQ Touch panel interrupts IRQ signal Package list: 1 x LCD Display Module Note:

.
