Low Impedance (LoZ) mode to identify and remove ghost or stray voltages.
The two-line display shows AC voltage/current and frequency, or Celsius and Fahrenheit on the screen.
Measures frequency, temperature, resistance, continuity, and capacitance. Auto-ranging, auto-power-off, data hold, backlit low indicator.
1mA Sensitivity: The clamp measures AC/DC current with 1mA sensitivity. The two-line display can show AC voltage/current and frequency, or temperature in degrees Celsius and Fahrenheit. The back clip design makes it easy to carry around by hanging it on your belt or in your pocket.
Compliant with IEC-61010-1, IEC-61010-2-030, IEC-61010-2-032, and IEC-61010-2-033 standards. Safety certifications include EMC, FCC, ROHS, LVD, and WEEE.

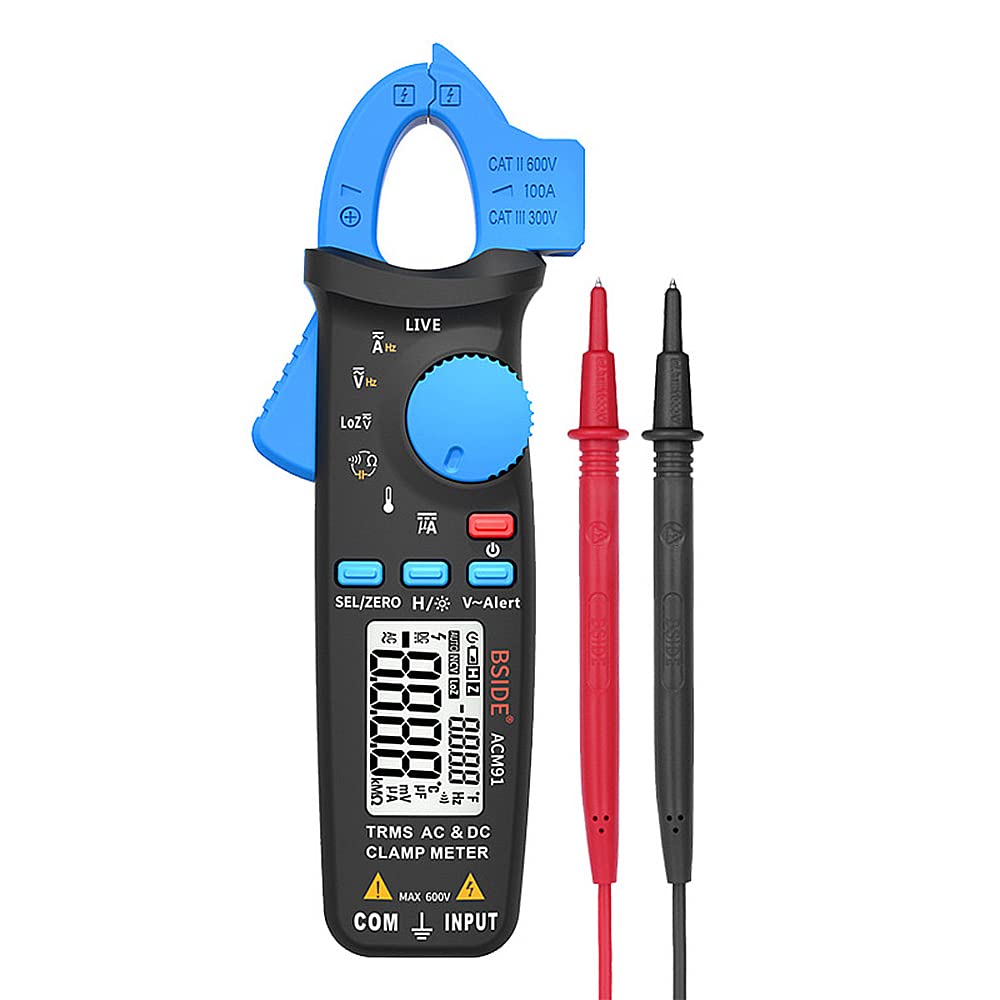

This auto-ranging clamp multimeter can measure AC/DC current, AC/DC voltage, resistance, capacitance, temperature, frequency (Hz), and continuity. It's the ideal troubleshooting meter to help you quickly and safely solve electrical problems in your car or home. Features: Low-impedance (LoZ) mode for identifying and eliminating ghost or stray voltages. The two-line display shows AC voltage/current and frequency, or degrees Celsius and Fahrenheit. Measures AC/DC current (down to 1 mA). Measures microamperes (µA) (down to 0.1 µA). Measures AC/DC voltage. V alarm measurement, fire line inspection. Measures frequency, temperature, resistance, continuity, and capacitance. Low-impedance voltage measurement. Clamp-frequency function. Auto-ranging, auto-power-off, data hold, and backlit low indicator. Complies with IEC-61010-1, IEC-61010-2-030, IEC-61010-2-032, and IEC-61010-2-033. Overvoltage protection class CAT III 300V, CAT II 600V, pollution level
Bell II Product Specifications: Model: ACM91 Color: Blue Display: 6000 counts DC Current: 6A/60A/100A 0.001A/0.01A/0.1A ± (3.0% + 5 counts) DC Current (uA): 0-200uA 0.1uA ± (0.8% + 5 counts) AC Current: 6A/60A/100A 0.001A/0.01A/0.1A ± (2.5% + 5 counts) DC Voltage: 6V/60V/600V 0.001V/0.01V/0.1V ± (1.0% + 3 counts) AC Voltage: 6V/60V/600V 0.001V/0.01V/0.1V ± (1.0% + 3 counts) Low Impedance LOZ: Max 600V Resolution 0.1V Resistance: 600 / 6k / 60k / 600k / 6M ohm 0.1 / 0.001K / 0.01K / 0.1K / 0.001M ohm ± (1.0% + 3 counts) 60Mohm 0.01Mohm ± (1.2% + 20 counts) Capacitance: 600μF / 6000μF 0.1μF / 1μF ± (4.0% +
3 counts) Frequency: 60Hz/1000Hz 0.1Hz/1Hz ± (1.0% + 5 counts) Frequency (by jaw): 60Hz/1000Hz 0.1Hz/1Hz ± (1.0% + 5 counts) Buzzer: A continuous beep will sound if the resistance is less than 30Ω. Temperature: -20℃~500℃ 1℃/2℃ (2.0% + 2℃) Jaw capacity: 20mm Package List: 1 * Digital Clamp Meter 1 * Probe 1 * Thermocouple 1 * Carrying Case 1 * Screwdriver 1 * Chinese/English User Manual
