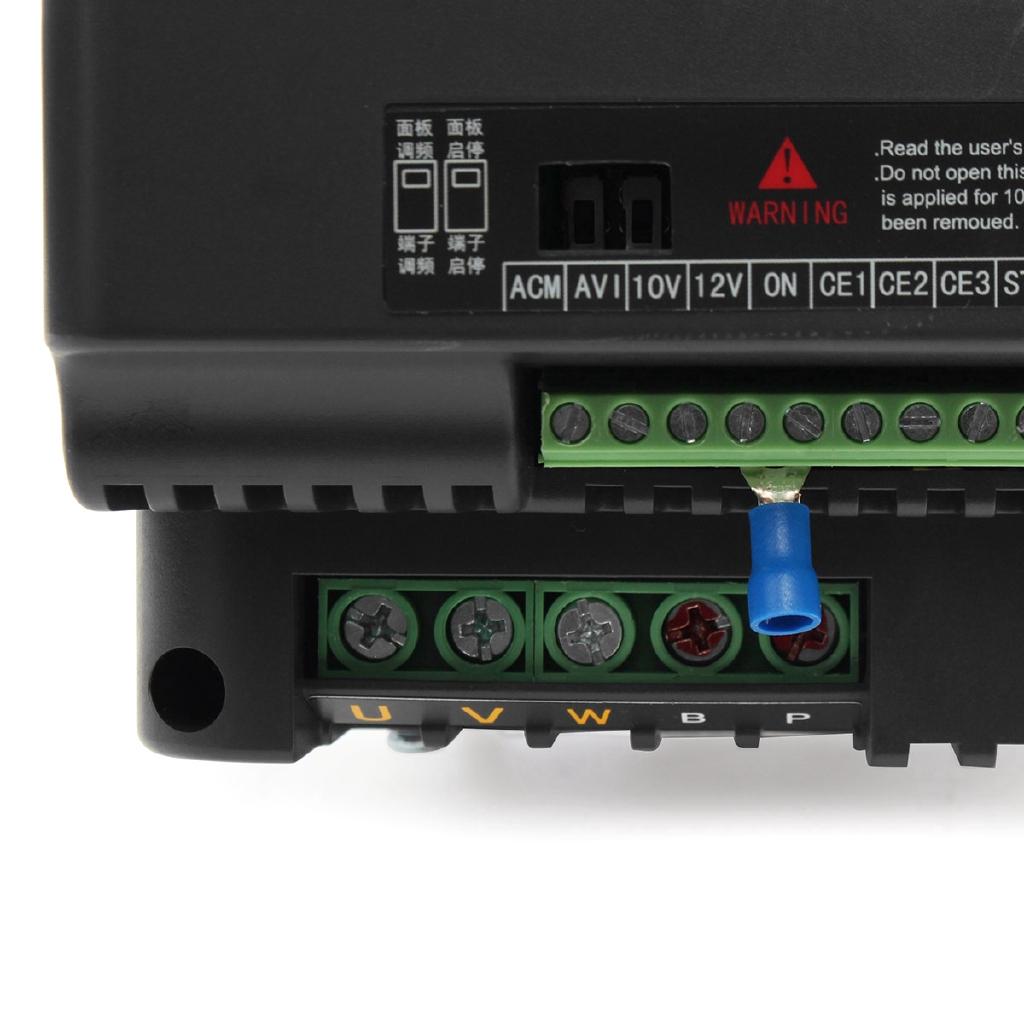

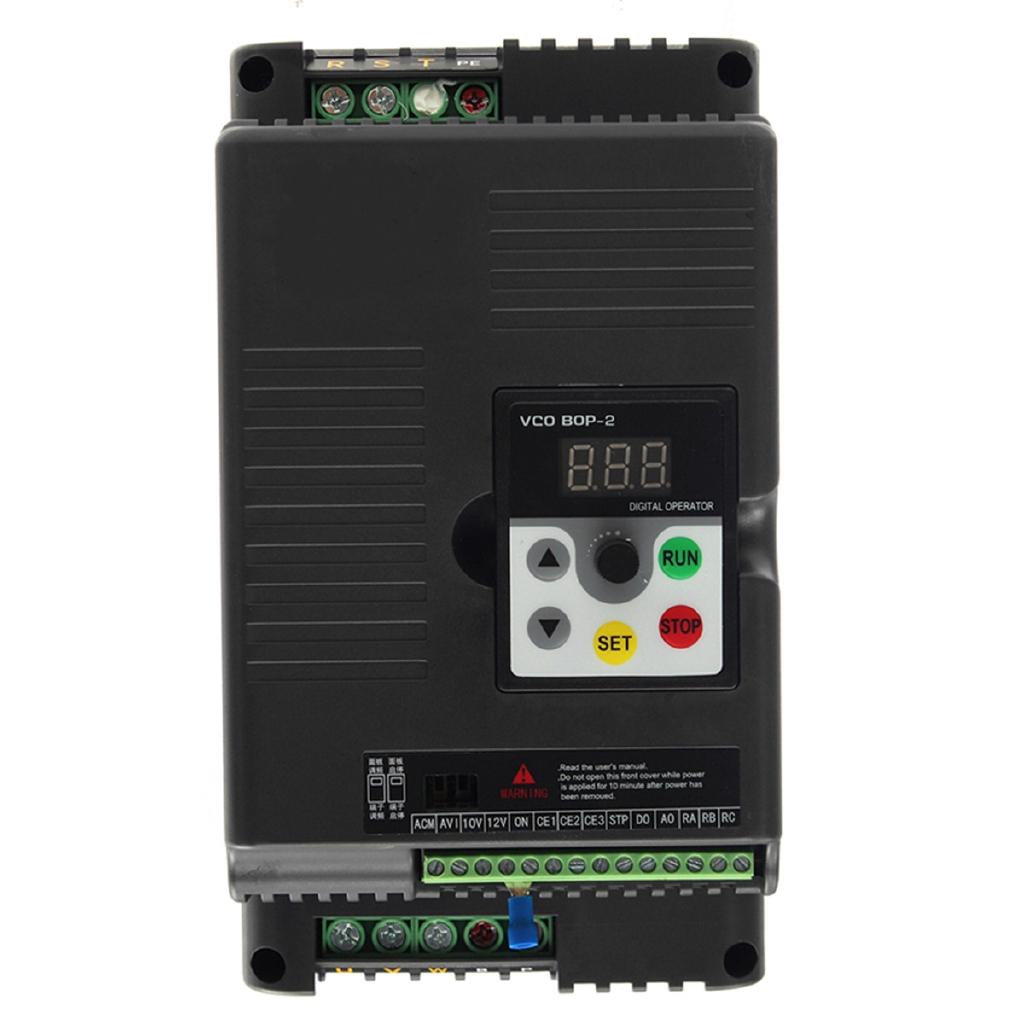

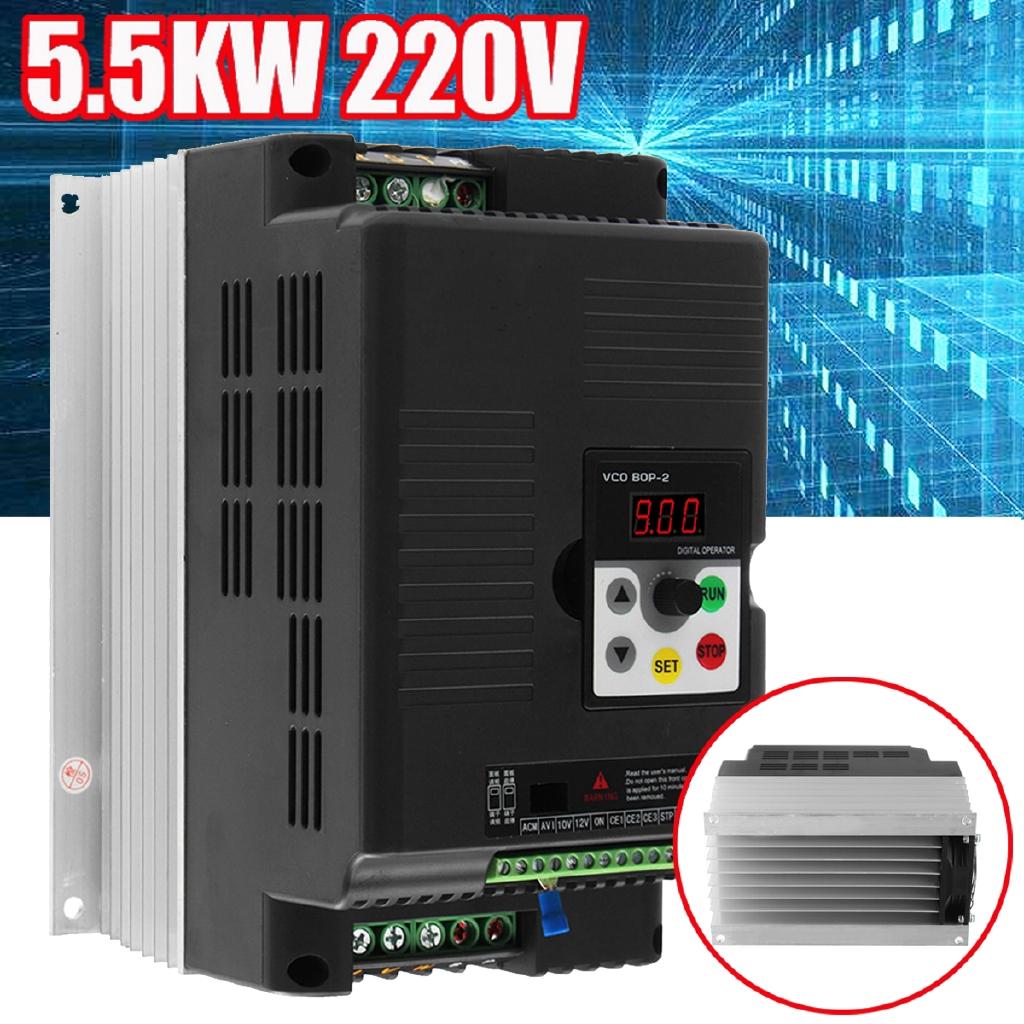

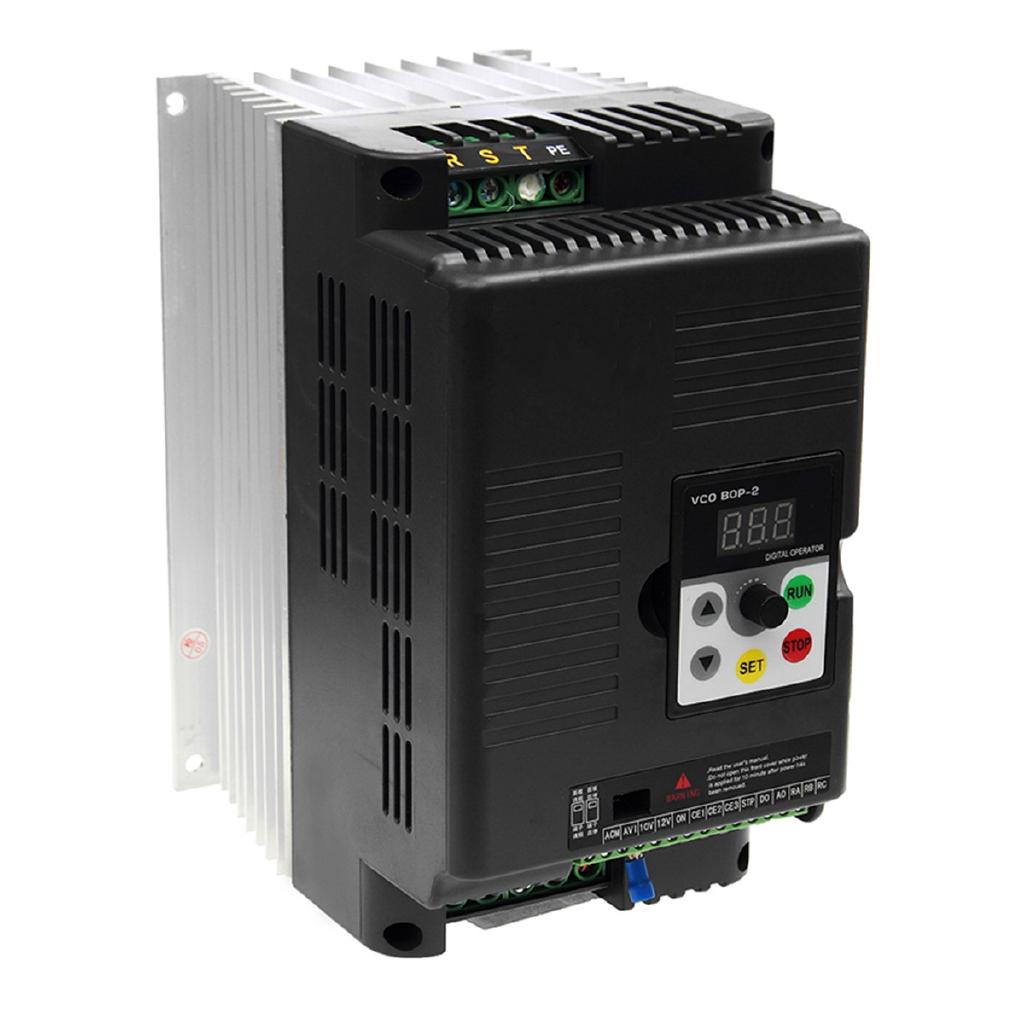

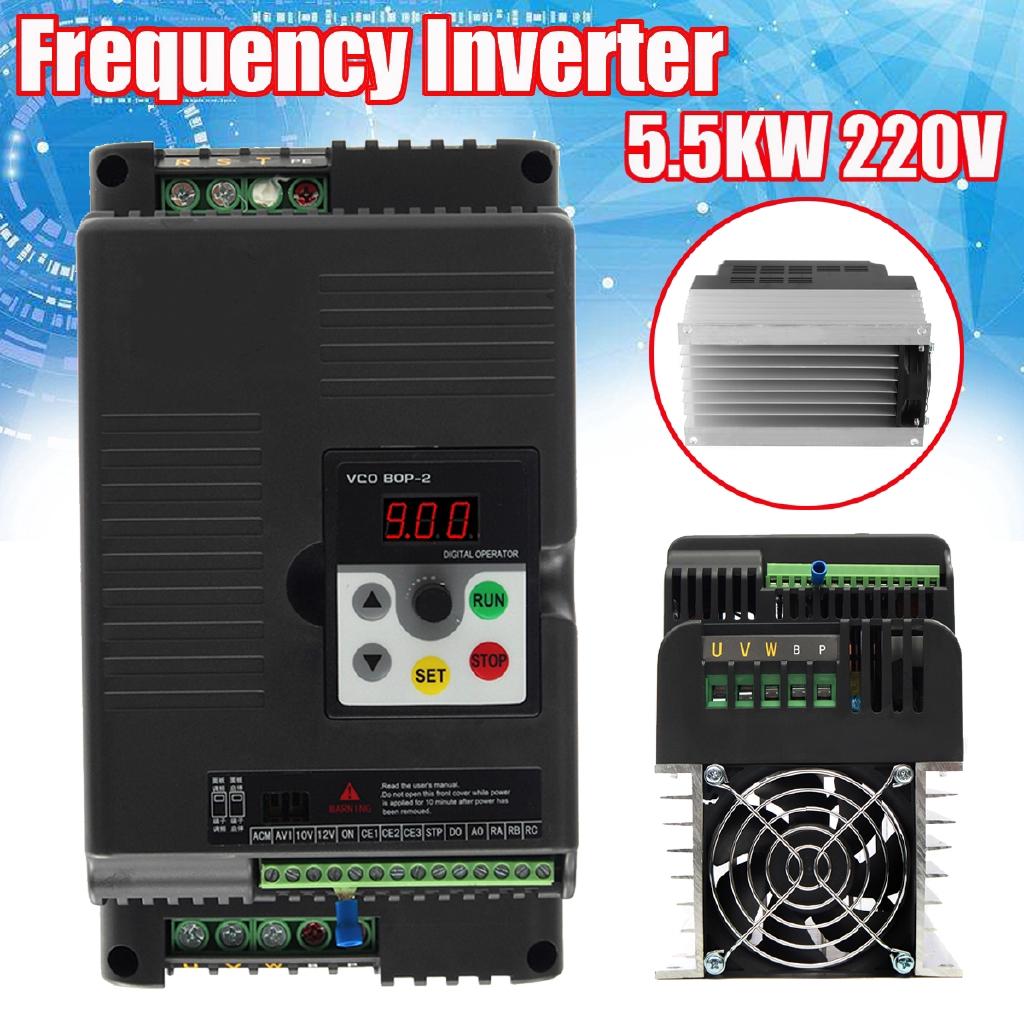

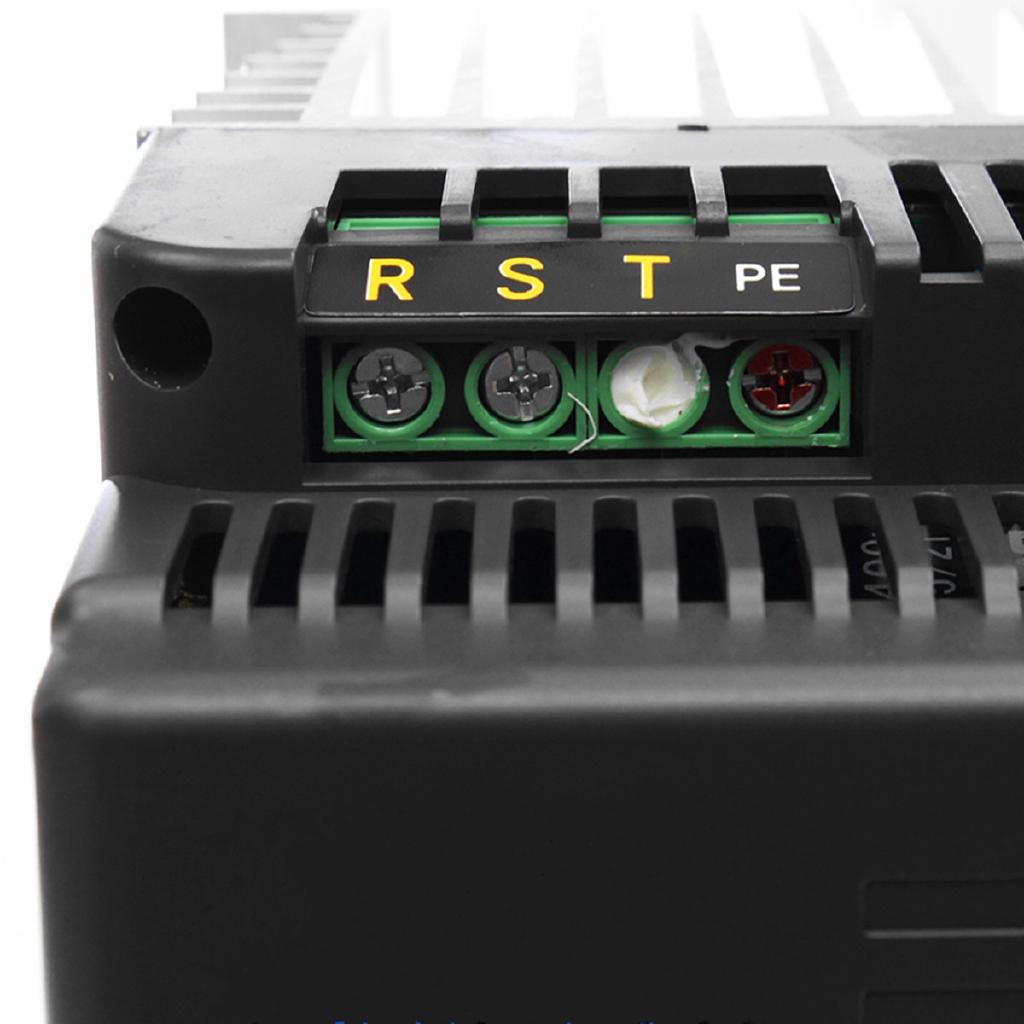

Name:Frequency Converter
Model:893725
Specifications:
Power:5.5KW
Input:AC 1PH 220V 50Hz-60Hz
Output:AC 3PH 0V-220V
Temperature: -40°C~+70°C
Modulation: Space Voltage Vector Modulation

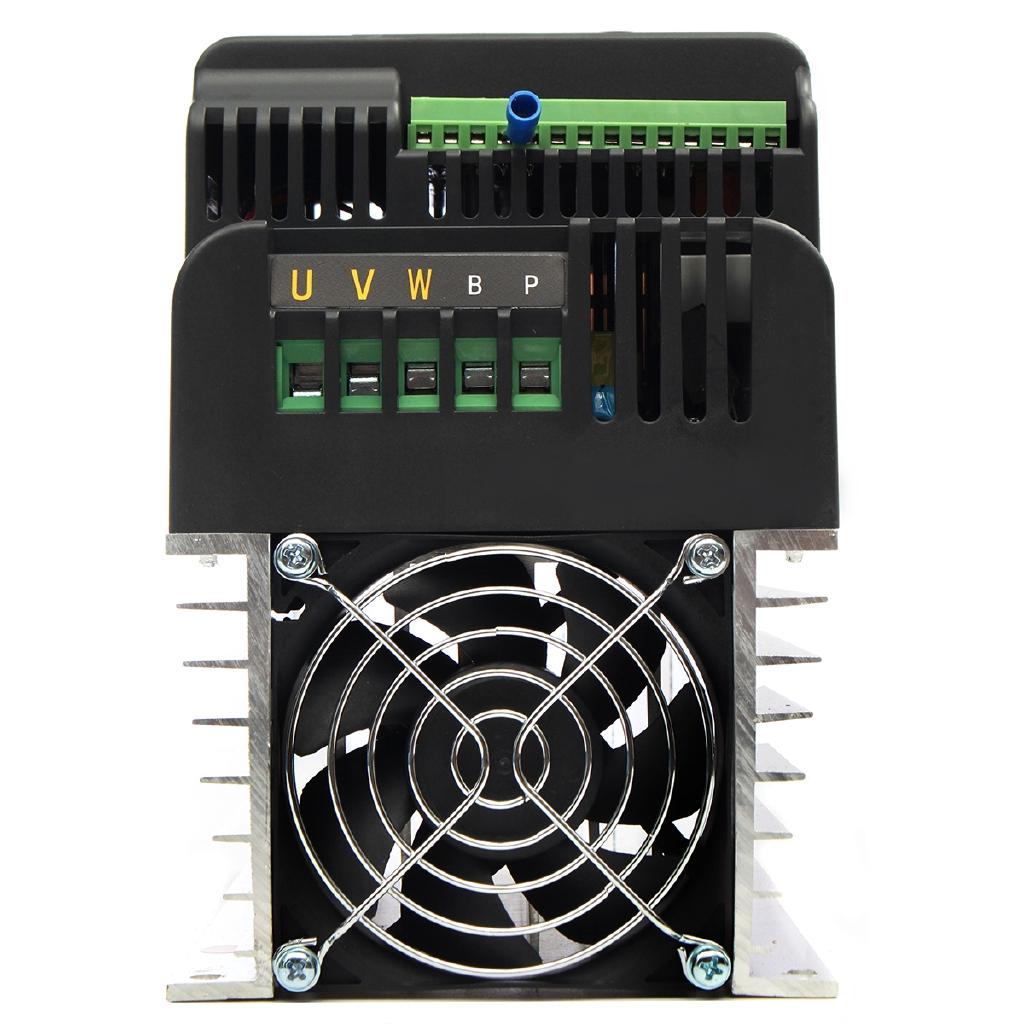

Cooling method: air-cooled, with fan control
Color:Black

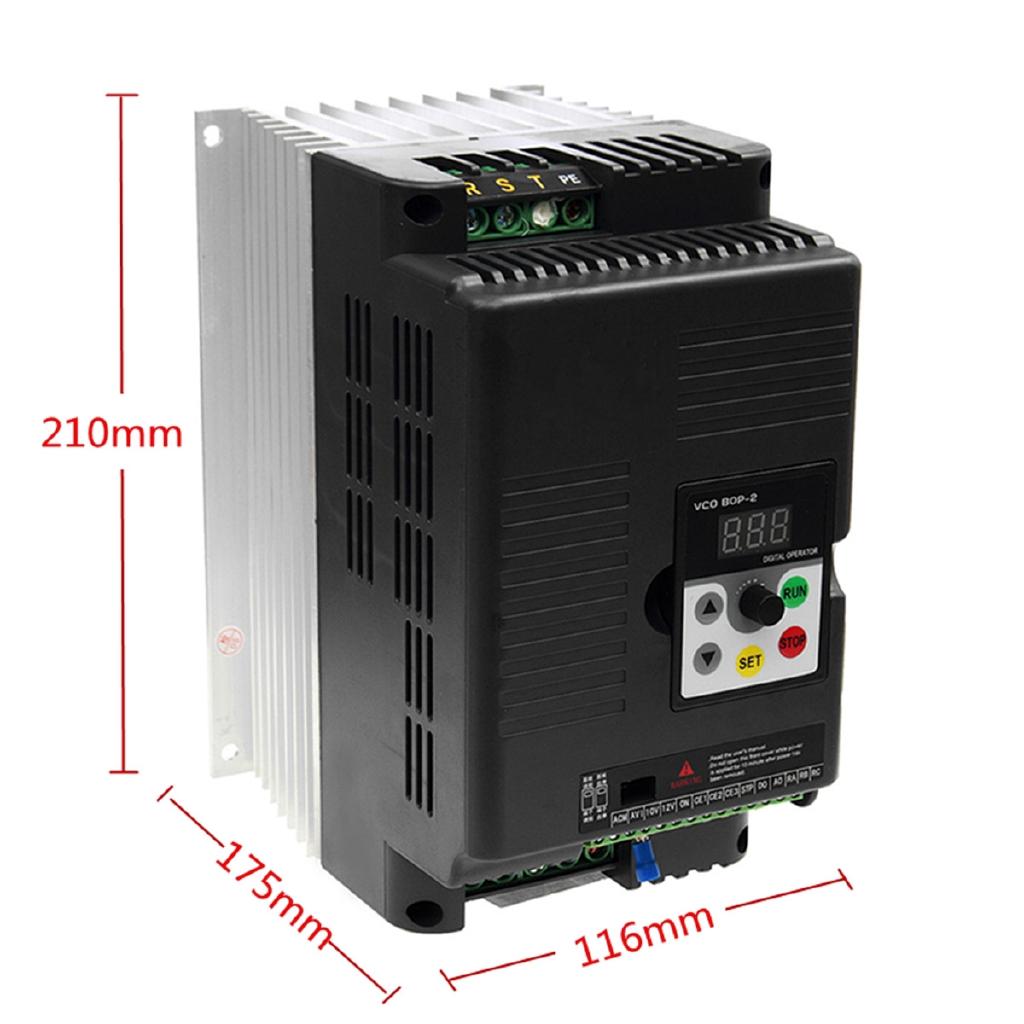

Size:210mm*175mm*116mm
Feature
-The control panel is simple and easy to understand.
-Quick heat dissipation and longer service life.
-Through the built-in PLC or control terminals to achieve multi-speed operation, operation panel, control
terminals can be switched through a variety of ways.
-LED display set frequency, output frequency, output voltage and output current and other parameters.
-Strong anti-interference ability, large low-frequency torque, high precision
Safety Precautions:
1. Before wiring, make sure the input power is off
2. Wiring operation, please professional electrical engineering personnel to carry out
3. Ground terminal, be sure to ground
4. After the emergency stop circuit wiring is completed, be sure to check whether the action is valid.
5. The output line of the inverter should not be connected with the shell, and the output line must not be short-circuited
6. Check if the voltage of the AC main circuit power supply matches the rated voltage of the inverter.
7. Do not perform withstand voltage test on the inverter
8. Please connect braking resistor according to wiring diagram
9. Do not connect the power cord to the output U, V, W terminals
10. Do not connect the contactor to the output circuit
11. Be sure to install the protective cover before power on. When removing the cover, be sure to disconnect the power supply.
12. Select the inverter with reset and retry function, do not approach the mechanical equipment, because the alarm will suddenly restart when stopped
13. After confirming that the operation signal is cut off, the alarm can be reset. Alarm reset under running signal status, inverter has
May suddenly start
14. Do not touches the terminal of the inverter, there is a high voltage on the terminal, it is very danger
15. Don't change wiring and terminal disassembly after power on
16. Cut off the main circuit power before inspection and maintenance
17. Do not modify the inverter
Package include:
1 x Frequency Converter
1 x English Manual
