Label:Yes
2.Basic Parameters: The RS485 display moduleworking voltage is DC 5~28V and the working current is 4.3~42mA (related to the brightness of the digital tube)
4.Clear 4-Digit LED Display:LED display module features a 6 Bit 0.36in LED screen capable of showing numbers, letters, ASCII characters, and floating-point values with good readability.
3.Device Address:The default of LED Module is 1. By modifying the 485 address, a maximum of 247 modules can be cascaded(please use RS485 repeaters if over 32)
1.For RTU Protocol: LED digital display board supports for RTU protocol, 03 read function code, 06 or 16 write function code
5.Adjustable Brightness & Custom Display:RS485 display module brightness is adjustable, also has electronic label function, and you can set the initial display content after start up.
Specifications:

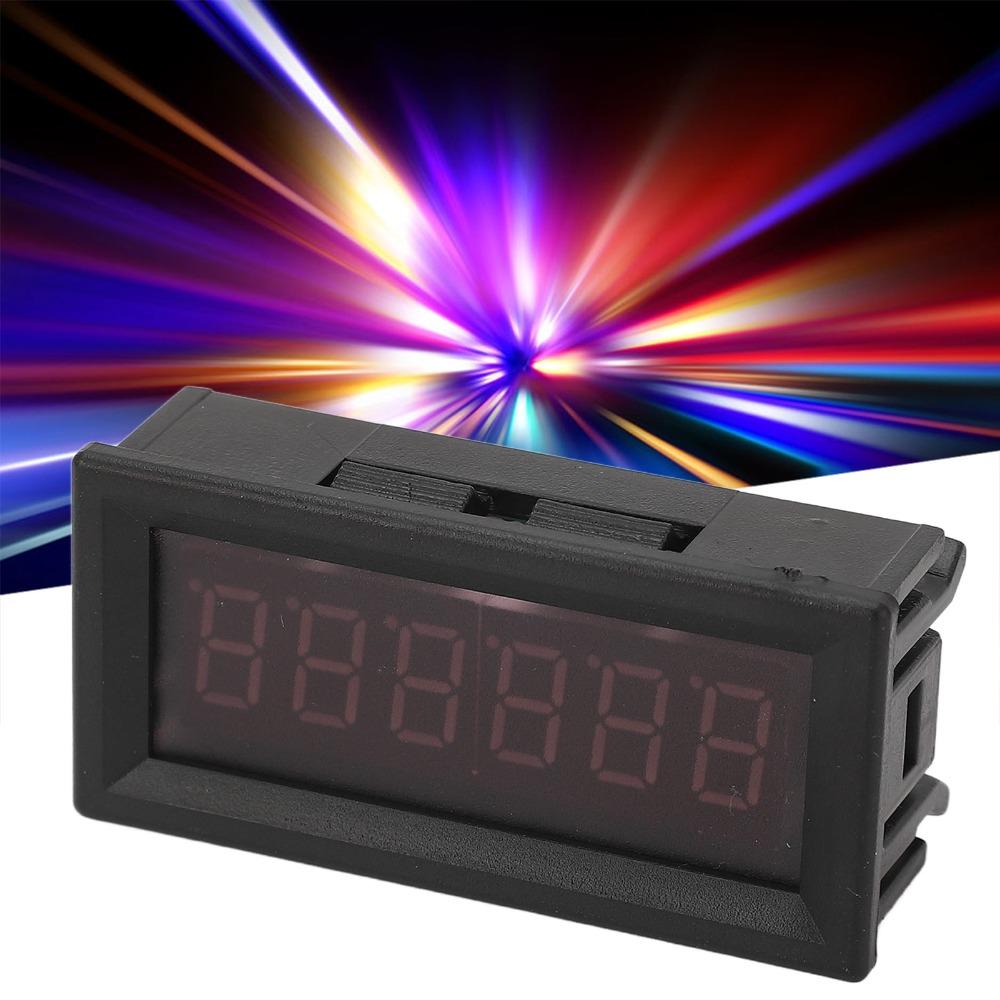

Item Type: LED Display Module
Working voltage: DC 5~28V
Working current: 4.3~42mA (related to the brightness of the digital tube)
For RTU Protocol:MODBUS RTU protocol, 03 read function code, 06 or 16 write function code.
Device address: 1~247, default 1, by modifying the 485 address, up to 247 modules can be used in cascade (more than 32, please use RS485 repeater)
Digital tube color: Red
Digital Tube Position: 6 Digits 0.36inches
Communication interface: RS485
Supported baud rates: 1200 2400 4800 9600 (default) 19200 38400 57600 115200
Function: It can display numbers, ASCII characters, letters, floating-point numbers, negative numbers, etc., and the brightness can be adjusted; it supports electronic label function, and the initial display content can be set after power-on;
Parity Check: None, even check, odd check
Size : 60.2 X 28.7 X 21.7MM(2.37 X 1.13 X 0.85in)
Package List:
1 x LED Display Module
Note:
1. Due to the difference between different monitors, the picture may not reflect the actual color of the item.
2. Please allow slight dimension difference due to different manual measurements. Thank you for your understanding.
