2D Barcode Scanner Image Platform Durable Desktop Scanner 1D 2D QR Code Reader USB Omnidirectional High-speed Precision Scanner

High-concerned chemical : None Scanning Light Source : Natural Light + LED Novelty : New Product Type : Bar Code Scanner Model Number : X6-800 Colour Depth : 32 Bit Signal Connection Type : None Scan Breadth : A4 Type : Barcode Scanner Interface Type : USB Scan Element Type : CMOS Scan Speed : 200 scans/second Optical Resolution : 600*600

Origin : Mainland China Certification : CE,RoHS Scanning : 2D/1D Weight : 480g USB cable : 1.5M

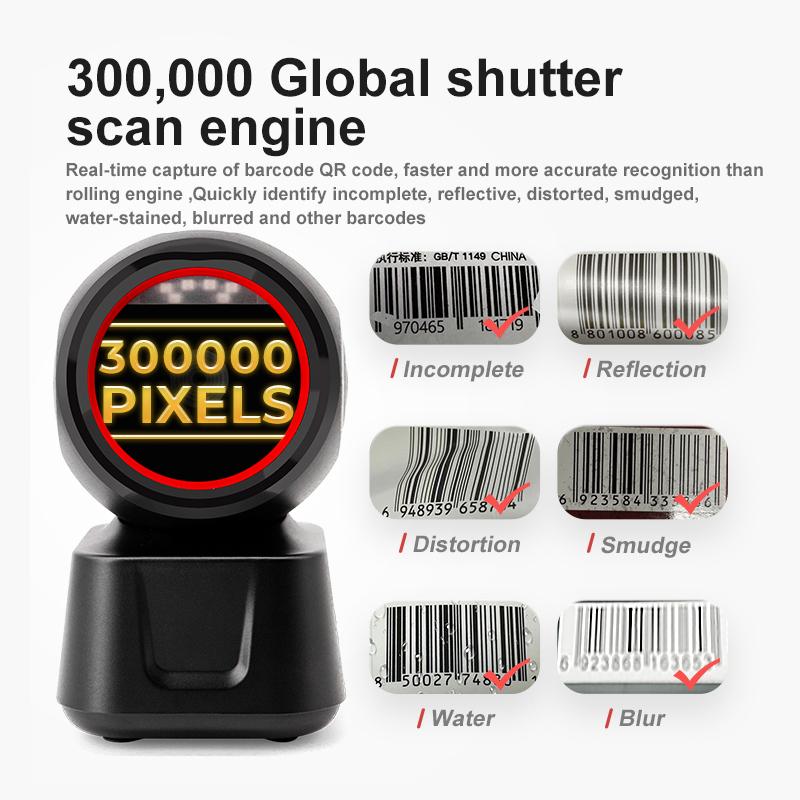

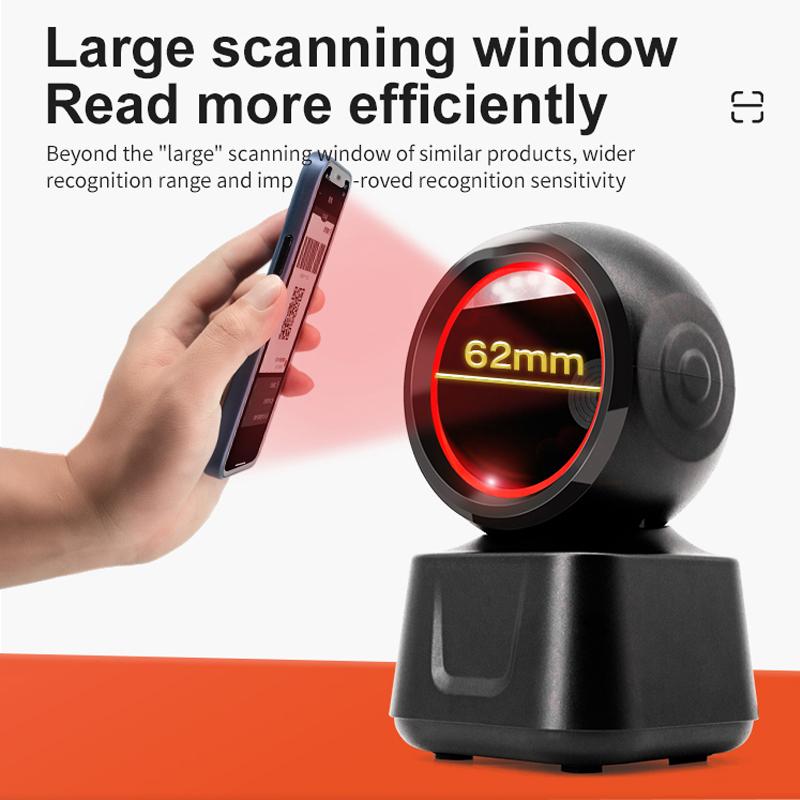

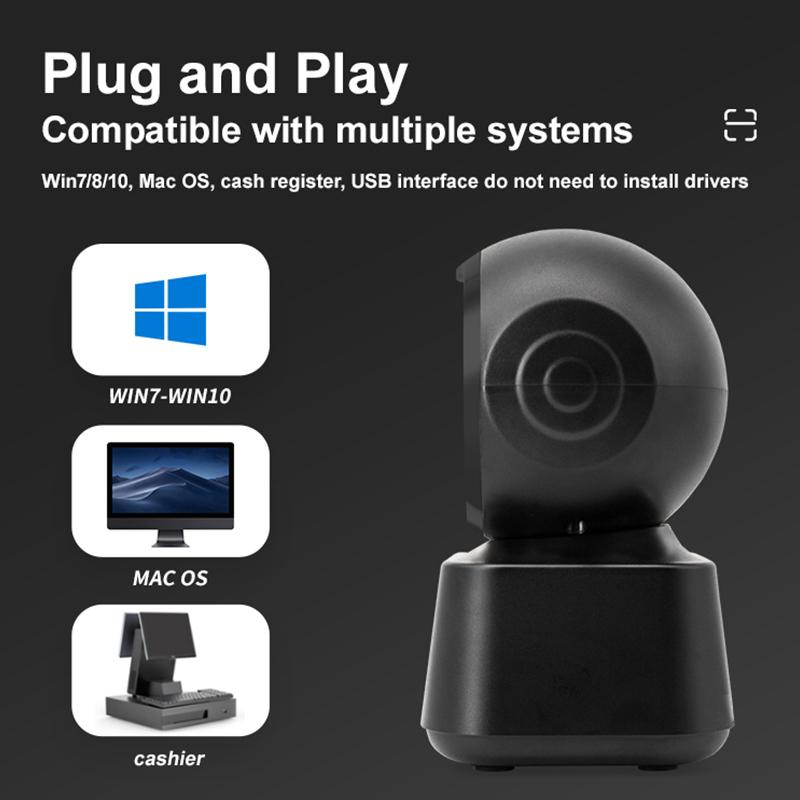

Product features： 1. Equipped with the new 300,000 global exposure scan engine 2. Larger scanning window for easier reading 3. Adjustable angle, flexible and easy to use 4. Frequently used function buttons, easier to set up 5. 4 styles of prompt sound, soft and bright LED indicator 6. Rich interface, strong compatibility, support a variety of systems and cash registers

Physical parameters Scan mode: Auto-sensing/continuous scanning Communication interface: USB-HID keyboard,USB-COM virtual serial port,RS232 serial port Interface type: USB TYPE-B Prompt mode: Buzzer,LED light How it is set up: Press the key to set and manually scan the setting code in turn Housing material: ABS+PC Cable standard: Straight line 1.3m Exterior dimensions: 158 mmx92mmx94mm Weight: Net weight 335g; Gross weight 345g

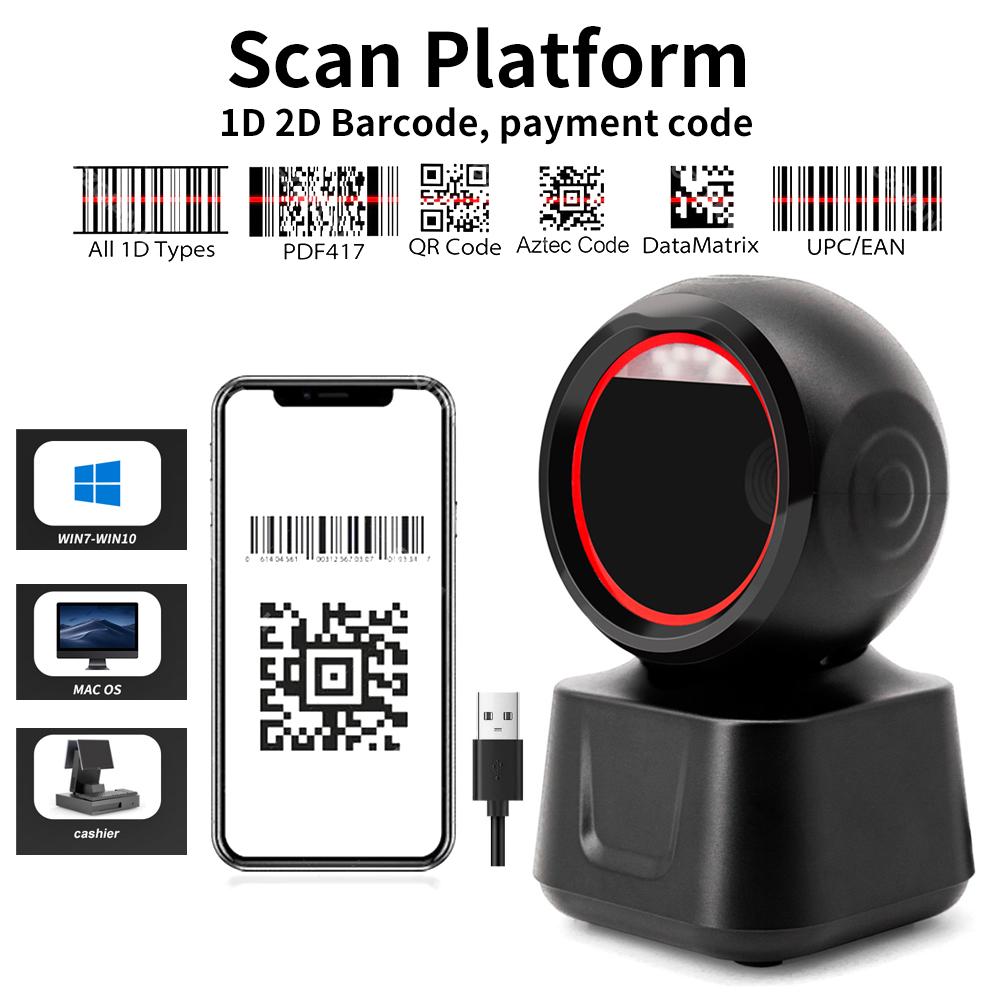

Performance parameters Scan type: CMOS global exposure Resolution: 640*480 Light source: 617nm red LED Scan angle: ±60*,±54°, 360* (left and right, front and back, turn). Scan rate: 120 times/sec Field of view: 48*(H) x 30* (V) Printing contrast: Minimum 20%. Decoding kind: 1D: EAN13,EAN 8,UPC-A,UPC-EO,UPC-E1,Code128,Code39,Code93, Interleaved 2 of 5, Industrial 25, Matrix 2 of 5, Code11, CodeBar, MSI, RSS-14, RSS-Ltd, RSS-Exp, Standard 2 of 5, Plessey, ChinaPost 25, GS1 Composite 2D: QR Code, Data Matrix(DM), PDF417,Han Xin,Micro PDF417,Micro QRCode, MaxiCode, Aztec Code, Code16K, support mobile screen reading Minimum resolution: 4thousand

Electrical parameters Input voltage: DC 5V±10% Current: Working: 240 mAh; Standby:190 mAh

Environment parameters Temperature: 0°C-50°C(working);-20*C~+70*C(storage). Humidity: 5%-95% non-condensing
