Feature:
1. The shell is made of high‑quality aluminum alloy, with good heat dissipation to protect the components.
2. Reduce the external volume, focus on the internal configuration, ensure stable performance and long service life.
3. The bulkiness is removed to make it lighter, making installation and use more convenient, time‑saving and labor‑saving.
4. Can be used in LED power supply, medical power supply, display power supply, industrial control field, etc.
5. Sophisticated production, with good performance and higher working efficiency, brings you more convenience.
Specification:

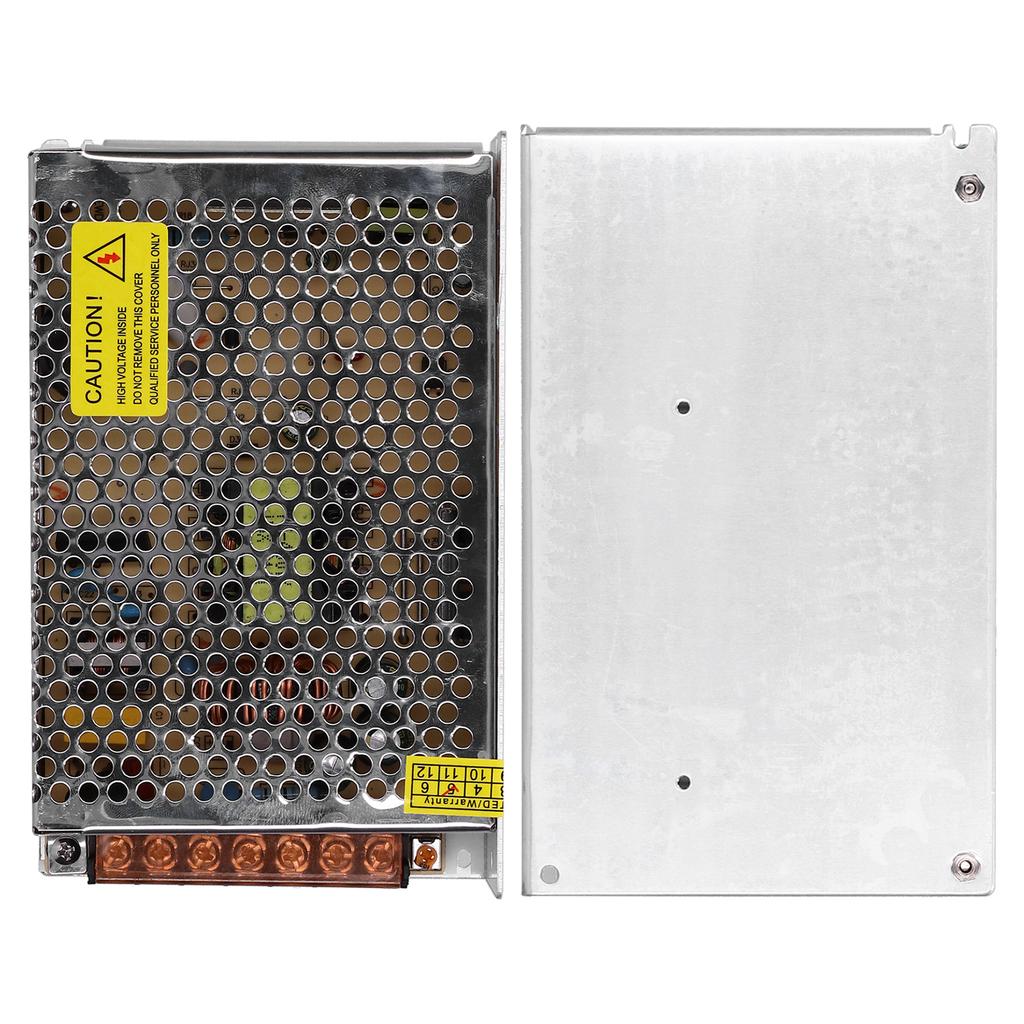

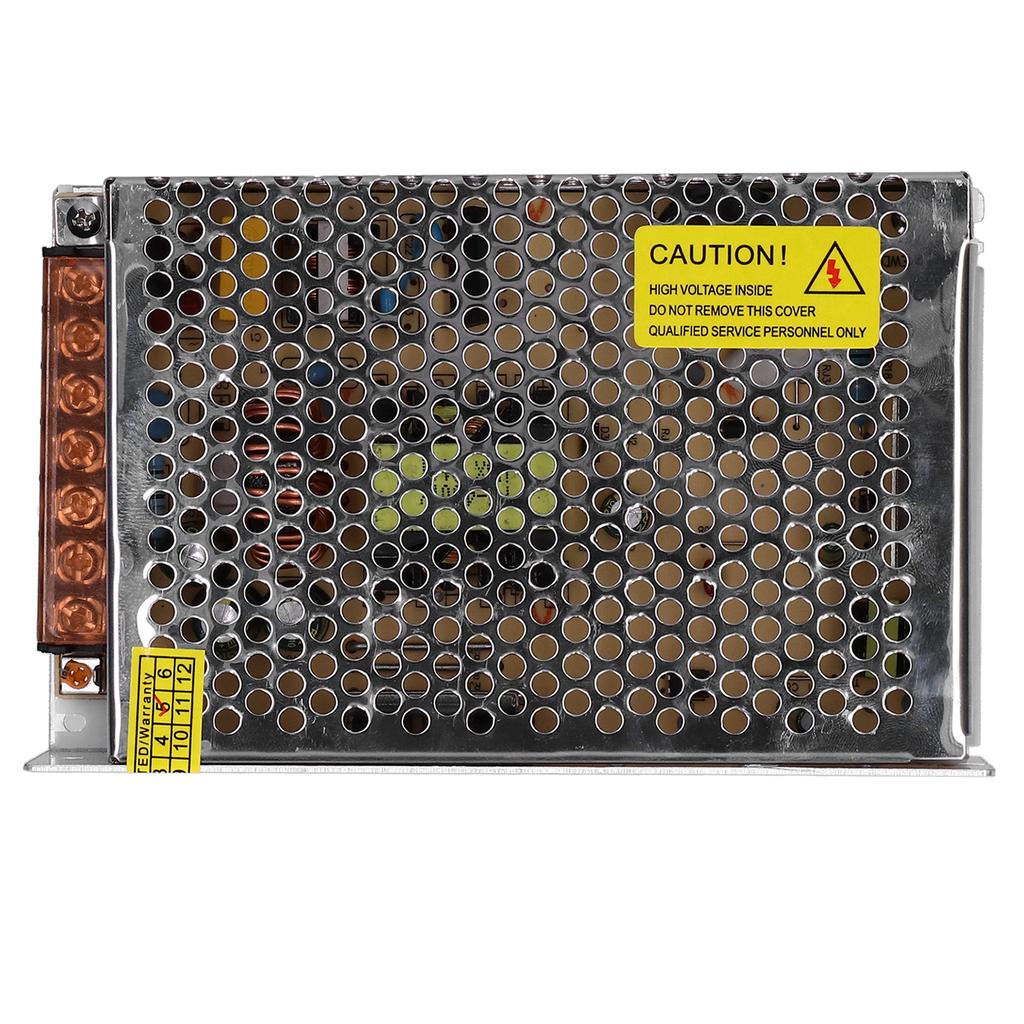

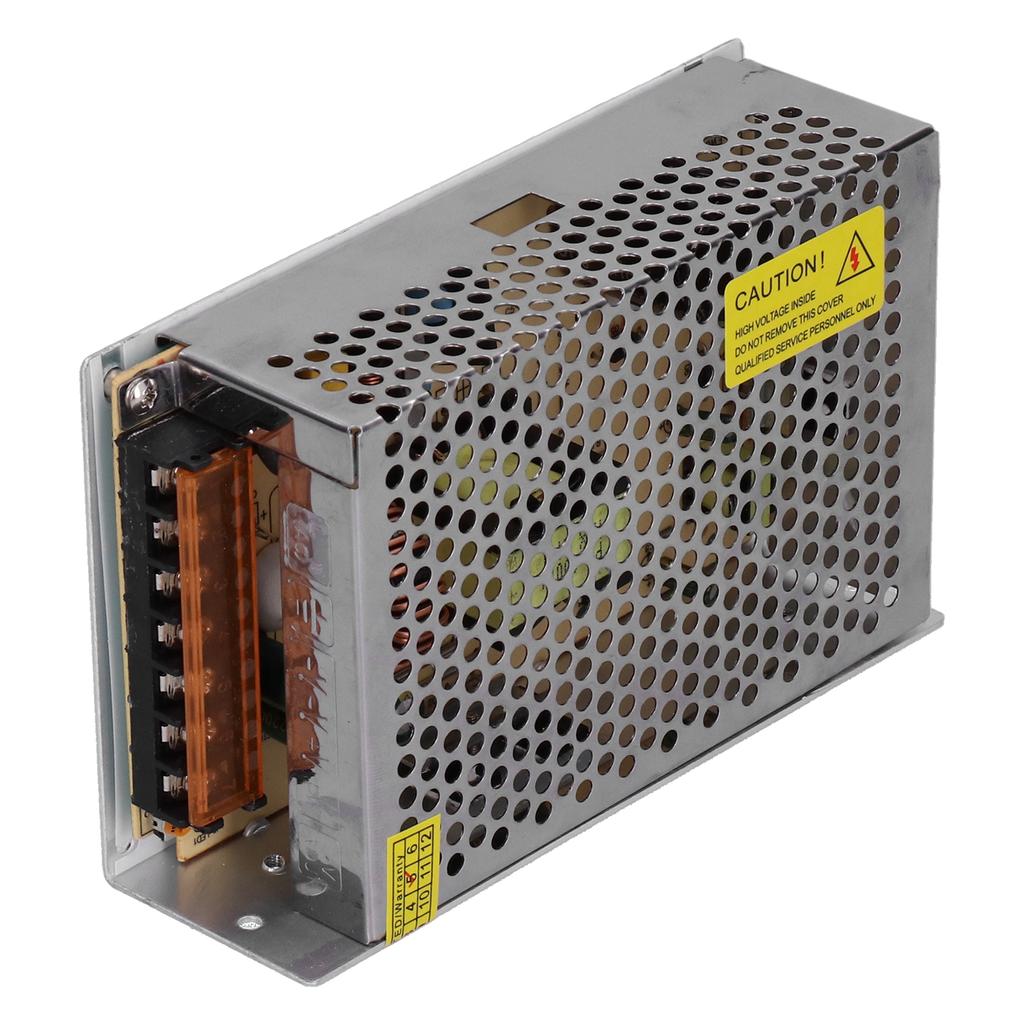

Item Type: Switching Power Supply
Material: Aluminum Alloy
Model: YY 200 12
Input Voltage: AC 170 264V
Output Voltage: DC 12V
Output Current: 16.7A
Error Range: + 1percent
Adjustable Pressure Range: + 5percent
Power: 200W max
Waterproof Rating: IP20
Start, Rise, Hold Time: 200ms, 50ms, 20ms
Working Temperature and Humidity: 10 60 celsius , 20percent 90percent RH
Storage Temperature and Humidity: 20 80 celsius , 10percent 95percent RH
Product Size: Approx. 160x98x50mm 6.3x3.9x2.0in
Application: LED power supply, medical power supply, display power supply, industrial control field, power equipment, instrumentation, solar photovoltaic power supply..
Package List:
1 x
Switching Power Supply
Note:
Before using the switching power supply, please read the operating instructions carefully to check whether the current and voltage of the switching power supply and the load current and voltage meet the requirements for use.1. When using the switching power supply, be sure to pay attention to the internal high voltage part of the machine, and do not touch the internal components of the machine. Non‑professionals should not disassemble the power supply for maintenance, otherwise there is a danger of electric shock. Before use, read the relevant wiring marks.2. When wiring, please turn off the input power.3. To ensure safe use and reduce interference, please ensure that the ground terminal FG is reliably grounded. (The grounding wire Diameter is reasonably selected according to the input voltage and output power)4. Check whether the mounting screws are in contact with the power supply board components, and measure the insulation resistance between the housing and the input output to avoid electric shock.5. Most of the LED switching power supply case is the heat dissipation part. When installing, increase the contact area between the case and the case to facilitate heat dissipation and extend the life of the power supply. If the power supply has a built‑in fan, the fan s vent should not be blocked.6. Before the installation is complete, please carefully check whether the wiring is correct, to prevent wrong connection or reverse connection, and then start it after confirming that it is correct.
