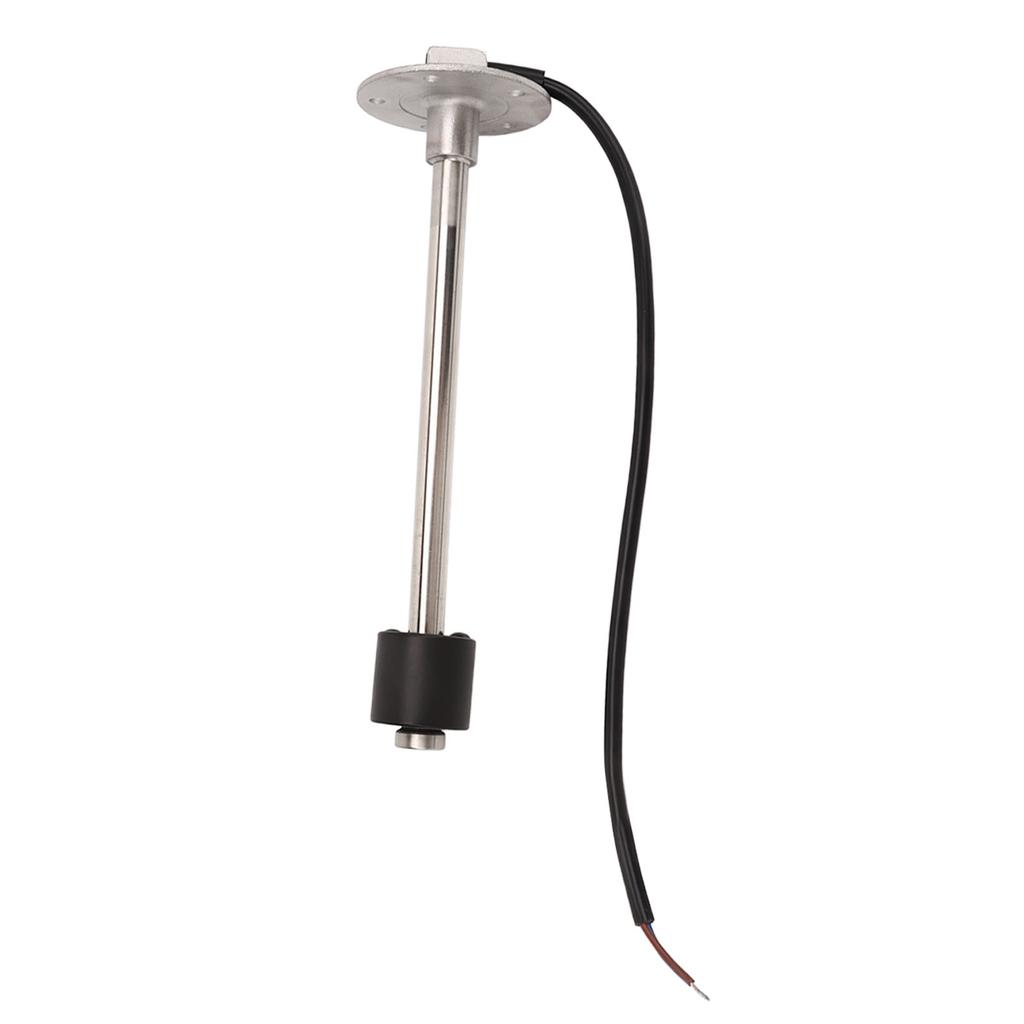

240 to 33ohms Fuel Sending Unit IP67 Waterproof Universal Accurate Fuel Gauge Sending Unit for Boact Yatch Truck RV

Feature: 1. Unique Design: no moving parts to break. No adjustment needed for tank. The fuel sending unit could support fuel level gauge and water Tank Gauge for Boat, RV, Truck. 2. Perfect Configuration: Screw size is M5 x 0.8, bore Diameter 5mm, size 9 inches, suitable tank size of 240‑255mm, output signal of 240‑33ohms. 3. Material: All fuel sending units consist of reed switches and fixed resistors. SAE 5‑hole mounting mode, heavy duty 316 stainless steel, solid structure. 4. Gasket and Screw: Equipped with gasket, mounting screw to keep the sender from touching the bottom of the tank, and different tank material has different requirement. 5. Application: The float is 1.38in (35mm) in diameter. If you must drill holes, a 1‑1 2in (38mm) Diameter hole would be perfect. The sender can only match standard gauges with non linear signals. Specification: Item Type: Fuel Water Level Sensor Material: Body: 316 Stainless Steel Cable: PVC Float: NBR Installation Method: Standard SAE 5 Hole Type Screw Size: M5 x 0.8 Aperture: 5 Mm 0.20 Inch Size: Length 9in(230mm) Recommended Size Of Water Tank: 9.5 10in 240 255mm Resolution Range: 21mm 0.83in Fuel And Water Level Sensor Type: Resistance Rated Current Of Alarm Switch: 500mA Protection Grade: IP67 Operating Temperature: 40 Fahrenheit +185 Fahrenheit ( 40 celsius +85 celsius ) Application: Ships, Yachts, Trucks, RV. Package List: 1 x Fuel Sending Unit 5 x Screw1 x Gasket Note: 1. This type of fuel tank sensor is 240‑33 ohm, only suitable for 240‑33 ohm fuel gauge. Please make sure your product is suitable for 240‑33 ohms before purchasing.2. When the oil level or water level is empty, there will be 3‑15mm space between the sensor float and the bottom of the sensor. This is a safe distance and the fuel sender will work fine.3. Please check the size and description of the product carefully before purchasing, if the fuel tank is plastic, the length of the gas tank liquid level sensor should be 1in smaller than the depth of the fuel tank, if the water tank is metal, the length of the liquid level sensor should be smaller than the depth of the fuel tank 0.5‑1in
