Feature:

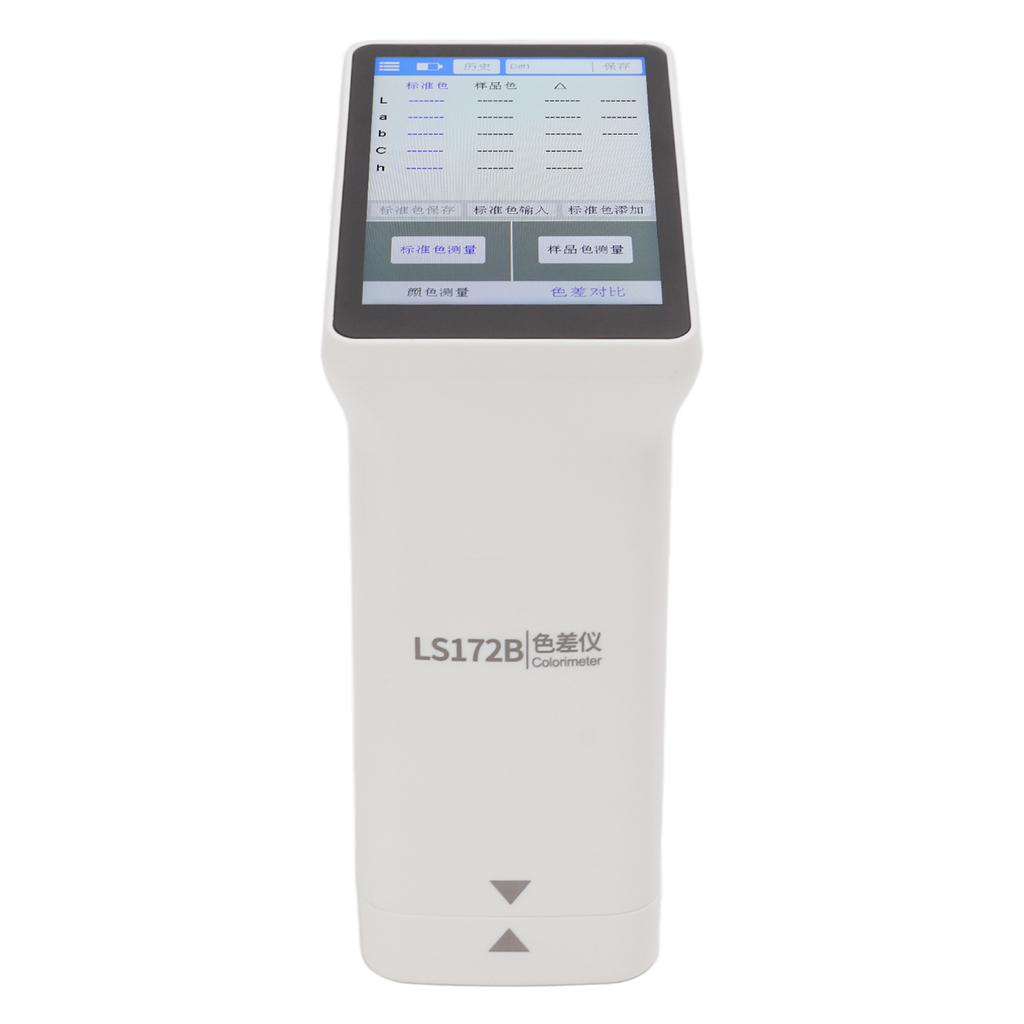

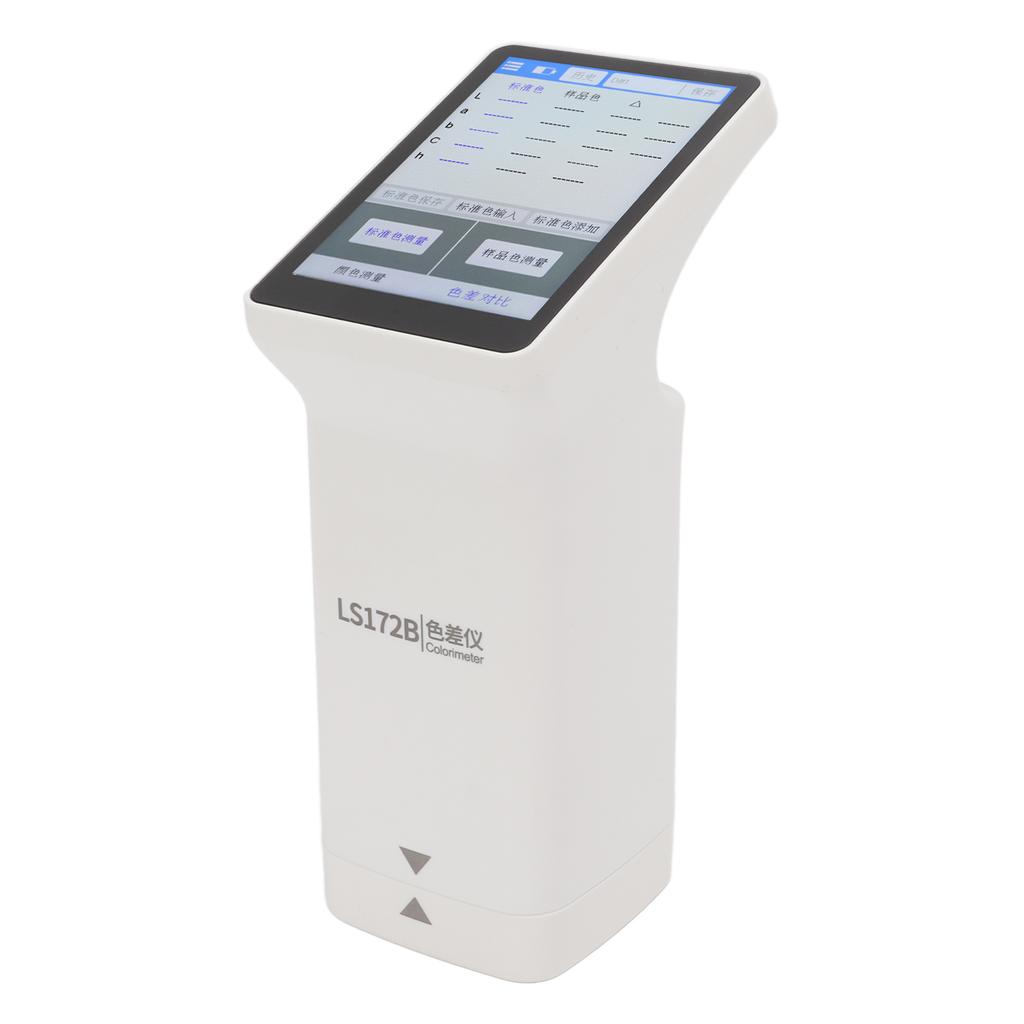

1. 3.5in Touch Screen: The colorimeter adopts a 3.5in capacitive touch screen, which has a good human computer interface. Built in compensation function, the value is stable, allowing long term calibration
2. Multiple Electronic Color Cards: The colorimeter contains multiple electronic color cards, which can quickly match the closest color card number, and the color card matching accuracy rate is greater than 90percent
3. QC Detection Function: The colorimeter has QC detection function, the color difference threshold can be set, and a variety of color difference formulas can be selected. A variety of color spaces are available to facilitate color measurement for various needs
4. Large Storage Space: The colorimeter has a large storage space, which can store 1000 colors and 1000 color difference comparison records. Built in rechargeable lithium battery, can measure 10,000 times continuously after a single full charge
5. Connecting to APP: The colorimeter can be connected to a mobile APP, with PC software, which has a better color difference statistical analysis function, and can guide into and export instrument data at the same time
Specification:
Item Type: Colorimeter
Material: ABSWeight: Approx. 225g 8.0oz
Battery: 1 x Rechargeable Lithium Battery 3.7V 4000mAh (built in battery)
Uses: Chroma Sampling, Color Difference Detection and Comparison
Lighting Method: 45 0 (45 degrees circle lighting, 0 degrees reception)
Lighting Source: Full Spectrum LED Light Source
Measuring Diameter: Approx. 8mm 0.3in
Measurement Conditions: Light Source D65, Field of View 10 degrees
Measurement Time: About 1s
Color Spaces: Color Model, Luv, LCh, Yxy, CMYK, RGB, Hex
Color Difference Formula: △E*ab, △Euv, △E*94, △E*cmc(2:1), △E*cmc(1:1), △E*00
Repeatability: Standard Deviation △E*ab within 0.03 (measurement conditions: after warm up correction, measure the average value of 30 whiteboards at intervals of 3s)
Battery Power: 1 x Rechargeable Lithium Battery 3.7V 4000mAh, Can Measure 10000 Times Continuously After a Single Full Charge
Display: 480 x 320 Dot Lattice IPS Color Screen
System Language: Simplified Chinese, English
Charging Interface: USB (type c)
Data Transmission: USB, BT
Operating Temperature Range: 0 45 celsius , 0 85percent RH (non condensing)
Storage Temperature Range: 25 55 celsius , 0 85percent RH (non condensing)
Storage Space: Color x 1000 Color Difference Contrast x 1000
Color Threshold: Can Be Set
Compensation Light: Built in
Chromatic Aberration
In the Color Difference Contrast Measurement Interface, Click the standard Color Measurement Button, and the Current Measured Value is Used As the Standard Color. Click the sample Color Measurement Button, the Current Measured Value is Used As the Sample Color. if You Press the Instrument Button for a Short Time, a Color Measurement Will Also Be Performed, and This Measurement Value Will Replace the Previous Measurement Data.
When the Standard Color is Measured or Added, and the Sample Color is Measured, the Color Difference Between the Two Colors is Calculated. the Color Difference Comparison Results Generally Have the Following Three Judgments:
LabCh Difference
The LabCh Difference Value a is the Sample Color Data Minus the Standard Color Data, and the Color Cast Direction Between the Two is Judged by AL, Aa, and Ab.
Value of AE
The Value of AE is Calculated According to the Selected Color Difference Equations.
QC Testing
QC Detection is Suitable for Color Difference Detection in the Production Process. if the Calculated Ae is Greater Than the Set Threshold, It Will Display unqualified , and the Judgment Area Will Display Red; if the Calculated AE is Less Than or Equal to the Set Threshold, It Will Display qualified , the Judgment Area is Displayed in Green.
4.BT Connection
1. App Installation
Colorimeter App Supports for Android 7.0 for IOS 7.0 and Above. Choose One of the Following Methods to Install:
(1) Scan the QR Coding of the Manual with a Mobile Browser or Wechat, and Follow the Prompts to Download and Install The App.
(2) Search for LScolor from the App Market, and Follow the Prompts to Download and Install APP..

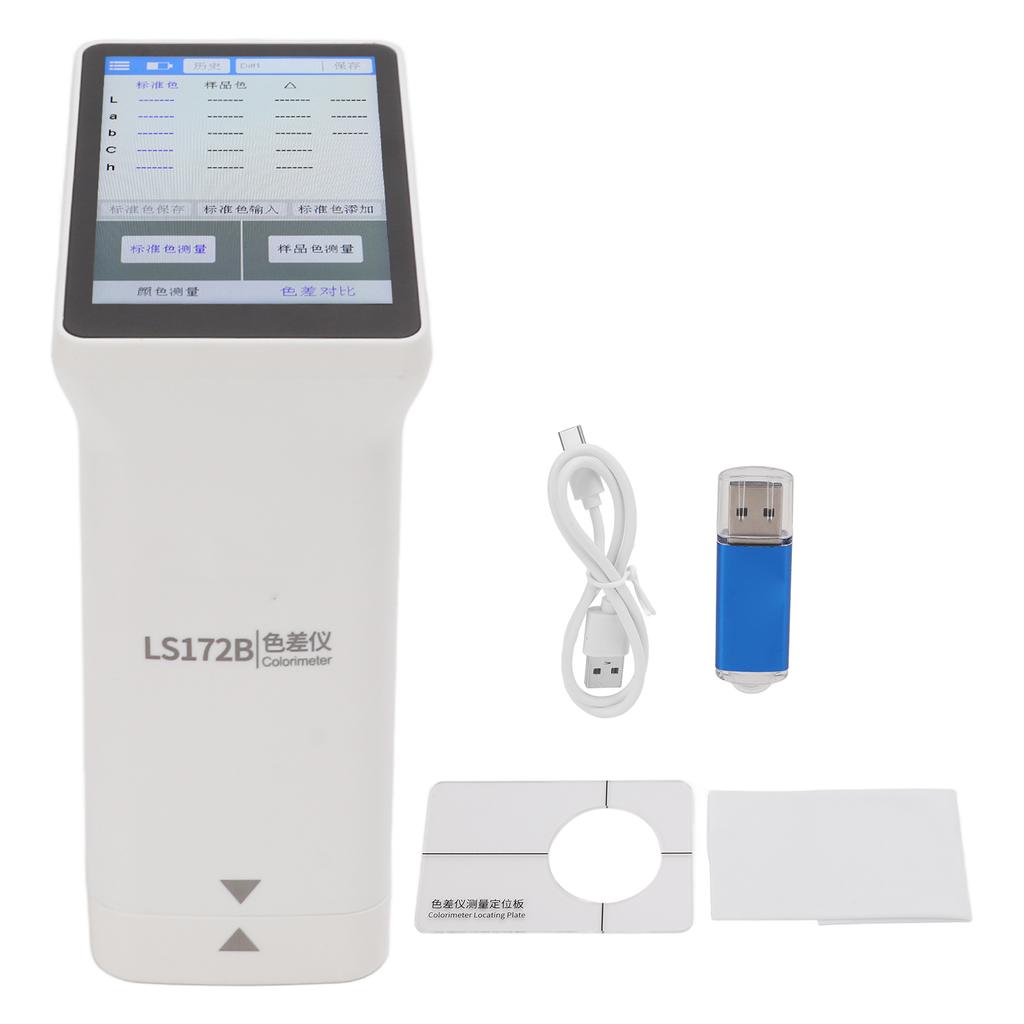

Package List:
1 x Colorimeter1 x U Disk1 x Data Cable1 x Positioning Plate1 x Cleaning Cloth1 x Calibration Report1 x User Manual
Note:
1. When the instrument has not been used for a long time, it is recommended to perform calibration before use.2. Please ensure that the sample is uniform and the appearance is flat and clean, otherwise it will affect the measurement accuracy.3. After the base is removed from the host, it should be stored in a clean place to avoid contamination of the standard board.4. Do not insert any object into the instrument to clean it, which will damage the instrument and affect the measurement accuracy and operation safety.5 When the battery of the instrument is empty, it should be charged in time.6. If the instrument is not used for more than half a year, it needs to be charged regularly to prevent the battery from being damaged by over discharge.7. Due to the color difference displayed on the LCD screen, the color displayed on the instrument screen is for reference only.Shipped Without Battery
