3,Flexible Connectivity: This short-circuit protection module allows for easy integration with various systems. It provides analog signal output for connection to analog-to-digital converter, TTL signal output, and can also be controlled through the single-chip IO port.
4,Visual Overcurrent Indication:Features an overcurrent signal output with clear indication, available as both analog and digital level signals for easy monitoring.
1,Adjustable Overcurrent Detection:The threshold of overcurrent signal setting is adjustable, and the setting resolution is 3A
2, Wide Current Detection Range:The module supports a wide current detection range of ±70A for DC and 50A for AC. It offers a high current detection resolution of 32mV/A and includes a convenient mounting hole for easy firmware installation.
5, Versatile Application Scenarios:Used in smart car motor overcurrent detection, locked rotor protection current detection, short circuit protection detection, demonstration teaching experiment and other occasion, convenient for secondary development
Specifications:

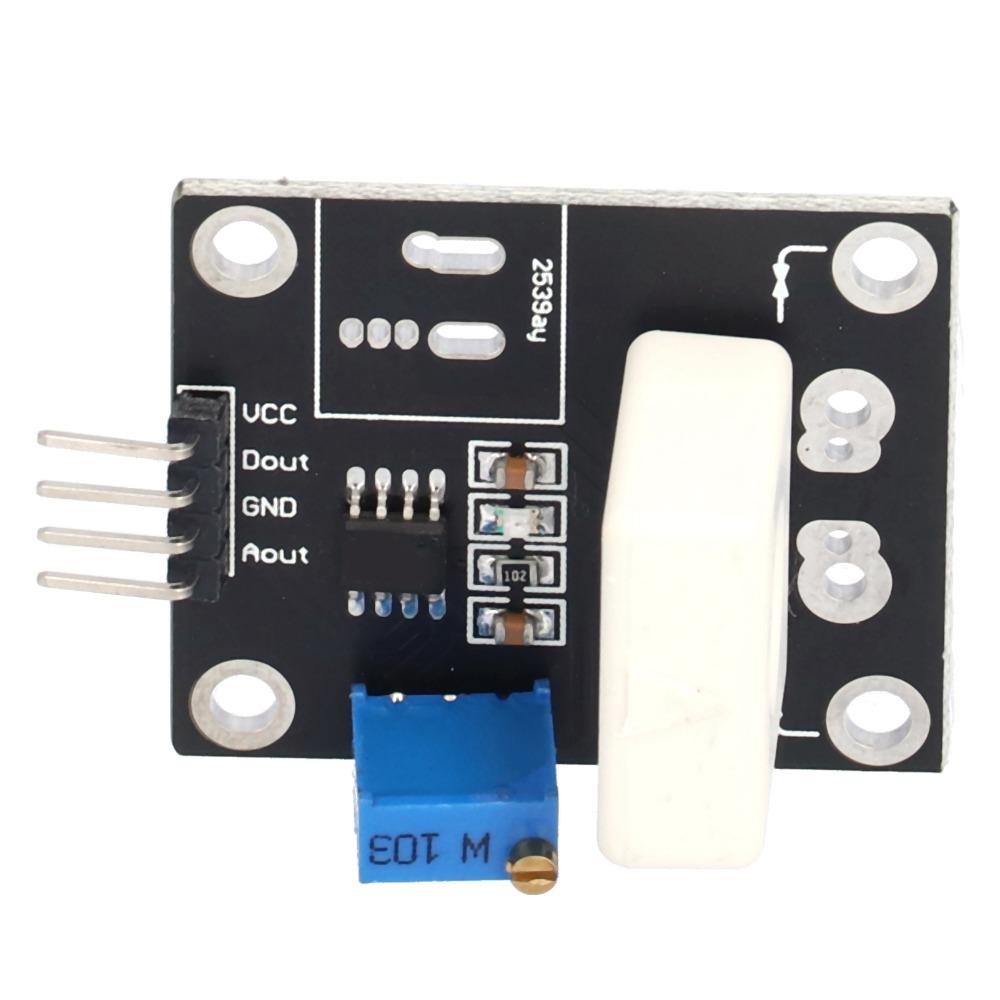

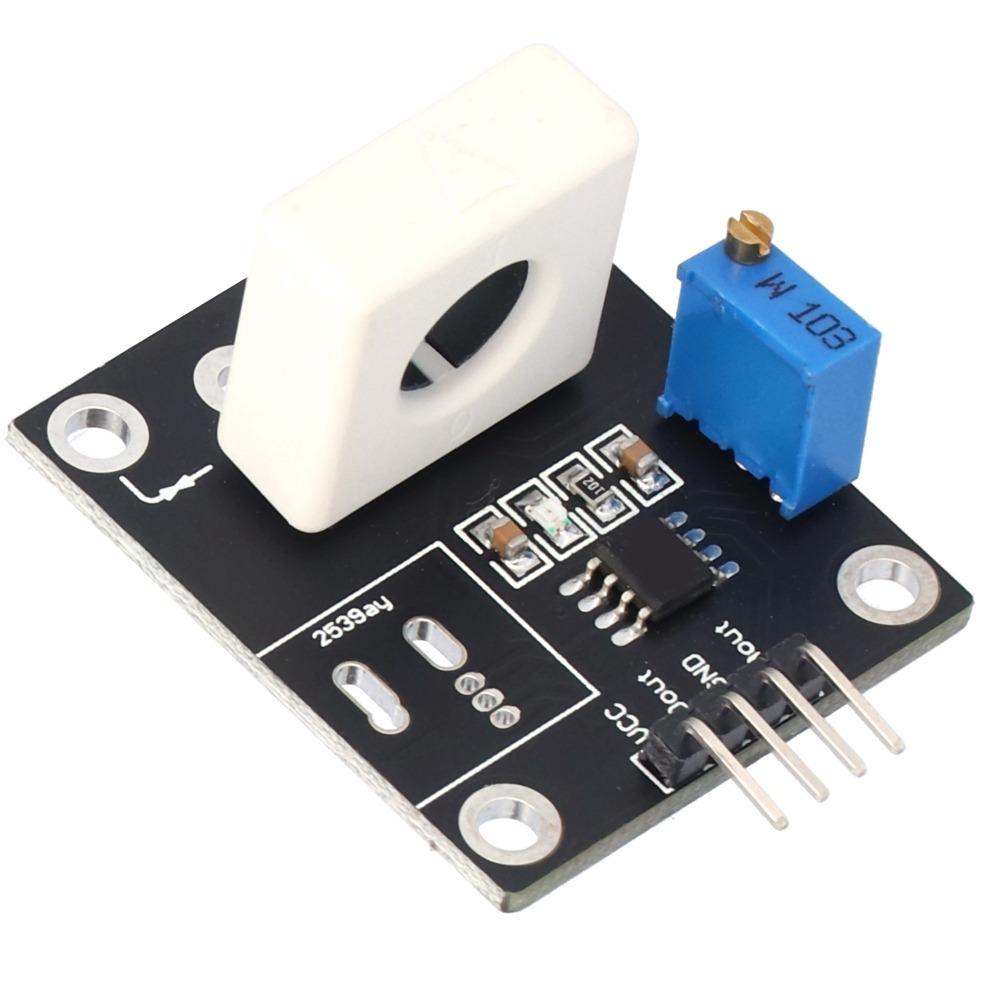

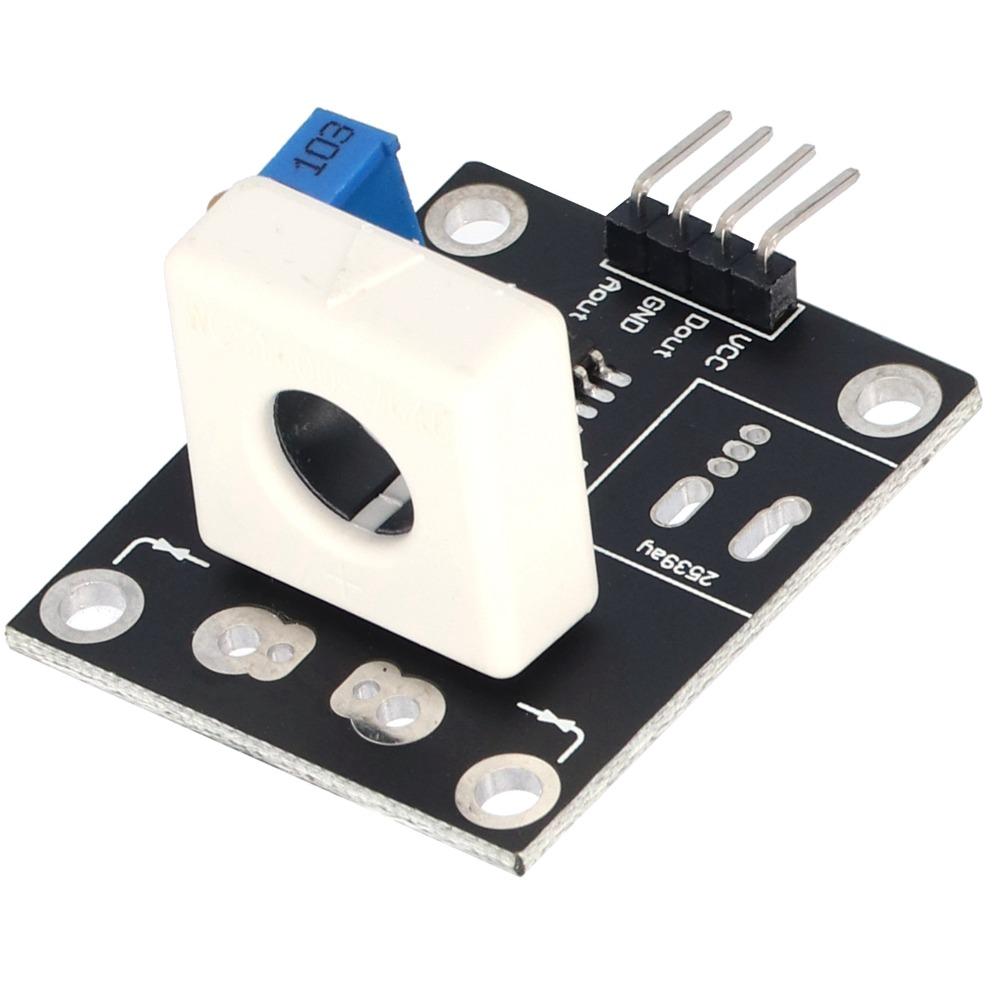

Item Type: Hall Current Sensor
Main Chip: For LM393 operational amplifier, WCS1700
Working Voltage: DC 5V
Current Detection Range: DC: ±70A, AC: 50A
Current Detection Resolution: 32mV/A
Output Signals: analog signals and level signals
Color: Black base plate and white sensor
Size(LxWxH): Approx. 37 x 31 x 16.5mm / 1.5 x 1.2 x 0.6in
Package List:
1 x Hall Current Sensor
