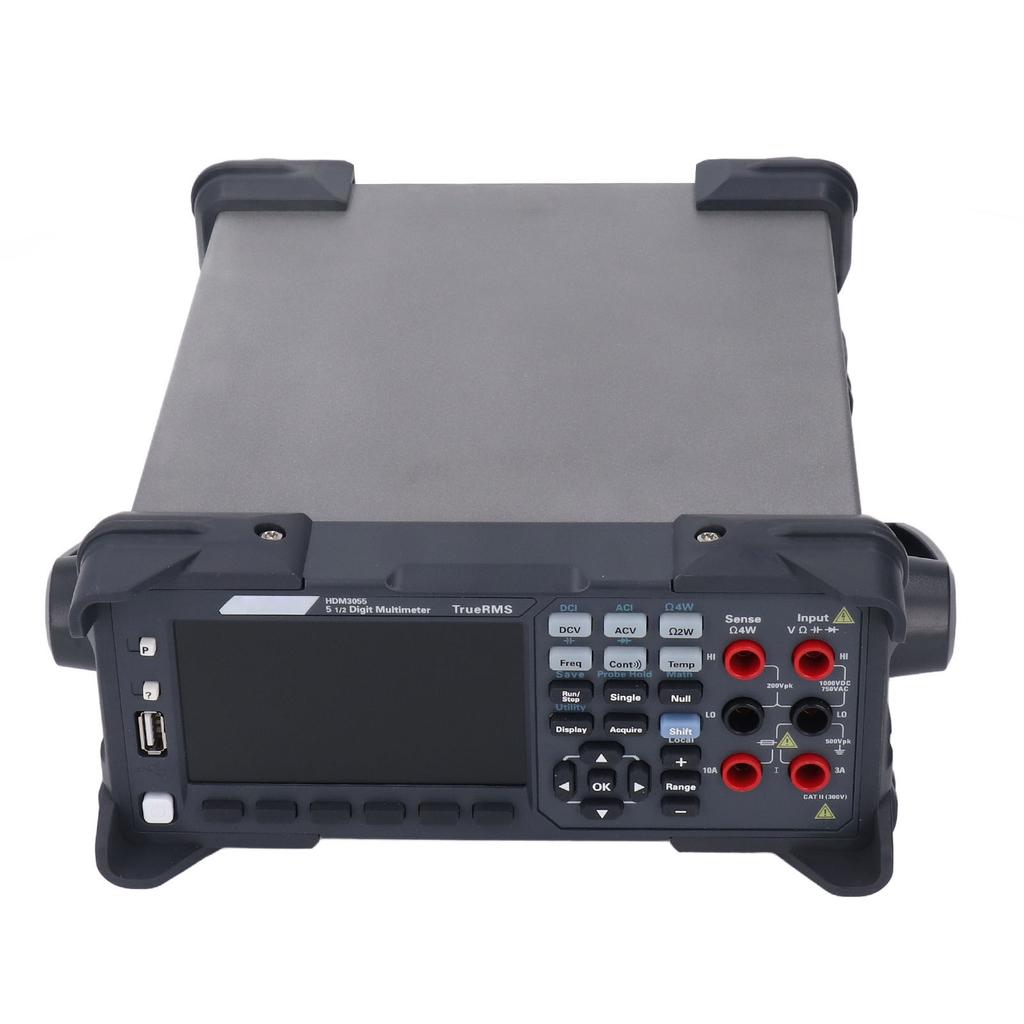

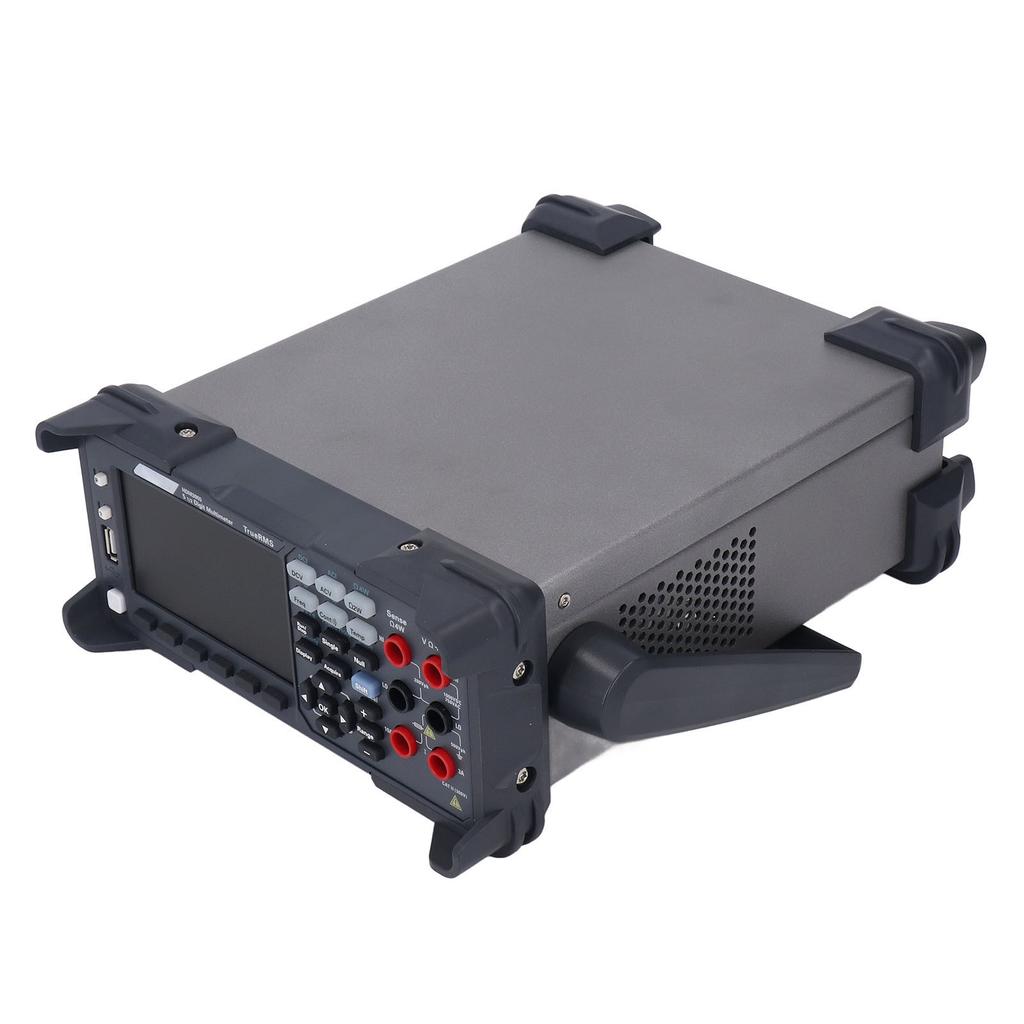

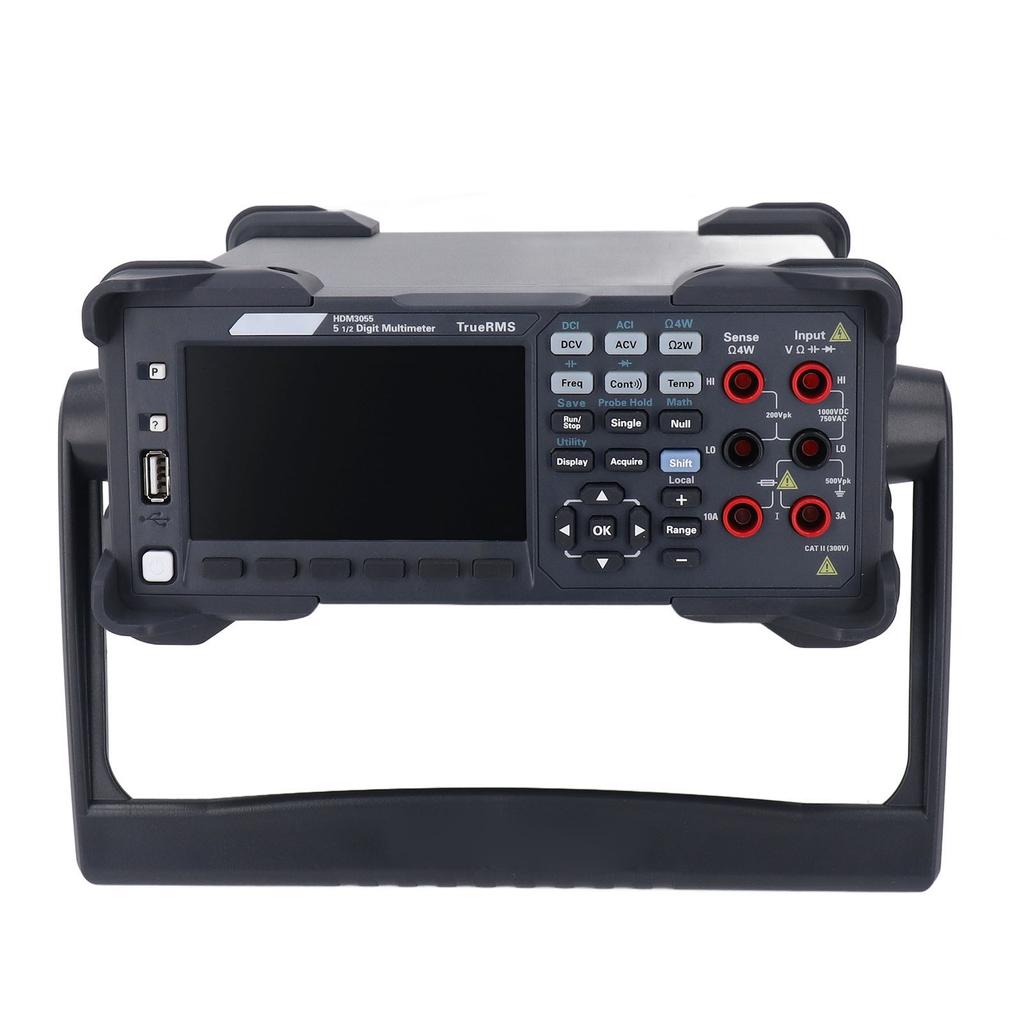

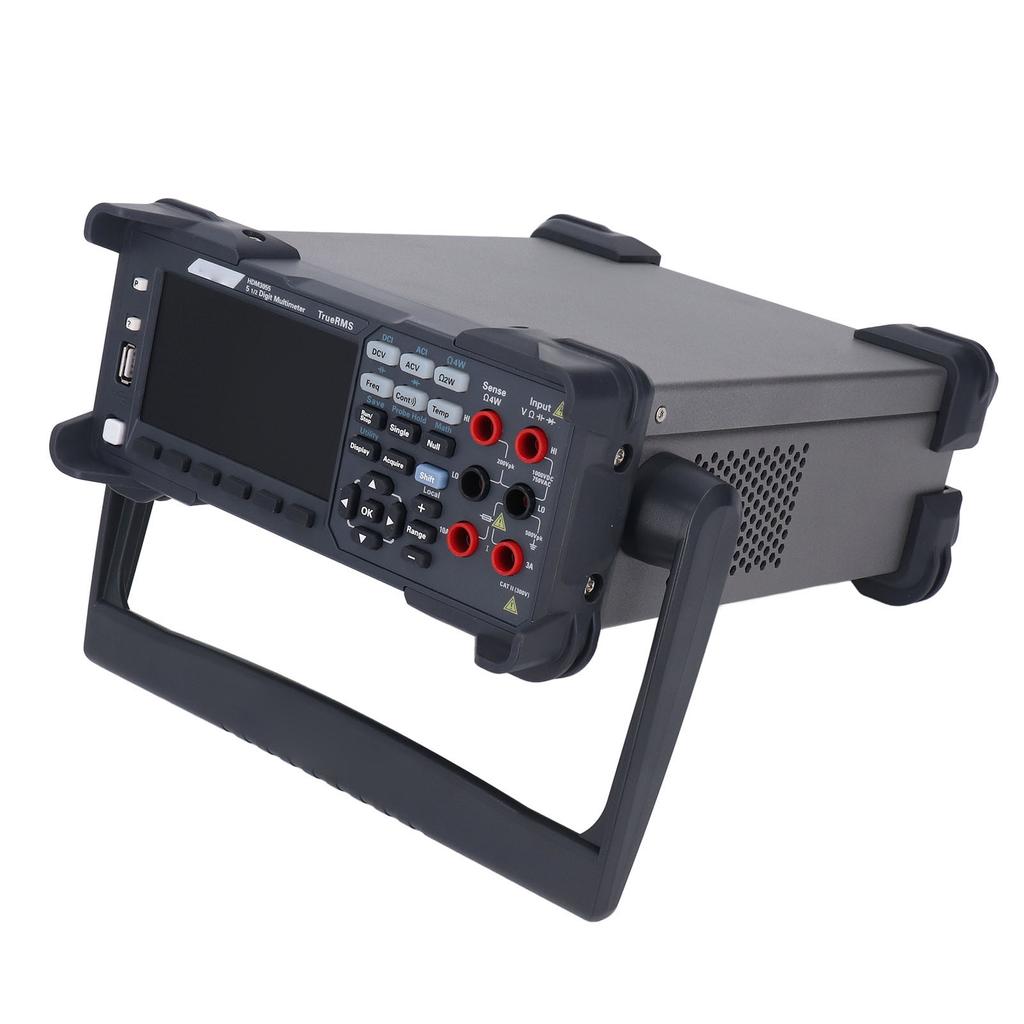

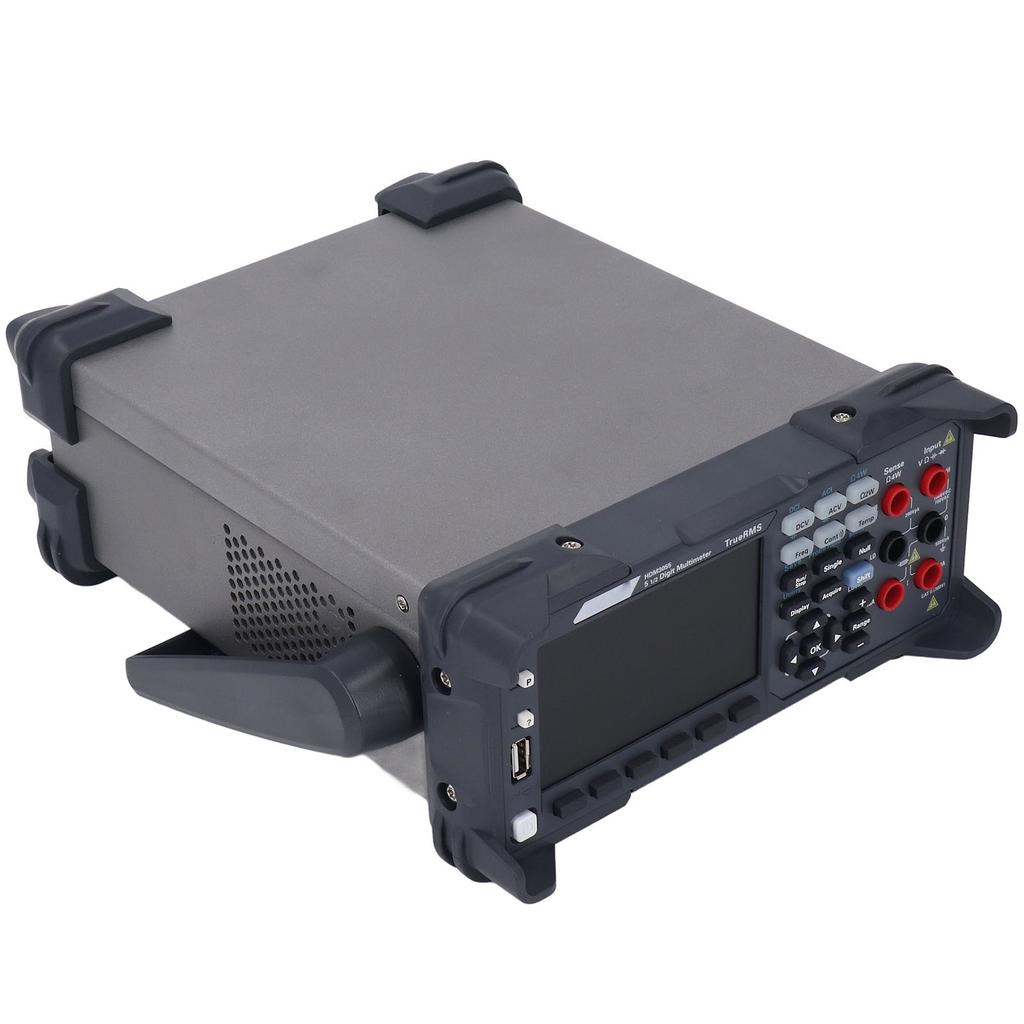

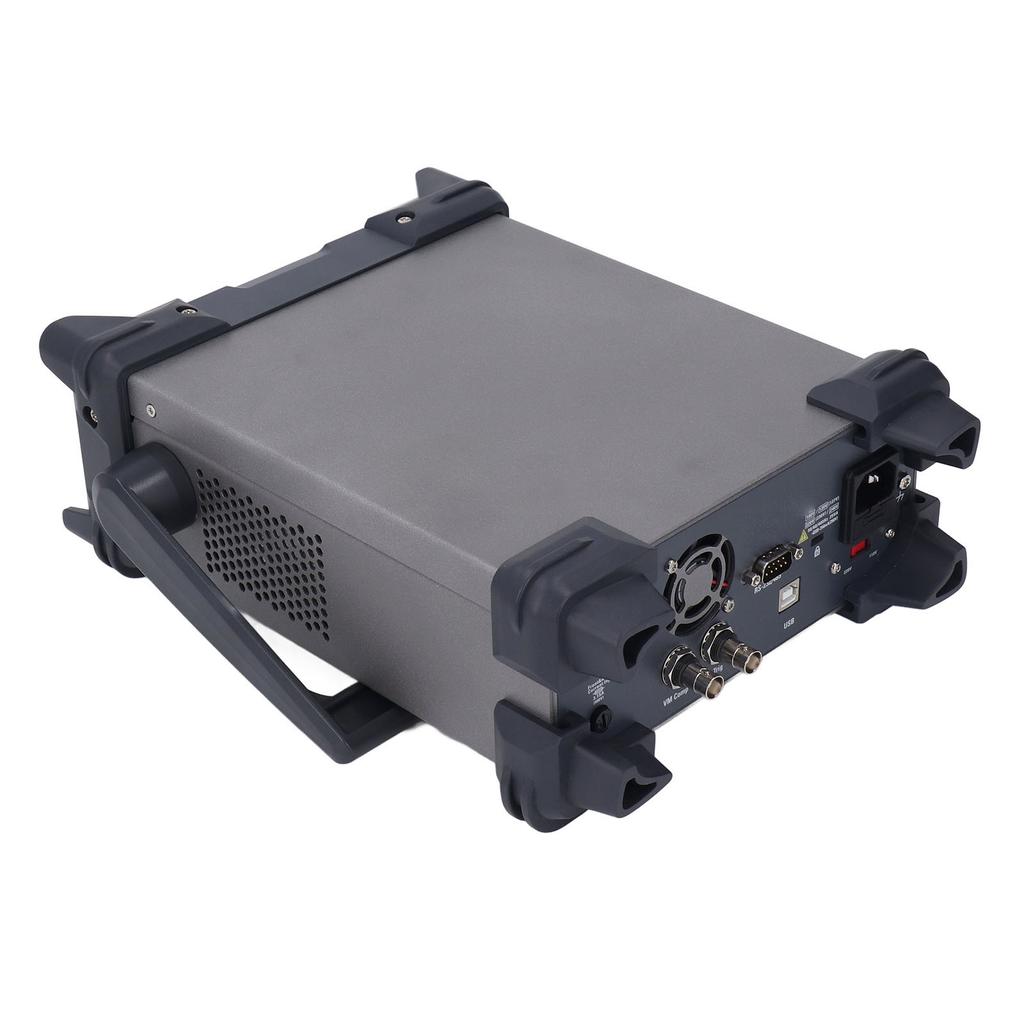

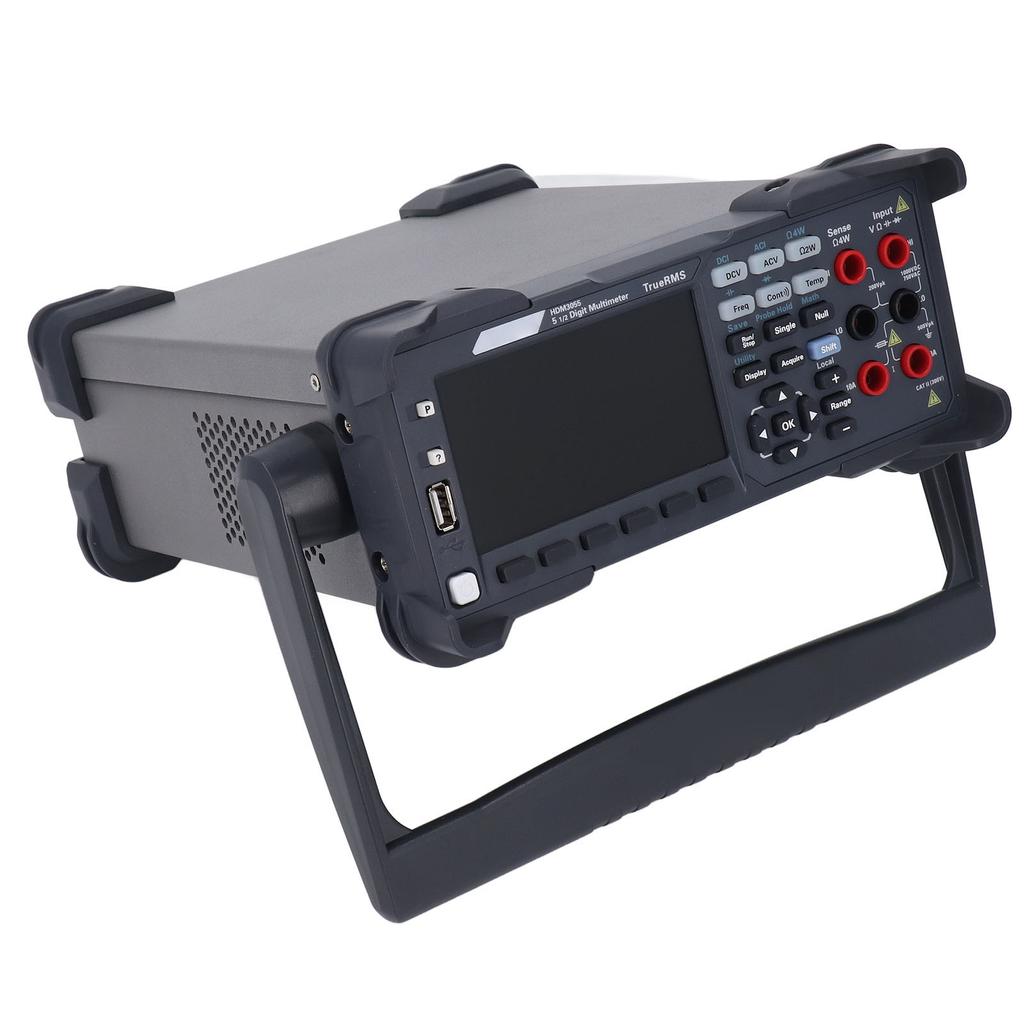

LCD Dual Display Digital Multimeter High Accuracy 5 1 2 Digit Desktop Multimeter Set 100‑240V US Plug








Vlastnosti
Popis

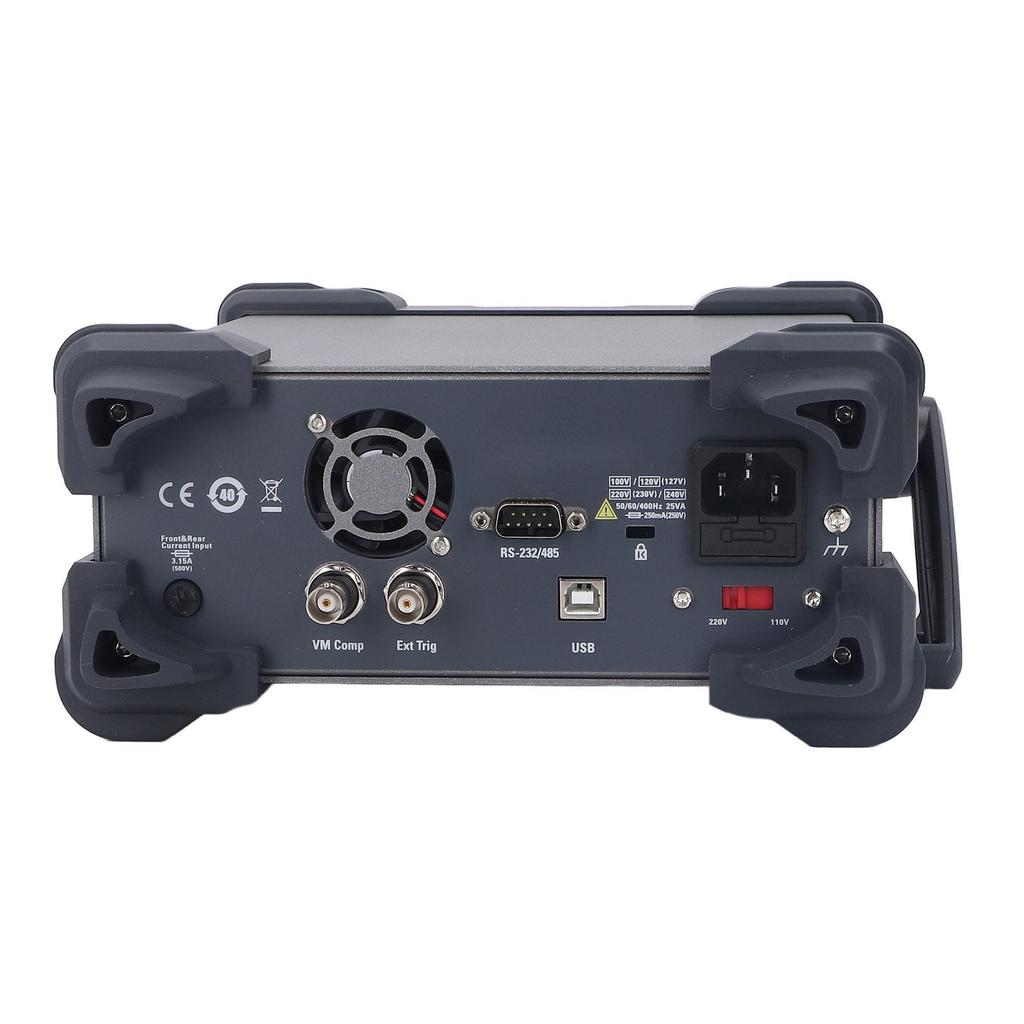

Feature: 1. HIGH PERFORMANCE: High accuracy 5 1 2 digit multimeter with 1Microvolt high resolution and 30kS s high speed sampling frequency for easy catch of transient signals. 2. MULTIPLE FUNCTION: Standard bar graph, histogram, trend graph and data statistics functions, 2 sets of input interfaces before and after, easy to connect. 3. LCD DUAL DISPLAY: This benchtop digital multimeter has dual display measurement function, simultaneous display of voltage and frequency, with clear readings. 4. MEASURABLE DATA: Can measure DC and AC voltage, DC and AC current, 2 wire and 4 wire resistance, capacitance, diode, connectivity, frequency, period and temperature. 5. OTHER PARTS: Equipped with power cord, test s and USB data cable, the digital multimeter has a compact structure, convenient and stable connection. Specification: Item Type: Digital Multimeter Material: Aluminum alloy, ABS Model: HDM3055 Resolution Bits: 5 1 2 DCV Basic Accuracy: 150ppm Maximum Read Rate: 30000 readings per second Memory: 10000 readings Dual Display Measurement Function: Support Statistical Graphs: Histogram, bar graph, trend graph Interface: USB: Support 232 485: Support LAN: Support GPIB: Not support Front Panel Input Terminal: Support Rear Panel Input Terminal: Support Input Voltage: 100V 240V DC Accuracy Specifications: + (percent reading and percent range) Range1 Frequency Test Current or Load Voltage Input Impedance 1 Year Temperature Coefficient celsius 23+ 5 celsius 0 18 celsius DC Voltage 28 55 celsius 100mV 10M Ohm or more than 10G Ohm 0.018+0.008 0.0020 + 0.0008 1V 10M Ohm or more than 10G Ohm 0.015+0.005 0.0015 + 0.0008 10V 10M Ohm 0.015+0.005 0.0020 + 0.0008 100V 10M Ohm 0.015+0.005 0.0020 + 0.0008 1000V 10M Ohm 0.015+0.005 0.0020 + 0.0008 Resistor 2 100 Ohm 1mA 0.050+0.008 0.0060 + 0.0008 1k Ohm 1mA 0.050+0.008 0.0060 + 0.0005 10k Ohm 100microamps 0.050+0.005 0.0060 + 0.0005 100k Ohm 10microamps 0.050+0.005 0.0060 + 0.0005 1M Ohm 5microamps 0.060+0.005 0.0060 + 0.0005 10M Ohm 500nA 0.250+0.005 0.0250 + 0.0005 100M Ohm 500nA 10M Ohm 2.000+0.005 0.3000 + 0.0005 DC Current 100 microamps <0.02 V 0.050+0.015 0.007 + 0.0015 1 mA <0.2 V 0.050+0.007 0.007 + 0.0010 10 mA <0.02 V 0.050+0.015 0.008 + 0.0015 100 mA <0.2 V 0.050+0.007 0.008 + 0.0010 1 A <0.1 V 0.100+0.015 0.012 + 0.0015 3 A <0.3 V 0.250+0.007 0.015 + 0.0010 10 A <0.02 V 0.250+0.007 0.015 + 0.0010 Turn On 3 1k Ohm 1mA 0.100+0.100 0.005 + 0.005 Diode Test 4 1V 1mA 0.05+0.03 0.005 + 0.005 AC Accuracy Specification: + (percent reading and percent range) True RMS AC Voltage 5 6 Test Current or Load Voltage Input Impedance 1 Year Temperature Coefficient celsius 23 celsius + 5 celsius 0 celsius 18 celsius 28 celsius 55 celsius 100mV Range 20Hz 45Hz 1.00+0.10 0.02 + 0.02 45Hz 10kHz 0.20+0.10 0.02 + 0.02 10kHz 30kHz 1.50+0.30 0.05 + 0.02 30kHz 100kHz7 3.00+0.30 0.10 + 0.02 Range: 1V, 10V, 100V and 750V 20Hz 45Hz 1.00+0.108 0.02+0.02 45kHz 10kHz 0.20+0.10 0.02+0.02 10kHz 30kHz 1.50+0.30 0.05+0.02 30kHz 100kHz3 3.00+0.309 0.10+0.02 True RMS AC Current 2 Range: 100uA 10A 20Hz 45Hz 1.50+0.10 0.02+0.02 45Hz 1kHz 0.50+0.10 0.02+0.02 1kHz 10kHz10 2.00+0.20 0.02+0.02 Frequency: Specification + (percent reading + 3 counts) Frequency Range 11: 100mV, 1V, 10V, 100V and 750V 20Hz 300kHz12 0.02+3 0.005 Frequency Resolution Frequency Resolution Range 13: 100mV, 1V, 10V, 100V and 750V 119.999Hz 0.001Hz 1.19999kHz 0.00001kHz 11.9999kHz 0.0001kHz 119.999kHz 0.001kHz 1.00000MHz 0.00001MHz Capacitance 1 Test Current or Probe Type Input Impedance 1 Year Temperature Coefficient celsius 23 celsius + 5 celsius 0 celsius 18 celsius 28 celsius 55 celsius 1.000nF 5microamps 1 + 0.5 0.02 + 0.001 10.00nF 5microamps 1 + 0.5 0.02 + 0.001 100.0nF 10microamps 1 + 0.5 0.02 + 0.001 1.000microfarad 100microamps 1 + 0.5 0.02 + 0.001 10.000microfarad 1mA 1 + 0.5 0.02 + 0.001 100.00microfarad 1mA 1 + 0.5 0.02 + 0.001 Temperature 14
80.0 celsius to 150 celsius 5 k Ohm Thermistor Prob Thermistor Accuracy +0.2 celsius 0.002 celsius

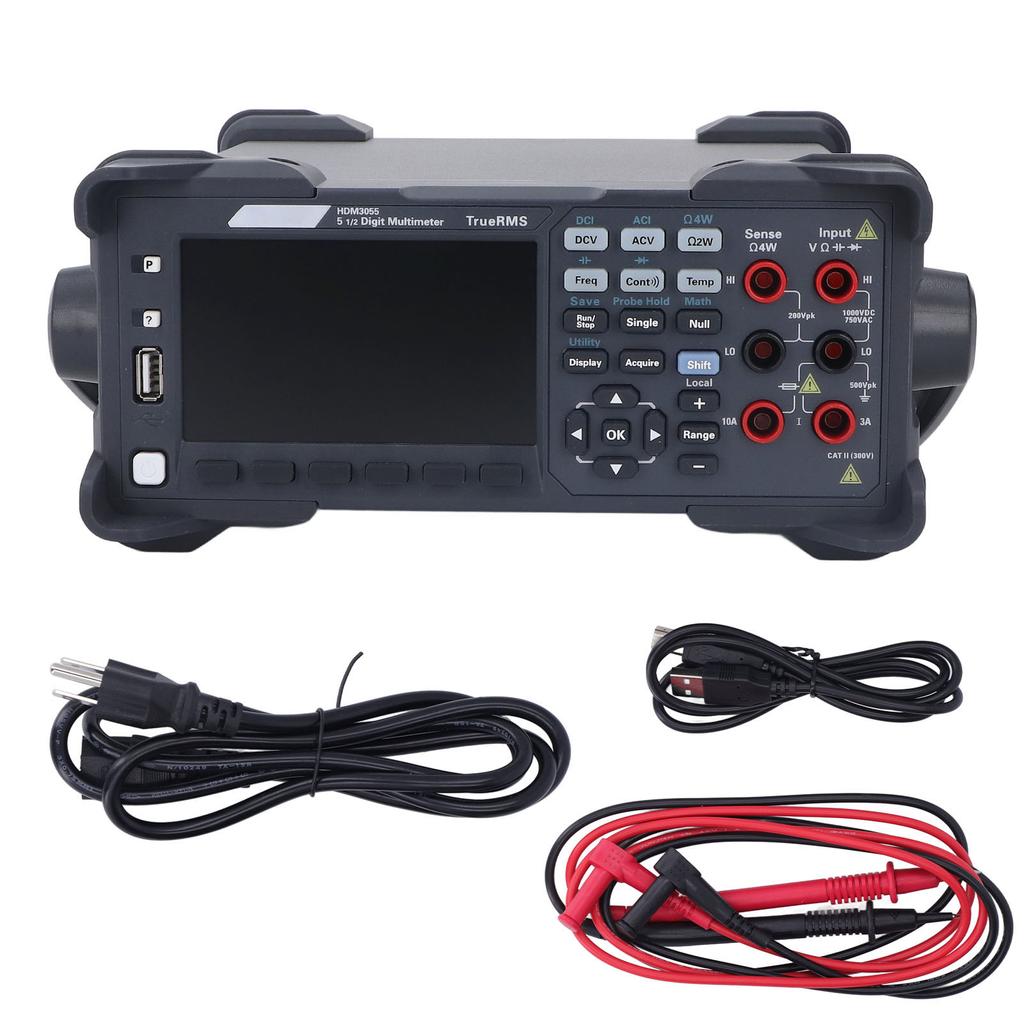

110.0 Fahrenheit to 300.0 Fahrenheit 5 k Ohm Thermistor Prob Thermistor Accuracy +0.2 Fahrenheit 0.0036 Fahrenheit . Package List: 1 x Desktop Multimeter1 x Power Cord2 x Table Pen1 x USB Data Cable1 x User Manual Note: 1. For DC: After 60 minutes of warm up, the integration time period is set to 10 or 100NPLC, and auto zero is enabled. For AC: Specifications are valid after 60 minutes warm up, slow AC filtering and sine wave.2. All ranges have 20percent overrange except 1000DCV, 750ACV, 10ADC, 3AAC, 10AAC and diode tests.3. Relative to calibration standards.4. Outside the range of TCAL5 celsius , a coefficient is added for every 1 celsius .5. Specifications are valid when the sine wave input is >1.5percent of the range and >1mVms. The 750ACV range is limited to 8x107V‑Hz.6. Low frequency: 3Hz, 20Hz, 200Hz. Frequencies beyond the filter setting are specified without additional error.7. Specifications are applicable to 4 wire or 2 wire (operational bias return to zero) resistance measurement. Without the math null, 2 wire resistance add 0.2 Ohm of additional error.8.10A range is only available on the front connector. Add 2mA base current value per amplifier, or input current >5ArmS.9. Specifications are valid when the sine wave input is >1.5percent of the range and >10microampsAC.10. Specifications apply to voltage measured at the input. 1mA test current is typical. Changes in the current will cause the voltage drop across the diode to change.11. The selected probe will limit the actual measurement range and error. Including all measurement and TS‑90 temperature conversion errors. The PT100Ro can be set to 100 Ohm + 5 Ohm to eliminate the original probe error.12. Specifications are valid after a 60 minute warm up with sine wave input unless otherwise stated. Specifications apply to 1s strobe time (7 bits).13. Applicable to sine wave and square wave input more than 100mV. For 10mV to 100mV input, multiply reading error percent by 10.14. The magnitude of the star range is 10percent to 120percent , which is lower than 750ACV.15. Square wave input is specified as 10Hz‑300kHz.
