Feature:
1. Special Equipment: The analyzer is a special equipment for thermal field detection, which can provide a large amount of data for thermal experiments and thermal simulations during the design and development phase of PCBA products.
2. Circuit Board Repair: The analyzer is a special equipment for circuit board repair. When the product fails, the use of thermal analyzer can quickly find the location of the leakage or short circuit device, locate the fault point, and achieve the purpose of rapid maintenance.
3. Detecting Components: The analyzer can detect components, such as power modules and other devices. In applications such as detecting overheating protection capabilities, a large amount of temperature detection data can be obtained through the thermal analyzer.
4. Basic Specifications: An analyzer with 52,000 points of effective temperature measurement (260x200), a full frame infrared detection area increased by 3 times, a 4mm adjustable focus lens, fast focusing speed, and more stable image quality.
5. Regional Temperature Curve Comparison: Through regional temperature curve comparison, the unqualified device is detected, and the difference is compared by the highest temperature, lowest temperature position and temperature value in the delineated area.
6. 3D 2D Thermal Field: 3D and 2D thermal field can be switched by shortcut keys, space bar, the temperature exceeds the set temperature, the image flashes red frame and the alarm sounds The sound can use the function to track the highest temperature point in the screen.
7. Simple Structure: The structure is simple and easy to adjust, the body is small and does not occupy space, the lens can be adjusted in all directions at 360 degrees , and the direction of the lens can be quickly adjusted according to the needs.
8. Silicone Electric Bottom Plate: High temperature anti static bottom plate, made of silicone material, to ensure the safety of the use process, standard 1 4in thread, bracket standard can be disassembled and expanded at will, and can be adapted to different tripods and gimbals.
Specification:

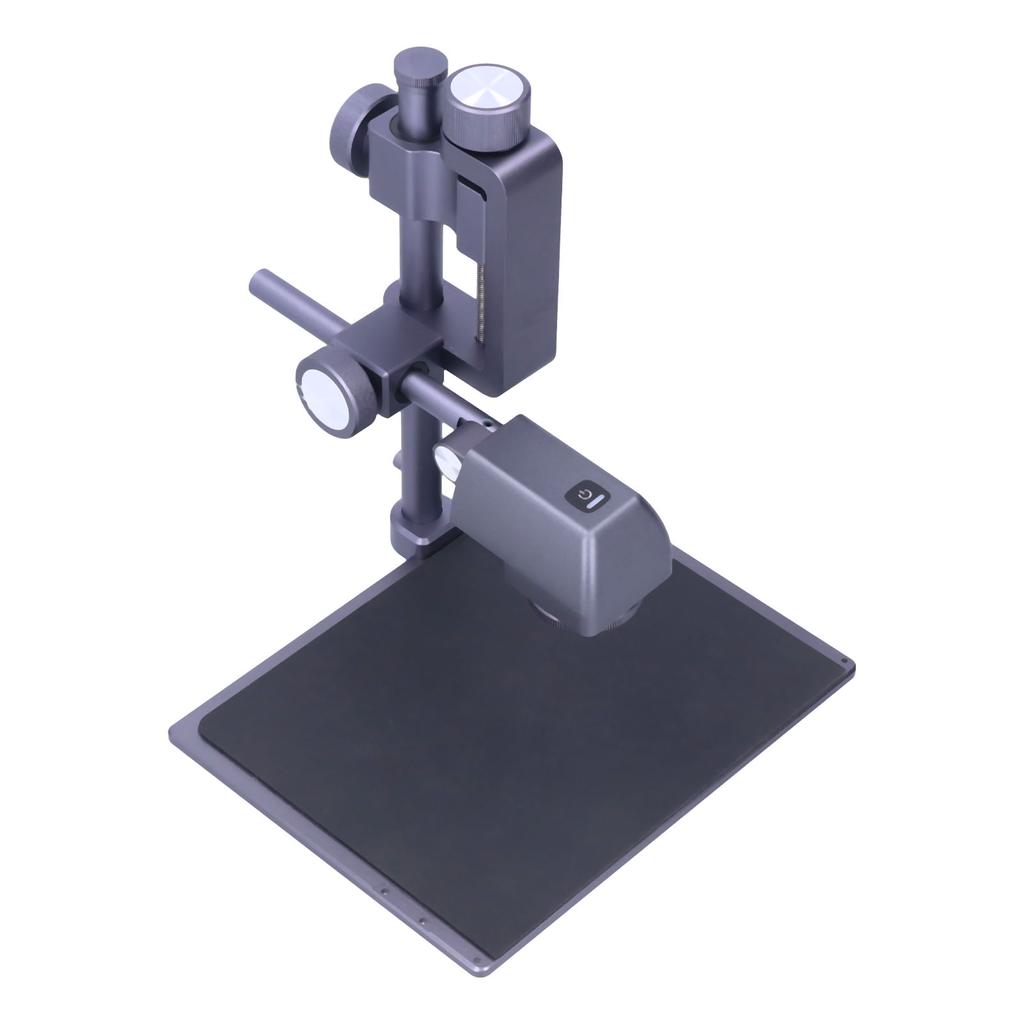

Item Type: Benchtop Thermal Camera
Model: CA 10
Material: Aluminum Alloy
Purpose: PCB Experimental Testing and Maintenance
Lens Parameters:
Thermal Imaging Resolution: 260 x 200
Frame Rate: 25Hz
NETD: 70mK025 celsius
Field Of View: Horizontal 34.4, Vertical 25.84
Lens: 4mm Adjustable Focus Lens
Temperature Measurement Range: Proofreading Temperature 10 120 celsius (Can be extended to 550 celsius , high temperature needs to be customized and modified, and additional costs will be incurred)
Temperature Measurement Accuracy: + 5 celsius or + 5percent
Interface Parameters:
Power Supply: DC 5V (USB Type C)
Power Switch: Press for 1 Second to Turn on, 3 Seconds to Turn off
Connection Method: USB Connected to the Computer for Use
Working Temperature: Best Working Temperature 10 celsius 50 celsius
Working Humidity: <95percent
System Requirements: For Win10 (Recommended) for Win7
Computer Requirements: I3 or Above Processor, 4G or Above Memory
Update Requirements: Can be Connected to the Internet for Manual or Automatic Update
Adjustment Knobs: 4 Adjustment Knobs, Fast Adjustment of the up and down Distance, Fine Adjustment of the Lens, Adjustment of the Front and Rear of the Lens, and Adjustment of the Lens Tilt.
Package List:

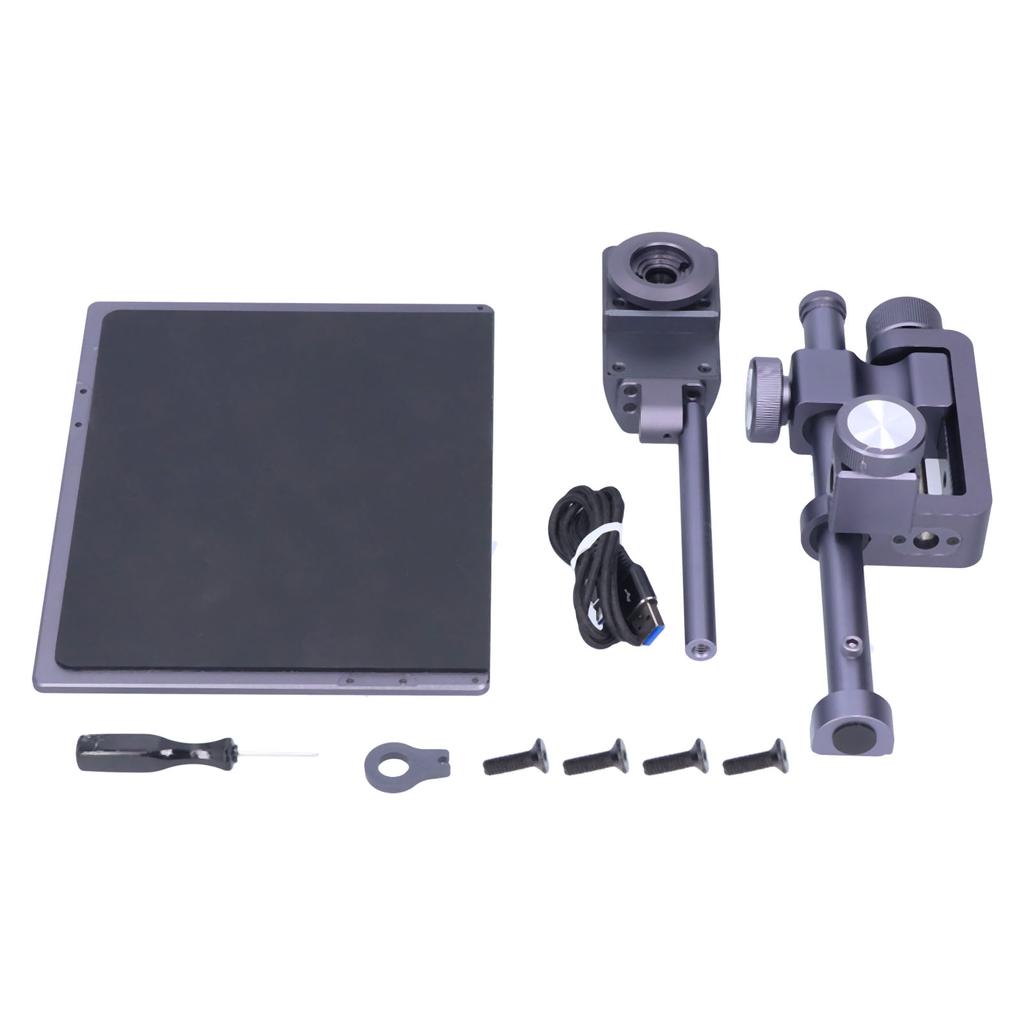

1 x Lens1 x Bracket1 x Base1 x Card Board1 x USB Cable4 x Screw1 x Screwdriver1 x User Manual
Note:
1. When testing the circuit board, the smooth appearance of some of the chips will reflect light, which will interfere with circuit diagnosis and cause false hotspots; therefore, which is necessary to tilt or tilt the lens at an angle from time to time to check whether the hotspots are the same after eliminating reflections.2. The circuit board detection and fault query should be carried out in the power on state, not in the power off state3. In a dry environment, ground the rack or backplane to prevent static electricity from accumulating4. The software is recommended to use for Windows 10 system first, and if possible, you can try to use the corresponding operating system5. For the adjustable focus lens, do not rotate forcefully when screwed to the top, so as not to damage the lens
