10kHz To 30MHz Antenna Solution Transmitter Portable Antenna HF VHF Antenna 10KHz-30MHz Frequency Range PCB Size 155x27mm

Name: 10kHz To 30MHz Antenna Solution Transmitter Portable Antenna HF VHF Antenna 10KHz-30MHz Frequency Range PCB Size 155x27mm
SKU: 6958a0aa75f3d701680655e5
Price: 1203 CZK
Availability: InStock

Aktuální cena

Cena 1 203 Kč

včetně DPH

VelikostChina Mainland

Doručení do ČR 🇨🇿

6–13 pracovních dnů · 85 Kč

Vaše platby a soukromí jsou v bezpečí

Vrácení peněz při nedoručení

Záruka kvality

Bezpečná logistika

Ochrana soukromí

Bezpečnost a soulad s předpisy

Výrobce

Popis

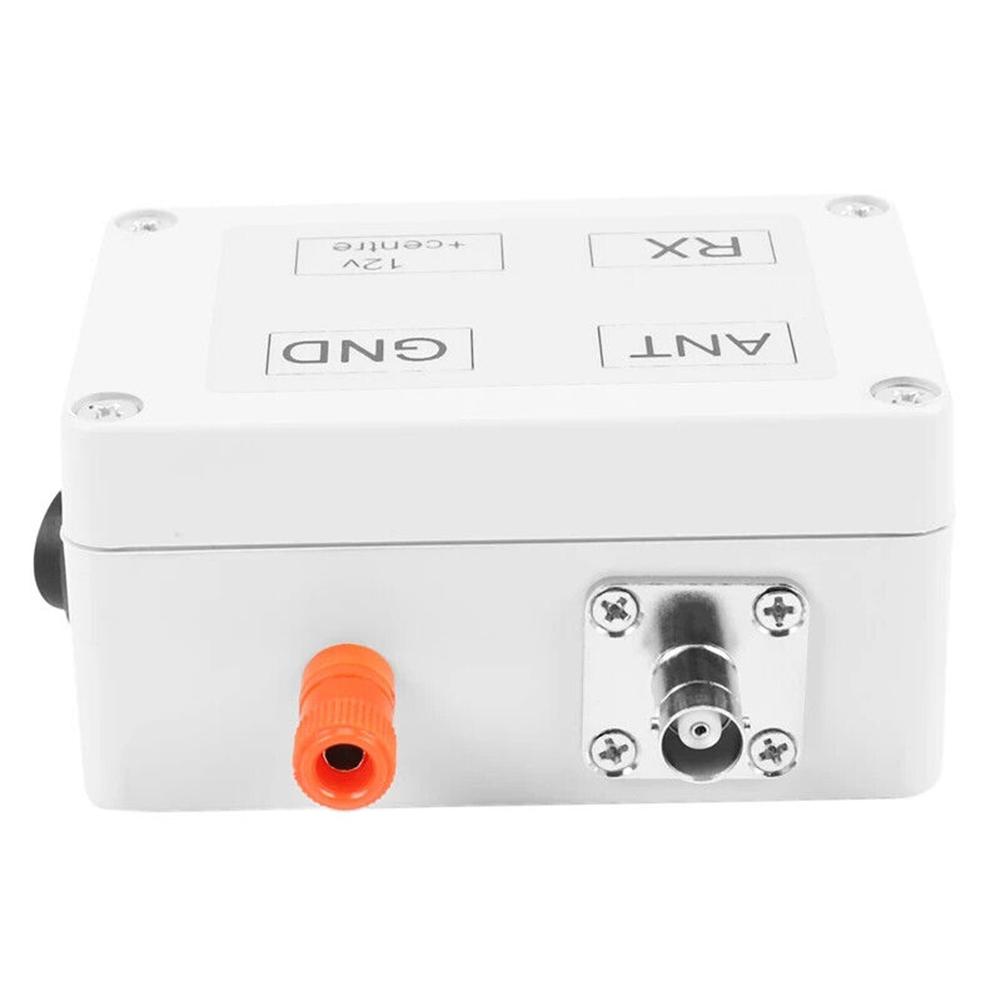

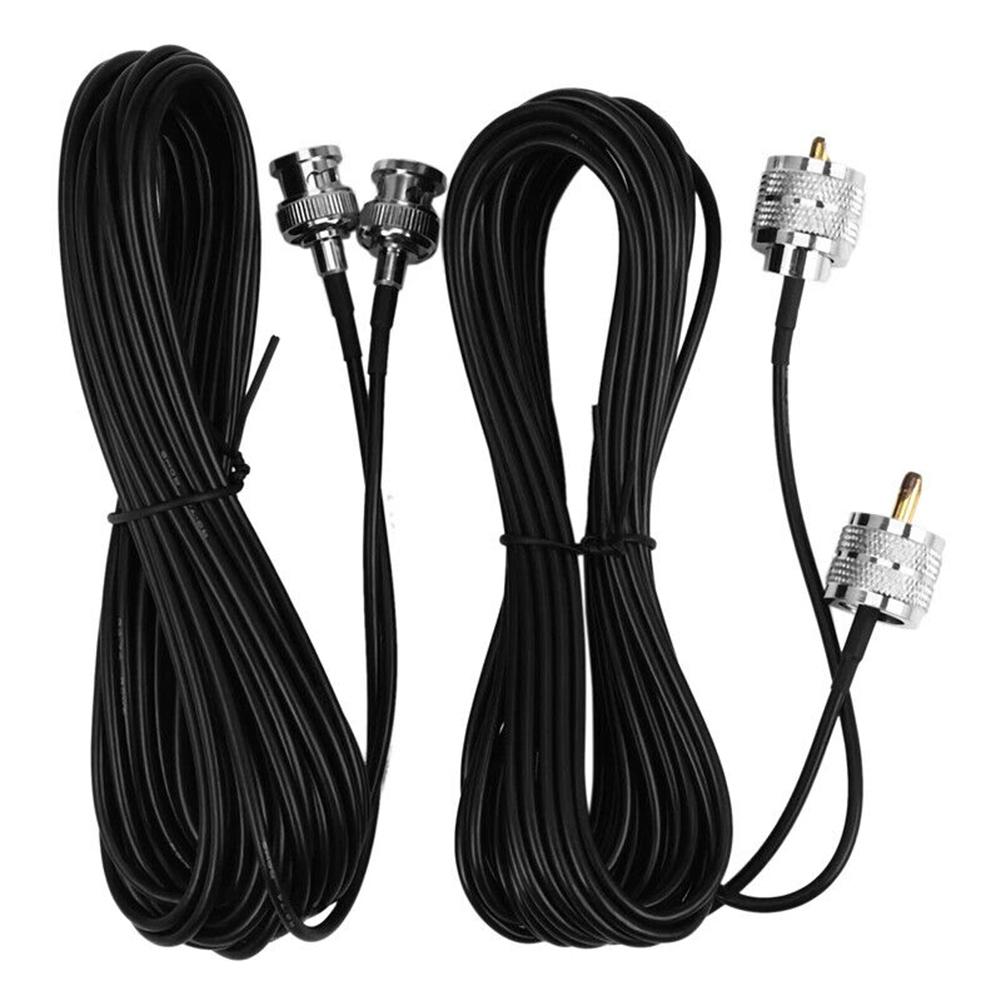

Features: * 10KHz-30MHz Mini Whip Active Antenna Mini Whip HF LF HF VHF for RX Active Antenna with Portable Cable * Latest version, using modern BF998 and BCX54 semiconductors. * True Class A circuit, clear reception without IMD. * Coaxial connection. * Wideband R/C coupling to receiver, no transformer. * Comes with 6m connecting cable (with M-type connector) and 8m connecting cable (with BNC connector).

Specifications: Part Name: Whip Active Antenna Material: Metal, ABS Color: As shown Frequency Range: 10 kHz - 30 MHz Power: 12 - 15 V, 150 mA Second Order Output Intercept: > + 70 dBm Third Order Output Intercept: > + 30 dBm Maximum Output Power: Over - 15 dBm PCB Size: Length (mm): 155 x 27 Connector: BNC Feedline: 50 - 100 Ohm Coaxial Cable, up to 100 meters Note: The performance of every antenna depends on its installation situation. Any active antenna will not work well indoors! It should be installed outdoors, and as high as possible. Put this MiniWhip antenna PCB inside a suitable enclosure of your choice, and then install it outdoors. For the enclosure, you may be able to use a section of PVC pipe, which is available in various diameters at your local store. Do not use a metal enclosure! It will not work there! For Max. Sensitivity: (below) This antenna should be placed as high as possible and away from metal conductors. The ground plane of the PCB must not be below the top of the mast. (The connection to the antenna for surface must be above the top of the mast). For best signal to noise ratio: (below) Mount the Miniwhip to a well grounded mast. Connect the "GND" of the Miniwhip PCB to this mast. Place HI-Ui ferrite cores (Ui between 5000 and 10.000) at the beginning and end of all cables to block cable noise currents.

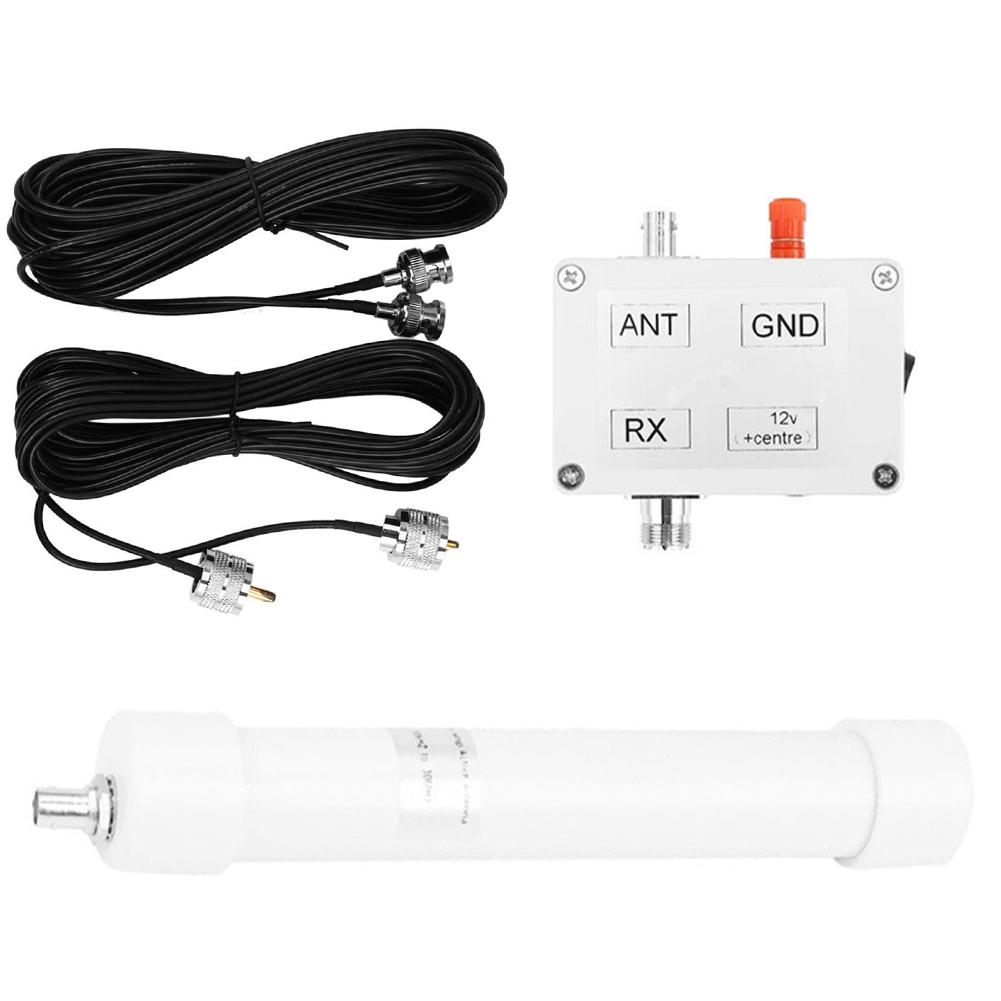

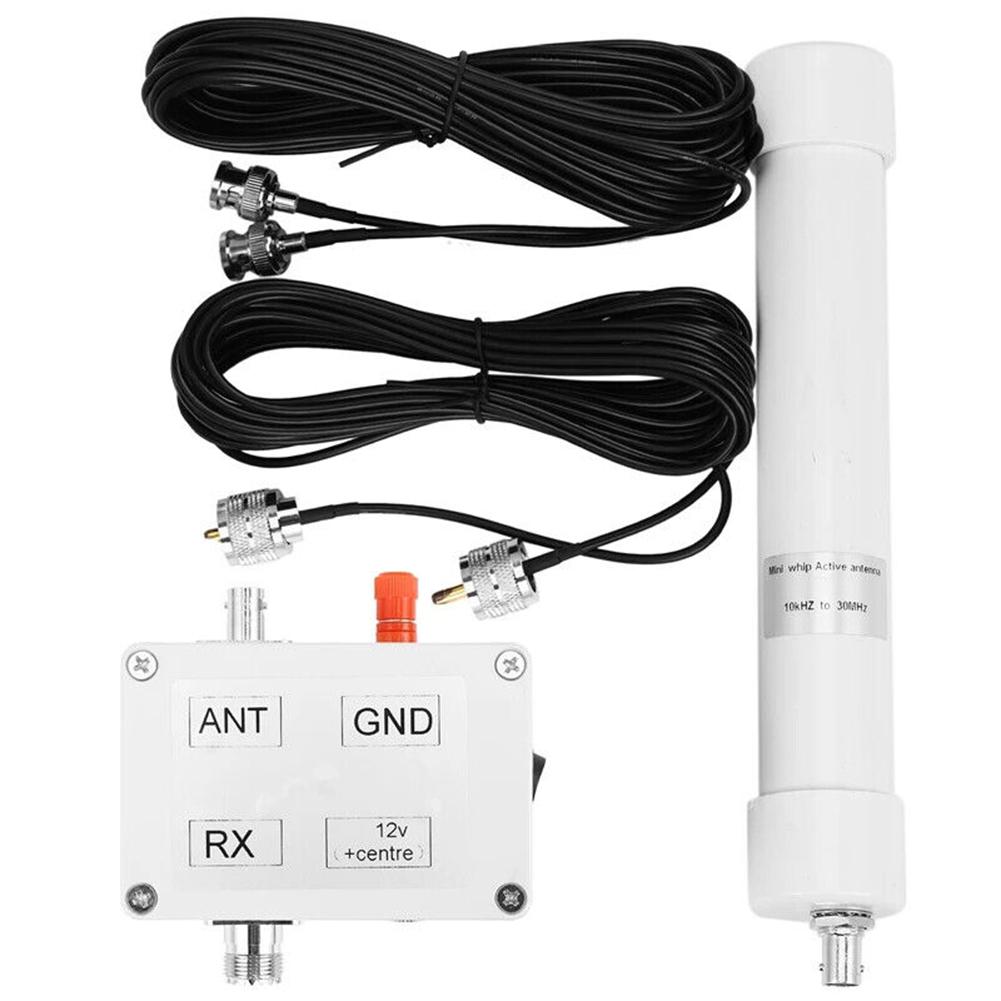

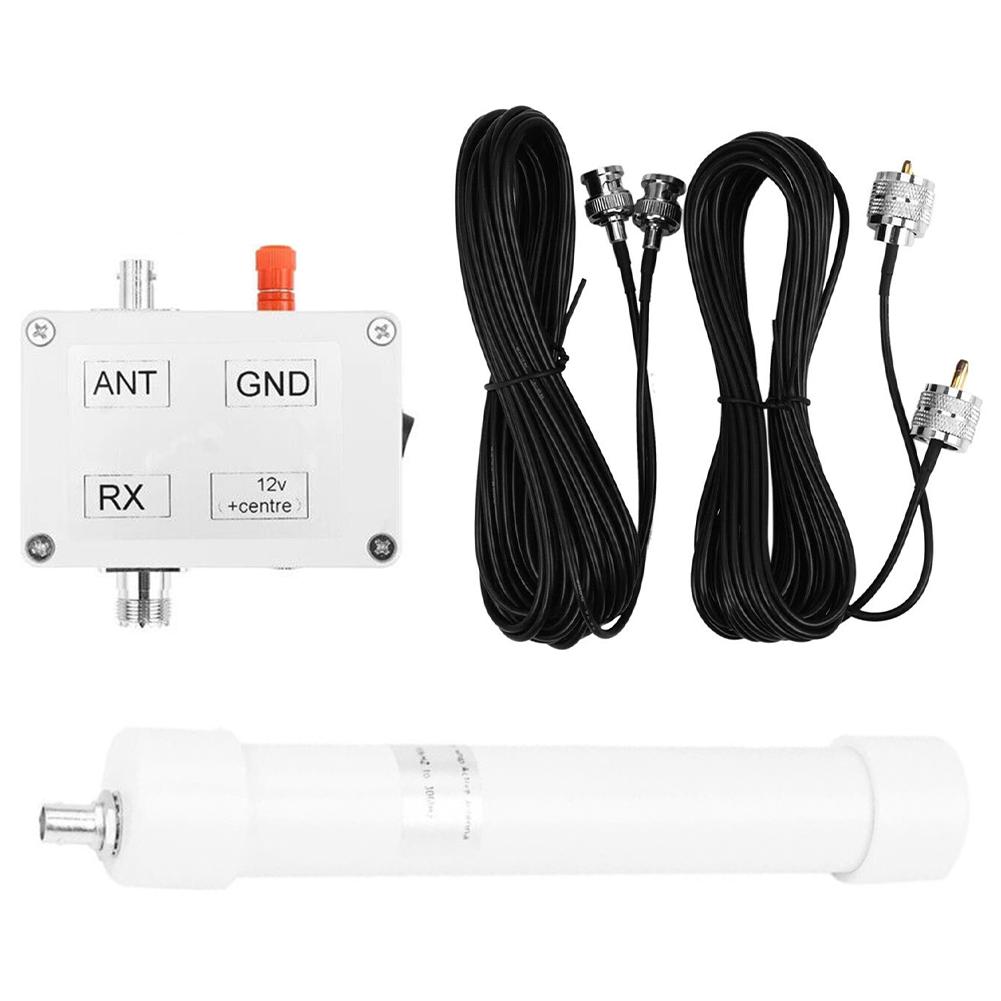

Package Contents: 1 x Mini Whip Active Antenna Kit

Note: 1.The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness. 2.Please allow slight manual measurement deviation for the data.
