Feature:
1. Controller Housing: The controller housing is made of high quality metal with a grooved design, which protects the internal circuits from thermal overload due to good heat dissipation.
2. Brushless Gear Hub Motor: The brushless gear hub motor is made of aluminum alloy rim and treated with fine craftsmanship, which effectively enhances the edge of the rim, looks light and high end, has strong bearing capacity, and is far more comfortable than other types of motors, realizes noise free operation, and allows you to fully enjoy fun to ride.
3. LCD3 Display Meter Function: The LCD3 display meter has a variety of functions that make it easier for you to view the data on the panel. While cycling, the product will display many useful data on your bike, such as battery level display, backlight display, headlight display, brake display, ambient temperature, motor temperature, one way time, etc.
4. Wide Range of Application: 48V 500W front drive motor kit is suitable for bicycle lithium battery modification, DIY electric bicycle, electric vehicle, electric scooter, folding bike, etc. Easy to maintain, electric bicycle, moped, mountain bike conversion motor, high efficiency, greatly improves riding fun, suitable for cyclists who like a challenge.

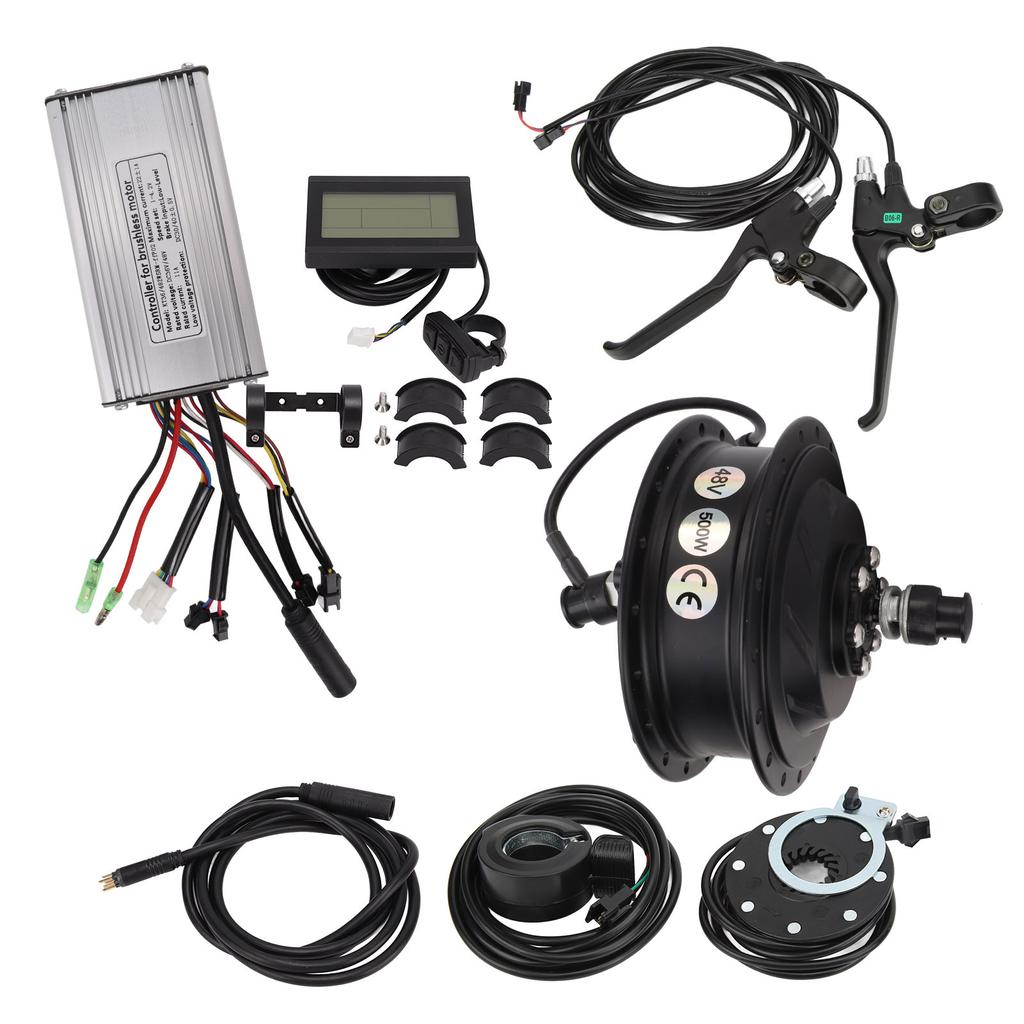

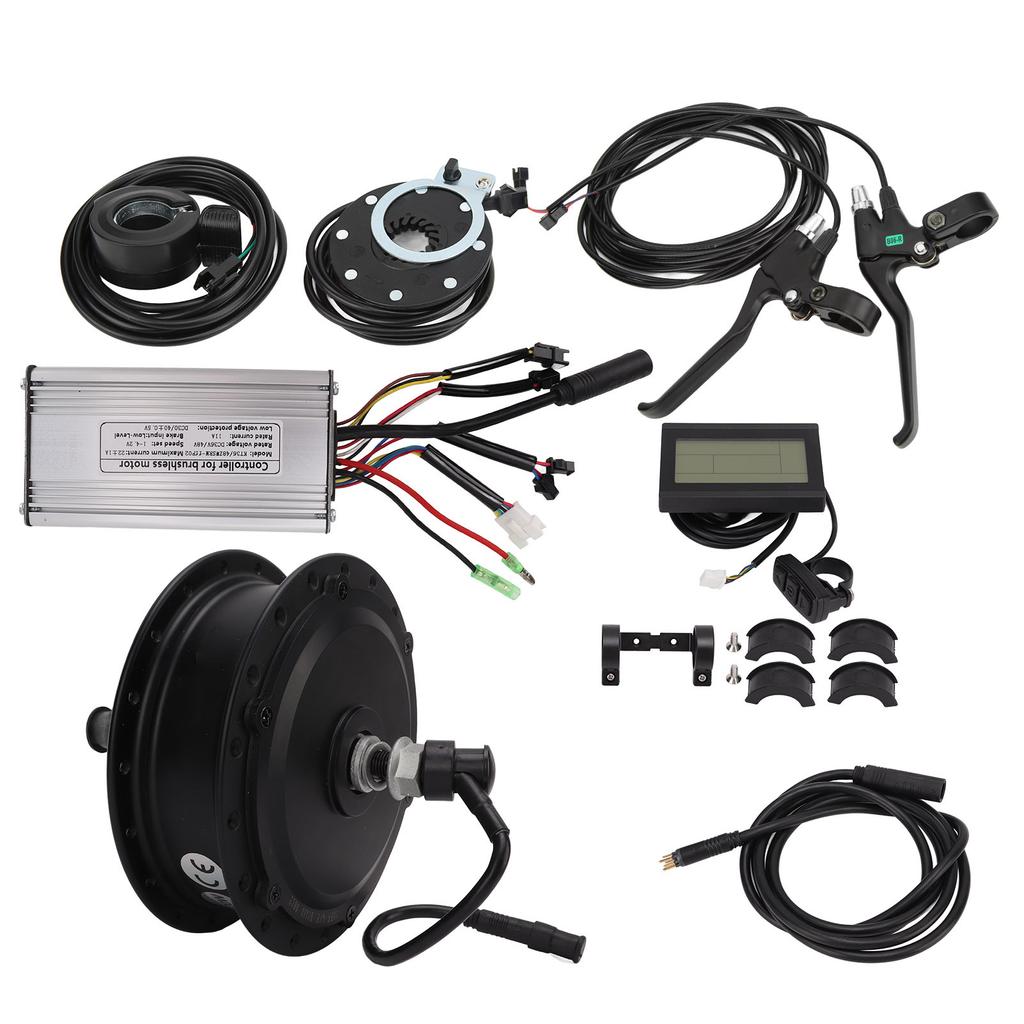

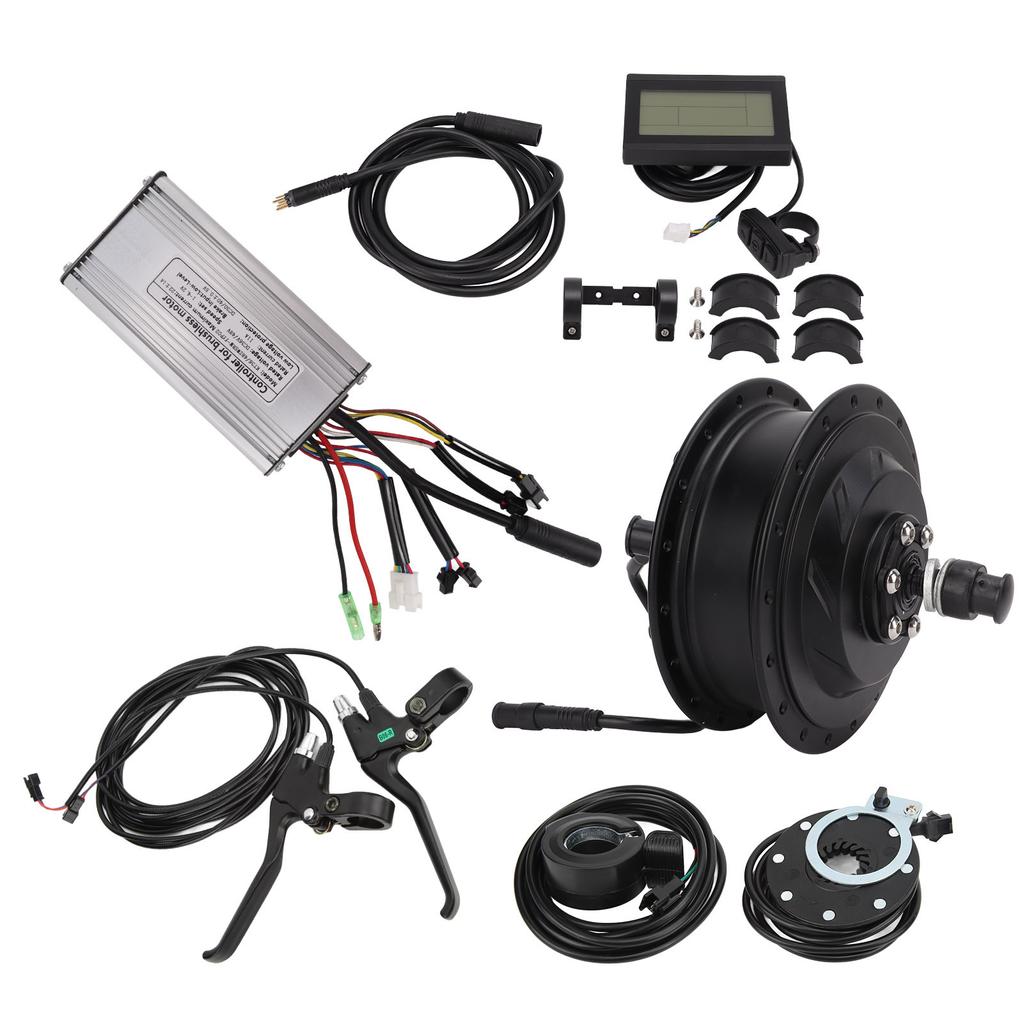

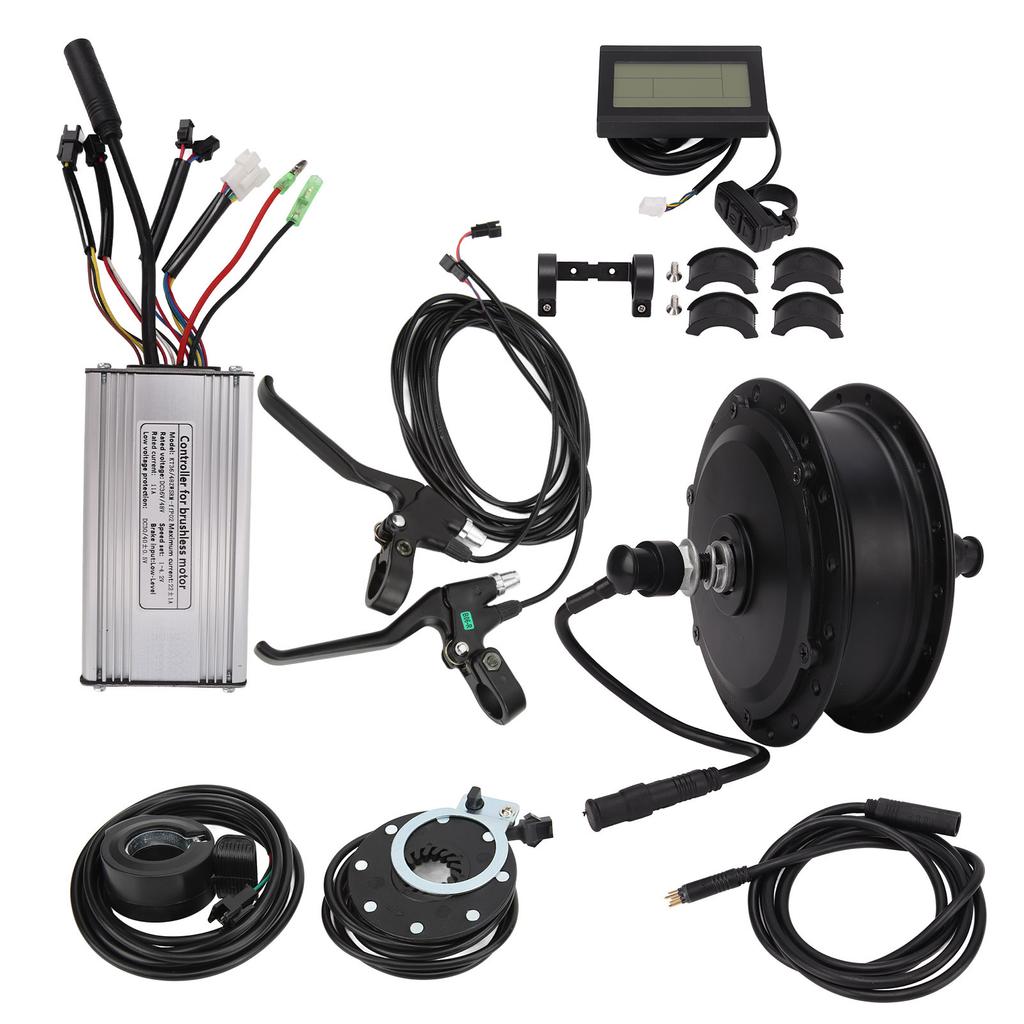

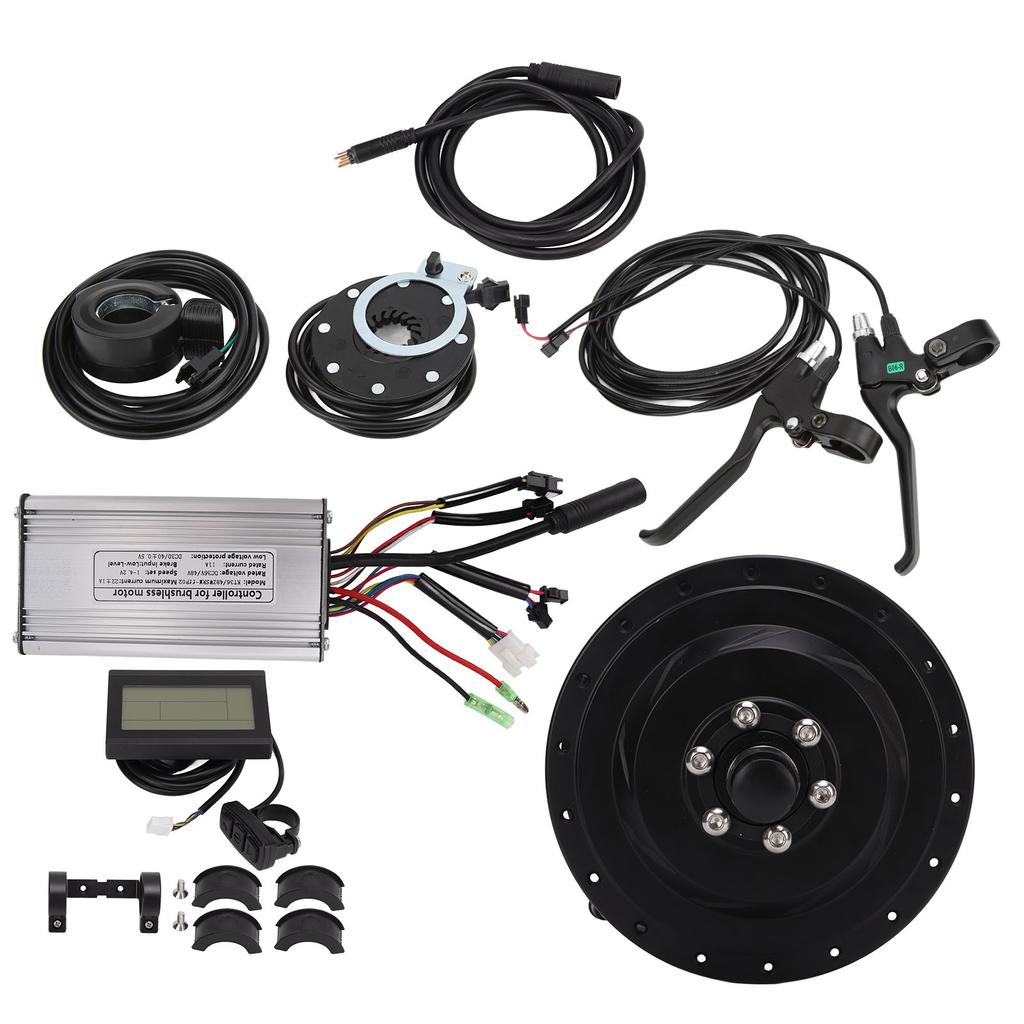

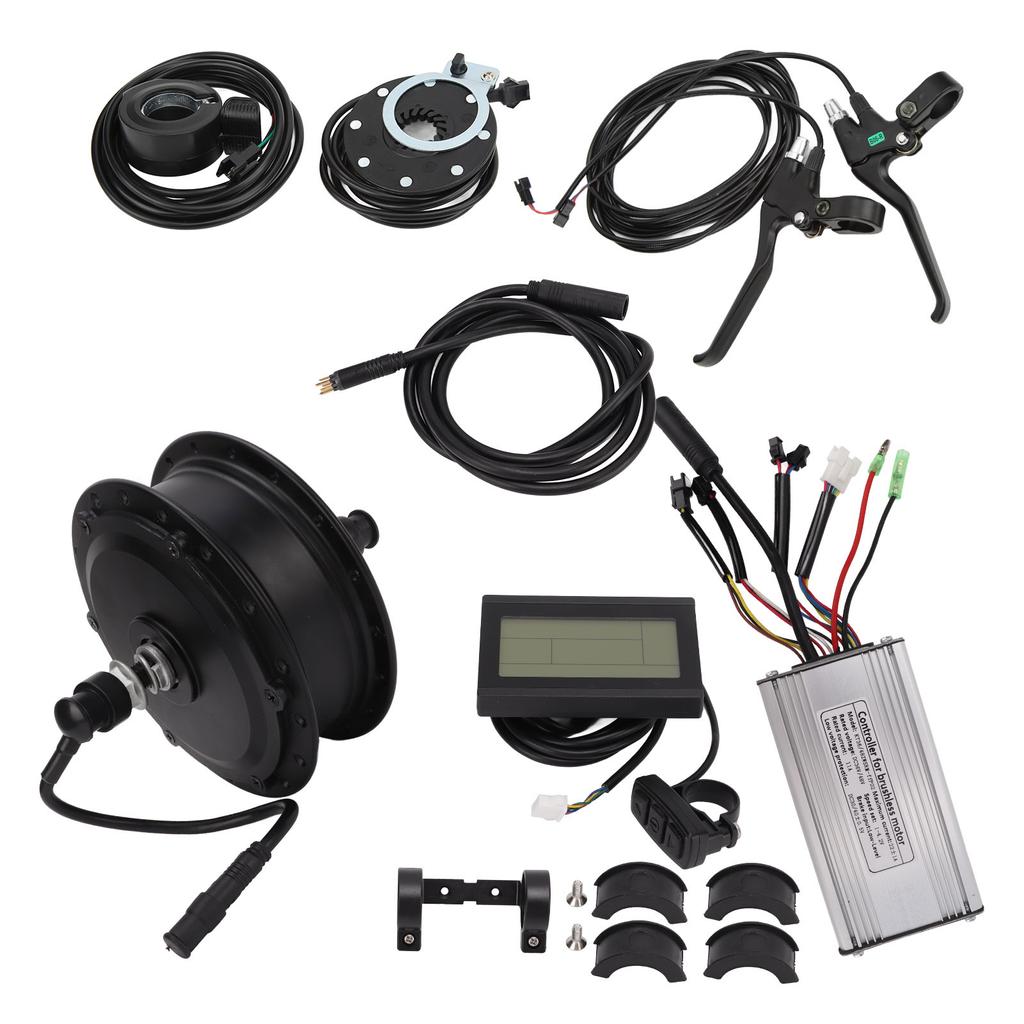

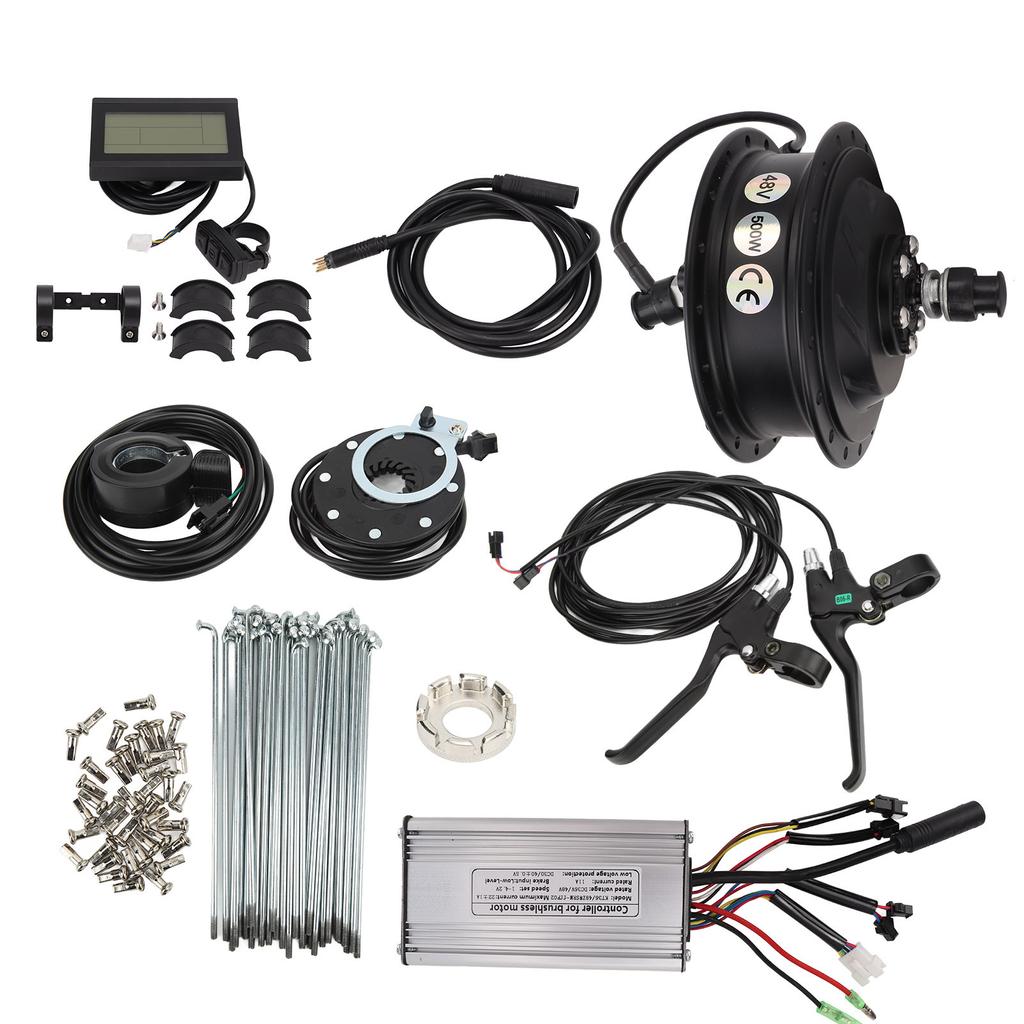

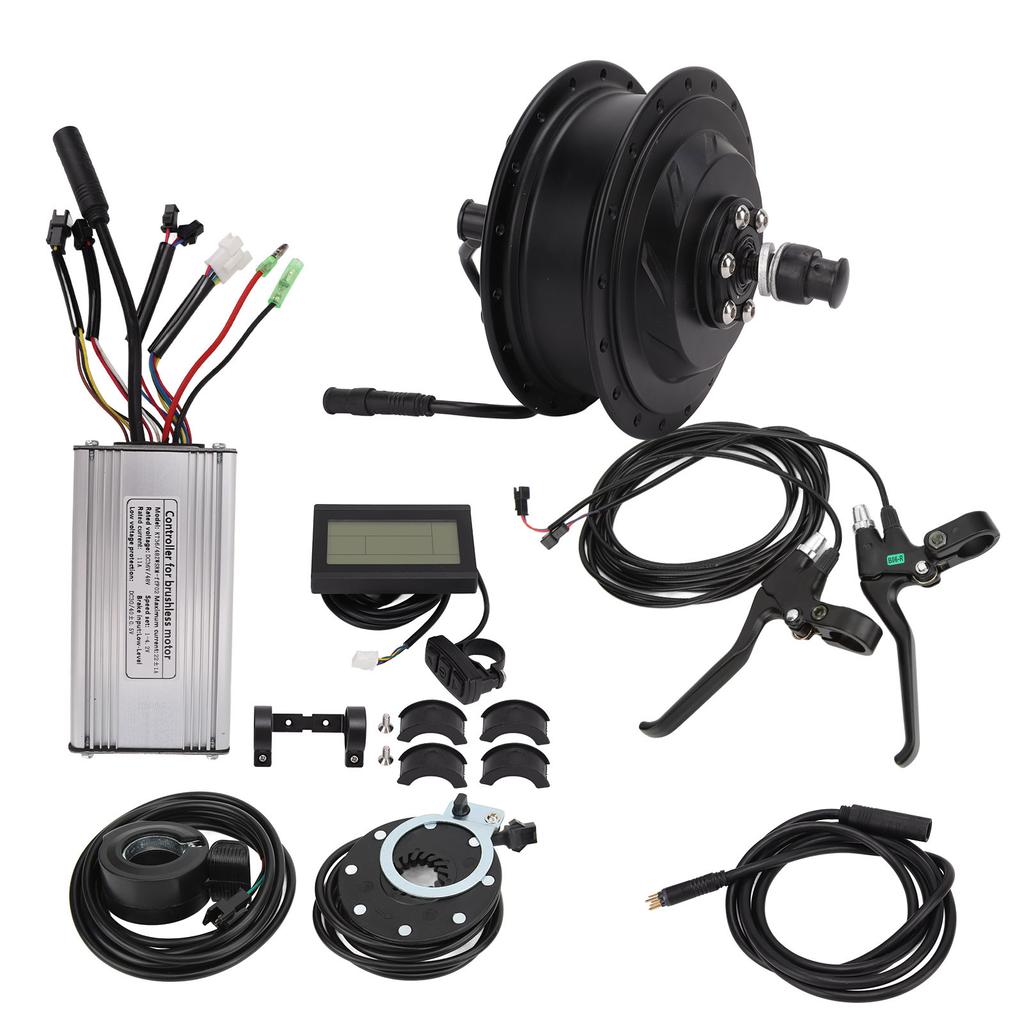

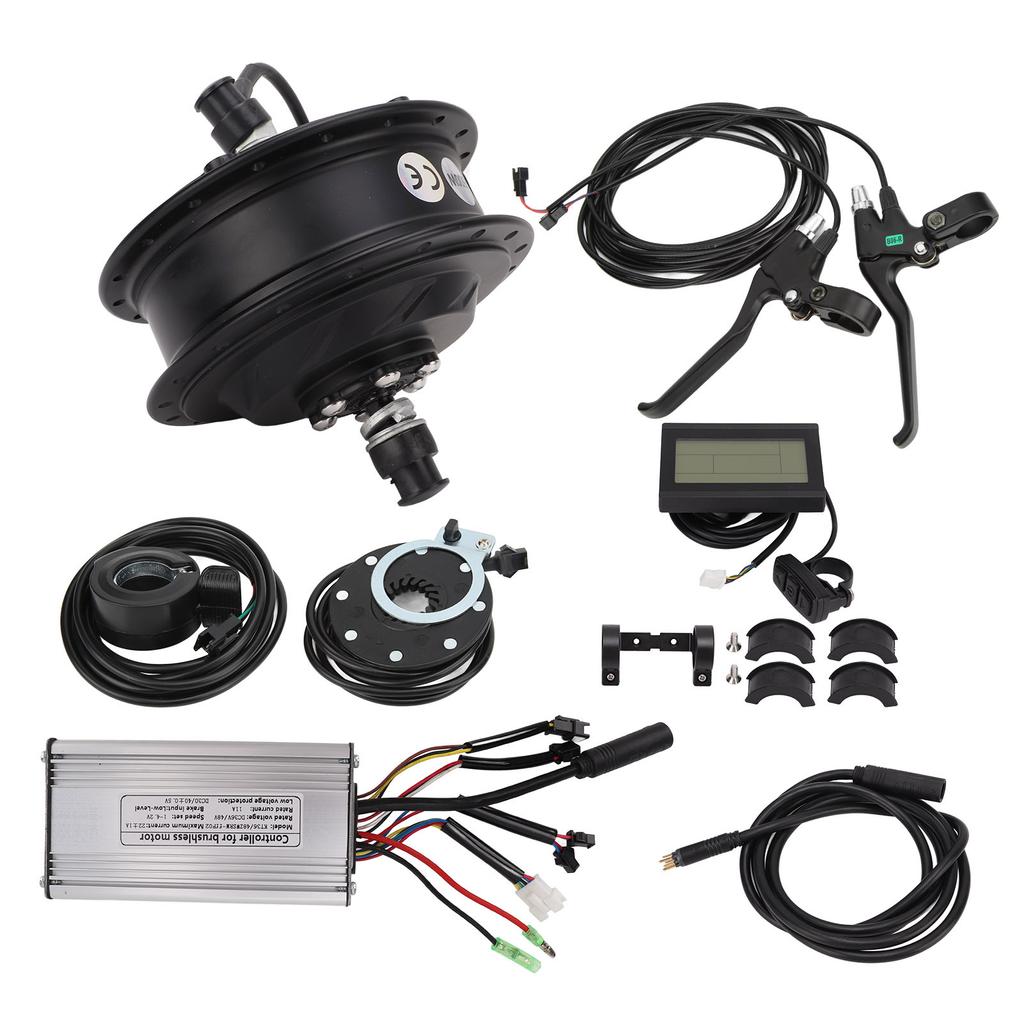

5. Product Package List: Bicycle lithium battery conversion kit includes 48V 500W front drive motor + 22A controller + LCD3 dispaly meter + 130X thumb throttle + 8C power assist sensor + power off brake lever pair + motor extension cable + spokes + spoke nuts and installation tools + manual.
Specification:
Item Type: 48V 500W Front Hub Motor Electric Bike Conversion Kit
Material: Stainless Steel + Aluminum Alloy + Plastic
Product Size:
Controller Box: Approx. 125x66x39mm 4.9x2.6x1.5in
LCD3 Display: Approx. 95x65mm 3.7x2.6in
Motor Type: Front Drive Motor
Motor Connector: Waterproof Connector (9pin)
Motor Rated Voltage: 48V
Motor Rated Power: 500W
Motor Speed: about 30 32km h
Motor Speed: 265 325 RPM
Motor Torque (N.M): 60 63 N.M
Motor Opening Size (mm): Approx. 100mm 3.9in
Motor Matching Controller Current: 22A
Motor Rim: P19D
Motor Torque Arm: M14
Brake Disc for Motor: Approx. 160mm 6.3in
Motor Brake Type: V Brake Disc Brake Universal
Motor Location: Front Drive
Motor Structure: Brushless Gear Hub Motor
Motor Magnet Height: 22H
Motor Magnet Pole Number: 20
Motor Operating Temperature: 20 degrees 45 degrees
Controller Connector Type: Ordinary Connector (Except Motor Waterproof Connector)
Controller Rated Voltage: DC 36V 48V
Controller Rated Current: 11A
Controller Maximum Current: 22+ 1A
Controller Speed Setting: 1 4.2V
Controller Brake Input: Low Level
Controller Low Voltage Protection: DC 30 40+ 0.5V
LCD3 Display Instrument Function Description: Up button, switch button, down button, battery capacity indication, backlight and headlights, brake display, one way time, total travel time, battery display, motor Celsius temperature, motor Fahrenheit temperature, ambient celsius temperature, ambient fahrenheit, 6km h thrust assist, cycling speed (metric), cycling speed (imperial), maximum speed, average speed, distance (metric), distance (imperial), cycling distance, total distance, battery voltage, power assist sensor sign, cruise function.
Controller Wire Color Definition:
1. Black single big head cable: waterproof motor cable (9pin)
2. Red and black single big head line: power line
3. Red, blue, black, green and yellow single row five wire port: dispaly line
4. Red and blue lines (two): power off brake lever line
5. Red black white lines: thumb throttle line
6. Brown, black and yellow line: power assist sensor line.
Package List:

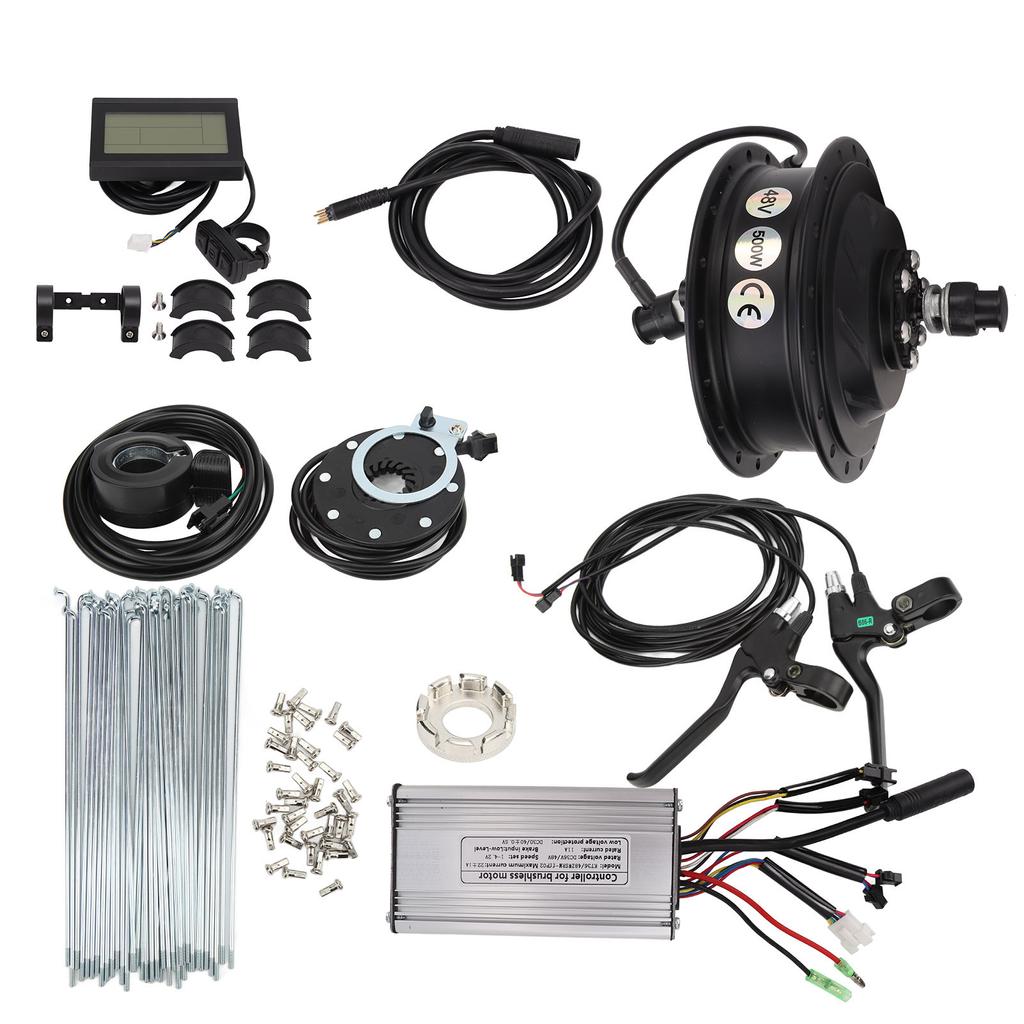

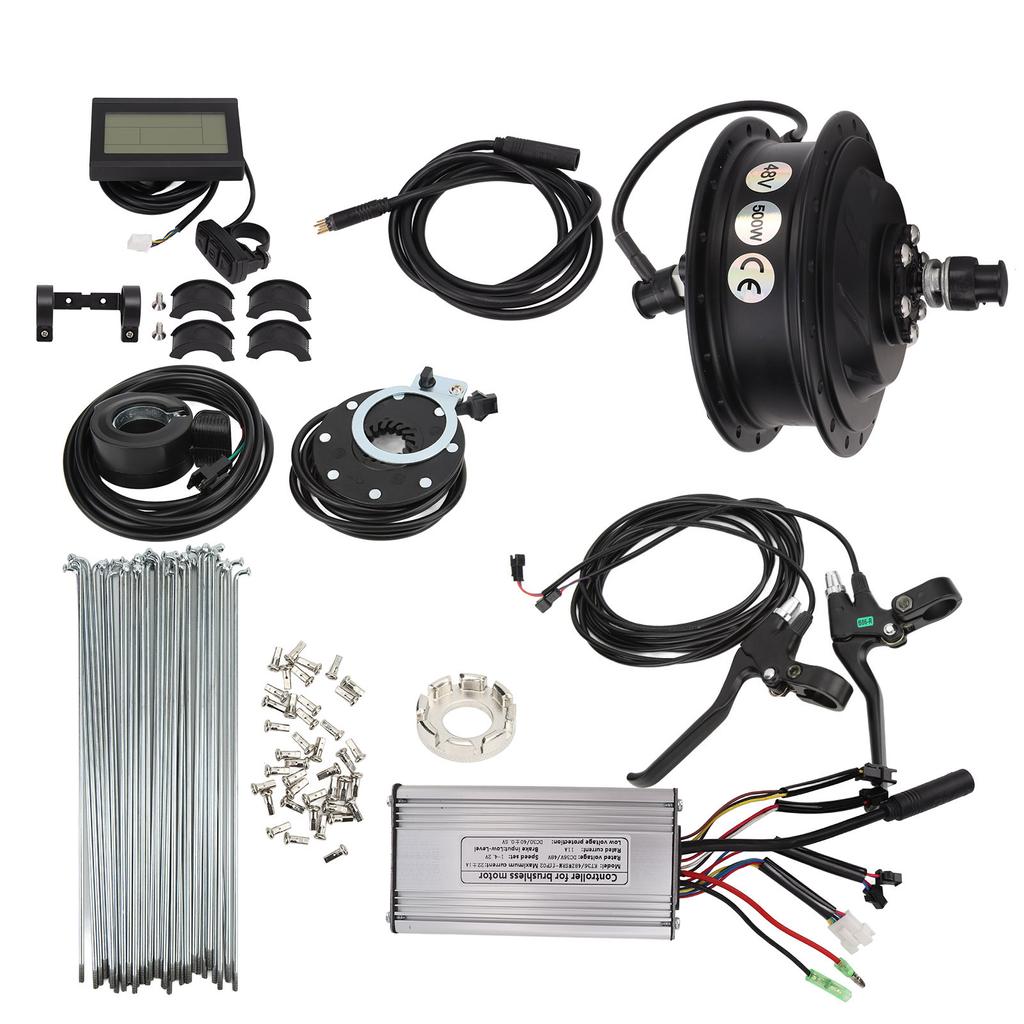

1 x Motor1 x Controller1 x LCD3 Display1 x Display Mounting Bracket4 x Display Mounting Bracket Gasket2 x Display Mounting Bracket Screws1 x Display Manual2 x Power off Brake Lever1 x Thumb Throttle1 x Power Assist Sensor1 x Motor Extension Cable40 x Spoke40 x Spoke Nut Cap1 x Spoke Installation Tool1 x Manual
Note:
1. Pay attention to the size of the motor.2. Please allow 1‑3mm error due to manual measurement. Thanks for your understanding.
