Feature:

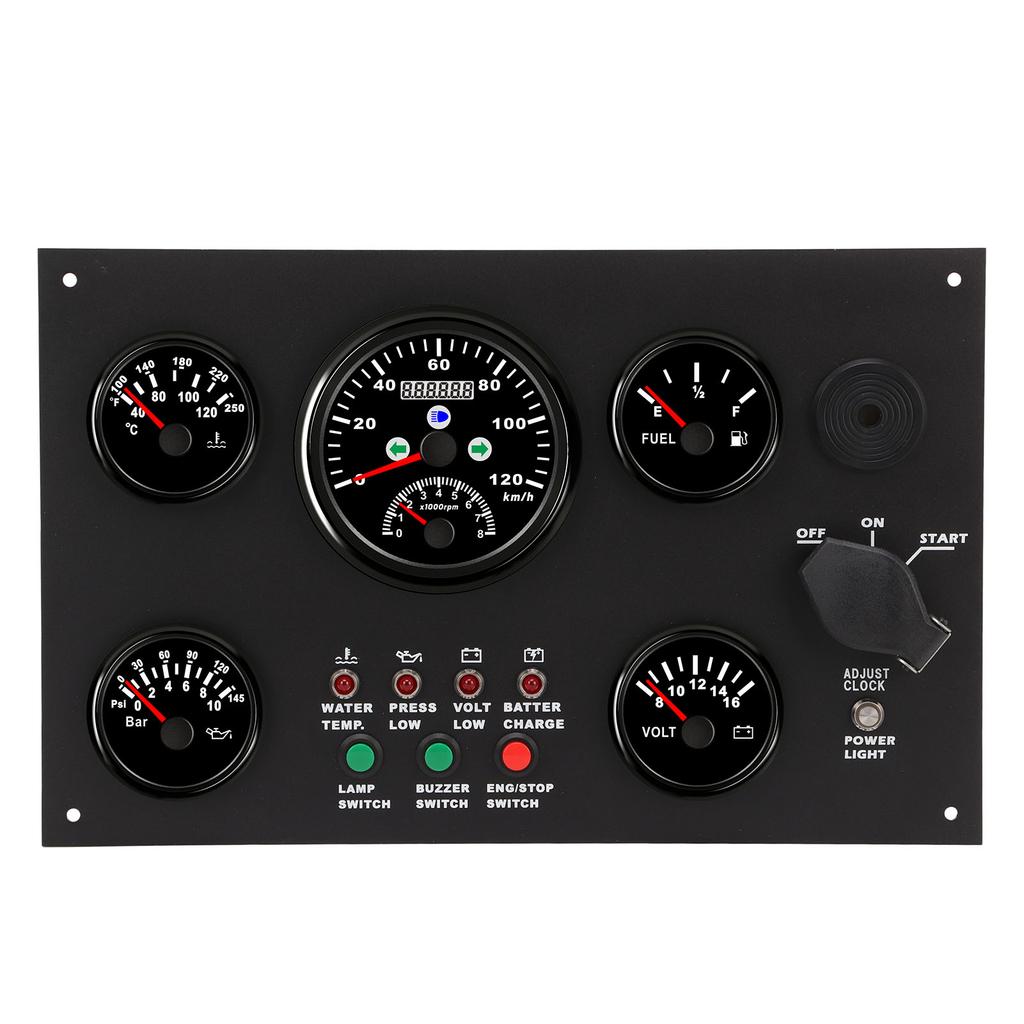

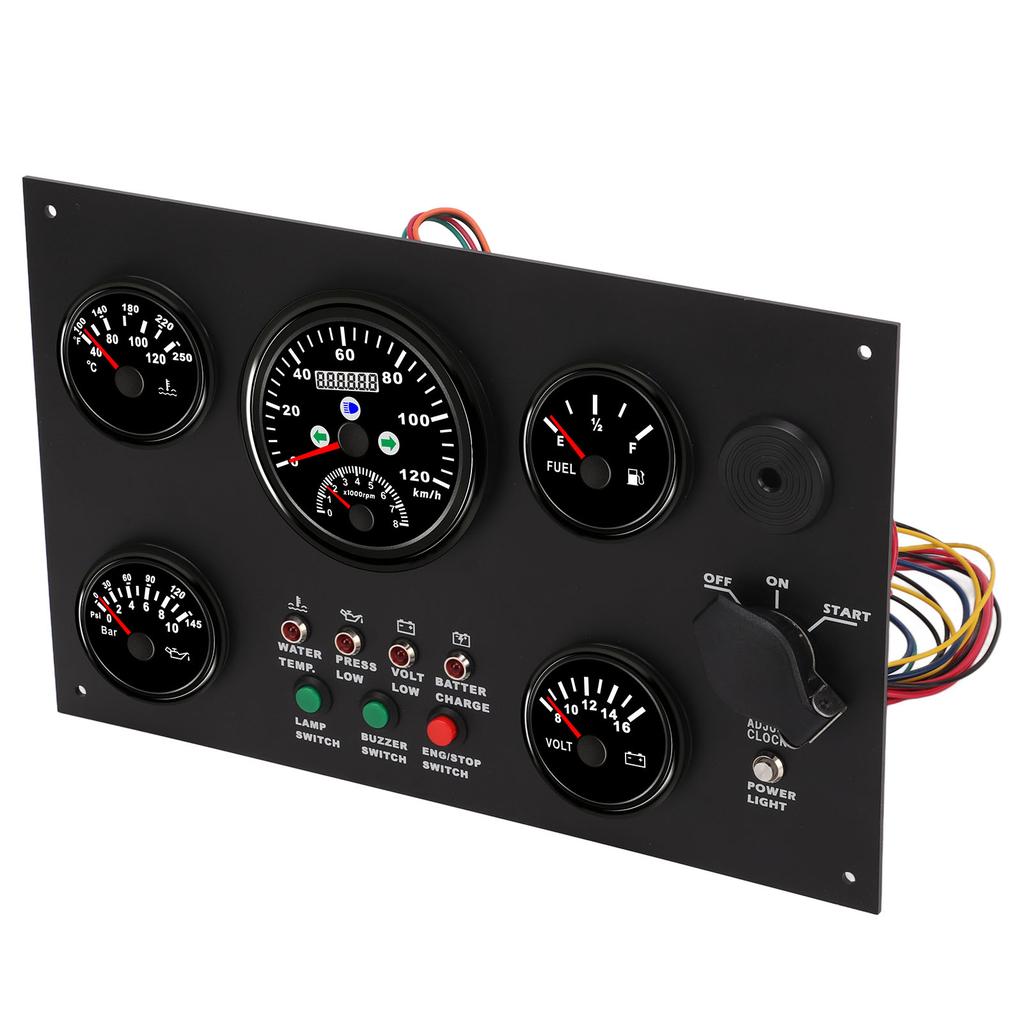

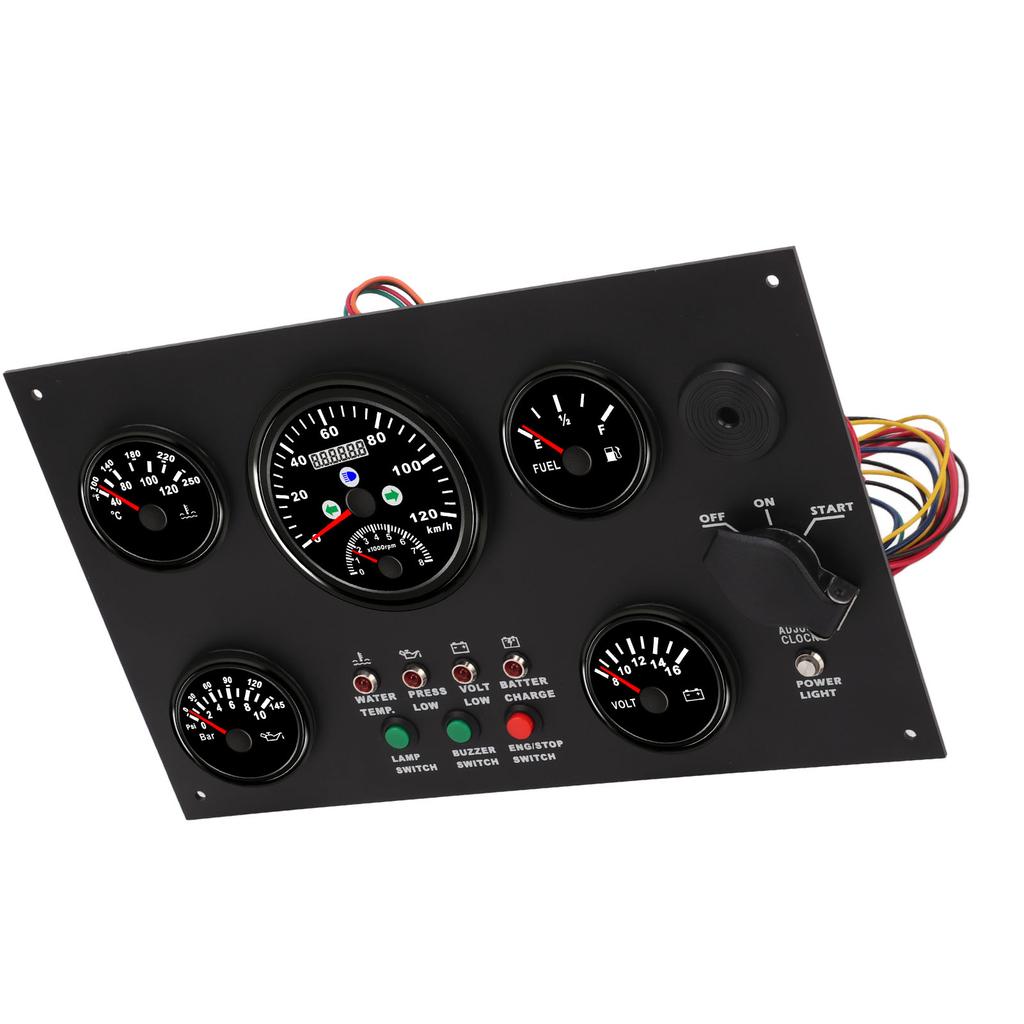

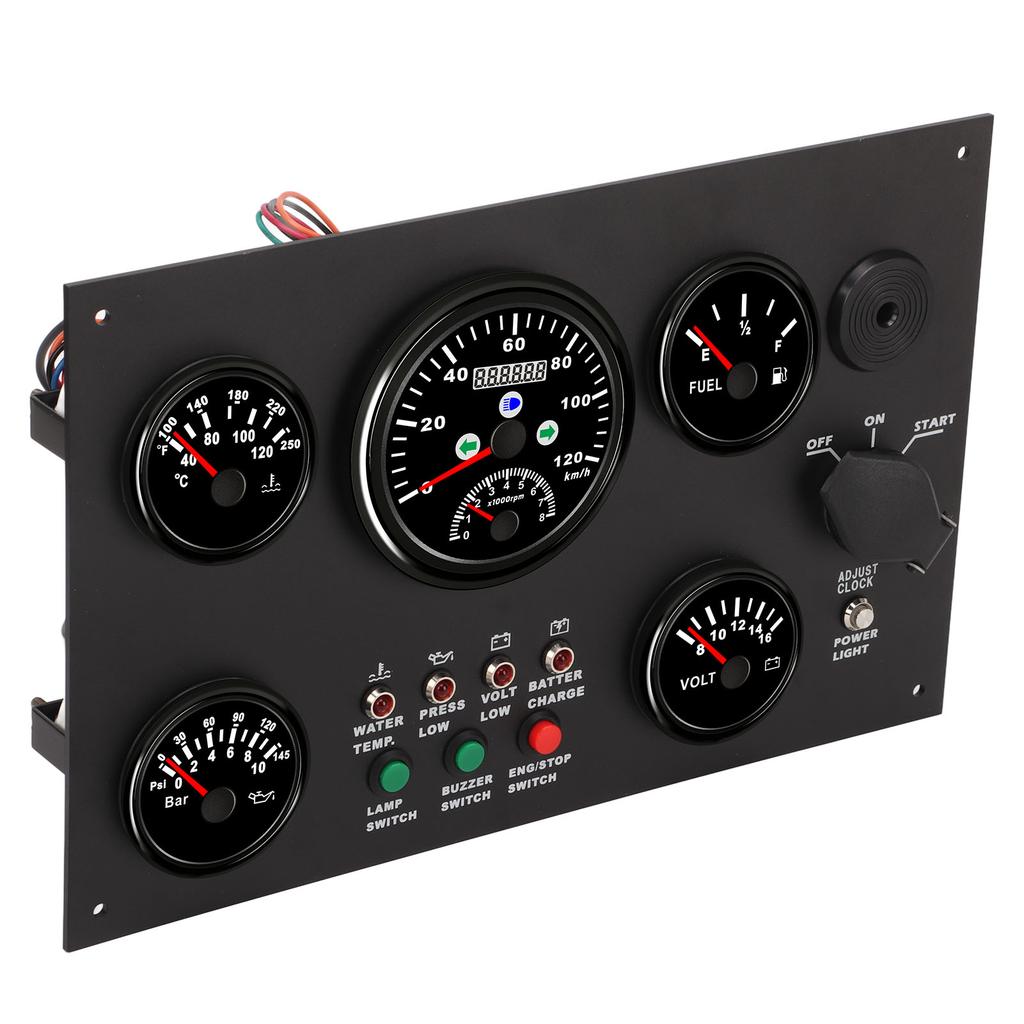

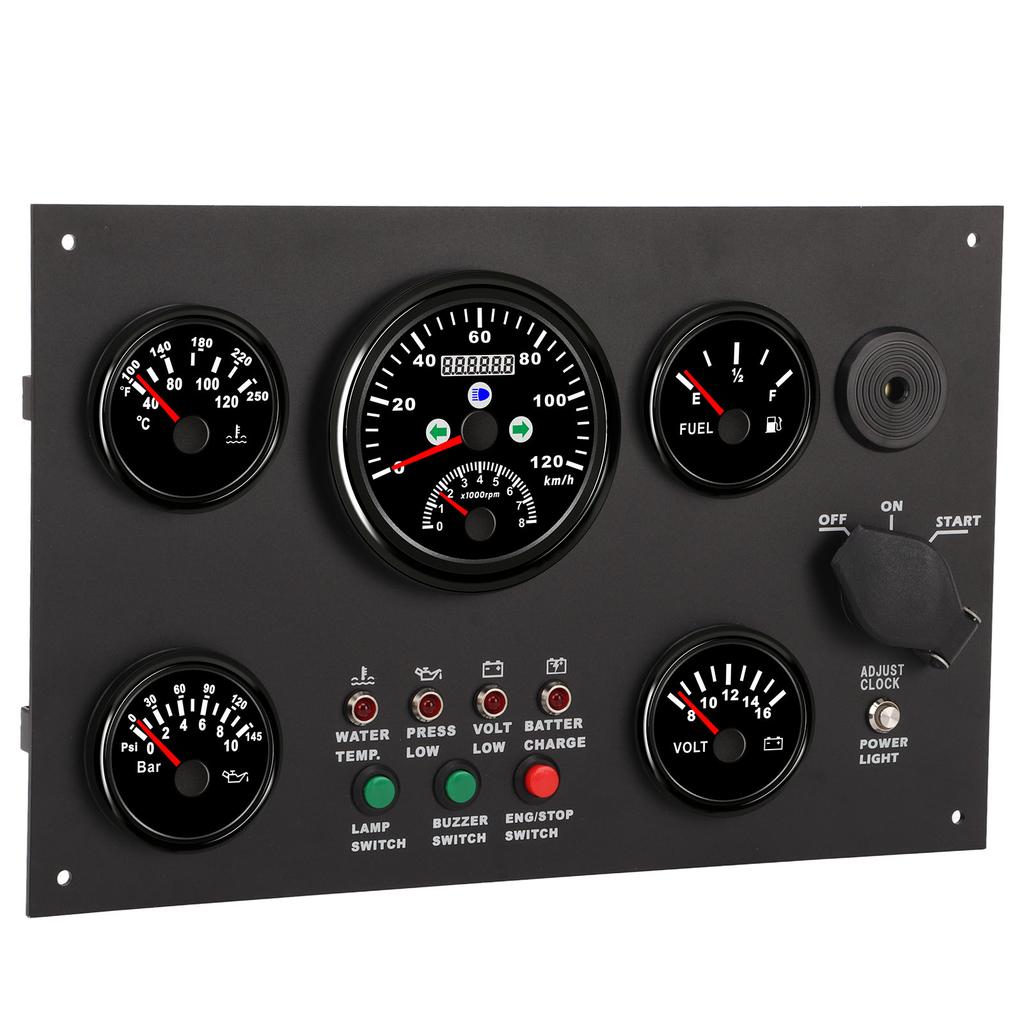

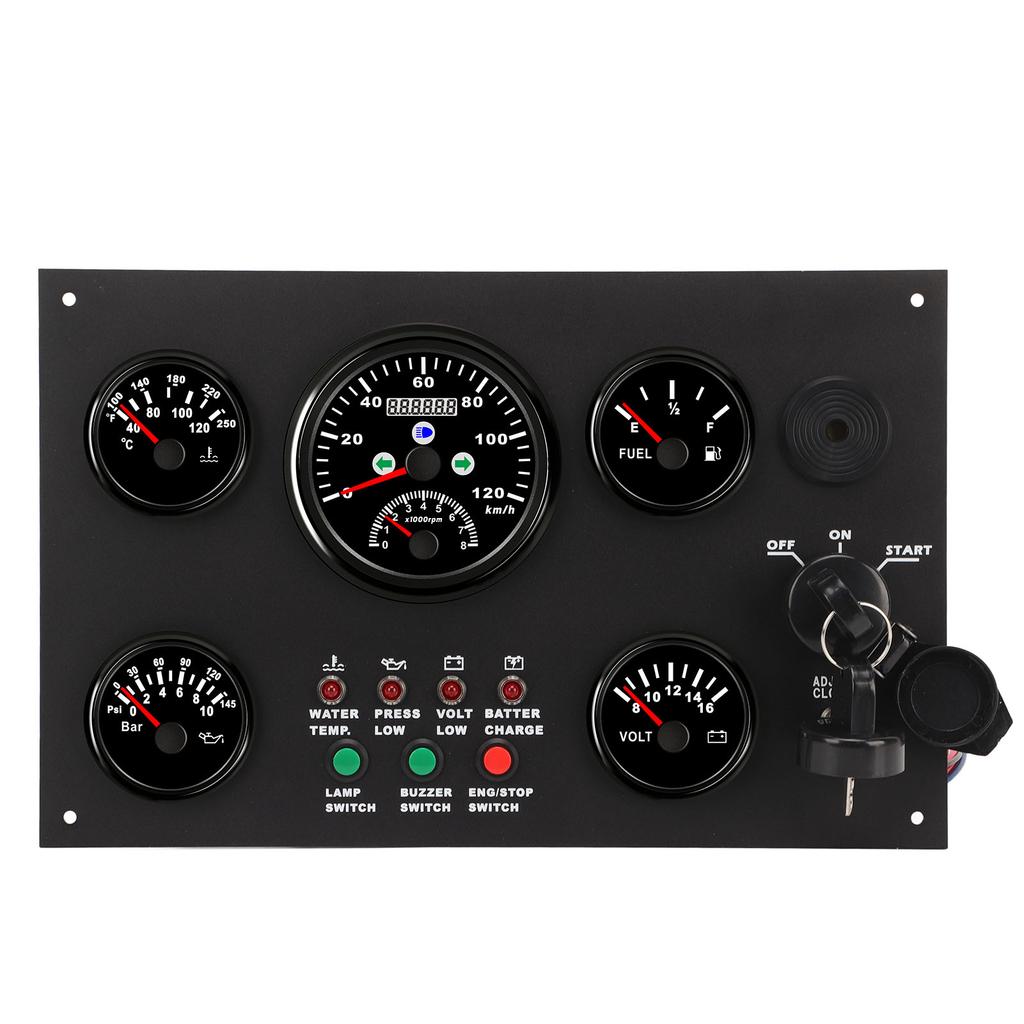

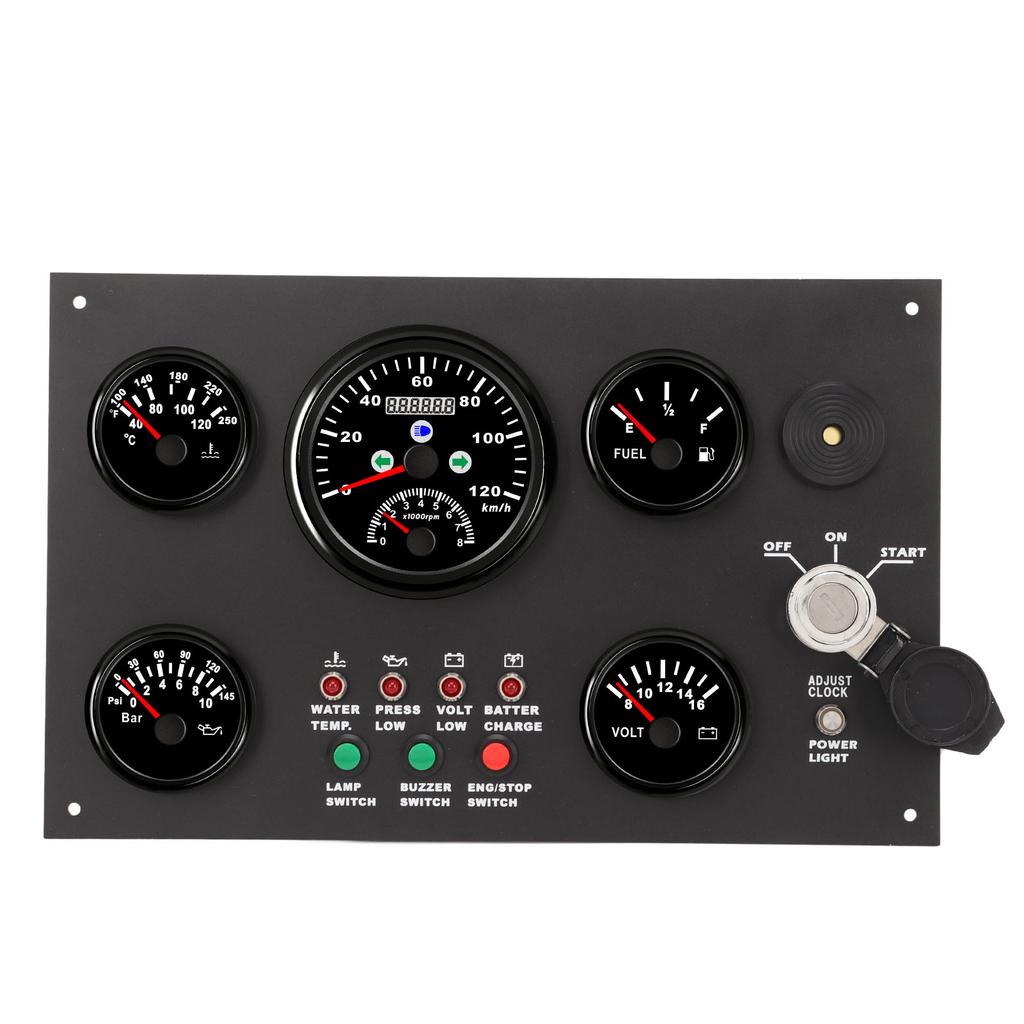

1. 5 in 1 Design: Boat instrument panel with speed, water temperature, oil level, oil pressure, clock time display, with red backlight and turn indicator light, also comes with low oil pressure alarm, low voltage alarm, etc.
2. High Precision Indication: Boat dash instrument panel adopts pulse motor to drive the pointer to indicate the corresponding scale, which is highly accurate, repeatable, versatile, reliable and stable.
3. IP67 Protection: The panel is made of tempered glass with anti fog function, IP67 protection grade, and can work normally in ‑30‑+75 celsius environment, which is very suitable for marine and various harsh environments.
4. Rust Proof: Aluminum alloy panel, stainless steel front cover ring and industrial grade electronic components material, which can withstand mechanical shock and vibration, and will not rust.
5. Application: The panel can be used in engines, generator sets, caravans, yachts, fishing boats, ships, engineering machinery, agricultural machinery, modified vehicles and other fields.
Specification:
Item Type: Boat Instrument PanelMaterial: Aluminum alloy, ABS, stainless steel, tempered glassFunction Display:
85mm Speedometer Can Display: Running speed 0 120km H, engine speed 0 8000RPM, lights and turn signal reminder; (The tachometer comes with a speed sensor of 3.9m wire length)
52mm Water Temperature Gauge Shows Water Temperature: 100 250F (40 120 celsius ); (Input signal: 301 22ohms)52mm Oil Level Gauge Shows The Amount of Fuel in the Tank: F 1 2 E; (Input line: 0 190ohms)
52mm Oil Pressure Gauge can Display the Oil Pressure of the Tank: 0 10bar ((0 145psi)); (Input signal: 10 184ohms)

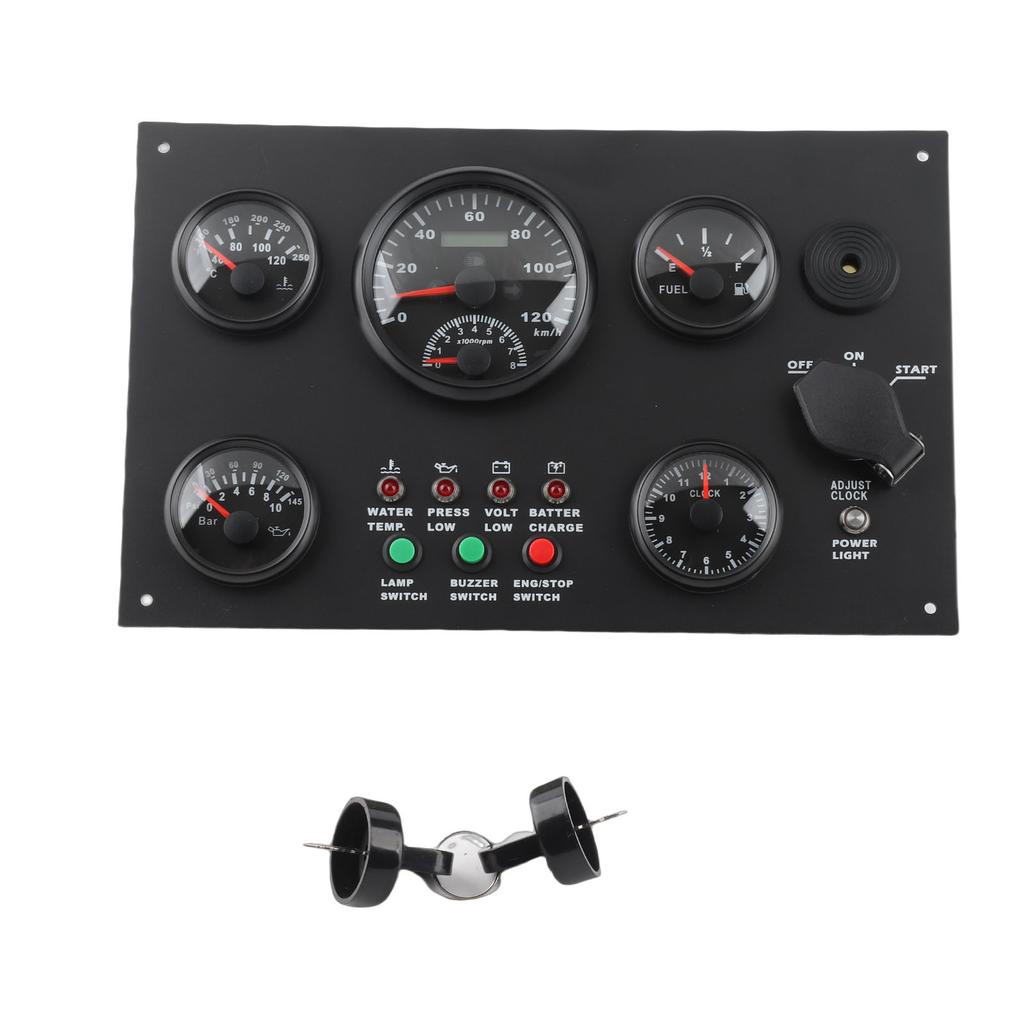

52mm Clock can Display Time: 1 12
Mode of Operation: Liquid crystal display, stepping motor
Operating Voltage: DC12V circuit system or DC24V circuit system
Working Current: less than 100 MA
Operating Temperature: 30 celsius + 75 celsius
Storage Temperature: 40 celsius + 85 celsius
Backlight Color: Red
Protection Level: IP67, and can work in 1m underwater position, excellent anti fog function;
Application: This instrument panel can be installed in your RV, yacht or engineering car central control position, only need 300x190mm 11.81x7.48in unit area will be 5 instruments together, greatly save space and decoration of your central control, and 5 instruments are with red background light and red LED lighting needle, even at night can also clearly view the parameters, At the same time, the multifunctional panel also comes with water temperature alarm, low oil pressure alarm, low voltage alarm, charging indicator, lighting switch, buzzer switch, ENG Stop switch and other functions, through the panel data to know the state of the engine at any time
Application: The central control multifunction refitting panel can be used in the fields of engine, generator set, RV, yacht, fishing boat, ship, engineering machinery, agricultural machinery, refitting vehicle, etc.
Stepping Motor Description: Stepping motor is a discrete value control motor that converts the electric pulse excitation signal into the corresponding angular displacement or linear displacement. This type of motor moves one step every time an electric pulse is input, so it is also called pulse motor.
.
Package List:

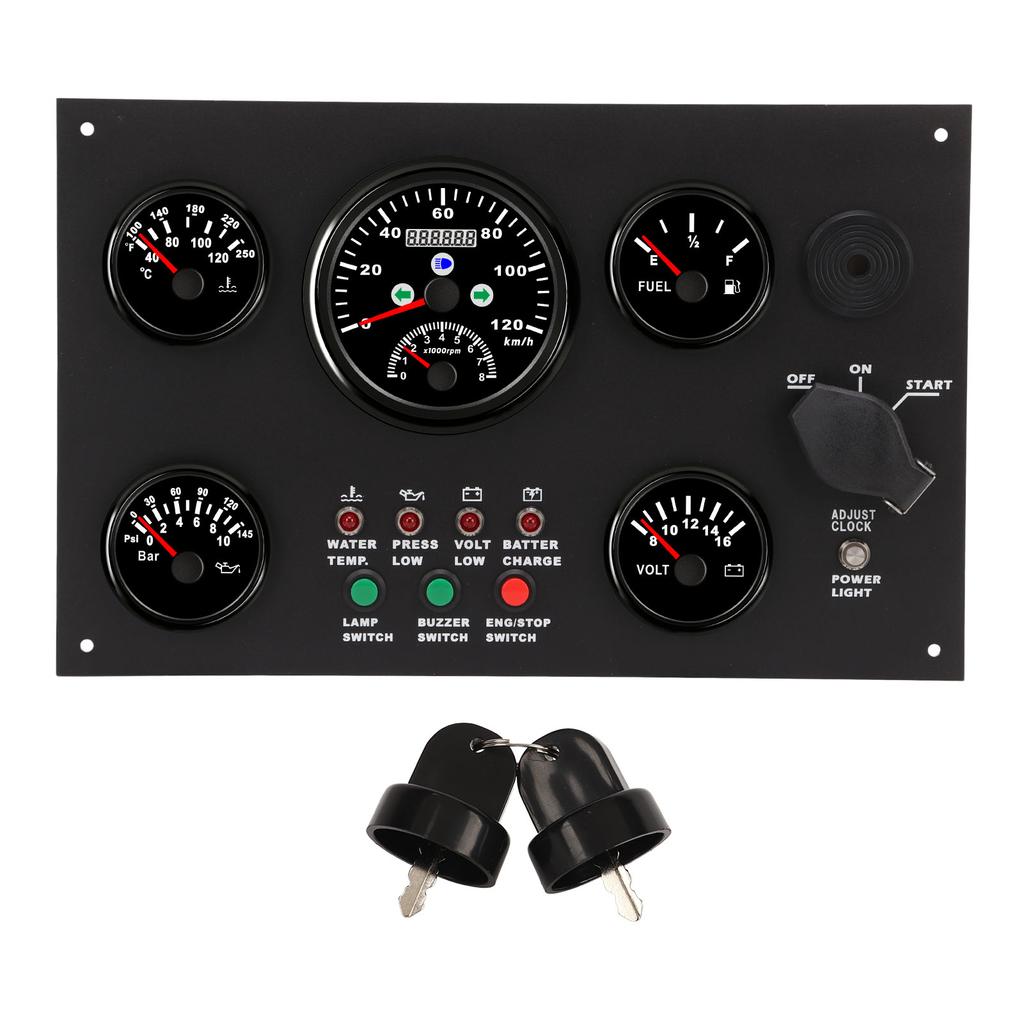

1 x
Boat Instrument Panel2 x Keys
