12V Fuse Block 4/6 Circuits Waterproof Marine Fuse Panel Relay Box Kit with LED Indicator Damp-Proof Cover for Car RV Truck Boat

Highlight description:

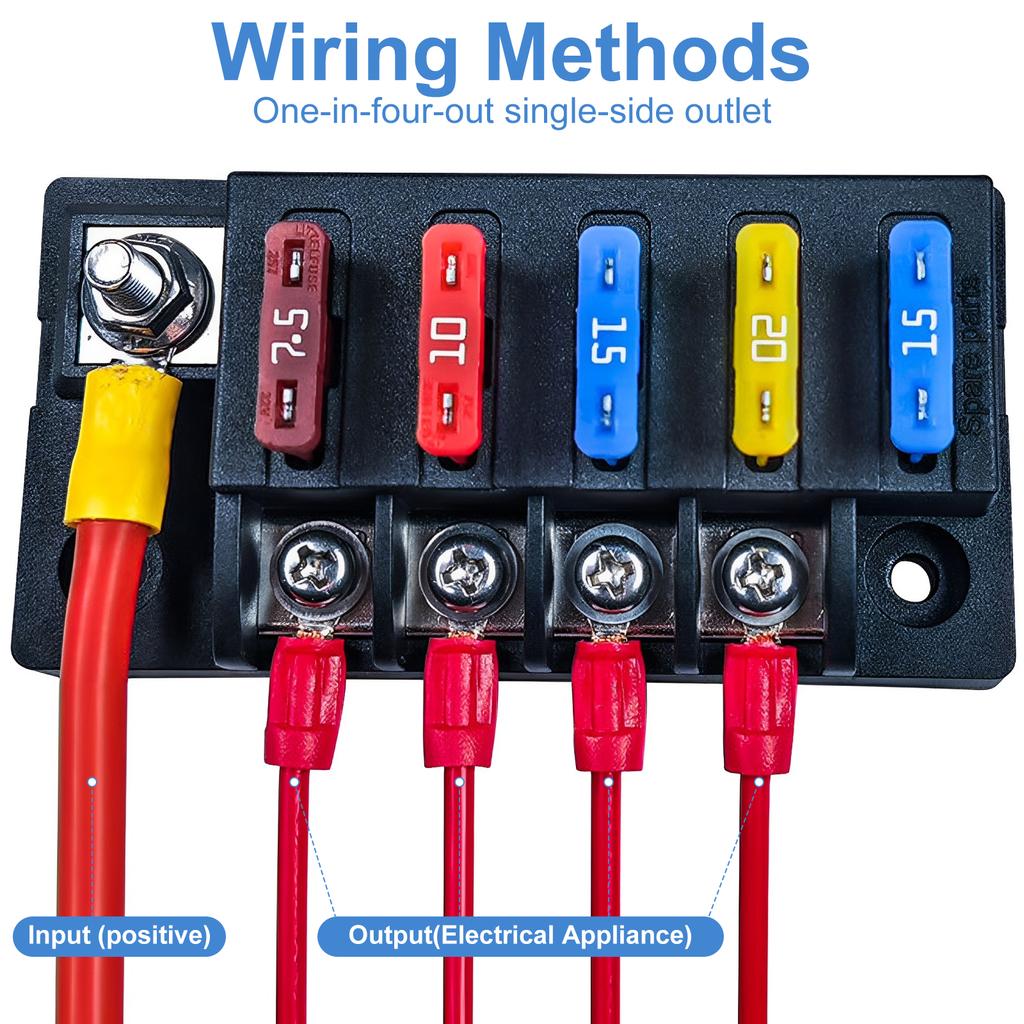

[Compact 12V Fuse Box] This fuse box features a six-in-one single-sided socket that can be mounted against the side of the product for smaller size and easier wiring. The shielding extends to the top of the contact screws to avoid a series of short circuits. Spare slots make it easy to replace fuses whenever you need to in the event of a blown fuse

[Safe and Reliable] Blade fuse box material is PA66+GF15%, with high mechanical strength, good insulation, heat resistant and flame retardant. Equipped with PC waterproof and dustproof cover, nickel-plated copper connection and PP*40 sticker, no need to worry about breakage, deformation, combustion or short-circuit problems

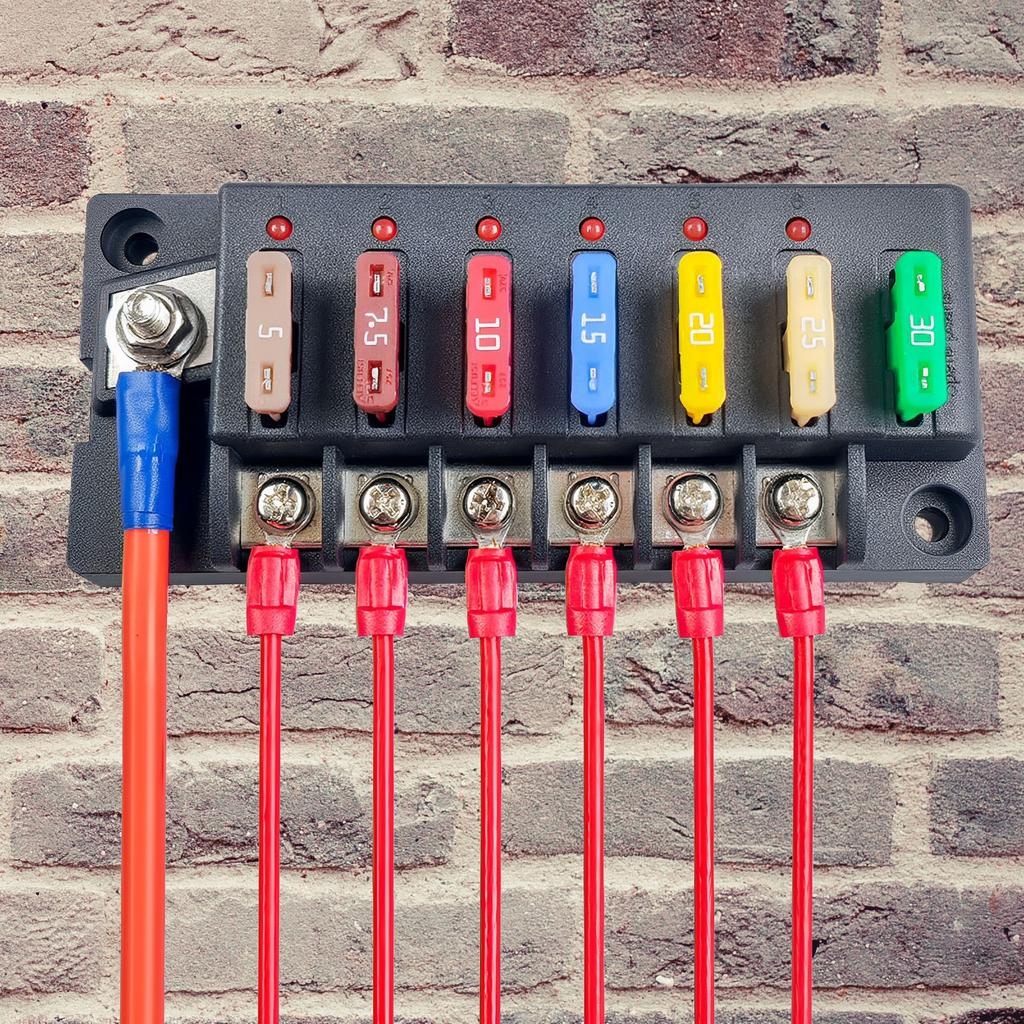

[LED Indicator] Each circuit in the fuse box has an LED indicator, when the red LED light is on, it means the line is energised and running normally, when the red indicator light is off, it means the fuse is blown, you can directly replace it with a new one

[Current and Voltage] For voltages less than DC80V, the 12 volt blade fuse box can be fitted with 6 ATO blade fuses, individual slots are suitable for circuits with a continuous operating current of less than 40A and a maximum total input current of 150A, the recommended mounting torque for the M4 screws is 1.5Nm, the recommended maximum mounting torque for the M5 nuts is 3.5Nm

[Widely Used] 12V fuse box can be directly connected to any circuit in car/boat, such as overhead light, car headlight, wide angle light, fog light, warning light, car refrigerator, car charger, car fan, car TV, etc. Widely used in cars, villas, caravans, buses, yachts, boats etc

Detailed description:

Description Our 12V fuse box meets all the criteria for an ideal fuse box. High mechanical strength, good insulation, heat resistant and flame retardant, each circuit has an LED indicator, easy to use, compact design of the fuse box, easier wiring.

Key Features High Quality: Our fuse box block comes with PC waterproof and dustproof cover. Very safe to use, the fuse box has good insulation, heat resistance and flame retardant.

LED Indicator: The red LED indicator light is off to remind you that the fuse has been blown and you can directly replace it with a new one.

Specification Product name: Fuse Box Material: PC, nickel-plated copper, aluminium alloy Style(optional): 4-way, 6-way Size: 4-way 9.45 x 4 x 3.9CM (error less than ±0.25CM) 6-way 11.9 x 5 x 3.7CM (error less than ±0.25CM) Voltage: less than DC 80V Individual slots are suitable for circuits with a continuous operating current of less than 40A and a total input current of up to 150A. M4 screws recommended installation torque 1.5Nm, M5 nuts recommended maximum installation torque 3.5Nm

Notes: 1.There may be slight differences between the picture and the actual color of the commodity. We will try our best to show you the exact color. 2.Please allow slight dimension difference due to manual measurement.

Parts List:

4-way: 1 x 4-way Fuse Block 2 x Stickers 1 x 5A Fuse 1 x 10A Fuse 1 x 15A Fuse 1 x 20A 1 x 30A Fuse OR 6-way: 1 x 6-way Fuse Block 2 x Stickers 1 x 5A Fuse 1 x 7.5A Fuse 1 x 10A Fuse 1 x 15A Fuse 1 x 20A Fuse 1 x 25A Fuse 1 x 30A Fuse
