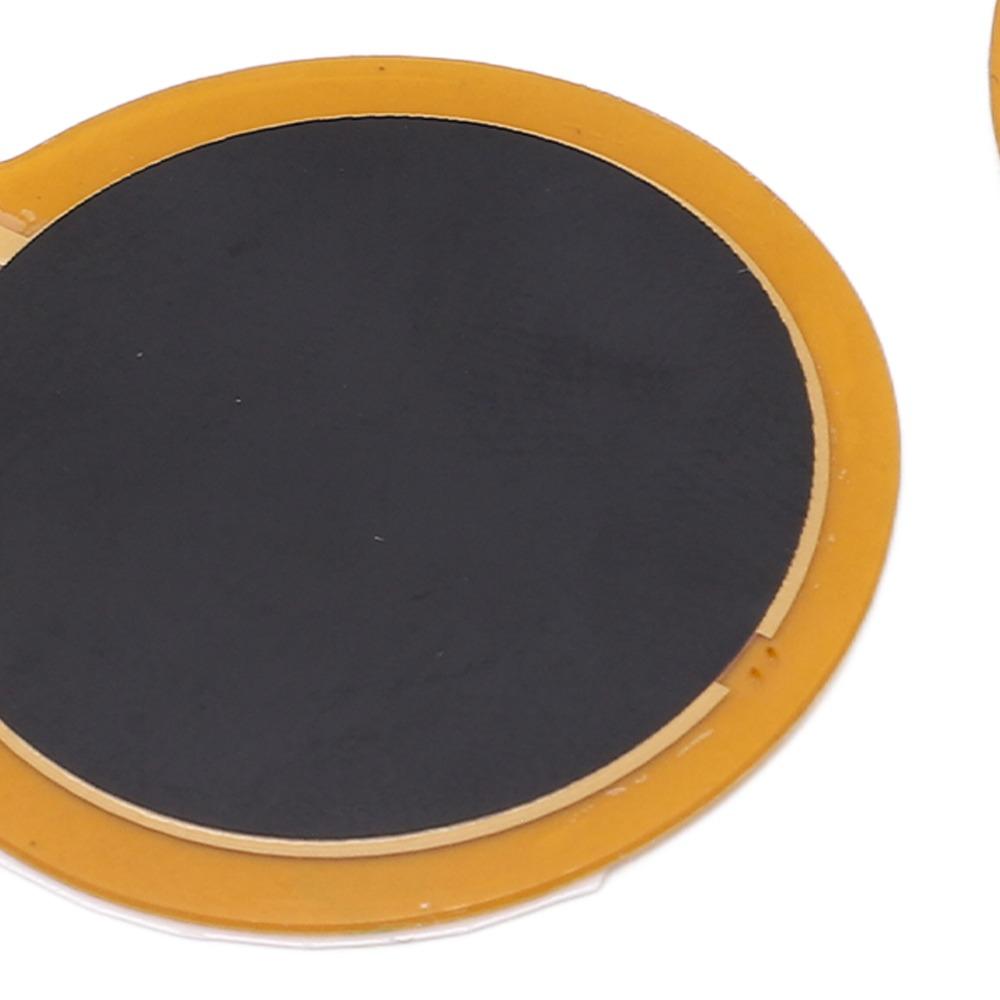

2PCS 20g‑20kg Thin Film Pressure Sensor Waterproof High Sensitivity Pressure Sensor Force Sensing Resistor Resistor Sensing

-This flexible film sensor is waterproof and pressure sensitive, can be bent and folded, and has strong performance. -The thin film sensor is not only responsive, but also has high stability, excellent working performance and long life. -The thin film sensor is compact and easy to install and use, and the resistance output value of the port varies with pressure. -The flexible sensor has the characteristics of flexible ultra thin, extremely quick response, etc., and can achieve high sensitivity detection. -The range of the membrane sensor is 20g to 20kg, the range is larger, the pressure that can be measured is larger, and the application range is wider. Specification: Item Type: Thin Film Pressure Sensor Size:4*3cm(1.57*1.18in) Color:As shown in the figure Material: Polyester films, highly conductive materials and nanoscale pressure sensitive materials Pressure Sensing Range: 20g-20kg Trigger Force: 20g, triggered when default resistance value is less than 200kohm Thickness: Approx 0.45mm(0.02in) / 0.02in Heat Resistance: +120℃, 10min Style: Thin sheet, flexible Resistance When Not Triggered: Greater than 10Mohm Activation Time: Less than 0.01S Hysteresis: +10%, 1000g force Response Time: <10ms Electromagnetic Interference EMl: Not generated Electrostatic Discharge EDS: insensitive Drift: <5%, 2.5Kg force static load 24H

Note:  1. Due to the difference between monitors and light effects, the pictures may not reflect the actual color of the item. 2. Please allow slight error due to manual measurement. Thanks for your understanding.

Package List: 2 x Thin Film Pressure Sensor
