Smart Active Balance BMS Bluetooth WiFi 4S 8S 17S 24S Balanced Current 1A Real Time Monitoring Equalizer Module

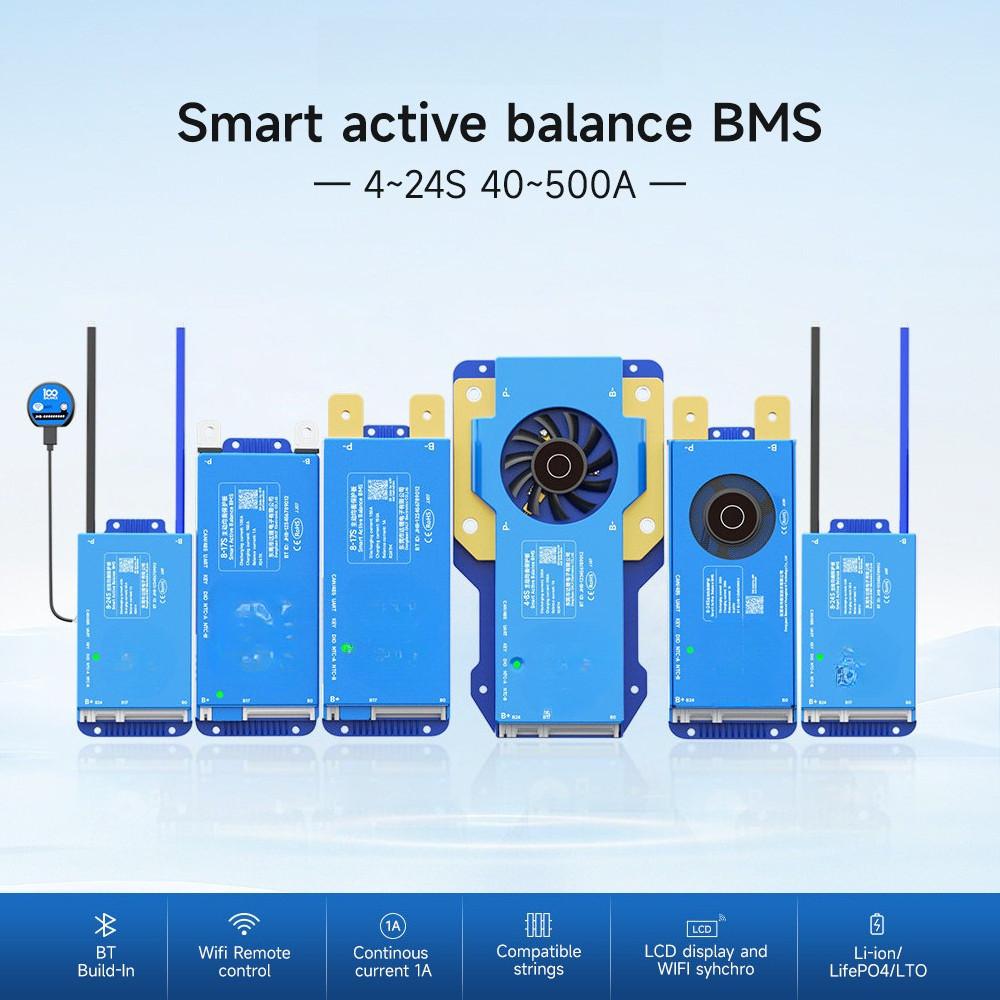

Smart active balance BMS

1.Smart Compatible string from 4-8S, 8-17S, 8-24S. current from 40-150A.

2. Multi-protection, drop wire protection, wrong wire protection, short circuit protection, battery overcharge protection, over-discharge protection, parallel protection

3. Support Lifepot/ Li-ion/LTO battery.

4. Bluetooth build-In, can support APP (7 languages), wifi, PC Host, IoT clould.

5.Support BMS Parallel connection.

Type 1:WIFI+4S-8S 40A-50A Type 2:WIFI+4S-8S 60A-70A Type 3:WIFI+4S-8S 80A-90A Type 4:WIFI+4S-8S 100A-110A Type 5:WIFI+4S-8S 150A-180A Type 6:WIFI+4S-8S 40A-50A Type 7:WIFI+8S-17S 60A-70A Type 8:WIFI+8S-17S 80A-90A Type 9:WIFI+8S-17S 100A-110A Type 10:WIFI+8S-17S 150A-180A Type 11:WIFI+8S-24S 40A-50A Type 12:WIFI+8S-24S 60A-70A Type 13:WIFI+8S-24S 80A-90A Type 14:WIFI+8S-24S 100A-110A Type 15:WIFI+8S-24S 150A-180A

Battery Pack Type： Lithium Iron Phosphate, Lithium Ternary, Lithium Titanate

"Battery pack string number ""Ternary: 4-8 strings/8-17 strings/8-20 strings

Lithium iron: 4-8 strings/8-17 strings/8-24 strings"

"Single sample voltage range 1.5V-4.9V

"Minimum sampling current ≥1A (below this value is not counted in the SOC Can be modified to 0.1A on the upper computer using UART data cable )

"Operating voltage range ＞10V

"Equalization method Bidirectional DC/DC active equalization

"Operating power consumption ≤1W

"Sleep current ≤1.5mA

"Working temperature '-40℃~85℃

"Operating indicator ""Green: normal operation

Red: warning or protection""

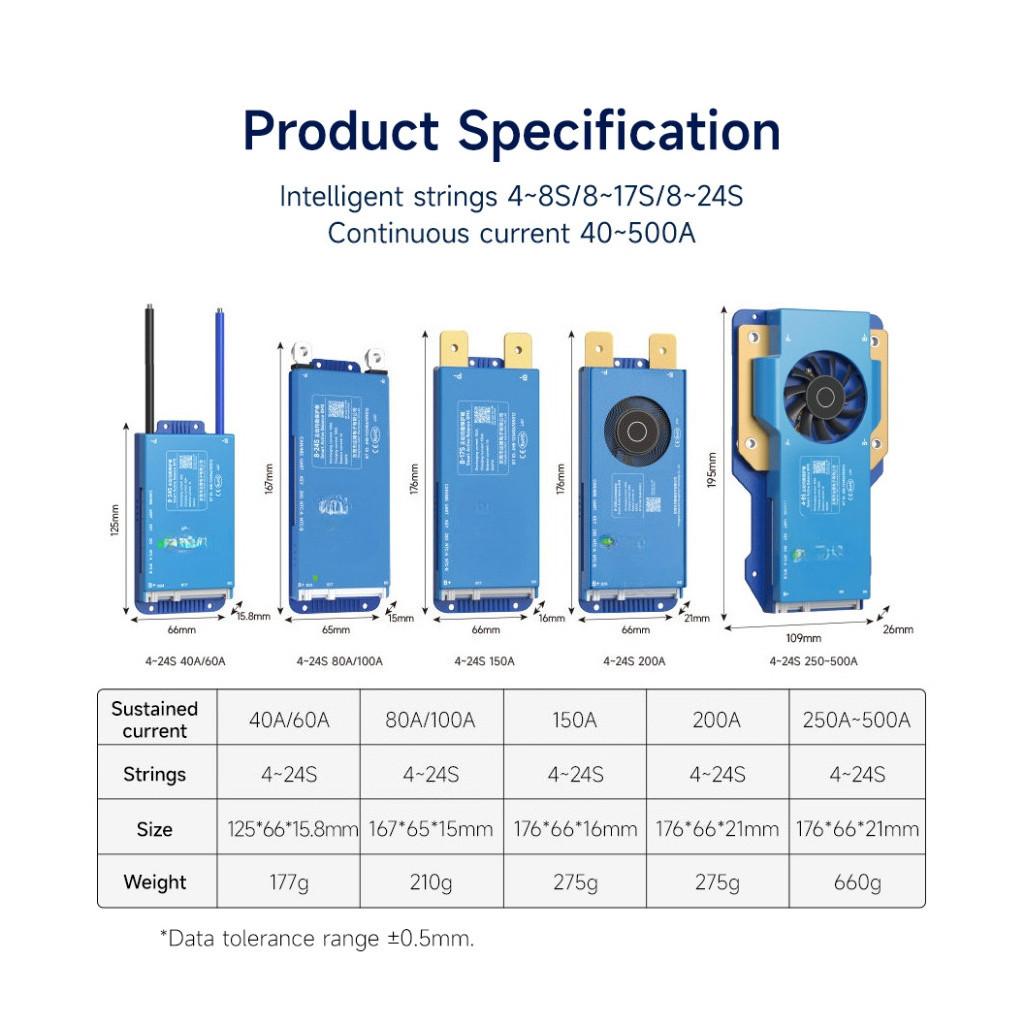

"Product size ""40-100A:167.5*65.5*15mm

150A:176.5*65.5*16mm""

Application Scenario

Power battery: support electric scooter, electric two-wheeled vehicle, three-wheeled vehicle, AGV, golf cart, low-speed four-wheeled vehicle.

Energy storage battery: solar storage battery, mobile power, RV battery, household battery.

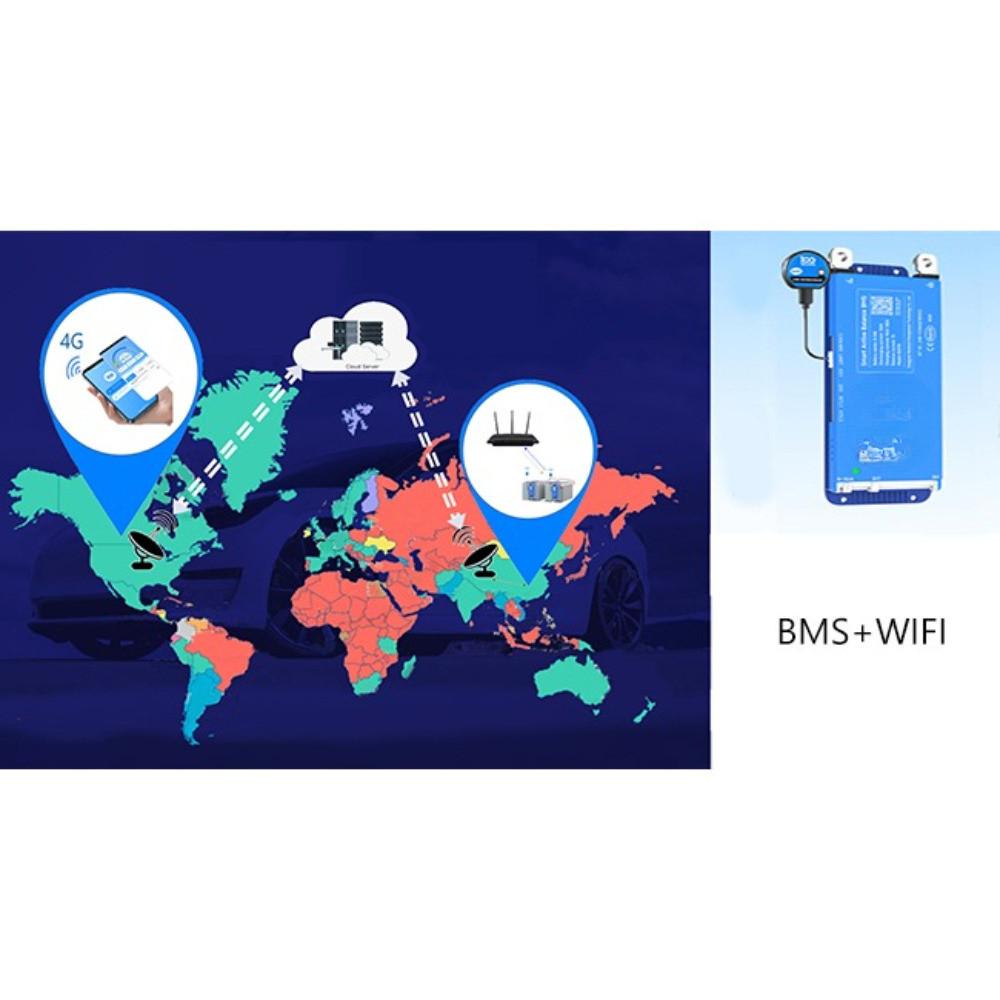

"Features: WIFI function to realize remote monitoring, used for home energy storage and local power storage equipment with fixed network. Effectively solve the problem of real-time monitoring of home battery information and control of charging and discharging even when you are away from home."

Inferface Port and Accessories

1.BMS has build-in Bluetooth already.

2. BMS also support RS485 and Can communcation function with accessories uart/ rs485/canbus/ wifi /LCD dispaly ect. pls buy the accessories per your requirement accordingly.

3. Standard Package with one NTC cable with 2 NTC sensor ，BMS can support 4 NTC sensor with buy one more NTC cable as accessrios.

APP Download and Install

1.Pls search "Balance BMS" from iOS Store and Google store and download and install.

2.Smart active balance bms has integrated BT function, it will connect to APP automatically with APP installed.

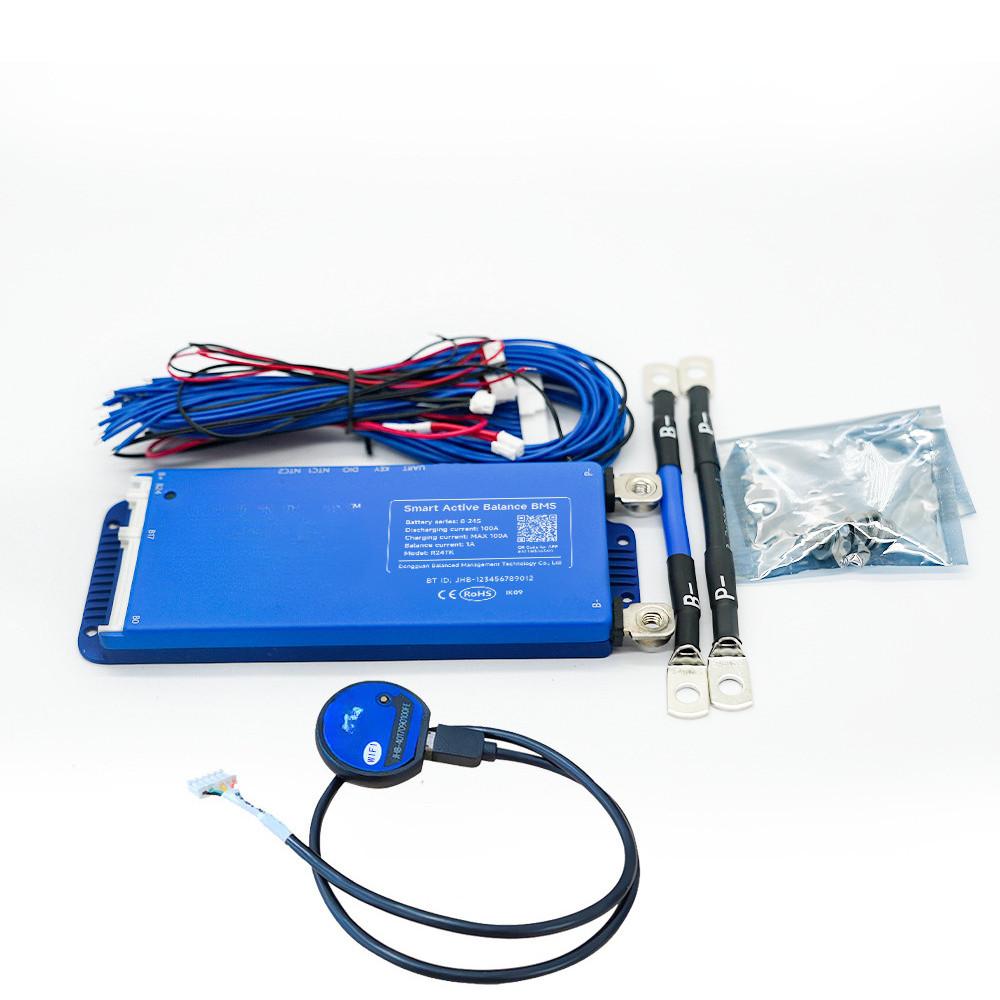

Features:

1. Smart active balance bms*1pcs( Build-In BT)

2. P- &B- cable *2 10cm

3. M6 screw*2

4. Sampling cable*1 45cm

5. B+ cable *1 45cm

6. NTC cable *1 25cm

7. User Manual*1

8. Package box*1

9. Wifi module

Note:

-Due to different producing batches, product details might be a little different. If you minding the difference, please buy it carefully.

-Due to the different display and different light, the picture may not reflect the actual color of the item. Thanks for your understanding.
