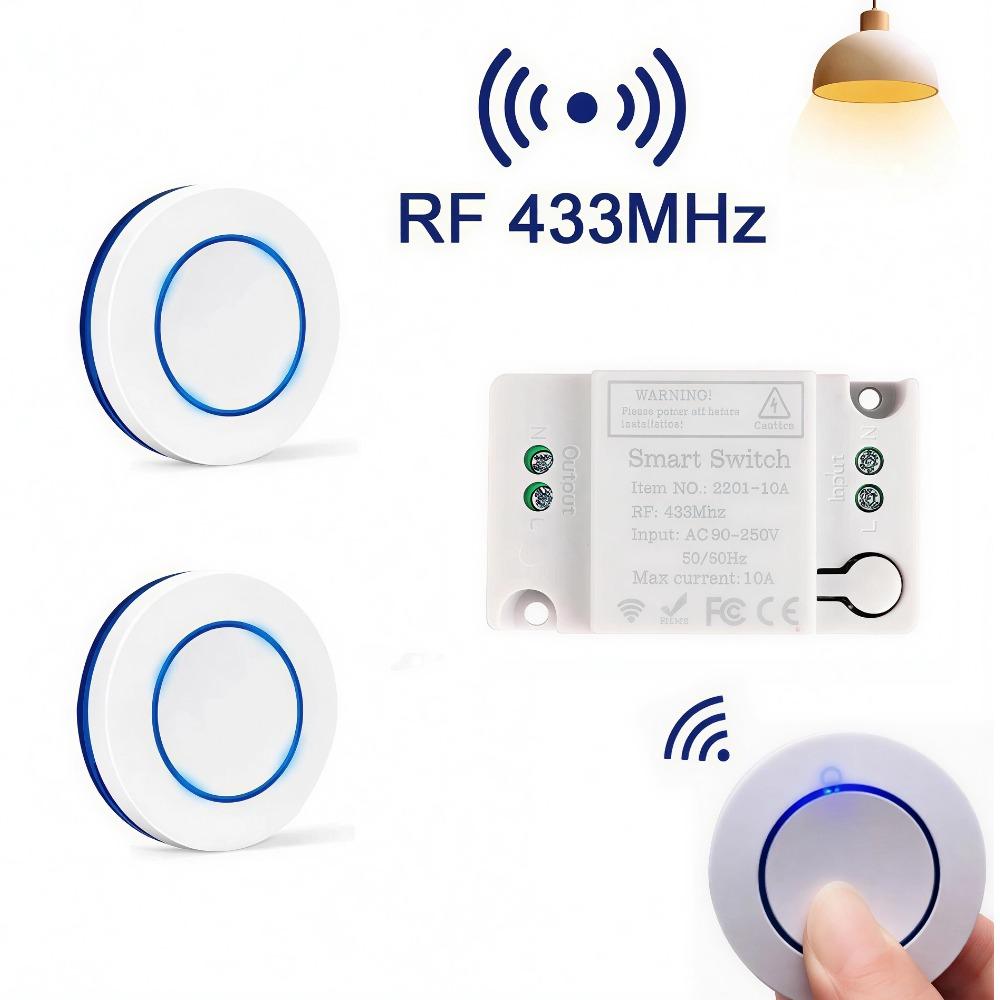

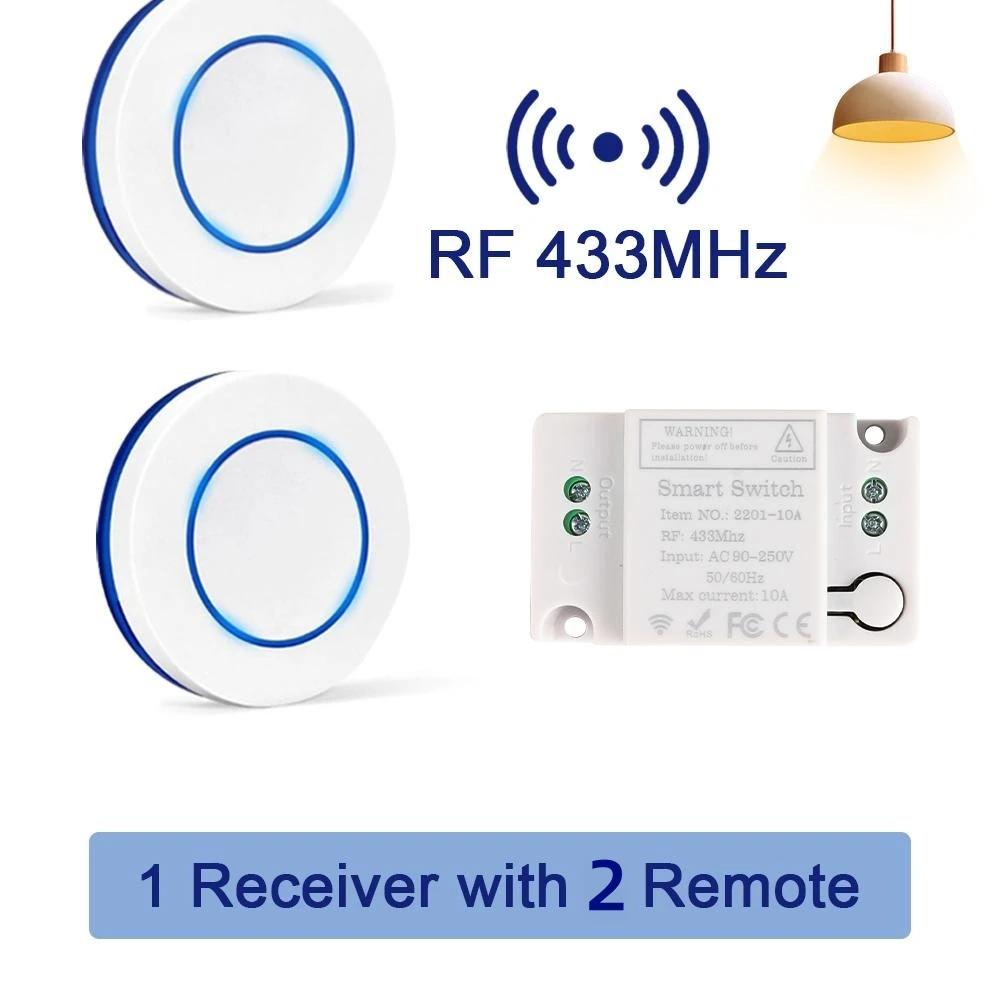

433MHz RF Wireless Remote Control Light Switch 10A 220V Relay Receiver Mini Round Button Wall Panel Switch For Led Light Lamp Fan ON OFF
Note:
The relay controller is RF Receivers ,the wall switch is RF only. Wall switch itself cannot control lights on off. It needs to work with rf receiver together.
Easy connect and multi control oneThe receiver is easy to install, Multi switches can control different receivers or one receivers
strong signal and Long distance controlControl the light in the room, even outside the room, The receiver can be remotely controlled up to 50 meters through a wireless switch and the signal can be controlled through the wall
Wide range of applicationProducts can be used in homes, farms, factories, offices, laboratories, supermarkets, and so on
Remote control Water pump \ Fan \ Lamp \ LED light \ bulb \ ventilation device\ Exhaust system, Kettle, water heaters \ Signal transmission \ Electrical equipment
\Factory Home Office Ventilation Pump LED Light
✨How to get the signalStep 1: Press the learning button(on the Receiver) twice. Wait for 3 seconds;
Step 2: Press one button on the remote control or wall panel. Wait for 3 seconds. Succeed.
How to clear the signal
Only one step: Press the learning button(on the Receiver) 8 times. Wait for 3 seconds;
Specification:

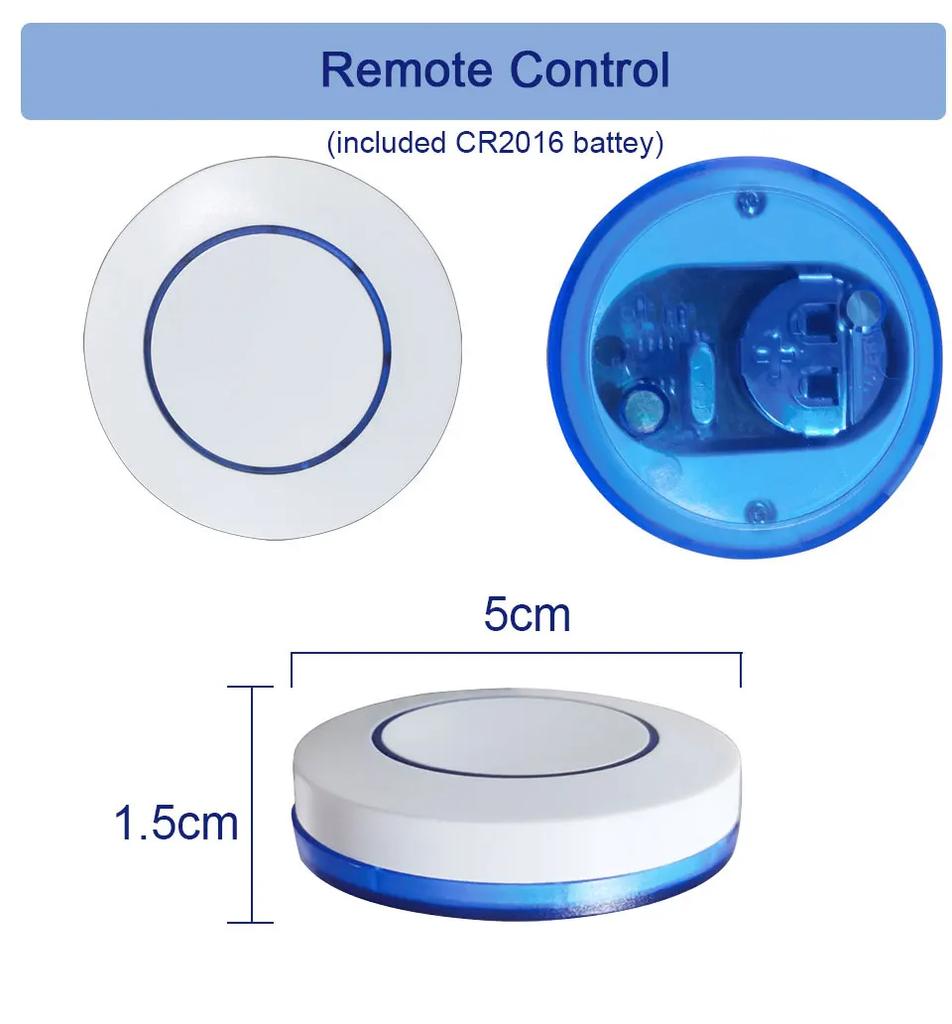

Transmitter (Remote) :
Operating frequency: 433MHz
Power by 2 Pcs 3V CR2016 Battery (Battery included )
Material: PVC;
Button: 2 buttons;
Size: 60mm x 30mm;
Operating voltage: 3V ;
Operating Current: 12mA;
Transmitting power: 10mw;
Modulation mode: ASK (AM).
Encoding type: Learning.
Transfers distance: 20 50m
Controller (Receiver) :
Input Power: AC90-250V 60HZ/50HZ
Max current: 10 A
RF Frequency: 433Mhz
Working temperature:-30 +80
RF working mode: superheterodyne
Receive sensitivity: >97dbm
Transmitting distance: more than 50 m ( open space)
Remote storage:20pcs
Support remote type: Learning code 1527code
Size: 47.4*42*22.8 (mm)
433MHZ wireless switch signals
How to get the signals
Step 1: Press the learning button(on the Receiver) twice . Wait for 3 seconds;
Step 2: Press one button on the remote control. Wait for 3 seconds. Succeed.
How to clear the signals
Only one step :Press the learning button(on the Receiver) 8 times.
