Features:
General Compatibility & Easy Installation: Designed with a standard modular structure and guide rail installation, this voltage monitor isuniversally compatible with ultra-wide voltage ranges, making it best for various industrial and commercial applications.

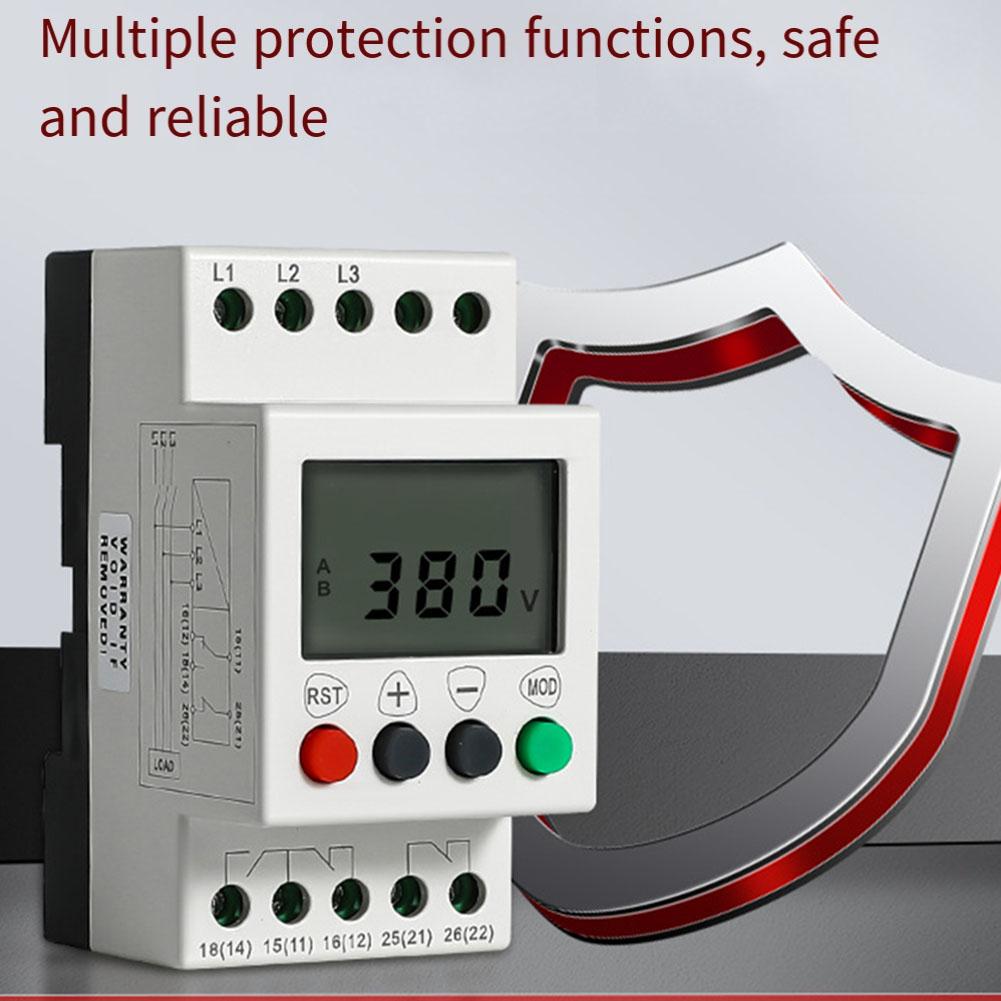

Comprehensive Three-Phase Protection: Specifically built for three-phase four-wire systems, it provides real-time monitoring of overvoltage, undervoltage, voltage imbalance, phase errors, and phase loss,guaranteeoptimal electrical safety.

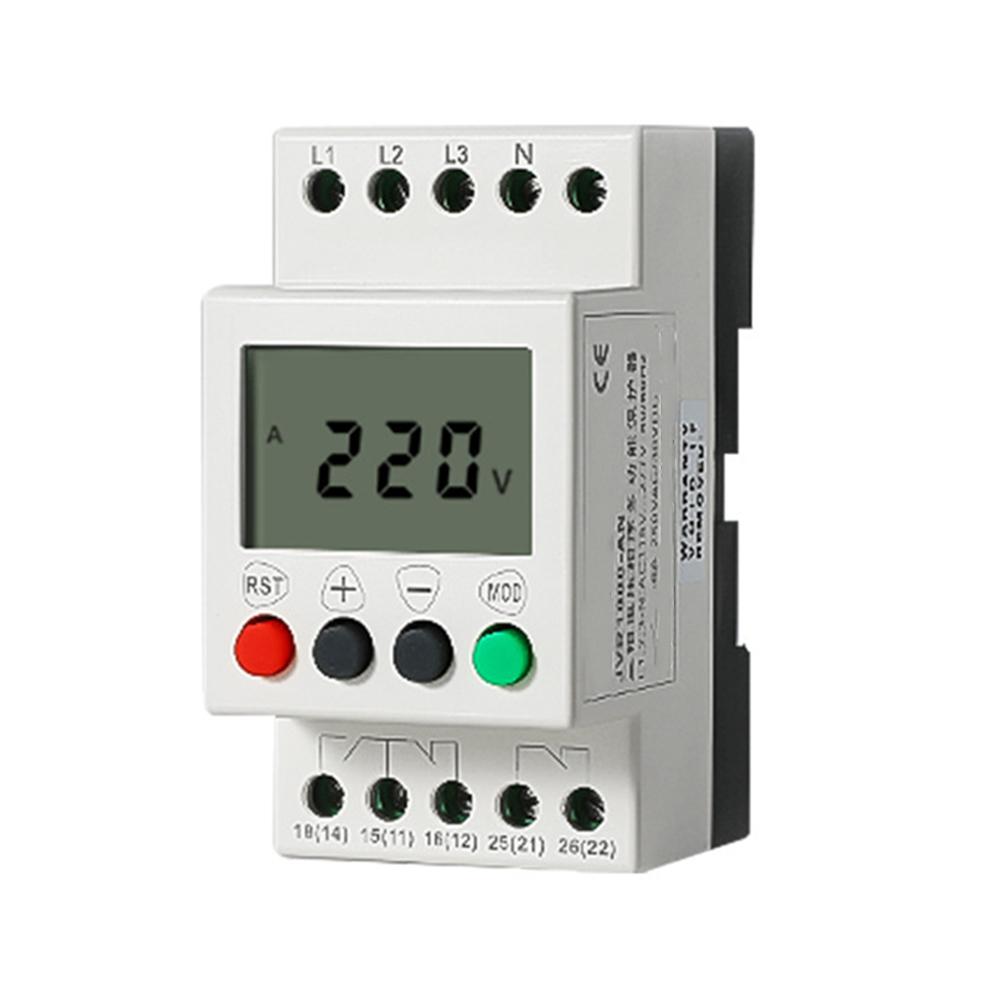

Smart LCD Display & Adjustable Settings: The clear LCD screen shows voltage values, fault status, and setting parameters. Customize protection thresholds (over/under voltage, unbalance) and delay times for tailored performance.
Dual Reset Modes & Advanced Functions: Choose between automatic or manual reset options. Additional features include power-on delay, output testing, and fault record storage for easy troubleshooting.
Self-Powered & Reliable Output: No auxiliary power needed—operates directly from the monitored supply. Includes 1 changeover + 1 normally closed contact for flexible integration into control systems.
Specification:

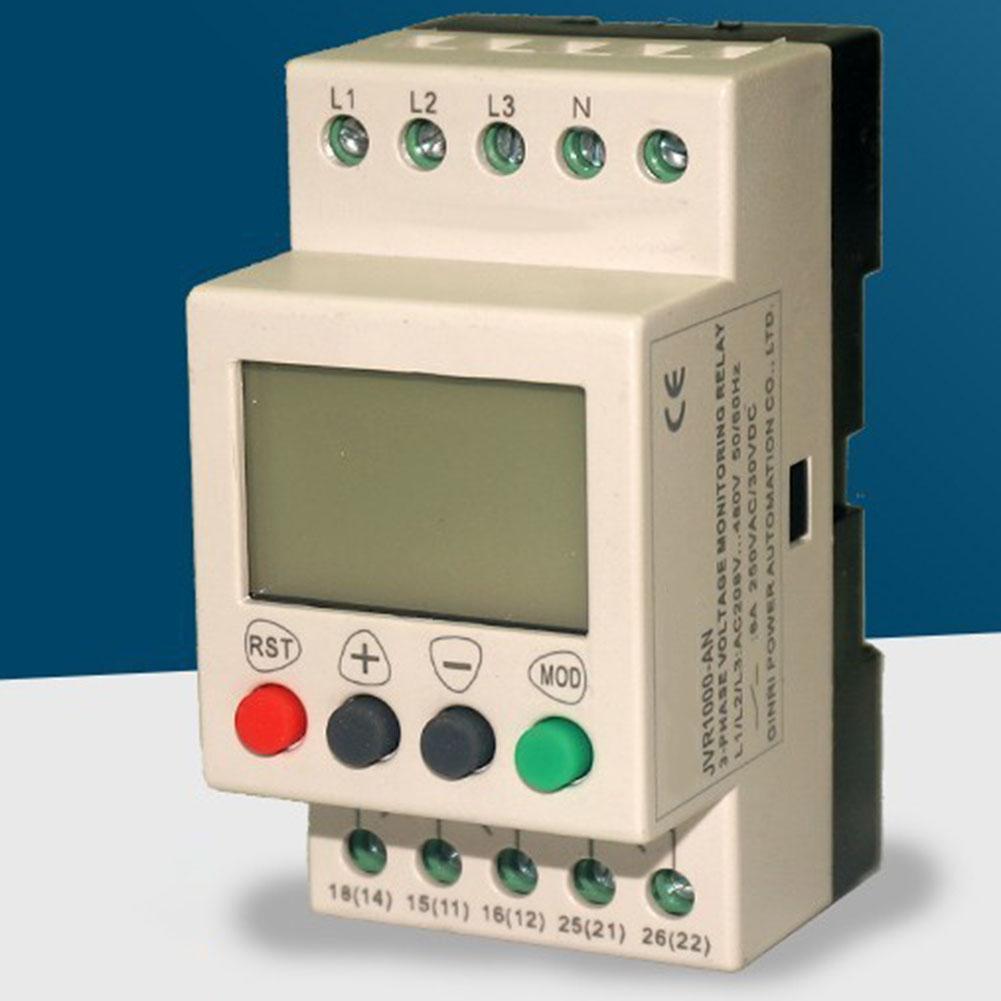

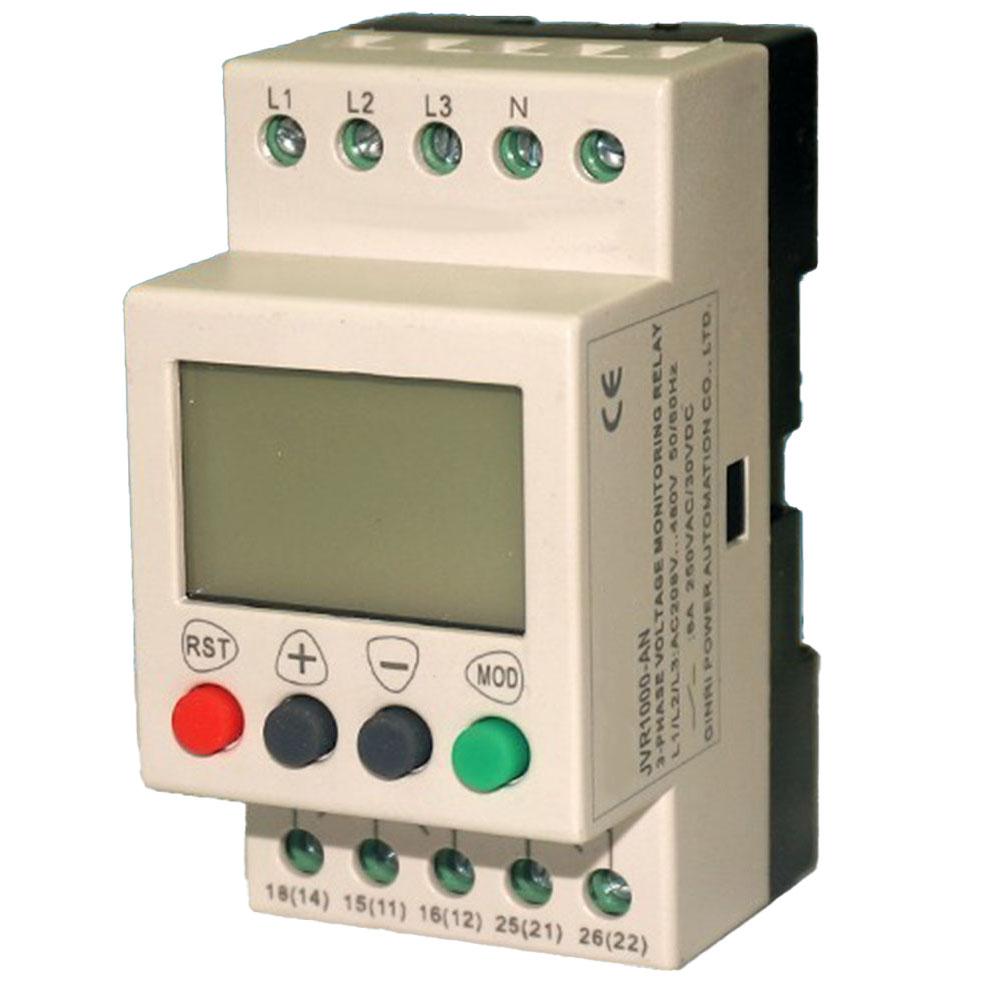

Part Name: Voltage Phase Sequences Protector
Material: Flame retardant materials
Color: As shown
Model: JVR1000-AN
Monitoring circuit: L1, L2, L3, N
Rated voltage (phase voltage): 115~277VAC, 50/60Hz
Protection functions: overvoltage, undervoltage, voltage imbalance, phase error, phase loss, neutral line disconnection
Overvoltage adjustment range (phase voltage): 80-330V
Undervoltage adjustment range (phase voltage): 80-330V
Over and under voltage recovery hysteresis: 1-20V
Over and under voltage Actions time: 0.1-999s
Imbalance rate: 1-50%
Unbalanced hysteresis: 1-10%
Unbalanced delay: 0.1-999s
Phase loss Actions time: 0.1-30s
Out-of-phase Actions time: 0.1-30s
Power on delay: 0-999s
Reset mode: automatic/manual
Reset delay: 0.1-999s
Display mode: LCD displays each Actions status
Contact form: 1 set of normally open and normally closed contacts, 1 set of normally closed contacts
Contact capacity: 6A 250VAC (resistive)
Size: 80×43×54mm

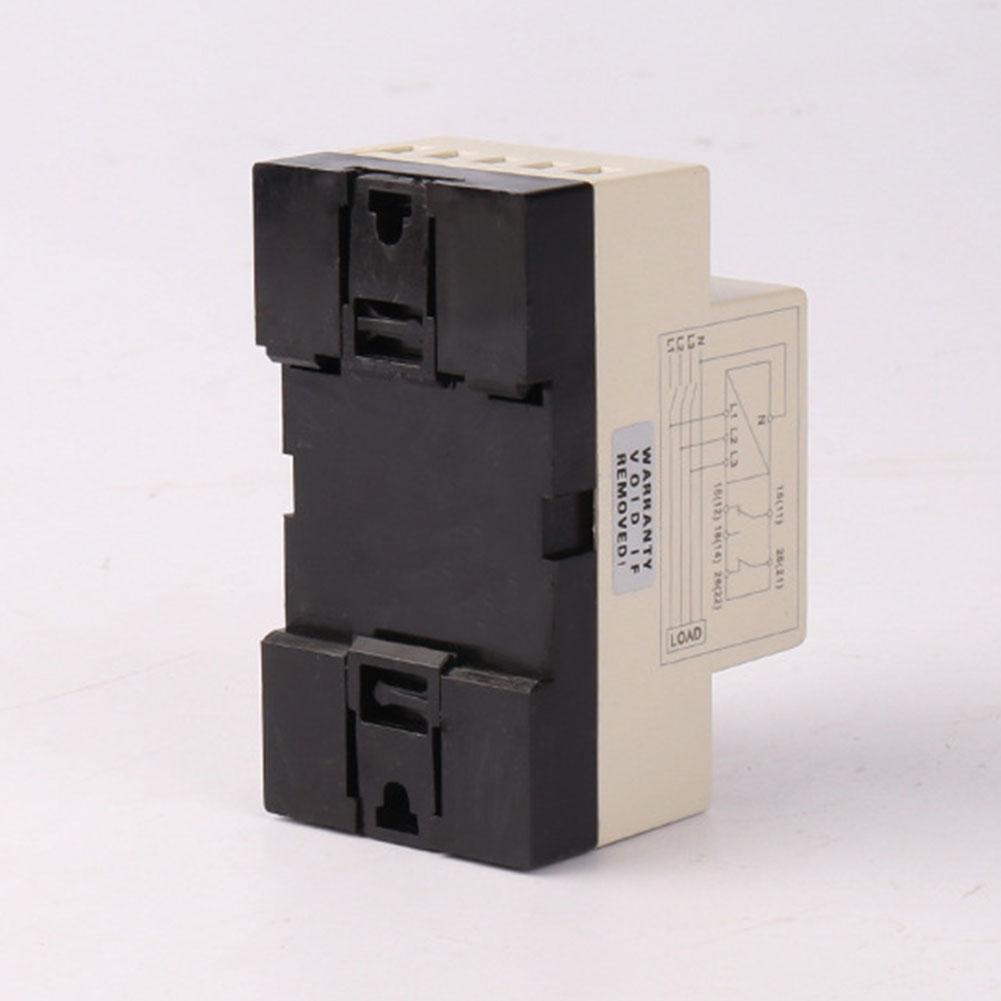

Installation : 35mm guide rail
Package Contents:
1*Voltage Phase Sequences Protector
Notes:
1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2. Please allow slight manual measurement deviation for the data.
