[Amon Online Exclusive] LED Footlight Kit for Front Seats (White) for Mazda Axela (BM/BYE) WK776

*Please Read Before Purchasing* ▼This kit cannot be installed on vehicles equipped with dealer options or aftermarket products with interior lighting functions, such as rear seat monitors or air purifying room lamps, as they may not function properly. ▼This kit is not compatible with vehicles equipped with factory LED room lamps. ▼If using LEDs other than those included in this kit, please be aware of the available power. ▼In vehicles equipped with idle stop, the LEDs may flicker when the engine starts after the function is activated, but this does not indicate damage to the unit. ▼This kit cannot be installed on vehicles with Autopilot. ▼In vehicles equipped with i-stop, the i-stop function may temporarily stop functioning after installation.

[Product Features] ◆The footlights gently turn on and off in conjunction with door opening and closing. (The gently turning function can be turned on and off.) ◆The footlights turn on in conjunction with engine start. ・Two brightness settings (100%/30%). ◆The footlights turn on in conjunction with the parking lights. - 4 brightness settings (100%, 30%, 10%, 3%). ◆ Event Mode - 2 patterns (slow flashing, fast flashing) ◆ Battery Load Reduction (Auto-Off) - Automatically turns off if the door is left open for more than 10 minutes to reduce battery load. - Does not function during Event Mode. - Event Mode automatically switches to normal mode after up to 1 hour of continuous use.

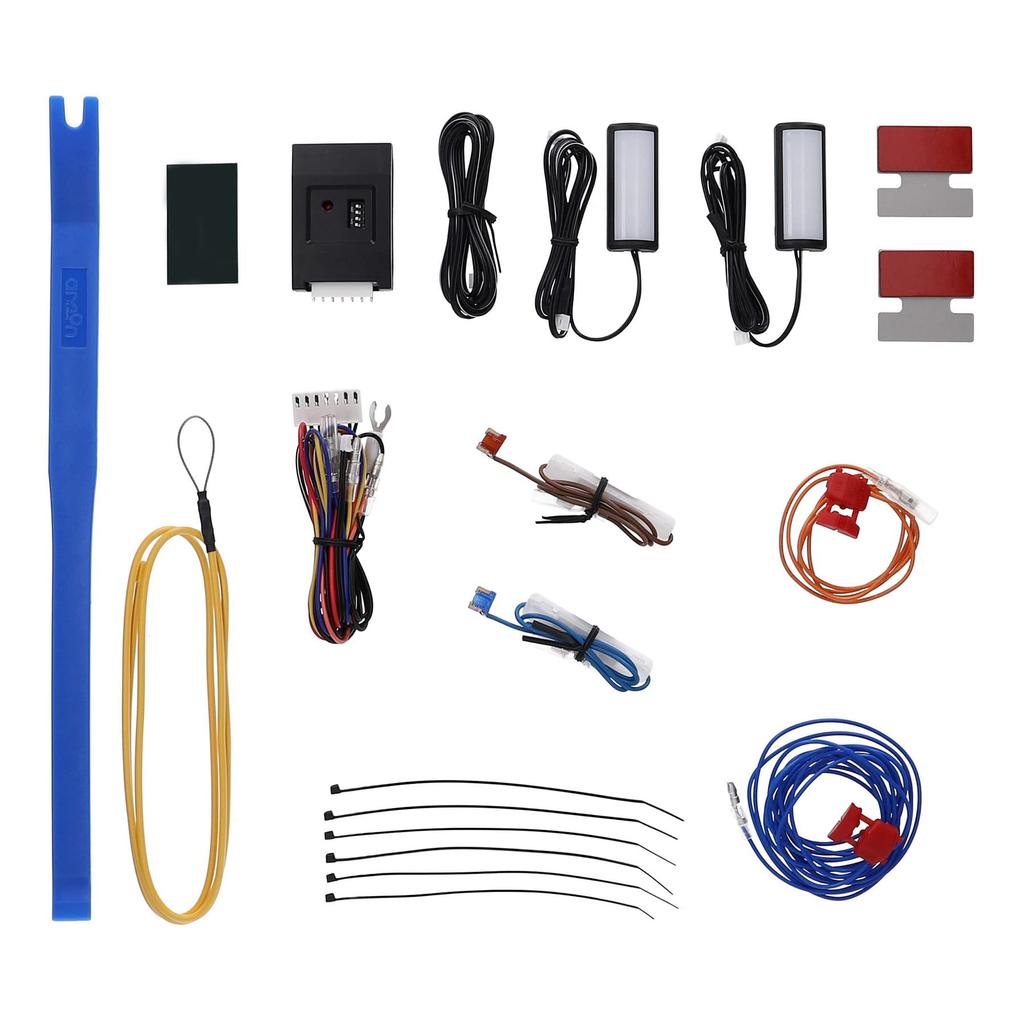

[Kit Contents] - LED Control Unit x 1 - Unit-Specific Harness x 1 - Double-Sided Tape x 1 - Dedicated 3-Flat LED x 2 - Extension Harness x 1 - LED Mounting Brackets x 2 - Fused Power Supply x 2 - Harness with Connector x 2 - Panel Remover x 1 - Wiring Guide x 1 - Wiring Bands x 6

[Product Specifications] ■ LED Control Unit - For 12V DC vehicles only - Output Current: 2A or less ■ Dedicated 3-Flat LED LED - For DC12V vehicles only - Current consumption: 60mA per unit - Cord: 0.2sq (equivalent) - 1m (length) ■ Dedicated harness - Black/White - Black (thin wire): 0.2sq (equivalent) - 50cm (length) - Yellow: 0.5sq (equivalent) - 50cm (length) - Red: 0.5sq (equivalent) - 50cm (length) - Black: 0.5sq (equivalent) - 1m (length) - Blue: 0.5sq (equivalent) - 50cm (length) - Orange: 0.5sq (equivalent) - 50cm (length) The lens cover specifications will be gradually changed. (The LED itself will remain the same.) Compatible models: Mazda Axela (BM/BYE) (November 2013 - May 2019) Functionality and practicality surpassing OEM. LED lights that add color to a variety of scenes. No special tools required. (Purchased only) DIY footlights that can be installed by watching the vehicle-specific installation video. The LEDs turn on and off softly with door (room lamp) connection.
