Description:
- 【High Precision Signal Generation】: Features the precision function signal generator, capable of producing sine, triangle, and square waveforms with excellent accuracy and stability
- 【 Material】: Constructed from PC material, this Function Signal Generator Kit ensures long term durability and resistance to wear and tear during assembly and use
- 【Compact Design】: With dimensions of 10cmx12cm/3.94inchx4.72inch, this signal generator is compact yet efficient, making it an ideal choice for hobbyists and professionals
- 【Package】: The package includes a high precision function signal generator along with shell , providing both functionality and protection
- 【Ideal for DIY Enthusiasts】: for electronics enthusiasts who enjoy building their own equipment, delivering performance in signal generation tasks
Specification:
- Voltage Supply: 9-12V DC Input
- Waveform: Square, Sine TriangleImpedance: 600 Ohm + 10%
- Frequency: 1Hz - 1MHz
- SINE WAVEAmplitude: 0 - 3V at 9V DC input
- Distortion: Less than 1% (at 1kHz)
- Flatness: +0.05dB 1Hz - 100kHz
- SQUARE WAVE Amplitude: 8V (no load) at 9V DC input
- : Less than 50ns (at 1kHz)
- Fall Time: Less than 30ns (at 1kHz)
- Symmetry: Less than 5% (at 1kHz)
- TRIANGLE WAVEAmplitude: 0 - 3V at 9V DC input
- Linearity: Less than 1% (up to 100kHz) 10mA

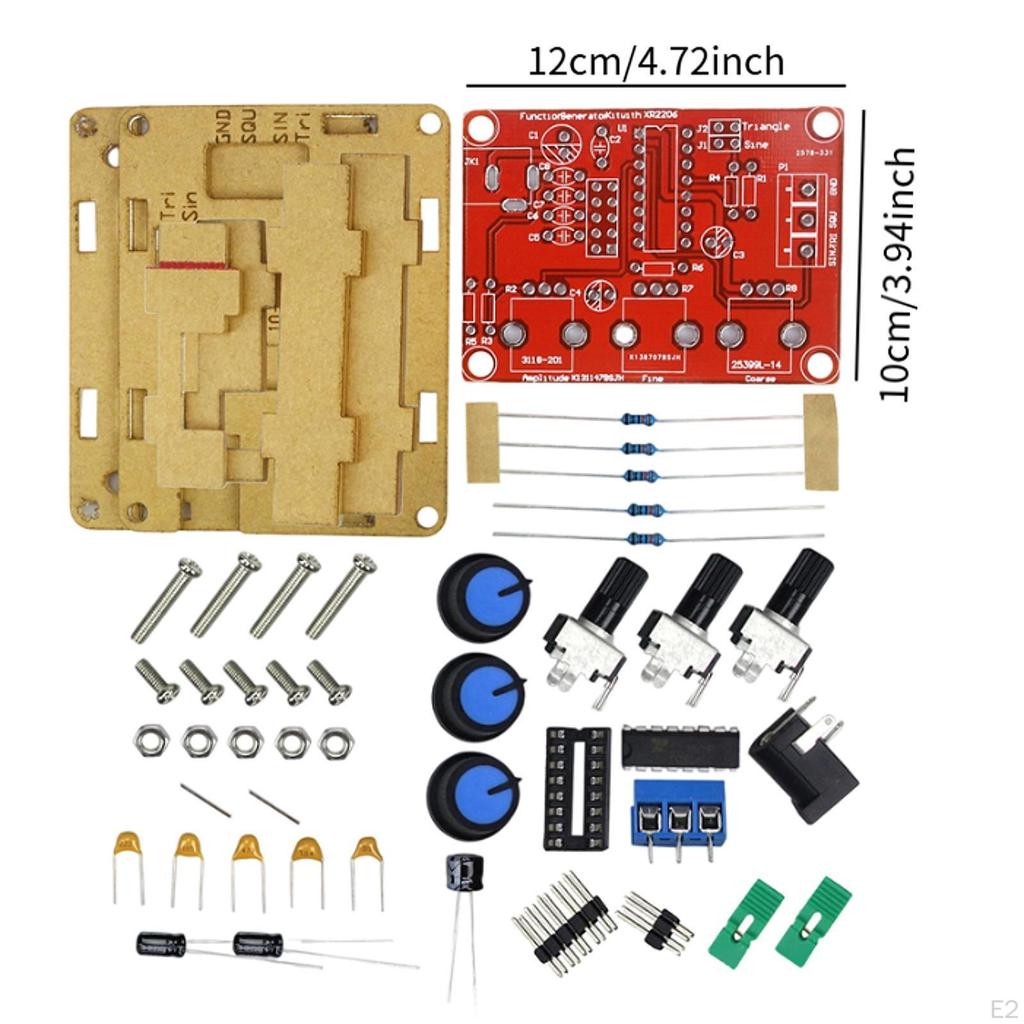

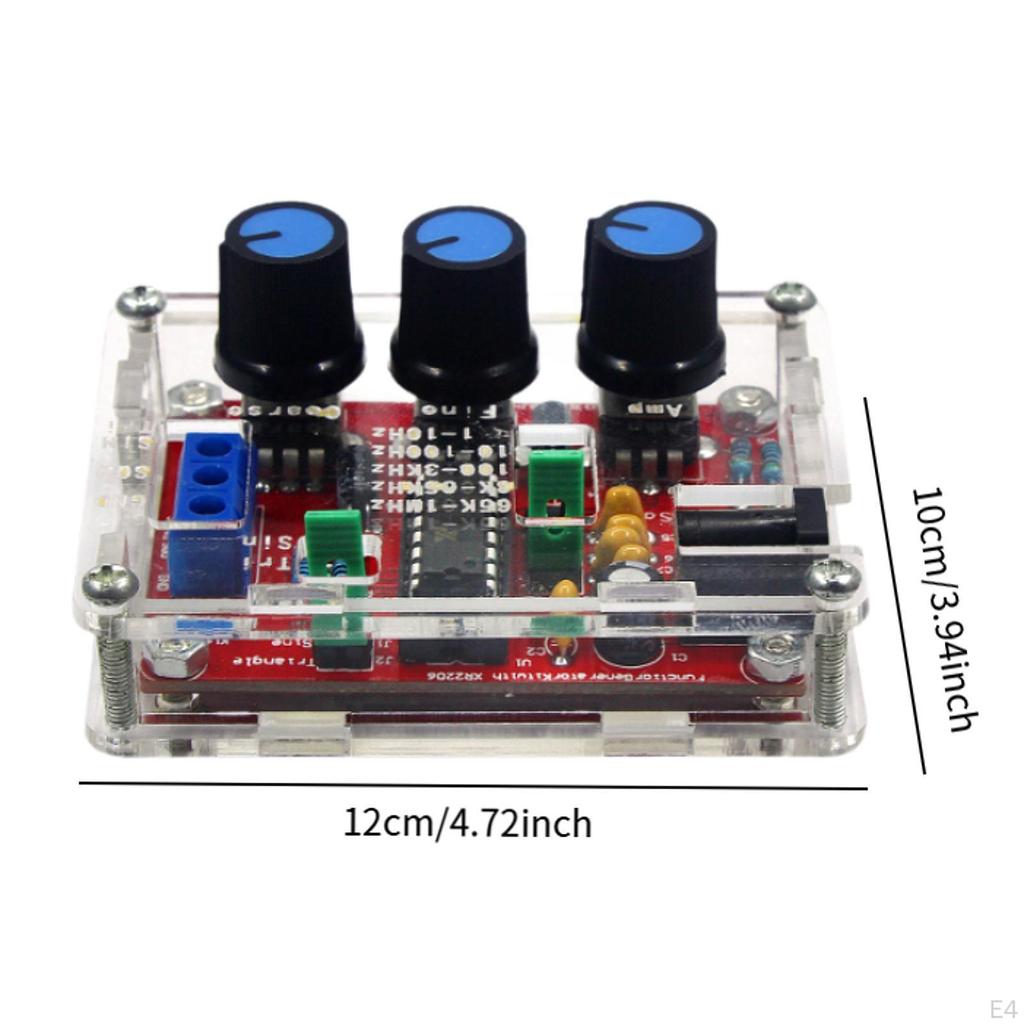

Size Chart:
10cmx12cm/3.94inchx4.72inch
Package Includes:
1 Function Signal Generator Set
