High-Quality Components Supporting Up to 5A Current: Constructed from premium materials, this module supports a high current output of up to 5 amperes. It efficiently reduces input direct current voltage to the desired level, meeting the power requirements of diverse devices while maintaining stable and efficient operation under load.
Dual Working Modes for Enhanced Safety: This power module features both constant voltage (CV) and constant current (CC) modes, ensuring stable voltage output while effectively limiting current. This dual protection safeguards your load equipment and the module itself from damage, providing reliable performance in sensitive electronic applications.
Adjustable Output Voltage with Precision Control: Equipped with a high-precision potentiometer, the output voltage can be continuously adjusted within a specific range. This allows users to set exact voltage levels easily, making the module highly adaptable for various electronic projects and devices requiring customized power supply settings.
Robust Circuit Design with Protective Features: The module boasts a stable circuit design that minimizes output ripple and includes input reverse connection protection. Its rugged PCB board construction ensures durability and ease of integration into DIY projects, test setups, or system power supplies without compromising reliability.
Ideal for Electronics Enthusiasts and Professionals: Designed for engineers, students, and hobbyists alike, this versatile power module is perfect for powering various electronic experiments and projects. Its flexibility and safety features make it an essential tool for developing, testing, and troubleshooting electronic circuits.
Description:
This power module features dual working modes: constant voltage (CV) and constant current (CC), ensuring stable voltage output while effectively limiting current for enhanced safety of both your load equipment and the module itself.
The output voltage is continuously adjustable within a specific range, allowing precise settings through a high-precision potentiometer to suit various electronic projects and devices.
Constructed with high-quality components, it supports up to 5A high current output, efficiently reducing input direct current voltage to your required level. Its stable circuit design minimizes output ripple and includes input reverse connection protection.
The rugged PCB board design facilitates easy integration into DIY projects, test equipment, or system power supplies. Ideal for electronic enthusiasts, engineers, and students seeking reliable power solutions.

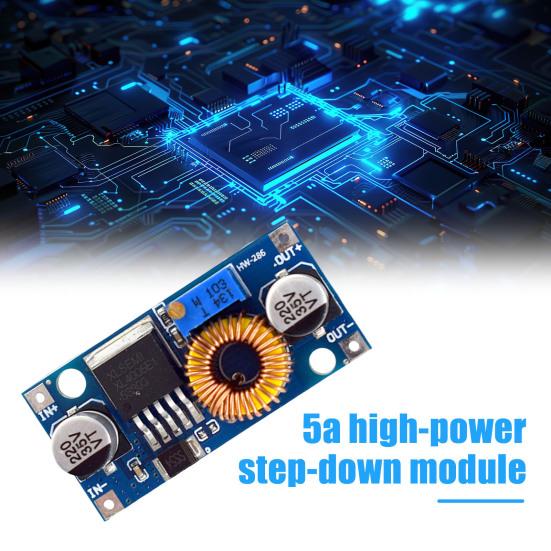

Item Name: Power Module
Material: PCB
Module Nature: Non-isolated Step-down
Rectification Method: Non-synchronous Rectification
Input Voltage: 5V-32V
Output Voltage: 0.8V-24V
Output Current: Peak 5A (Heat Dissipation Should Be Strengthened for Work Above 3.5A)
Conversion Efficiency: Up to 90%
Switching Frequency: 300KHz
Output Ripple: 30mV (No Load)
Load Regulation Rate: +/-0.5%
Voltage Regulation: +/-2.5%
Working Temperature: -40 to +85 Degrees Celsius
Features: High Performance, Adjustable, Universal
Size Details:
4.3cm x 2.1cm x 1.4cm(Approx.)
Notes:
Due to the light and screen setting difference, the item's color may be slightly different from the pictures.
Please allow slight dimension difference due to different manual measurement.
Package Includes:
1 x Power Module
