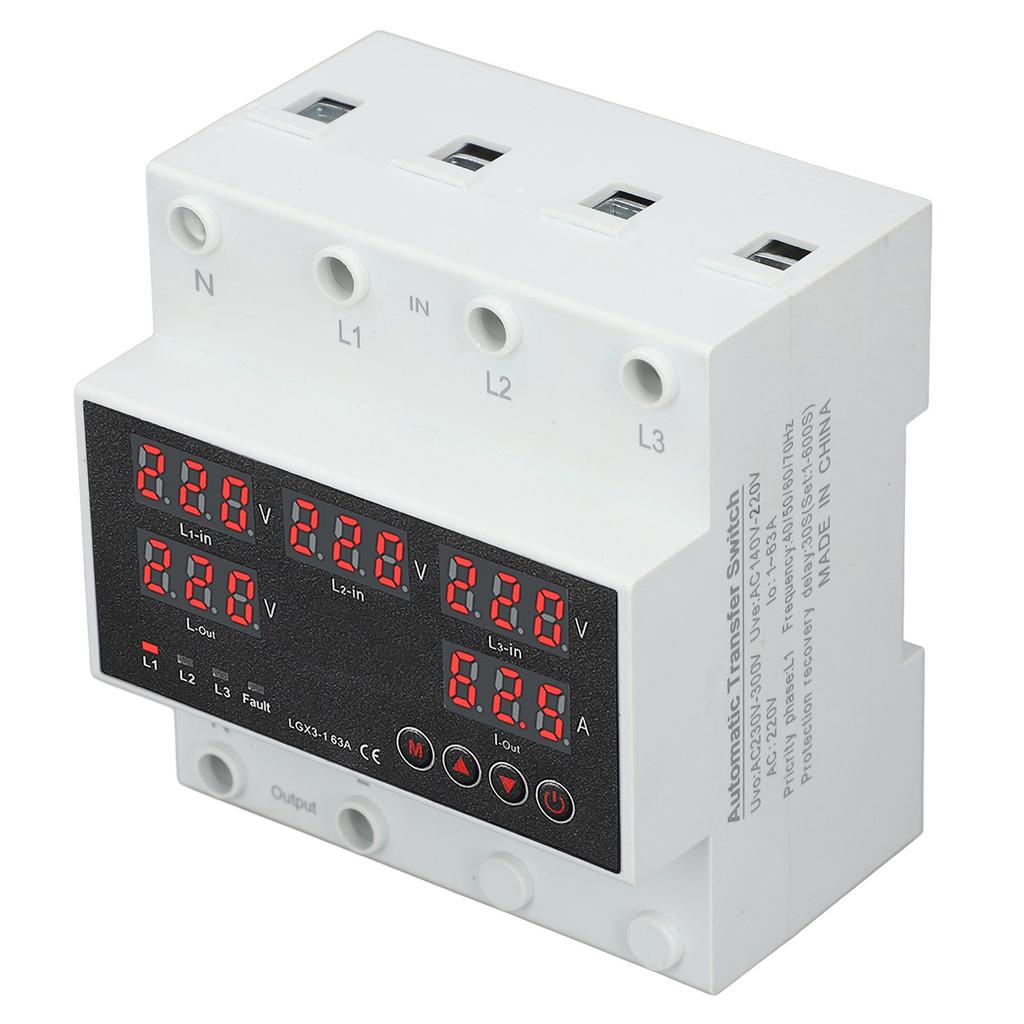

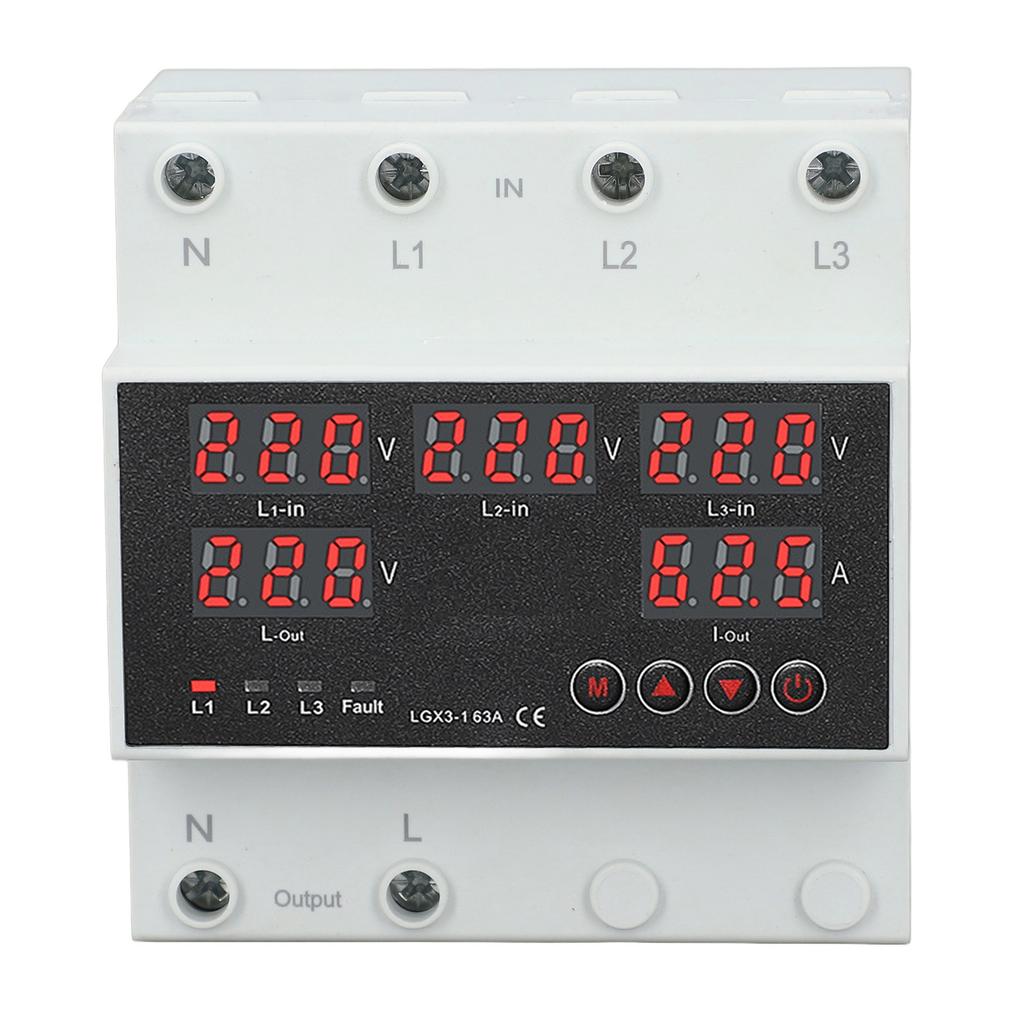

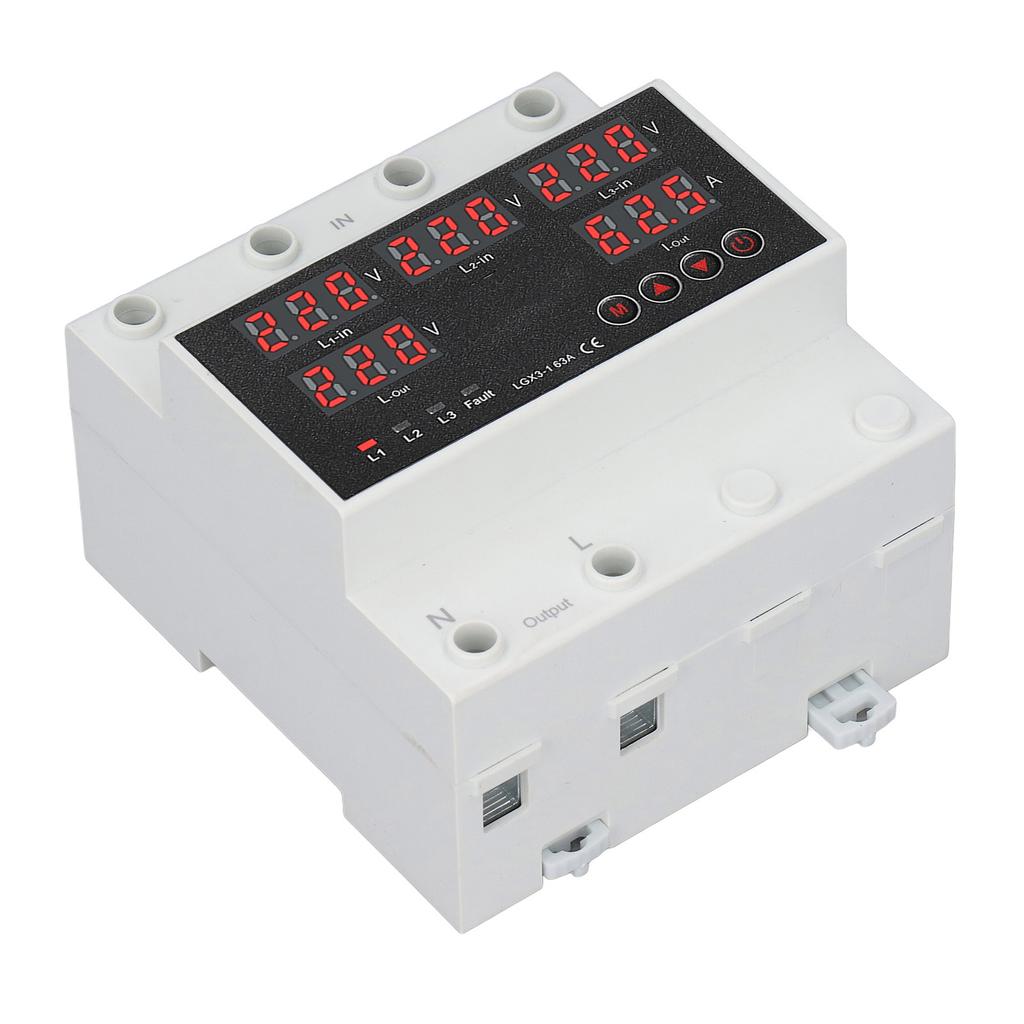

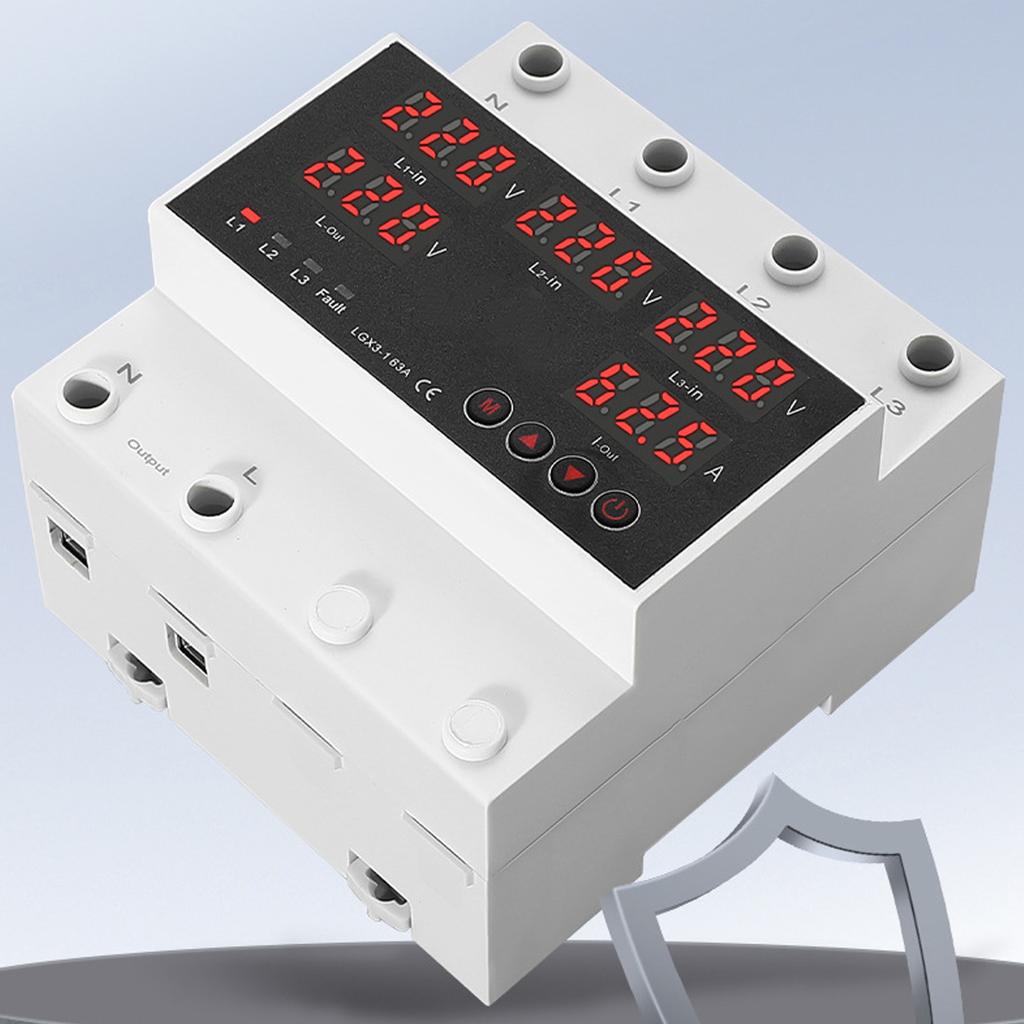

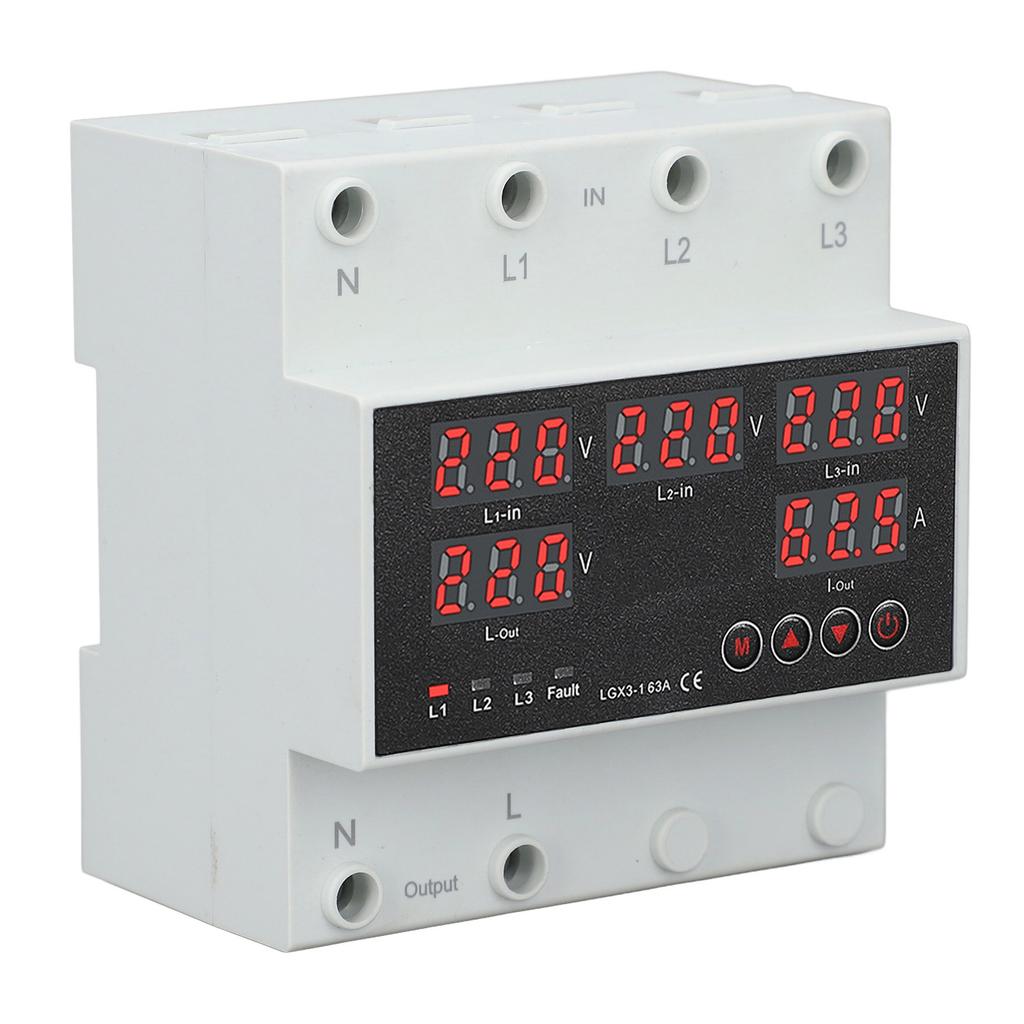

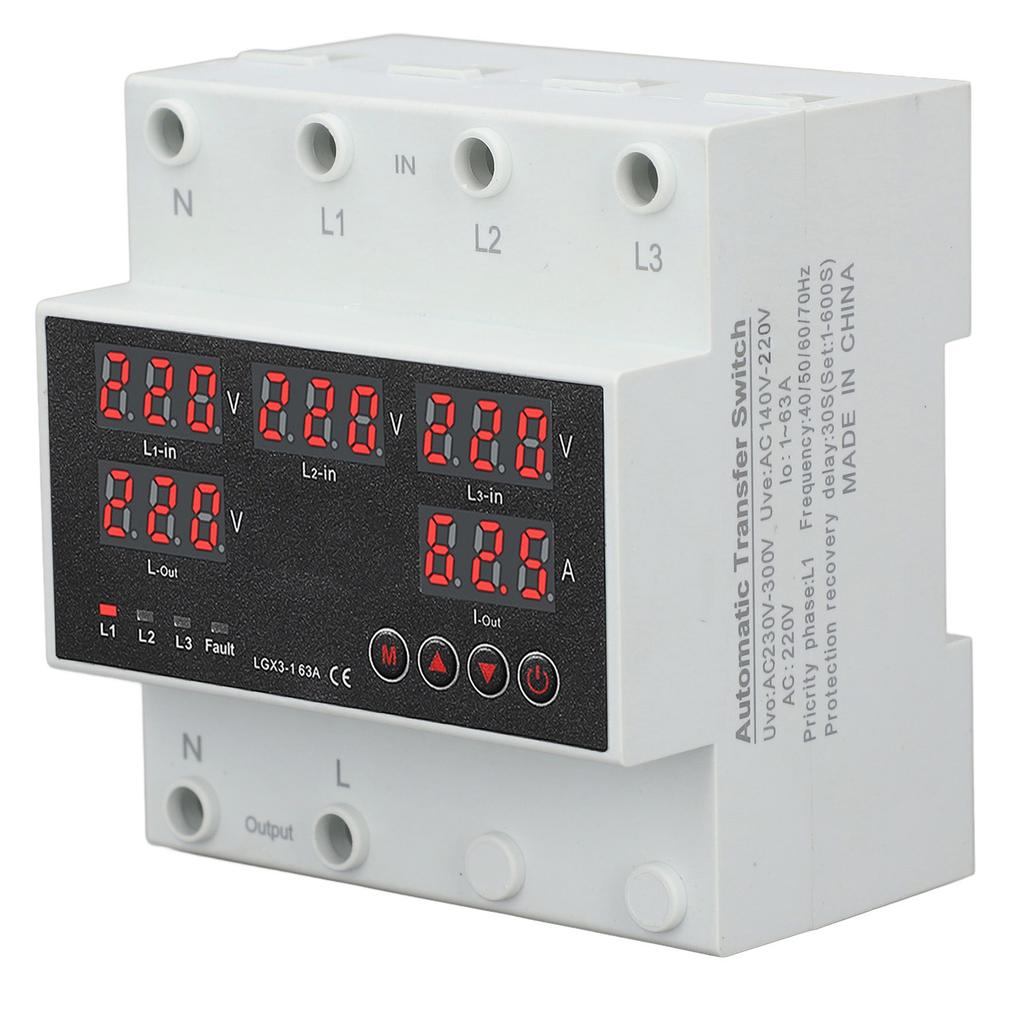

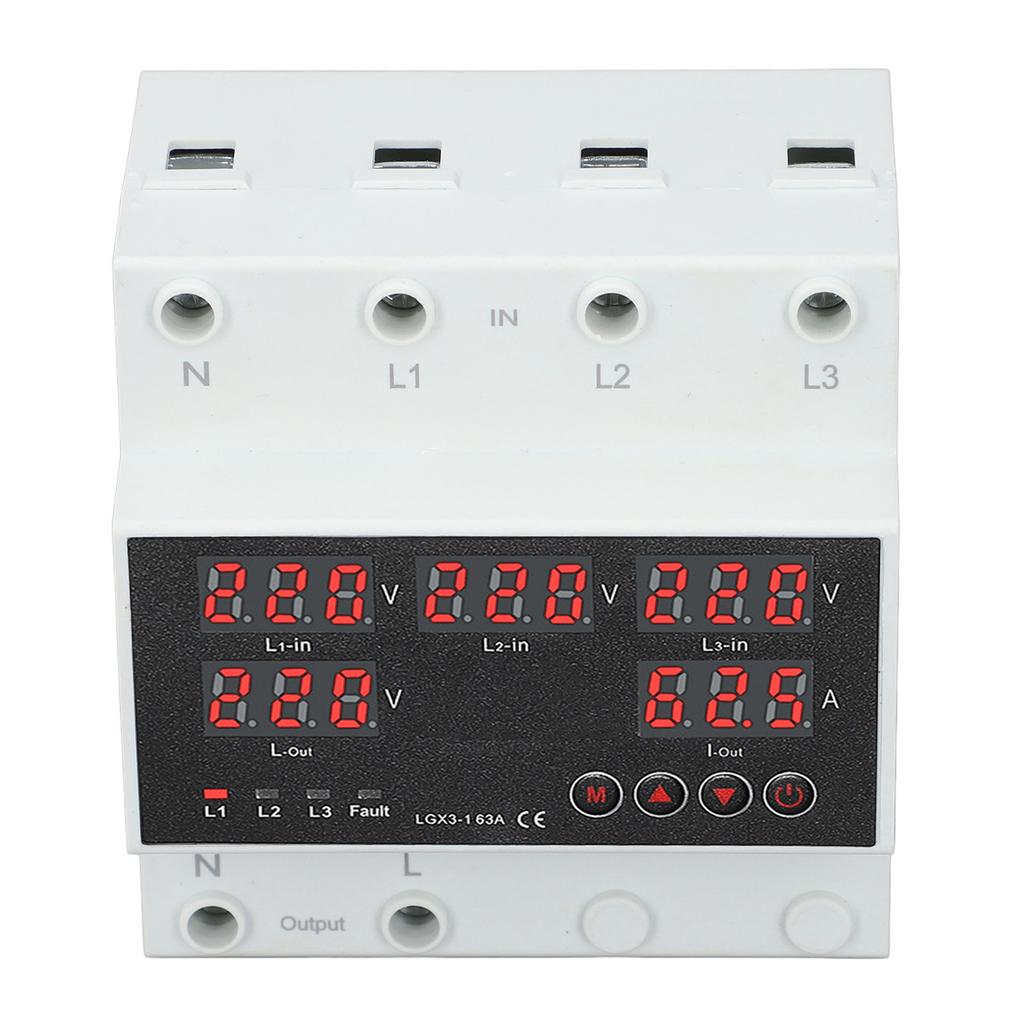

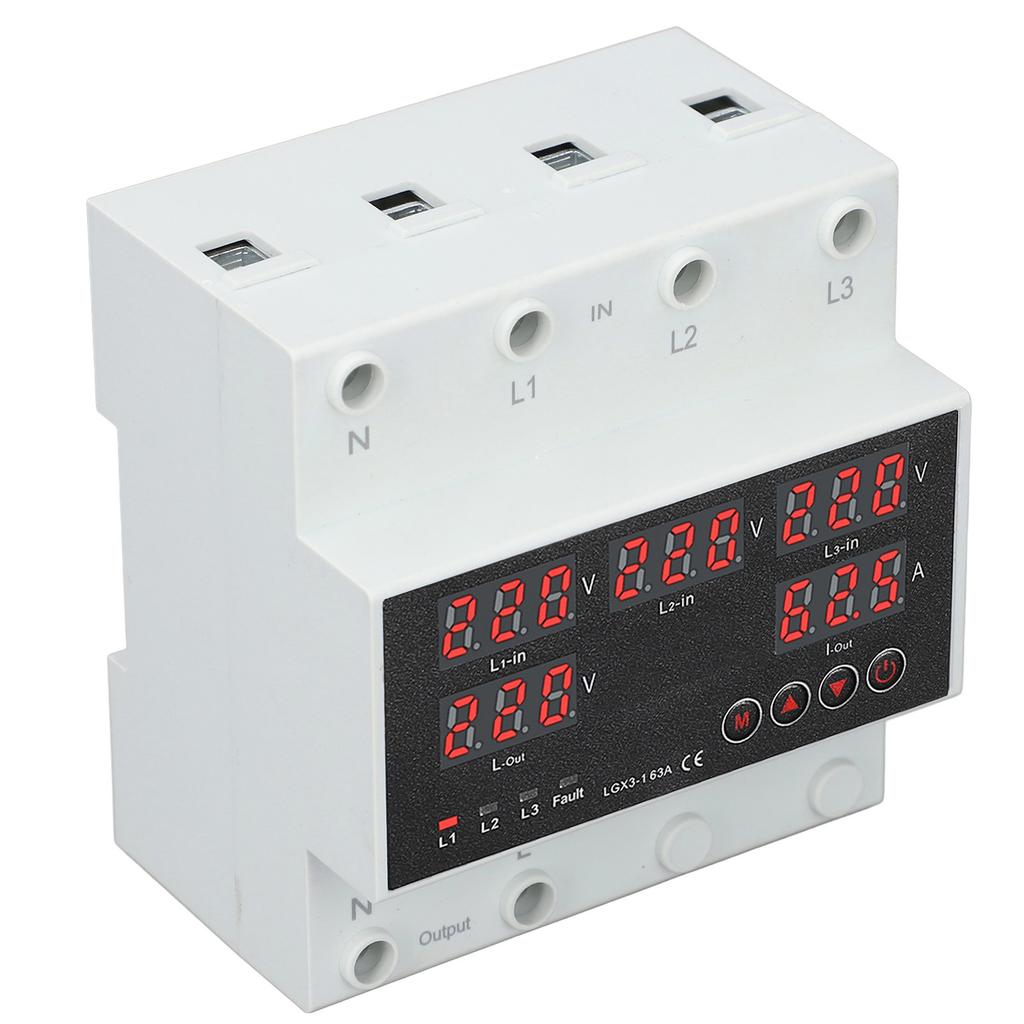

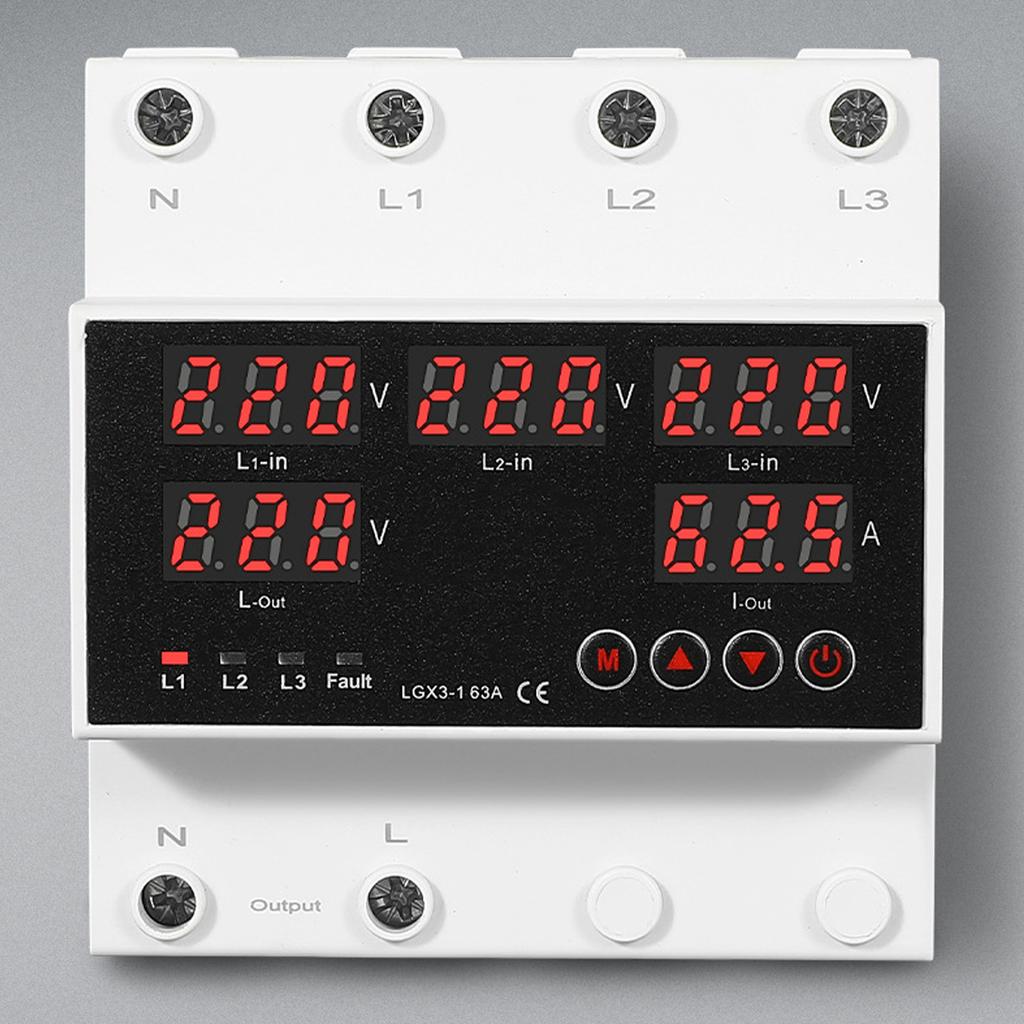

Automatic Transfer 63A 3P4W LED Display Voltage Protector for Home Generator Inverter

AUTOMATIC TRANSFER FUNCTION: When the main power supply fail or the voltage is abnormal, the ATS automatically transfer the load from the main power supply to the standby power supply to uninterrupted power supply. Priority is L1>L2>L3. ATS ing between the primary and backup power supplies, preventing power fluctuations or interference. After the main power supply recovers, the ATS automatically transfer the load back to the main power supply to a seamless system restart FLEXIBLE SETTINGS: This three phase automatic transfer enables you to freely prioritize mains power, generator, and inverter. You can set the voltage threshold for ing, so automatically when there is under voltage or over voltage. The speed can also be set within the range of 1s to 600s, with a default of 30s

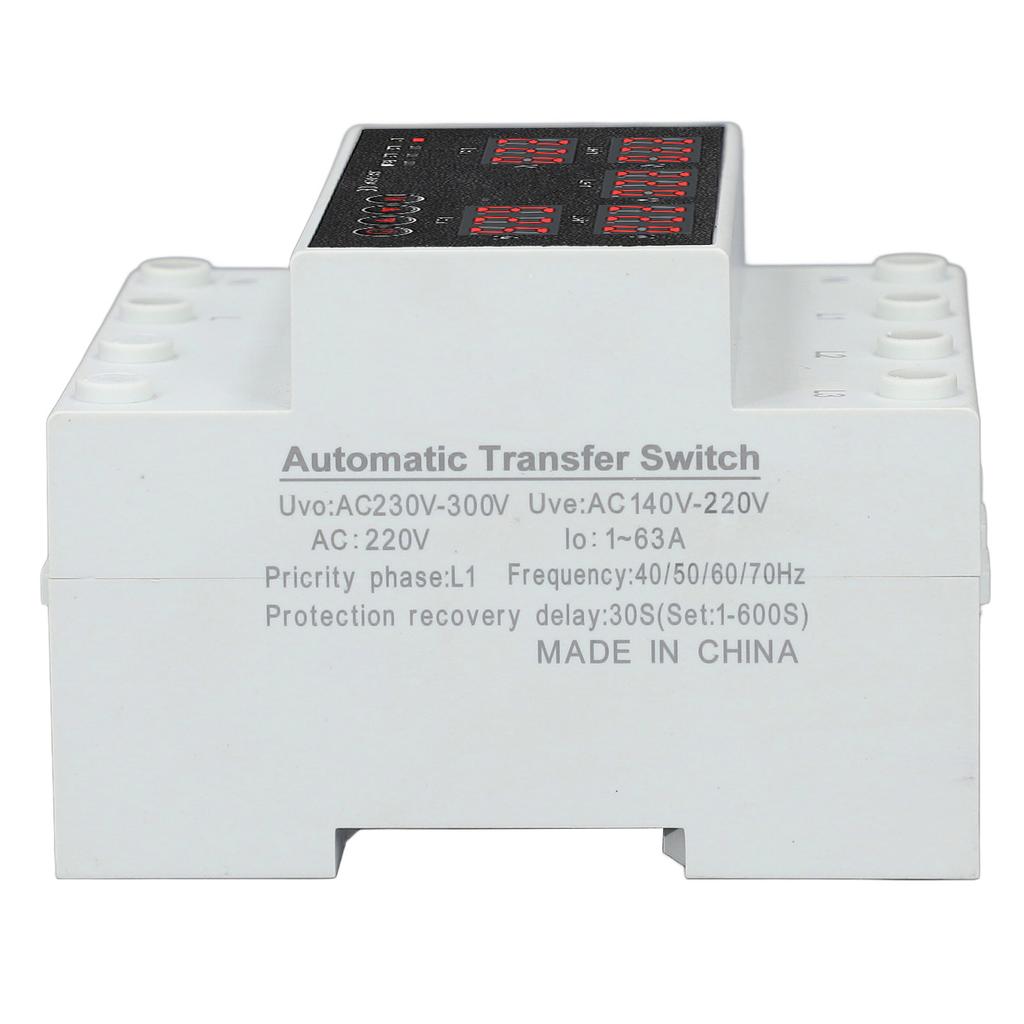

PARAMETERS: The transfer time, reset time, over under voltage , and overcurrent parameters are all within the specified range Item Type: Automatic Transfer Model: CHLT-GX3 Material: Flame retardant PC Power Terminals: N, L1, L2, L3 Auto Reclosing Delay(Ton): 1-600s Return Priority Stage Delay: 1-600s

Delay To Reserve Phase: Voltage Hysteresis: 5V Overvoltage Trip Delay: 0.1s; more than 350V: 0.02s Undervoltage Trip Delay: 0.1s; more than 350V: 0.02s Voltage Accuracy: Maximum Operating Phase Voltage: 350V Rated Operating Current: 63A Maximum Operating Current: 80A Pollution Degree: 3 Altitude: less than 2000m Operating Temperature: -25 celsius .+50 celsius Relative Humidity: less than 50% at 40 celsius (non condensing) Wire Size: 0.5mm²-1mm² Installation: 35mm standard mounting rail
