【Voltage Compatibility】
Our products are selected to support international voltage ranges (e.g. 100–240V).
However, please make sure your local voltage is compatible before use, as incorrect voltage may still cause malfunction.
【Plug Type】
Our products use Japanese plug types (A or B type).
Please use a conversion adapter if necessary.
【Important Note on Transformers and Adapters】
A transformer adjusts voltage to match your device’s requirements.
A conversion adapter only changes the plug shape and does not adjust voltage.
Using only a conversion adapter without a transformer may result in damage to the product.
【Liability】
We are not responsible for malfunctions or damages caused by improper use, such as operating the product without appropriate voltage or equipment.
---------------------------------------------------
Body size: 5.5*5*2.5cm; Remote control size: 3.6*3.6*1.2cm; Body weight: 45g; Compatible in-car cameras (CVBS signal): B07H3JJS3D, B07KQ8RMXC, B07LGBL3ZQ
Operating Voltage: Main Unit: DC12V, Remote Control: 3V (CR2032 button battery) Operating Current: Main Unit: 100-150mA Remote Control Usage Time: ＞ 10,000 Times Remote Control Effective Distance: ＞ 8m
Accessories: Box body *1, Remote control *1, RCA connector video cable *1, Power cable *1, 2.5m video extension cable *2, 6m video extension cable *1 (Japanese instruction manual will be sent electronically, so please check your email.)

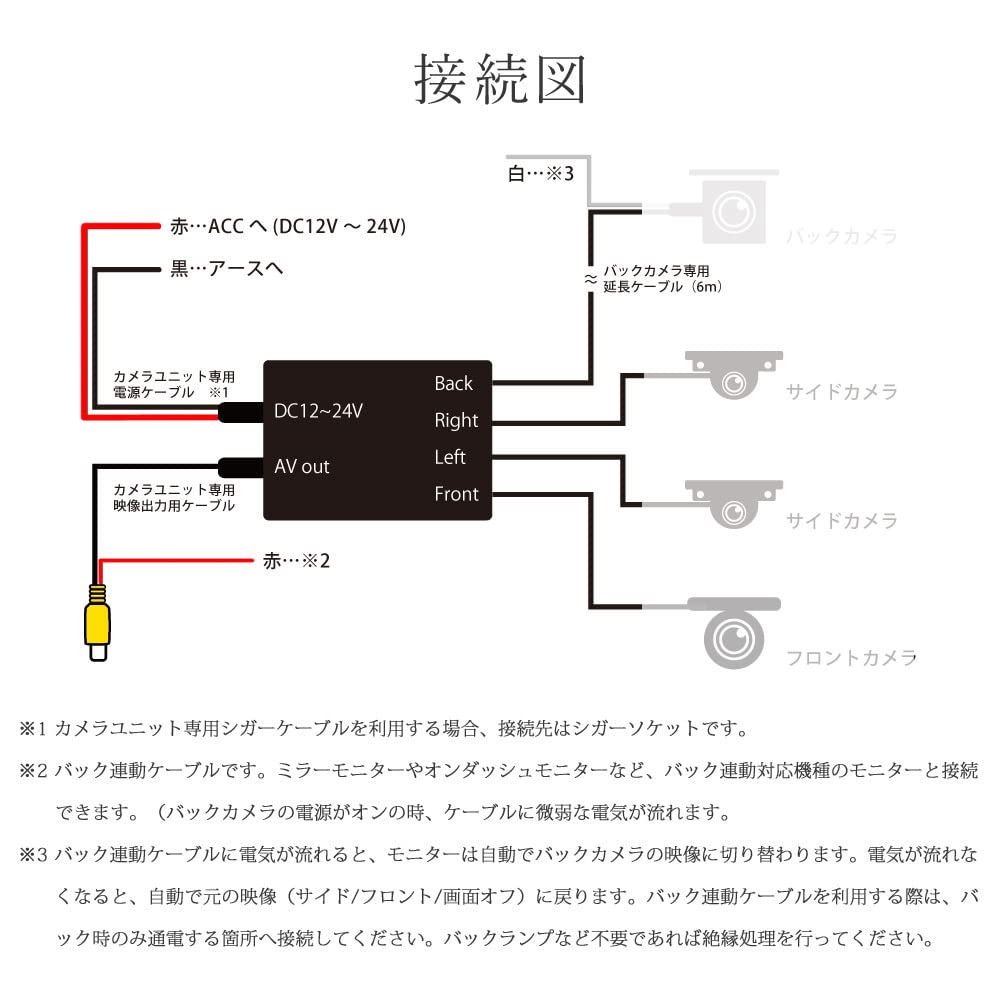

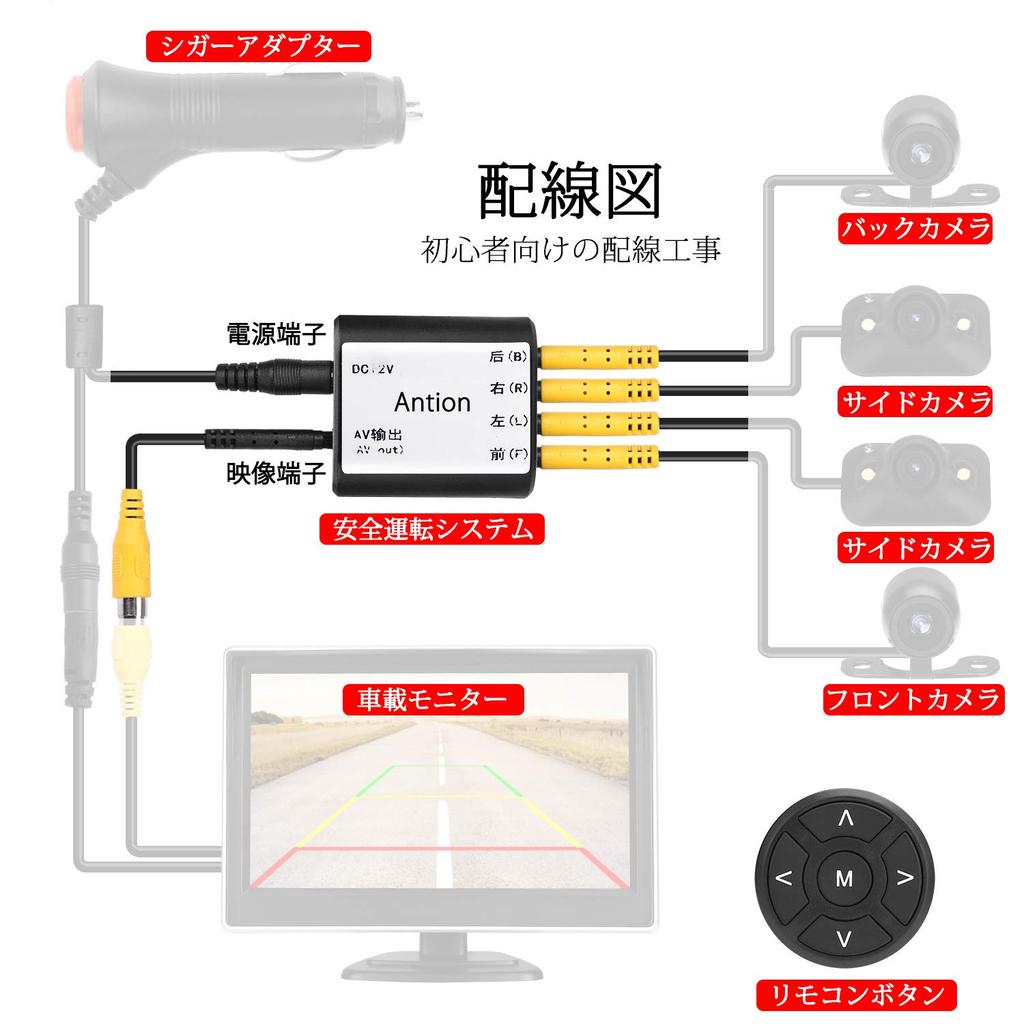

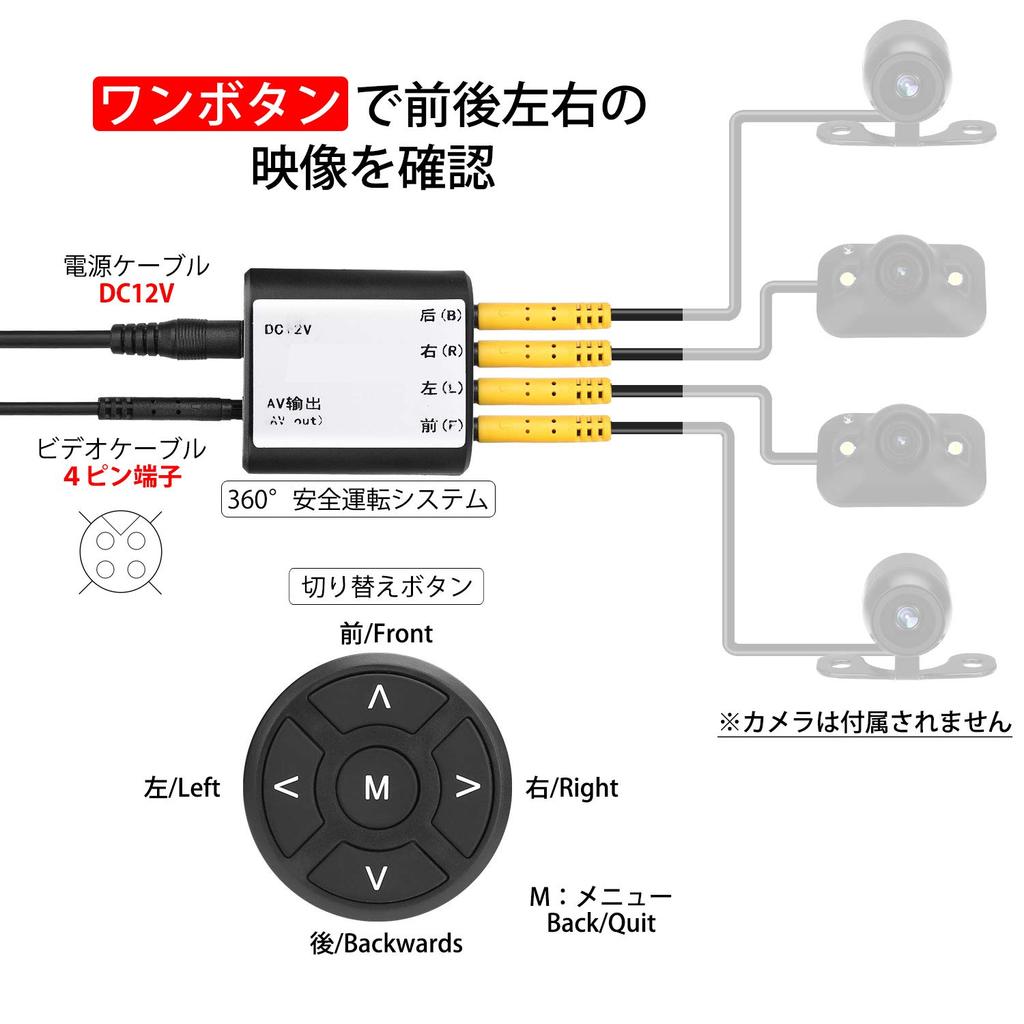

When the front camera, side camera, and rear camera are installed, you can call up the image from any camera by pressing the switch button.
Installation has been greatly simplified, making it easy even for beginners. We offer a 12-month warranty from the date of purchase and comprehensive after-sales service. If you have any problems with the product within the warranty period, please feel free to contact us at any time.

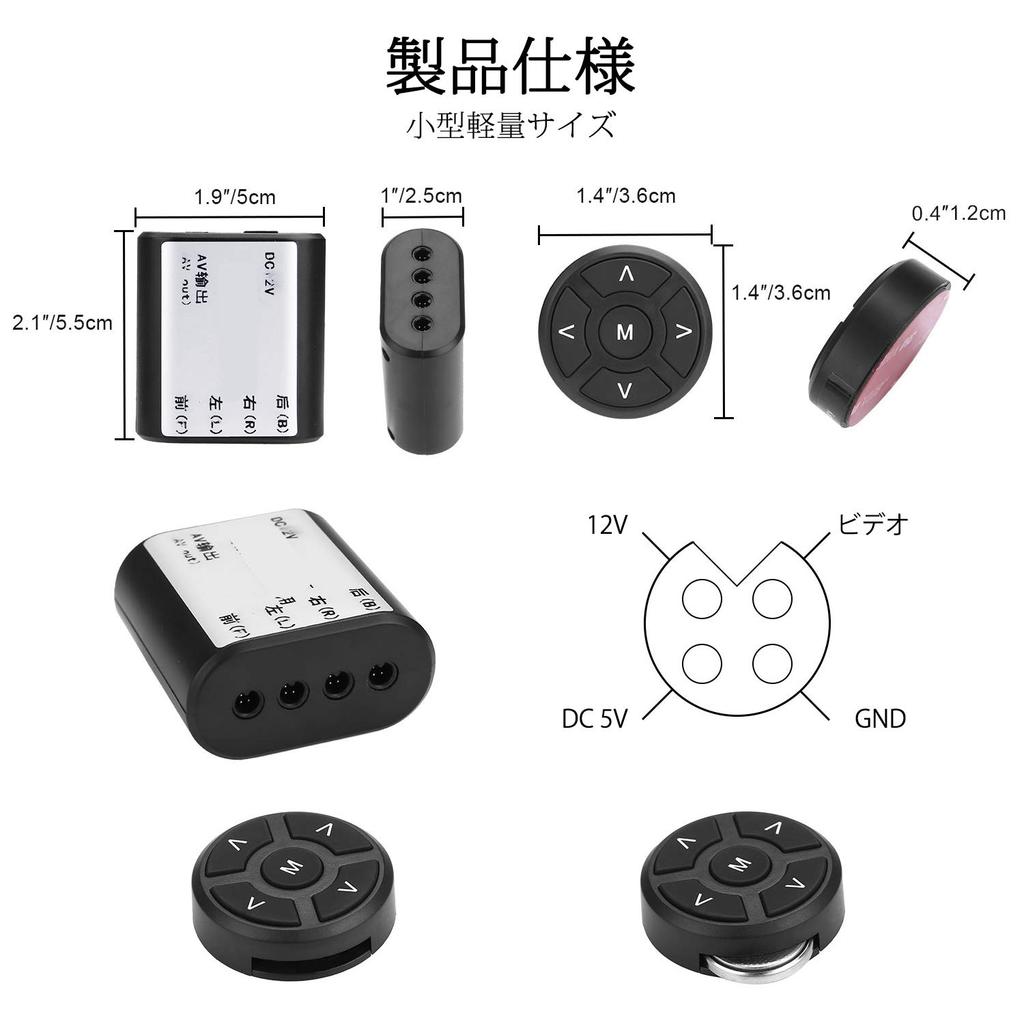

= Product specifications
Body size: 5.5*5*2.5cm Body weight: 45g
Remote control size: 3.6*3.6*1.2cm
Operating voltage: Main unit: DC 12V Remote control: 3V (CR2032 button battery)
・Operating current: Main unit: 100-150MA
Remote control usage time ＞ 10,000 times
Remote control effective distance: ＞ 8m
=Notes
1. Please note that this product (Antion Safe Driving System) does not come with an in-car monitor or cameras (front camera, side camera, rear camera).
2. When purchasing a camera compatible with this product, please check the definition of the connection terminal before purchasing the rear camera.
3. This product requires a DV12 power supply.
4. The signal types of the cameras and displays connected to this product must match. That is, the signal types of the input and output devices must be the same. The signals of the four cameras must also be the same. Otherwise, the screen may not display an image or the image may be abnormal. For example: AHD signal display + four AHD signal cameras, or CVBS signal display + four CVBS signal cameras.
