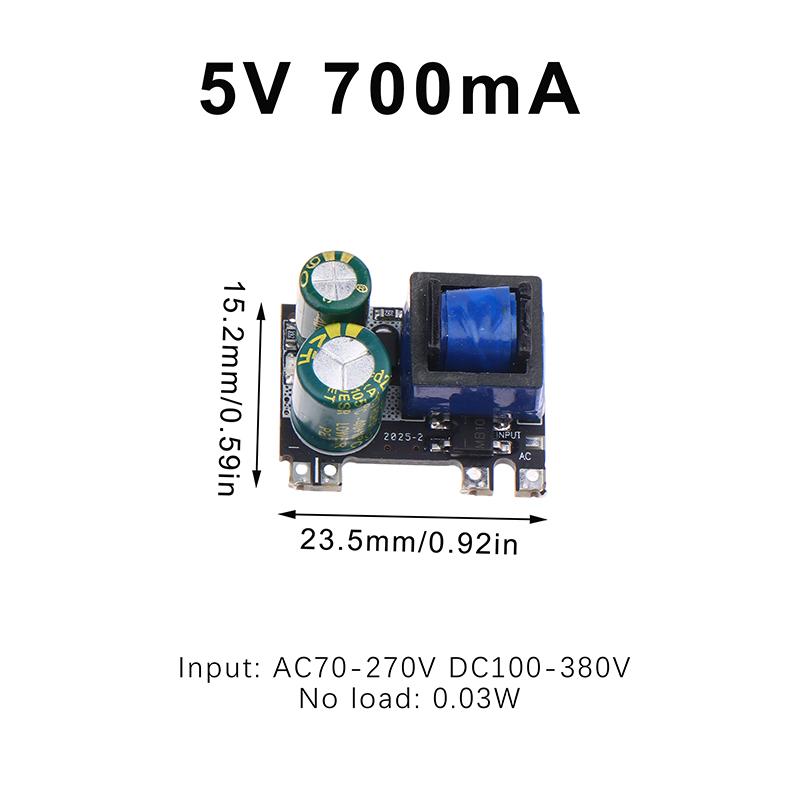

Model 1:
5V 700mA 3W:
1. Output indicator:Green
2. Total load power:<4W
3. No-load power:0.03W
4. Frequency range (Hz):47-63Hz
5. Operating temperature:-25-70°C (components maximum temperature resistance 105°C) (not recommended above 70°C)
6. Test resistance:7Ω (4.9V) to 5V
7. Output power:≥73-80;
Surge current (A) cold start:4A/230VAC
8. Input voltage range:AC70-270V, DC100-380V
9. Output current:5V-700mA, enters constant current mode after full charge
10. Output protection:overvoltage, overcurrent, overtemperature, short-circuit, etc. 11. Output Characteristics:Multiple voltage modules can be connected in parallel to meet low and high current requirements.
12. Output Voltage:5V ±0.15V at no-load and full-load, -0.1V at light load, rebound at heavy load, 50 load ripple of 60mV.
13. Operating Temperature (°C):13. Operating Humidity (RH):20-90, non-condensing.

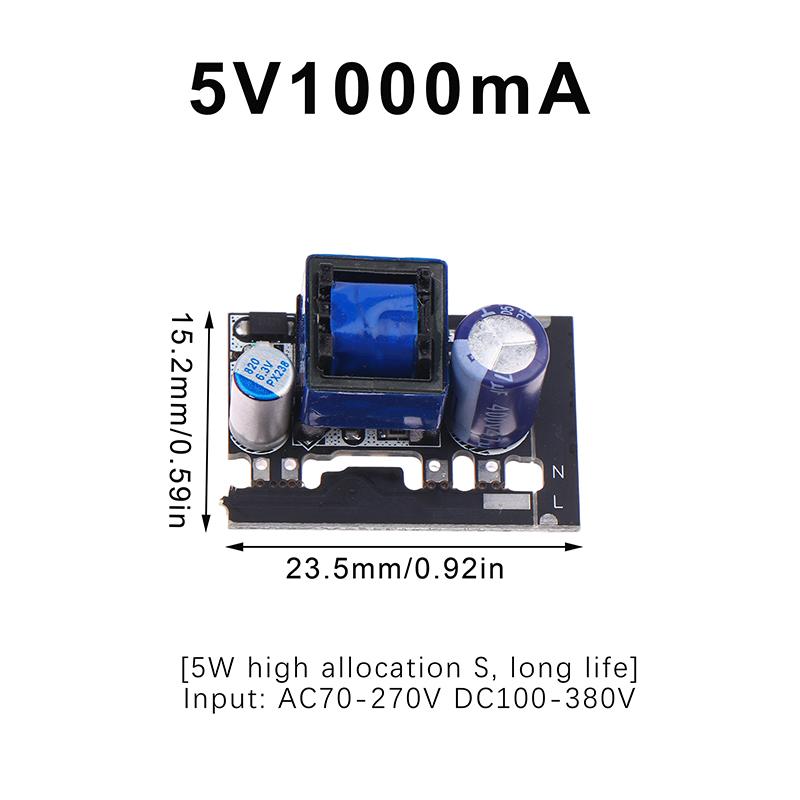

Model 2:
5V 1000mA 5W
Voltage Range:AC70-270V DC100-380V
Frequency Range (Hz):47-63Hz
Efficiency (TYP):≥73-80
No-Load Standby (mW):Micropower consumption 5V Less than or equal to35mW
Operating Temperature:-25-70°C (components with a maximum temperature resistance of 105°C) (not recommended for use above 70°C)
Surge Current (A) Cold Start:4A/230VAC
Output Protection:Overvoltage, overcurrent, overtemperature, short-circuit, etc. Output Characteristics:Multiple voltage modules can be connected in parallel to meet low and high current requirements.
Line Regulation:Full load ±1
Load Regulation:10-100 load ±3
Vibration Resistance:10-500Hz 2G 10 minutes/cycle, 10 minutes each for X, Y, and Z directions.

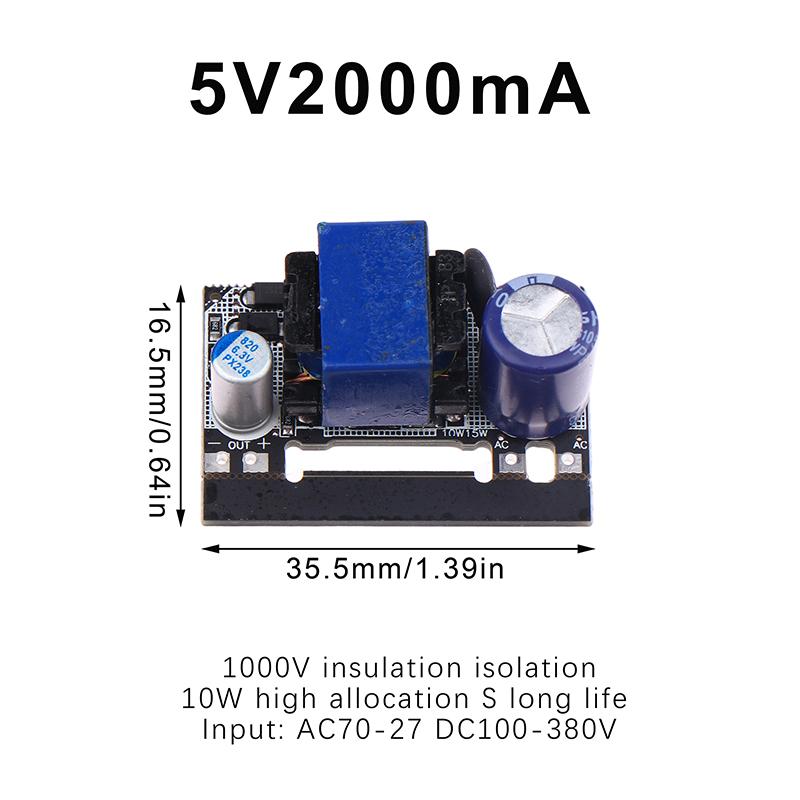

Model 3:
5V 2000mA 10W
Input:AC 70-277V, DC 100-380V
Frequency Range (Hz):47-63Hz
Input Current (A):0.12/115VAC/0.06/230VAC
Inrush Current (A):Cold Start:10A/230VAC
Efficiency (Typical):77-83
No-Load Standby Mode (MW):80 80mw
Rated Power (W):10W
Line Regulation:Total Load:±1
Load Regulation:10-100 Load:±3
Switching Frequency (kHz):0.8-65kHz (Inverter Control Chip)
Insulation Voltage (VAC):Output Test Input:60s 55mA = 1000V
Insulation Resistance (mΩ):Output Test Input:500VDC = 100Ω
Input Voltage:Long-Term Short-Circuit, Self-Recovery Short-Circuit Protection:Rated
Input Voltage:Full Load Constant Current M

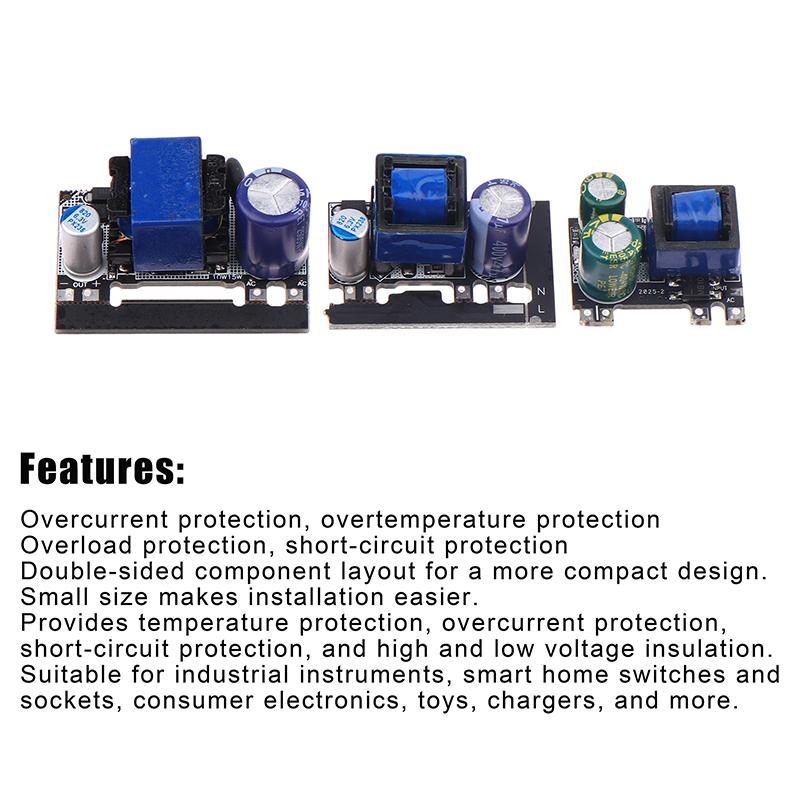

1.Overcurrent protection.
2.Overload protection.
3.The double-sided layout of components has a smaller volume. Small volume installation is more convenient.
4.Equipped with temperature protection, overcurrent protection, short circuit protection, and high and low voltage insulation functions.
5.Suitable for industrial instruments, smart home switch socket hosts, civil electronic products, toy products, chargers, and products.
Color:as the picture

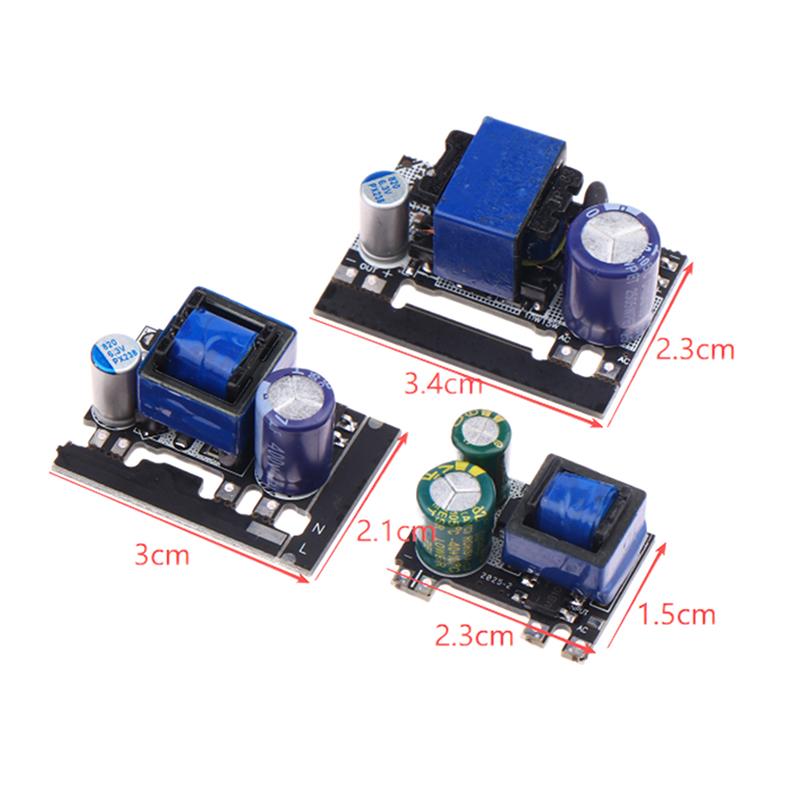

Size:as the picture
Package quantity:1Pc
Note:
Please allow 2-3 differences due to manual measurement. The above dimensions are for reference only.
As different computers display different colors, thank you for your understanding, the actual product color may be slightly different from the image.
