1. High sensitivity and clear sound quality: TEA5767 radio module adopts advanced digital signal processing technology, with high sensitivity and clear sound quality.
2. Support I2C bus control: TEA5767 supports I2C bus control, which can easily interface with various microcontrollers, which is convenient for users to carry out secondary development.
3. Automatic search function: TEA5767 is equipped with automatic search function, which can automatically search and store radio stations with valid signals, providing users with convenient use experience.
4. Compact size: TEA5767 adopts compact module design, which is easy to integrate into various small devices, such as portable radio, audio system, etc.
5. Low-power design: TEA5767 has a low-power design, which can adapt to various low-power equipment and is suitable for long-term continuous use.

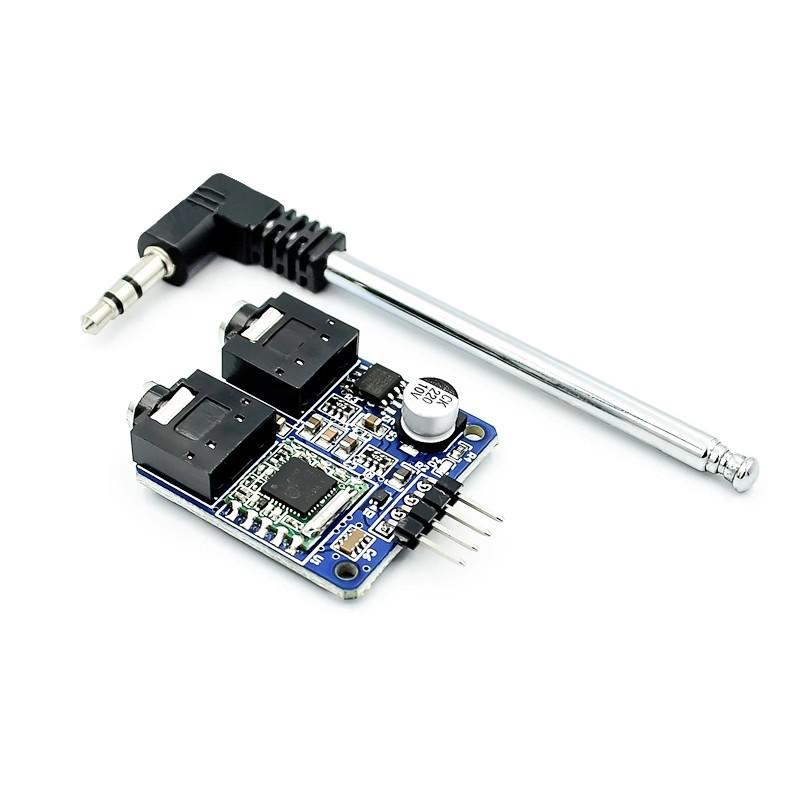

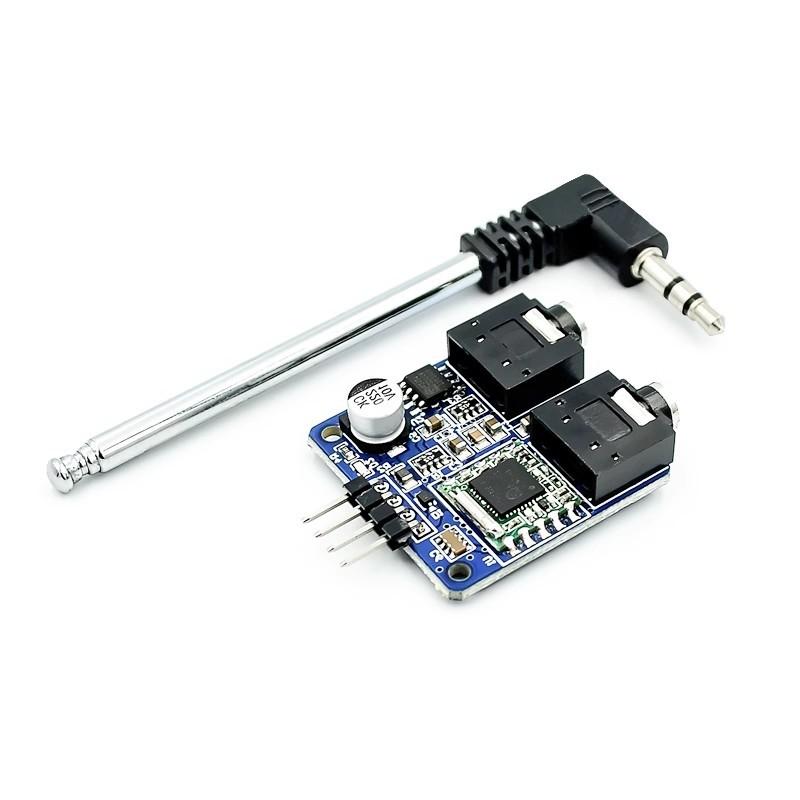

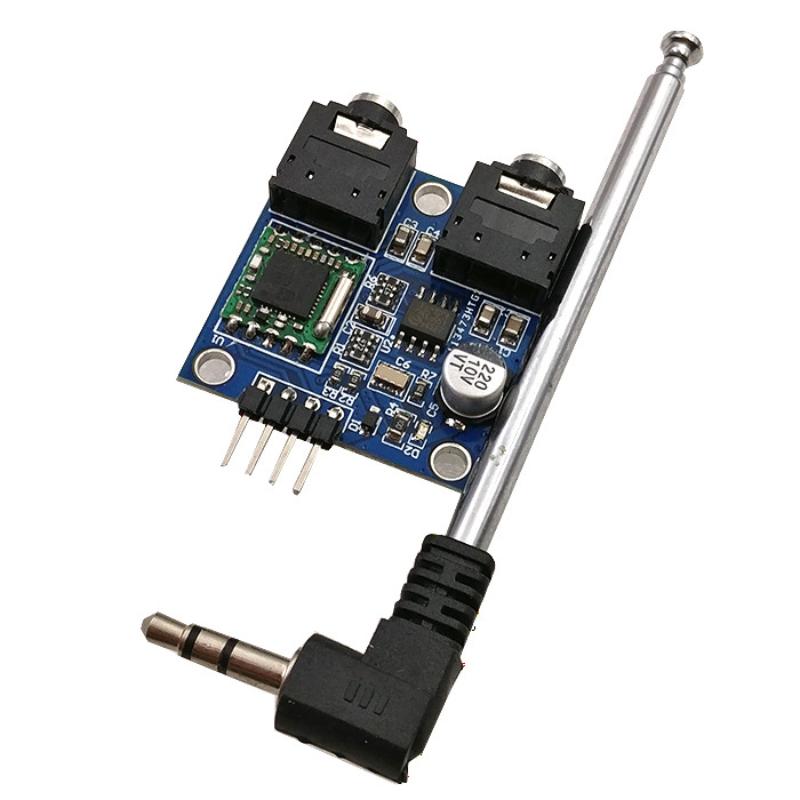

TEA5767 Radio Module
Automatic digital tuning from 76-108MHz. High sensitivity, high stability, low noise. A low-power electrically tuned FM stereo radio circuit with integrated intermediate frequency selection and demodulation networks,
allowing for completely tune-free operation.
High sensitivity (using a low-noise RF input amplifier)
Frequency range from 76-108MHz
Automatic gain control (AGC) circuit for high-frequency amplifier
Low-cost fixed-chip for LC tuning oscillation
Internal IF selection for FM, IF tuning-free
PLL tuning system
Soft mute, stereo noise cancellation (SNC), high-level cutoff (HCC) can be turned off via bus
Power supply: 5V
Board size: 31 x 30 mm
Includes reverse power protection diode
On-board power output filter inductor
Multiple capacitors for filtering
Blue power indicator light
Directly pluggable antenna port
I2C bus communication
FM dedicated chip module TEA5767
Tone amplifier chip TDA1308 for audio amplification
On-board 3.5mm audio jack for direct connection to headphones, amplifiers, etc.
Communication with a microcontroller requires only power, ground, and two I2C communication lines.

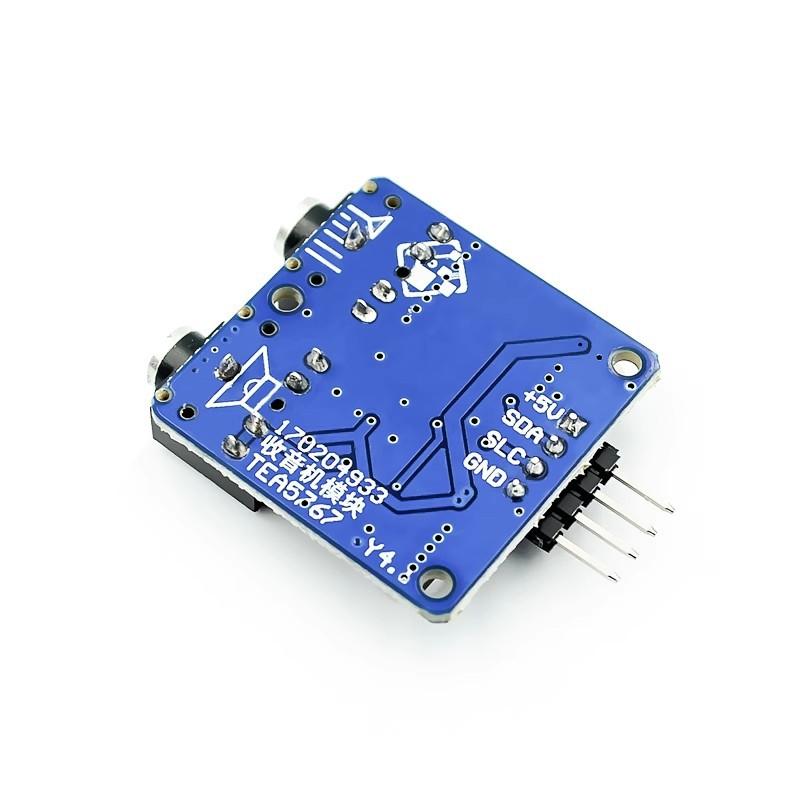

On the back of the circuit board, there are labels indicating the I2C interface definition, power interface definition, audio output, and antenna interface.
Color:As shown in the figure
Size:As shown in the figure
Package Includes:1Set
Note:
1. The color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2. Please allow slight manual measurement deviation for the data.
