STRONG MATERIAL: The wind cup is made of excellent ABS material, with high strength, small starting wind speed, and good erosion resistance
INTERFERENCE RESISTANT: The wind speed sensor has strong prevent interference ability, small and lightweight, easy to carry and assemble
WIRING MODE: The wind speed monitoring sensor is compatible with two cable outlet modes, including bottom cable outlet and side cable outlet

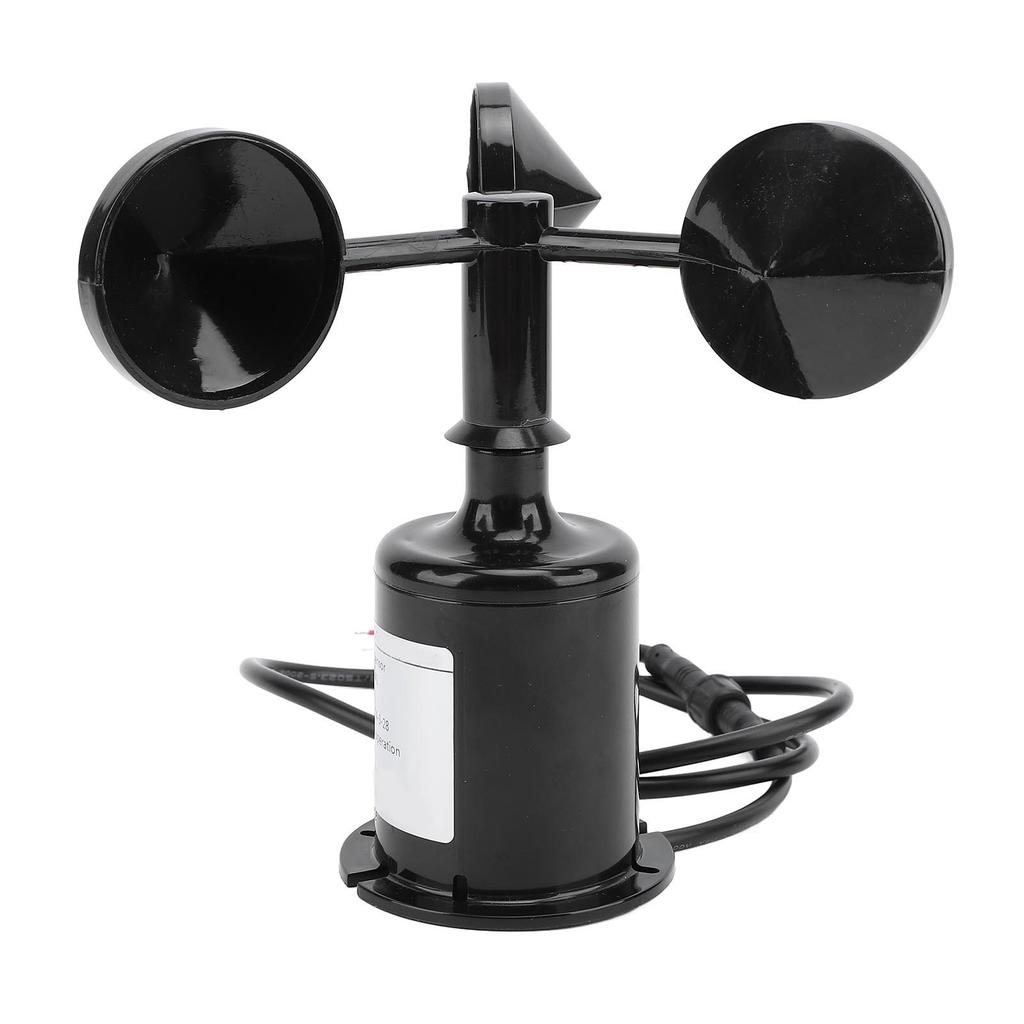

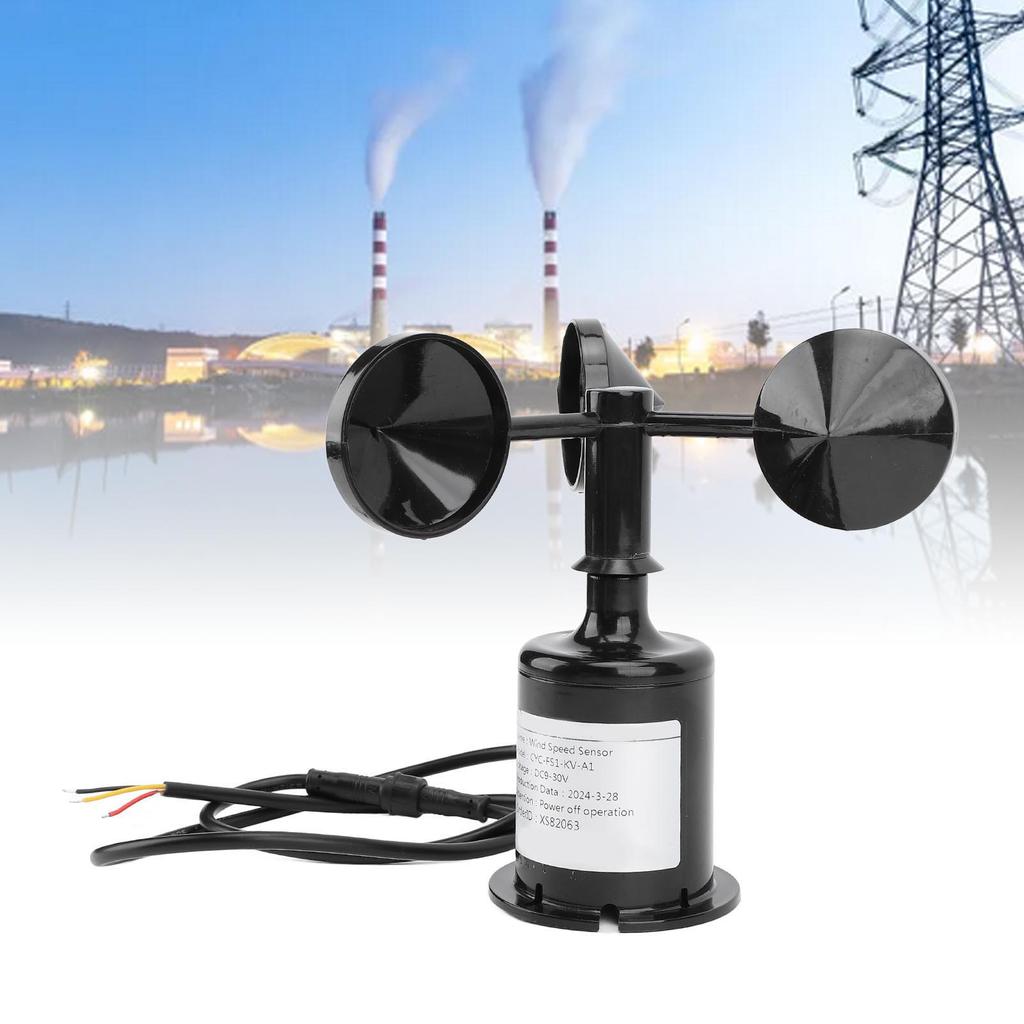

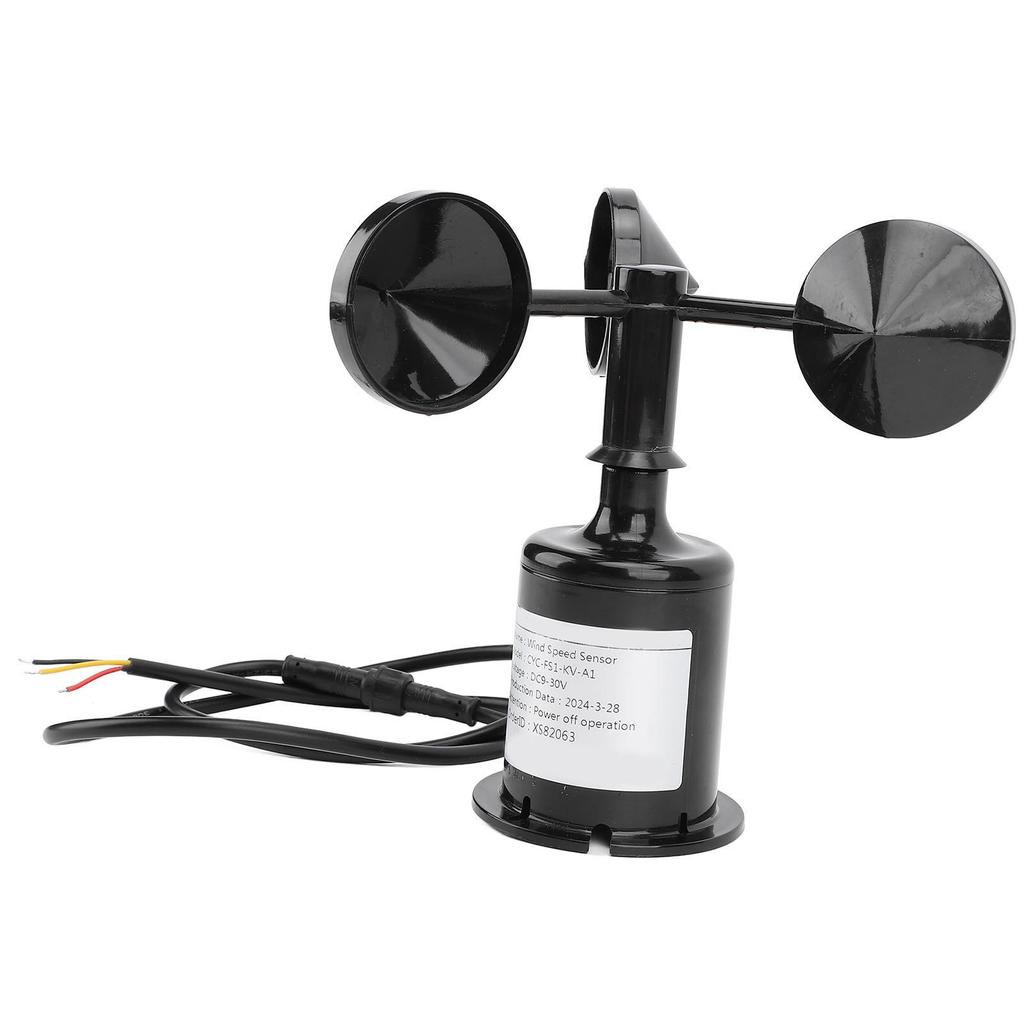

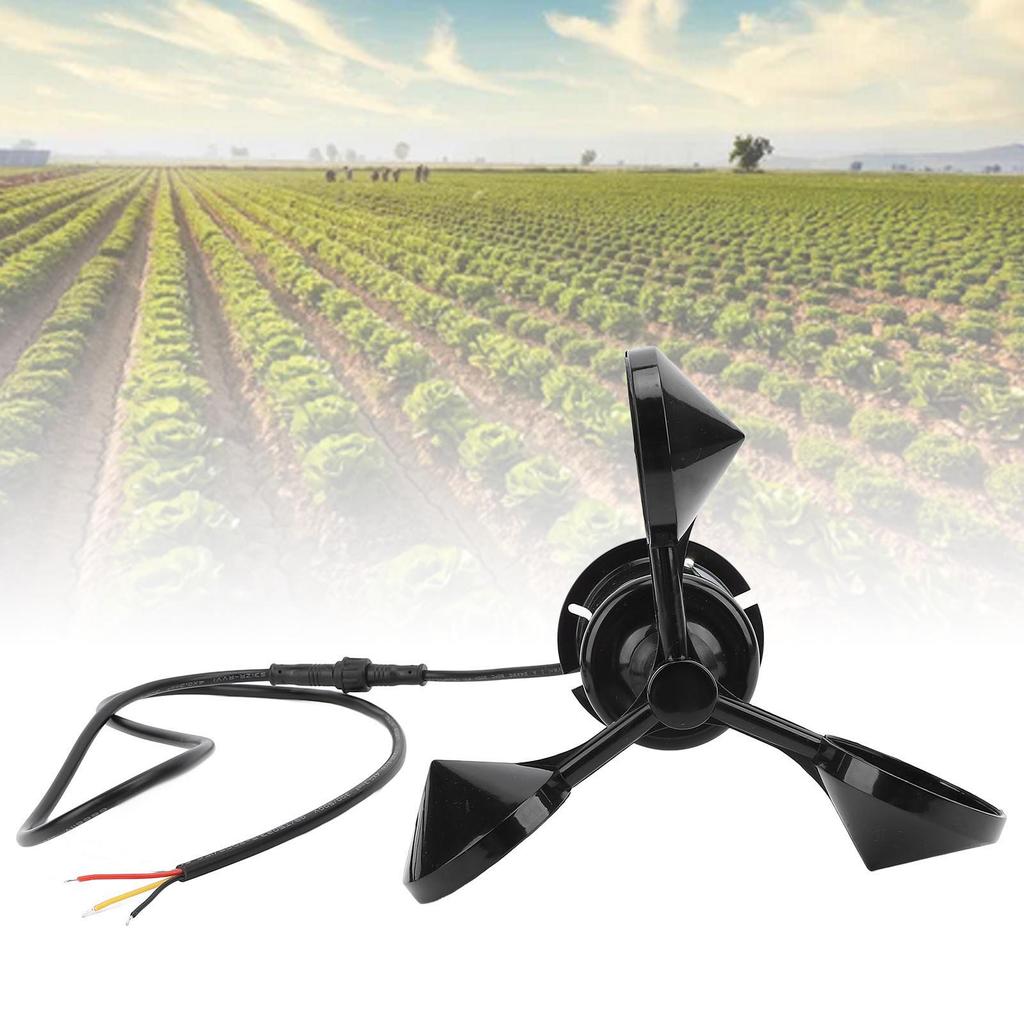

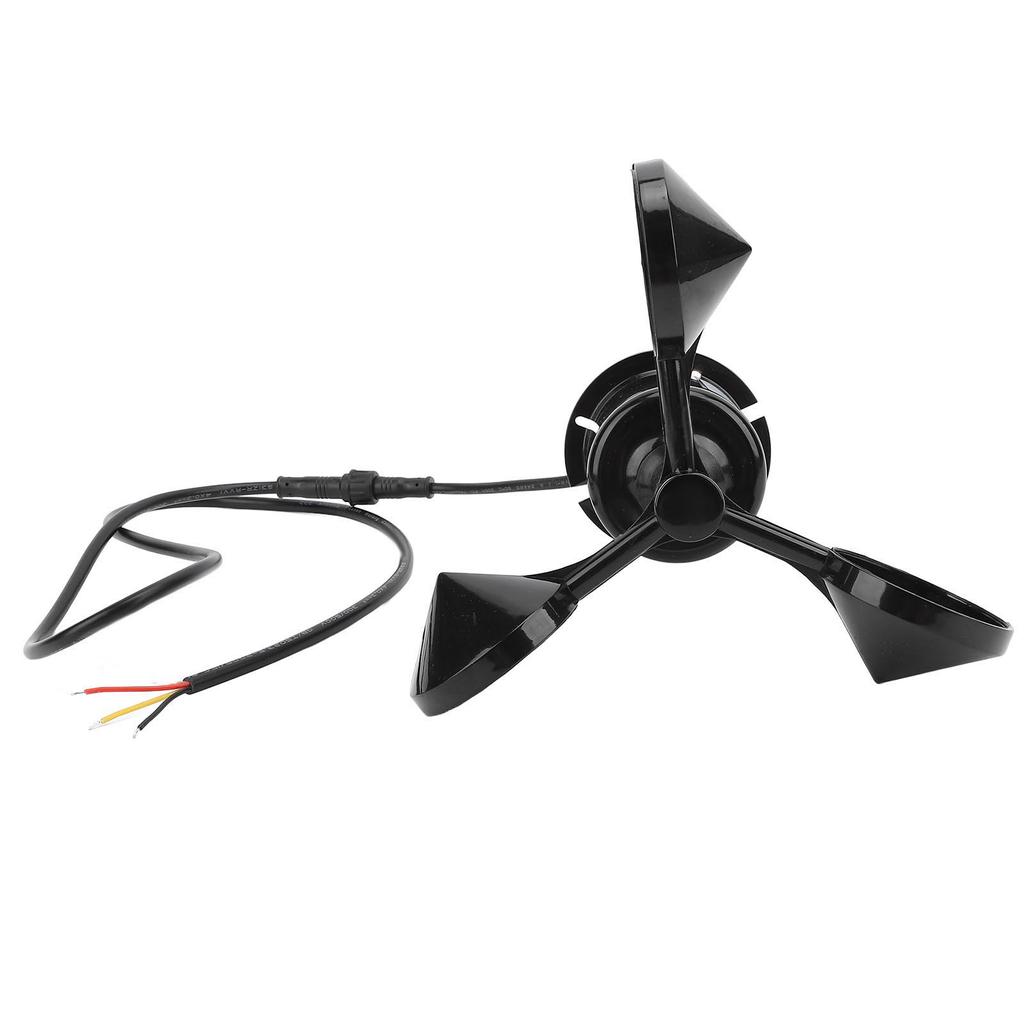

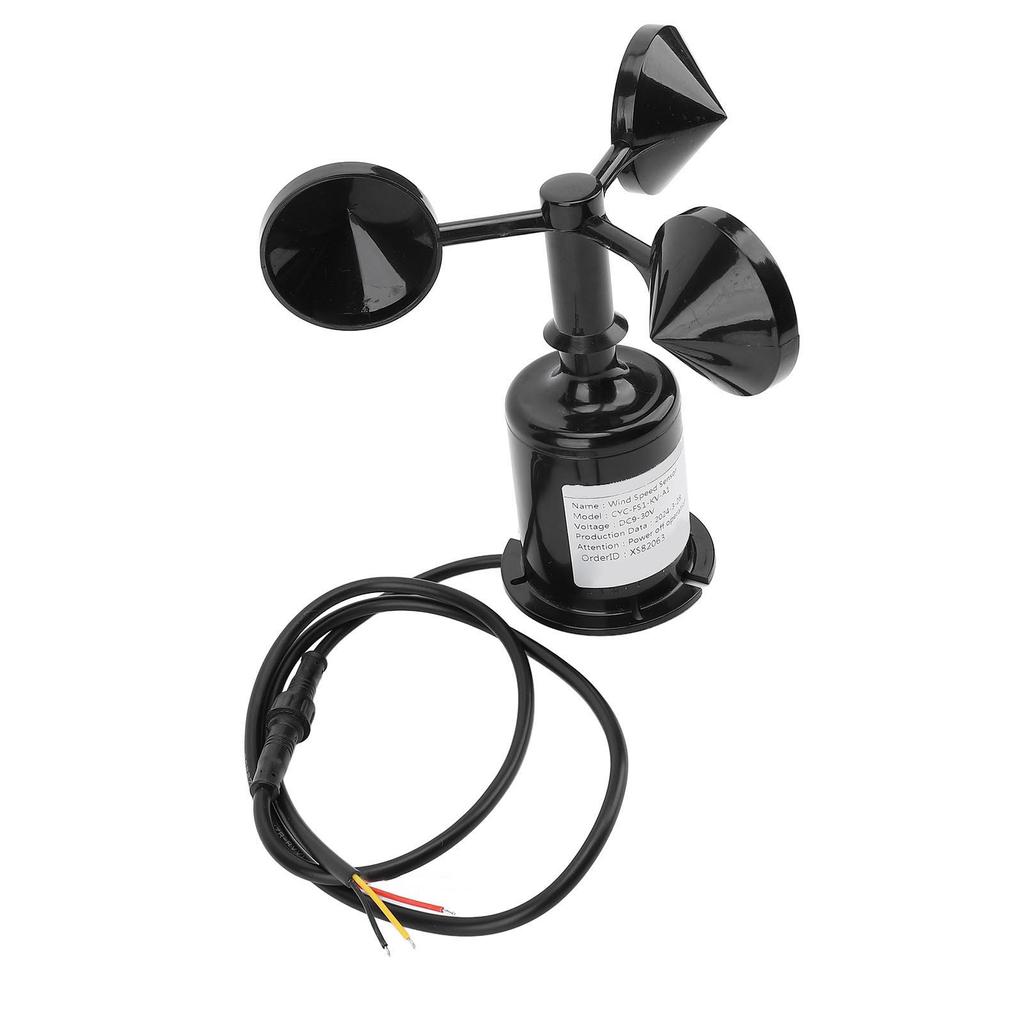

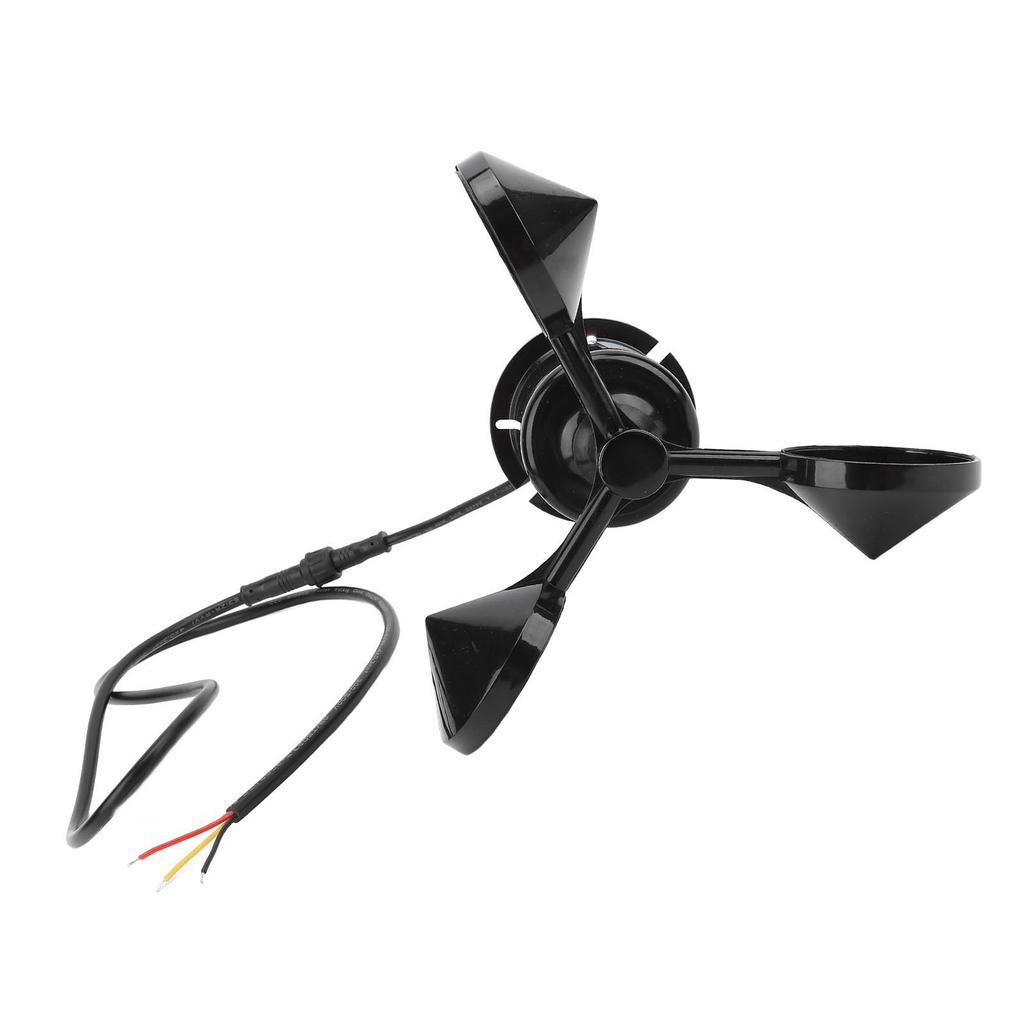

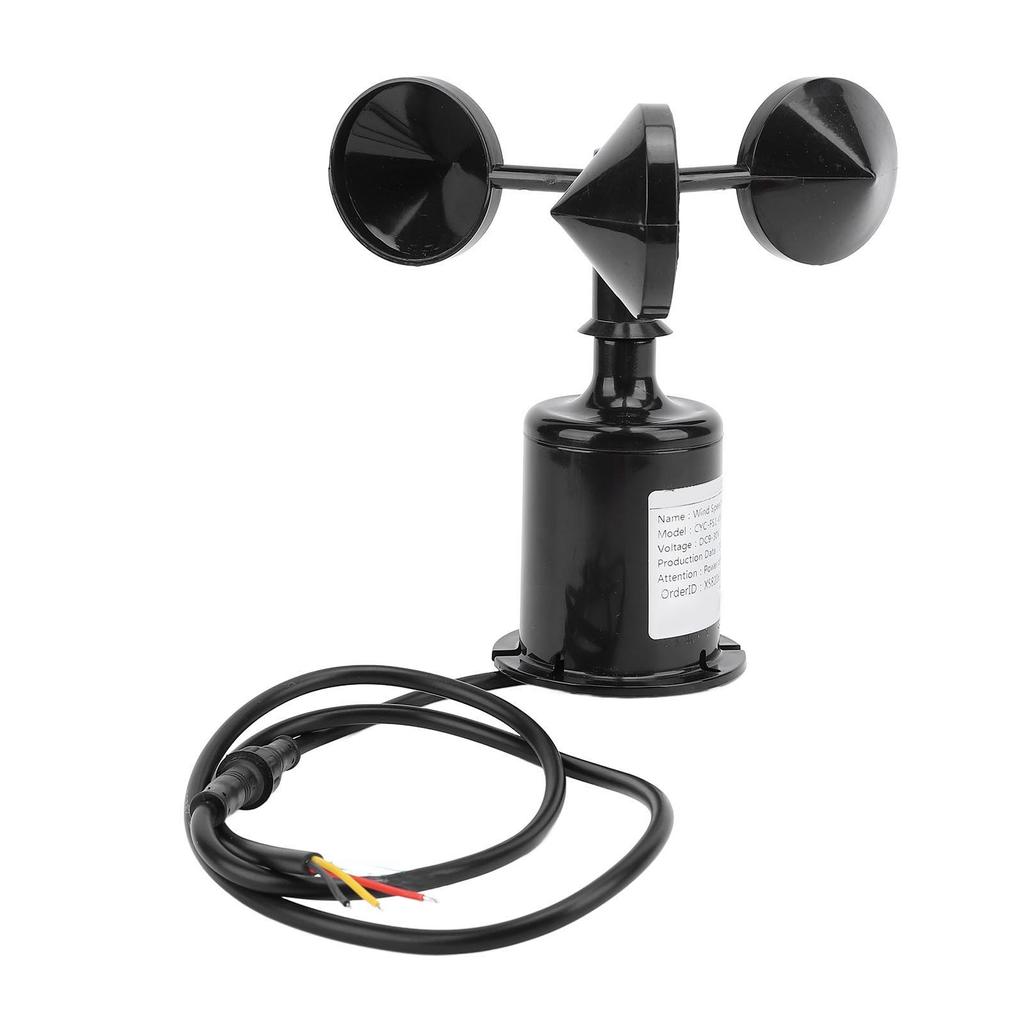

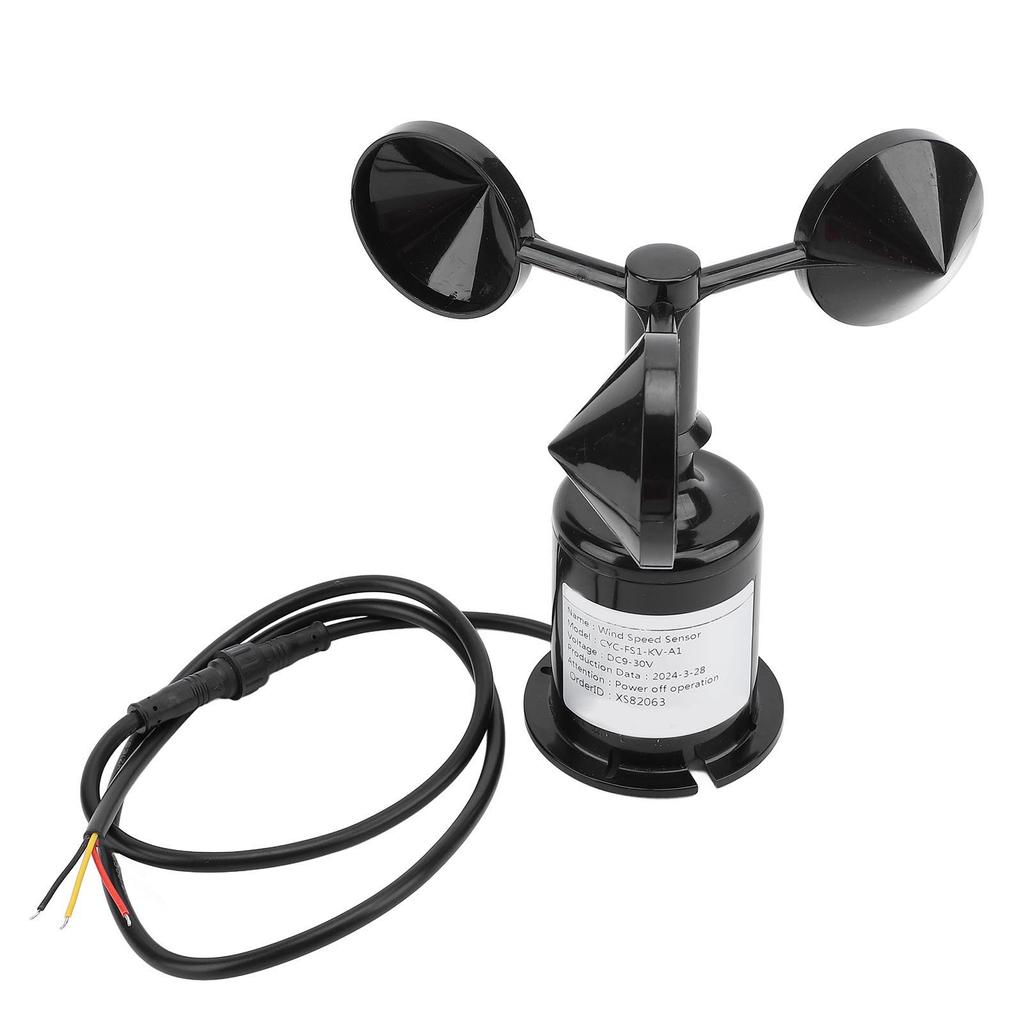

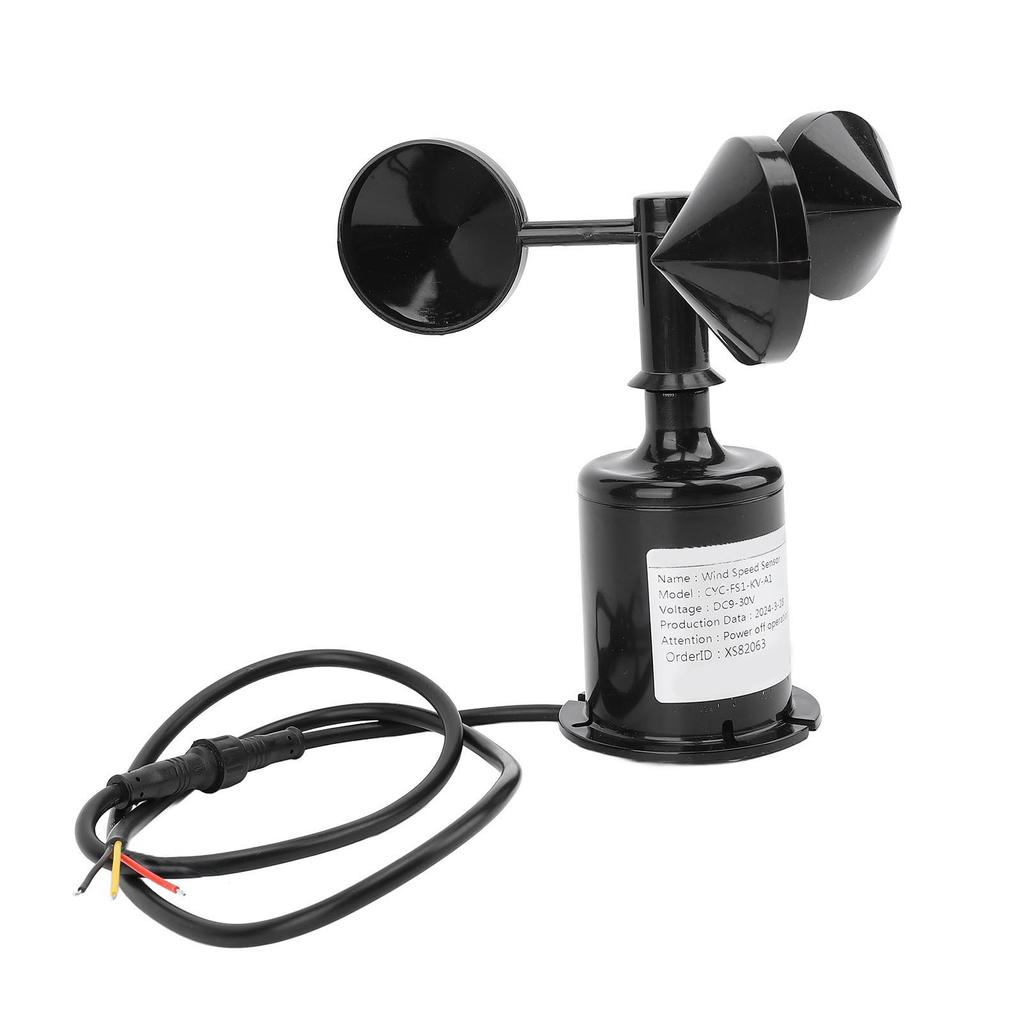

Item Type: Wind Speed Monitoring Sensor
Material: ABS
Size: Approx. 158 x 180 x 70mm Celsius 6.22 x 7.09 x 2.76in
Power Supply Voltage: 9-30V
Signal Output: 4-20mA
Measurement Range: Wind speed 0.45mCelsiuss
Extension Line Length: Approx. 0.8m Celsius 2.6ft
Accuracy: +Celsius-(0.5+0.02V)mCelsiuss(V represent real time wind speed value)
Resolution: 0.1mCelsiuss
Startup Wind Speed: less than 0.8mCelsiuss
Maximum Power Consumption: 0.48W
Load Capacity:
12V power supply, current output impedance less than 350 Ohm
24V power supply, current output impedance less than 900 Ohm , voltage output impedance more than 1K Ohm
Working Environment: Temperature: -35 celsius .60 celsius , Humidity: less than 100% non condensing
: IP64
Widely Used In: Greenhouses, environmental , ships, docks, aquaculture, advertising gate barriers, weather, marine, environmental, airports, ports, laboratories, industrial, agricultural and traffic environments for wind speed measurement
: 4-20mA: F=(I-4)Celsius16xA+B
F: Wind speed, mCelsiuss;
I: Sensor output current value, mA;
A: Sensor range width(range upper limit minus lower limit);
B: Minimum value of sensor range(lower limit of range);
Wire Connection :
Red Output Signal(voltage): Power supply positive
Black Output Signal(voltage): Power supply negative
Yellow Output signal(voltage): Signal
Distribution Diameter: Approx. 63mm Celsius 2.48in
Mounting Hole Diameter: Approx. 3.2mm Celsius 0.13in
Aerial Plug Diameter: Approx. 15mm Celsius 0.59in(recommended to reserve 25mm for wiring, wire connection first, then install and fix the sensor)
Troubleshooting:
1. The wind blade does not rotate smoothly and has a large delay. There may be foreign objects or jamming in the bearings due to term use. Please return the sensor to the company for processing;
2. The instrument display value is incorrect. May be due to wiring problems or communication port failures that prevent obtaining correct data. Please check whether the wiring is correct and secure, whether the port is occupied, and whether the port settings are correct;
Weight: Approx. 272.00g Celsius 9.59oz
